Bently Nevada 3500/25 149369-01 Maintenance-Ready Spare 3500

Bently Nevada 3500/25 149369-01 Maintenance-Ready Spare 3500 Series: Spare Replacement and Industrial Downtime Risk Control

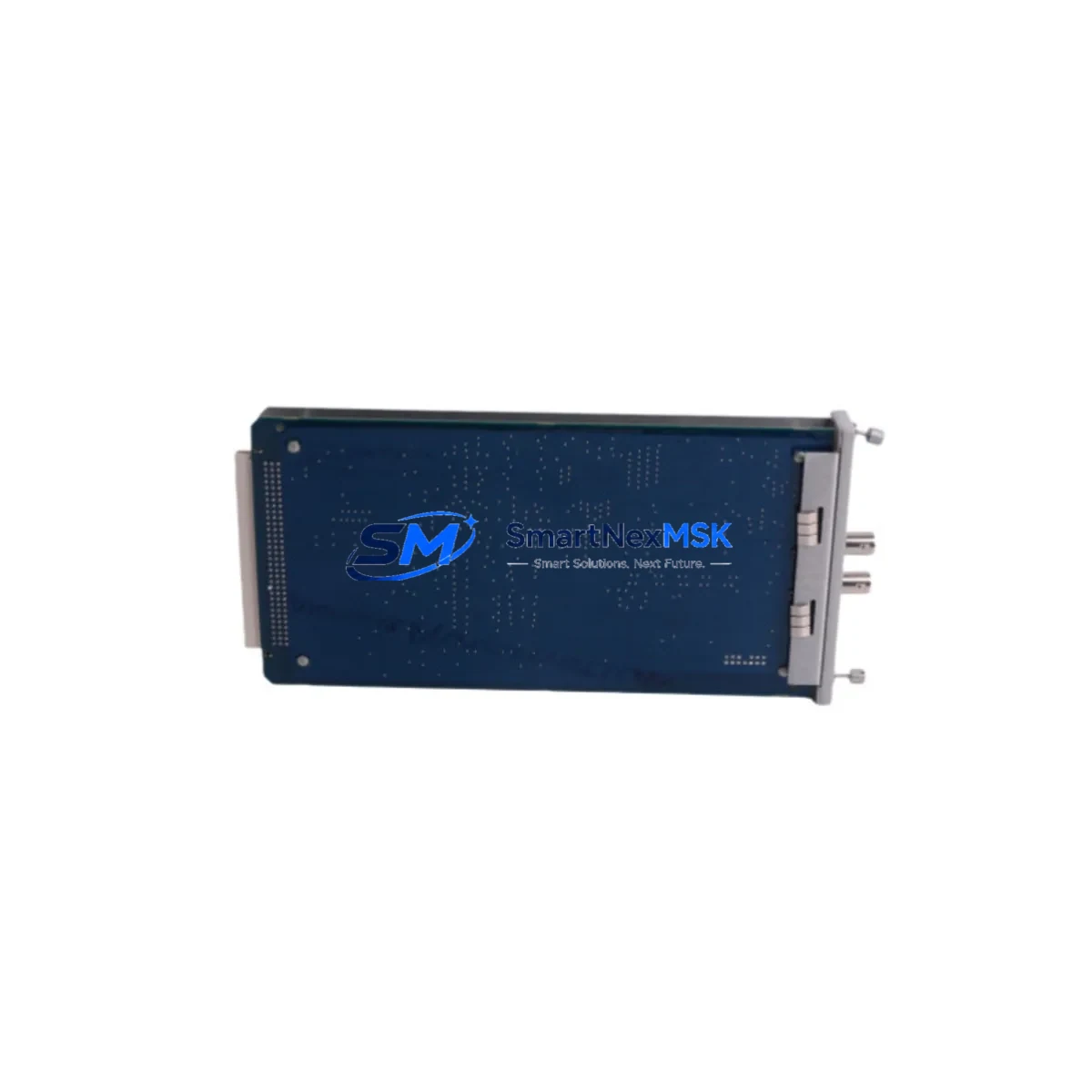

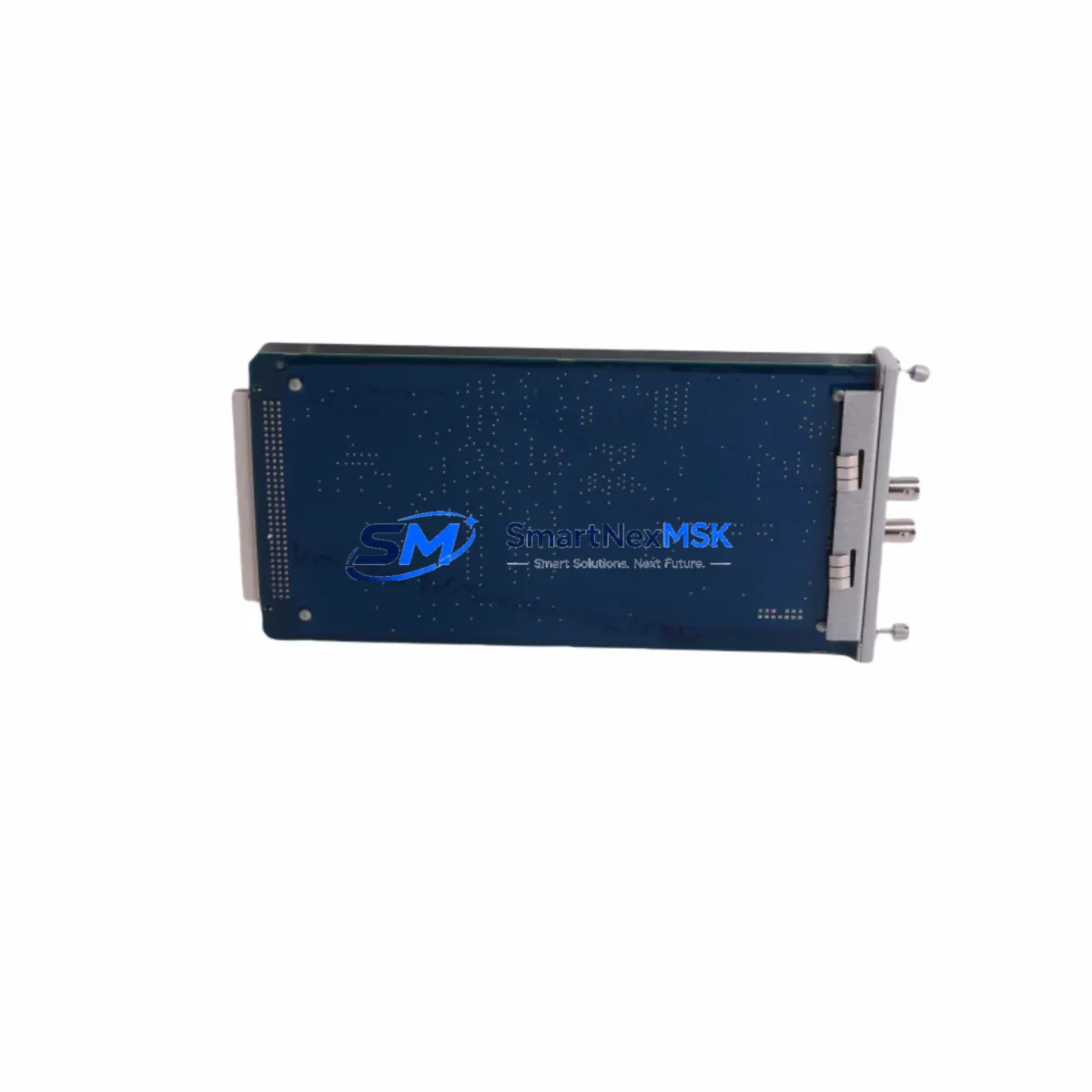

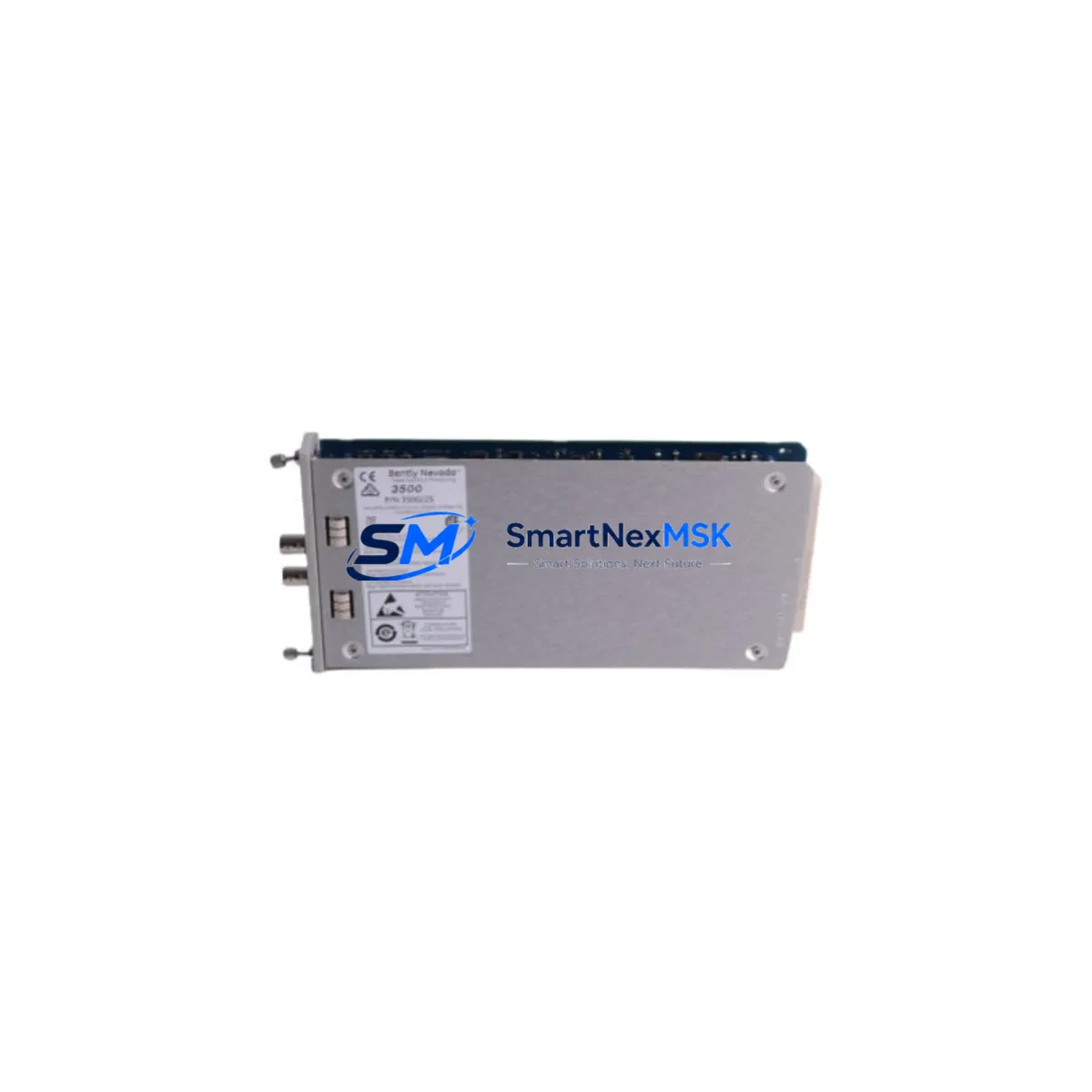

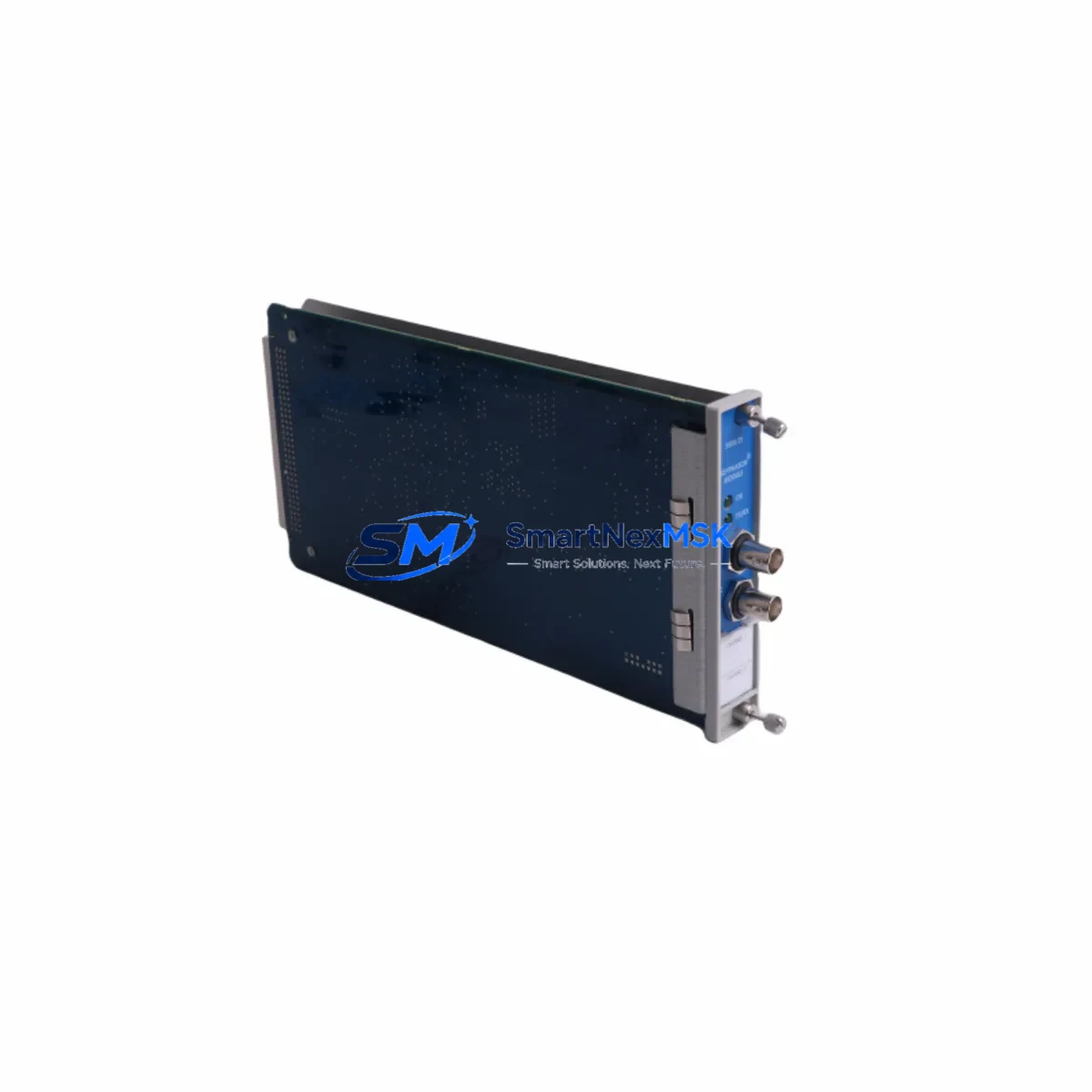

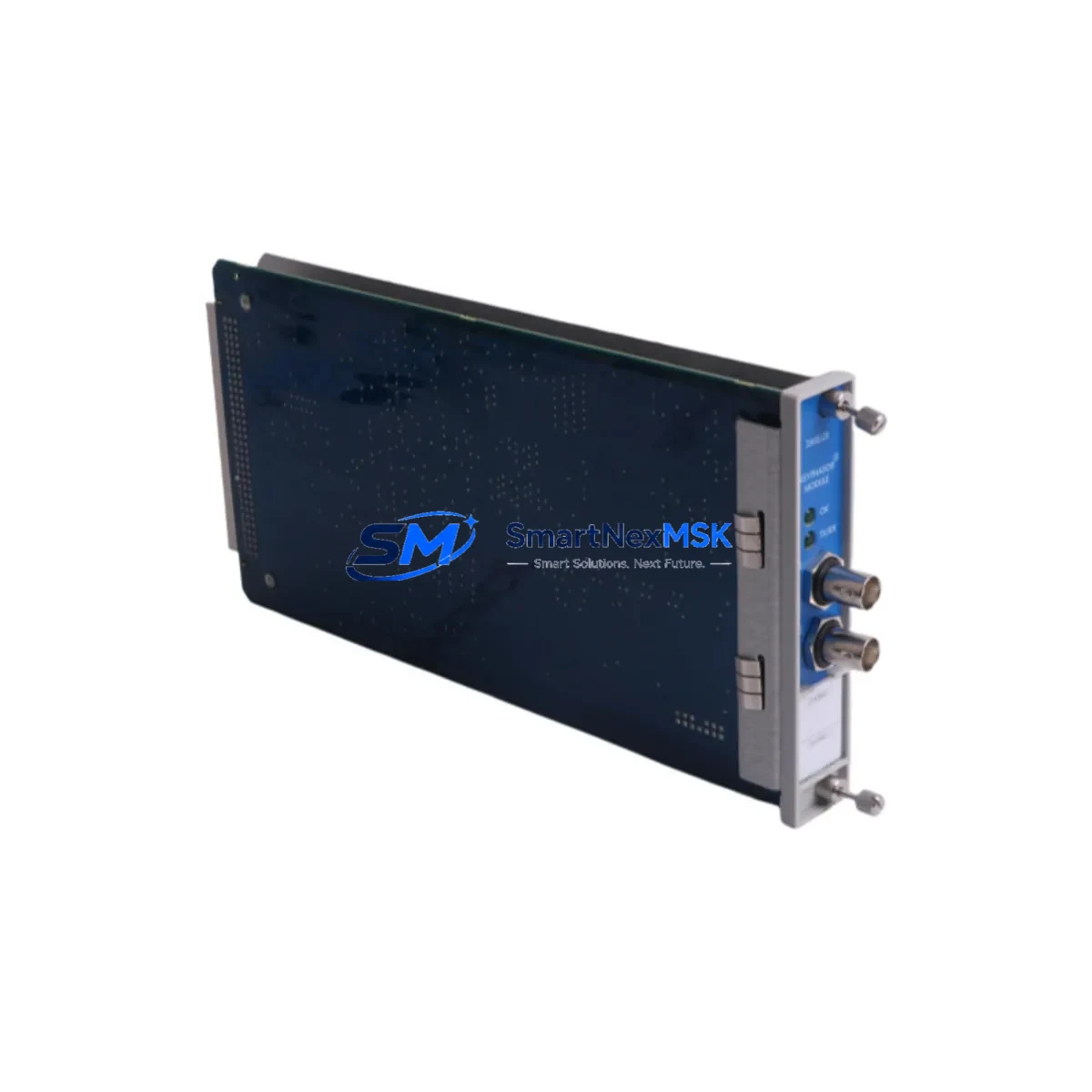

The Bently Nevada 3500/25 149369-01 is a Keyphasor Module designed for use within the 3500 Series Machinery Protection System (MPS). As a critical timing reference component, the Keyphasor module provides the phase reference signal required by the 3500 Series monitors — including vibration, position, and speed monitors — to perform accurate vector measurements and machinery diagnostics. Maintaining an original spare of the 3500/25 149369-01 in your parts inventory is a fundamental requirement for any facility operating rotating machinery under continuous protection.

For maintenance engineers and procurement teams managing turbines, compressors, pumps, or generators protected by Bently Nevada 3500 Series systems, the availability of a verified, tested replacement module directly determines how quickly a tripped or degraded protection system can be restored to full operational status. Unplanned downtime caused by a failed Keyphasor module can cascade into extended outages if a qualified spare is not on hand. SMARTNEXMSK supplies original 3500/25 149369-01 modules with full functional testing, secure packaging, and 12-month warranty coverage to support your maintenance readiness strategy.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3500/25 149369-01 Keyphasor Module during a planned or emergency maintenance event, a thorough inspection of the surrounding system components is essential to ensure the root cause of any fault is fully addressed and to prevent repeat failures. Maintenance engineers should treat a Keyphasor module replacement as an opportunity to audit the entire signal chain and rack health.

Begin by inspecting the Keyphasor proximity probe and extension cable (typically a 3300 XL 8mm or 5mm eddy-current probe assembly) for physical damage, connector corrosion, or impedance drift. A degraded probe will produce an unreliable phase reference even after the module is replaced. Verify the probe gap setting against the manufacturer’s specification for the target material and shaft diameter.

Next, check the 3500/15 Power Supply Module or 3500/05 Rack Interface Module for stable DC rail output. Voltage fluctuations on the backplane can cause intermittent Keyphasor signal errors that are misdiagnosed as module failures. If the rack has been in service for more than five years, consider scheduling a power supply module inspection alongside the Keyphasor replacement.

Review the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor channel configurations to confirm that Keyphasor assignments are correctly mapped after module reseating. Any vibration or position monitor in the rack that references the Keyphasor channel must be re-verified for correct phase angle and gap voltage readings following the replacement.

Inspect all terminal board connections — particularly the 3500/25 Keyphasor terminal board — for loose wiring, oxidized terminals, or moisture ingress. Terminal boards in high-vibration or high-humidity environments are prone to intermittent contact faults that can mimic module failures. Clean and re-torque all signal and shield connections per the wiring diagram.

If the 3500 Series rack includes a 3500/92 Communication Gateway Module or 3500/93 Communication Gateway Module for Modbus, Ethernet, or OPC connectivity to a DCS or SCADA system, verify that the gateway configuration is intact and that the Keyphasor channel data is correctly mapped in the communication table after the module swap. A configuration mismatch can result in false alarms or missing data at the control room level.

For facilities using signal isolators or barriers between the 3500 rack and field wiring — particularly in hazardous area installations — inspect the isolator modules for correct signal pass-through and verify that the Keyphasor signal amplitude and frequency are within the isolator’s rated input range. Replacing the Keyphasor module without checking the isolator can result in continued signal degradation.

Finally, update the maintenance log with the replacement date, module serial number, and post-installation test results. A documented spare parts history supports long-term reliability analysis and helps justify future capital spares budgets to plant management.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed or degraded module part number as 149369-01 and verify rack slot assignment. Download or print the current rack configuration from the 3500 Rack Configuration Software before any hardware changes.

Step 2 — Safe Isolation: Notify the control room and obtain a permit to work. The 3500 Series supports hot-swap of individual modules without full rack power-down in most configurations; confirm this with your site safety procedure before proceeding.

Step 3 — Module Removal: Loosen the front-panel captive screws, extract the 3500/25 module, and immediately inspect the backplane connector for bent pins or contamination.

Step 4 — Replacement Installation: Insert the new 3500/25 149369-01 module firmly into the rack slot. Secure the captive screws. The module will initialize automatically and begin acquiring the Keyphasor signal within seconds.

Step 5 — Signal Verification: Using the 3500 Rack Configuration Software or the front-panel display, confirm that the Keyphasor gap voltage is within the specified range (typically –10 VDC ±1 V for standard eddy-current probes) and that the phase reference signal is stable. Verify that all dependent monitors are displaying correct vector readings.

Step 6 — System Handback: Confirm with the control room that all alarm and trip setpoints are active and that the machinery protection system is fully operational. Update the maintenance management system with the completed work order.

This workflow is compatible with legacy 3500 Series racks and supports system continuity without requiring firmware upgrades or rack reconfiguration in standard replacement scenarios. The 3500/25 149369-01 is a direct form-fit-function replacement for earlier revisions of the Keyphasor module used in the same rack family.

Spare Parts Support FAQ

Q1: Is the 3500/25 149369-01 compatible with all 3500 Series rack configurations?
The 3500/25 149369-01 is designed for use in the standard Bently Nevada 3500 Series 19-inch rack chassis. It is compatible with all standard 3500 Series monitor modules that require a Keyphasor reference input. If your rack uses a non-standard or customized backplane configuration, contact our technical team with your rack layout before ordering.

Q2: What testing is performed before shipment?
Each 3500/25 149369-01 module supplied by SMARTNEXMSK undergoes functional verification including power-up self-test, signal input/output continuity, and backplane interface check. Modules are shipped in anti-static packaging with a test report. The 12-month warranty covers functional failure under normal operating conditions from the date of shipment.

Q3: How should I manage long-term spare parts inventory for the 3500 Series?
For facilities with multiple 3500 Series racks, we recommend maintaining at least one 3500/25 Keyphasor module per site as a critical capital spare. Given the age profile of many 3500 Series installations, sourcing original modules is becoming increasingly time-sensitive. SMARTNEXMSK offers long-term supply agreements and reserved stock programs for B2B customers managing large installed bases of legacy Bently Nevada equipment.

Q4: Can you supply other 3500 Series modules alongside the 3500/25 149369-01?
Yes. SMARTNEXMSK maintains inventory across the 3500 Series product family, including power supply modules, vibration monitors, position monitors, communication gateways, and terminal boards. If you are planning a scheduled outage or building a comprehensive capital spares kit for a 3500 Series rack, contact our team with your full BOM for a consolidated quotation.
