Bently Nevada 3500/42M 176449-02 Spare for 3500 Automation: Precision Vibration Monitoring for Industrial Uptime

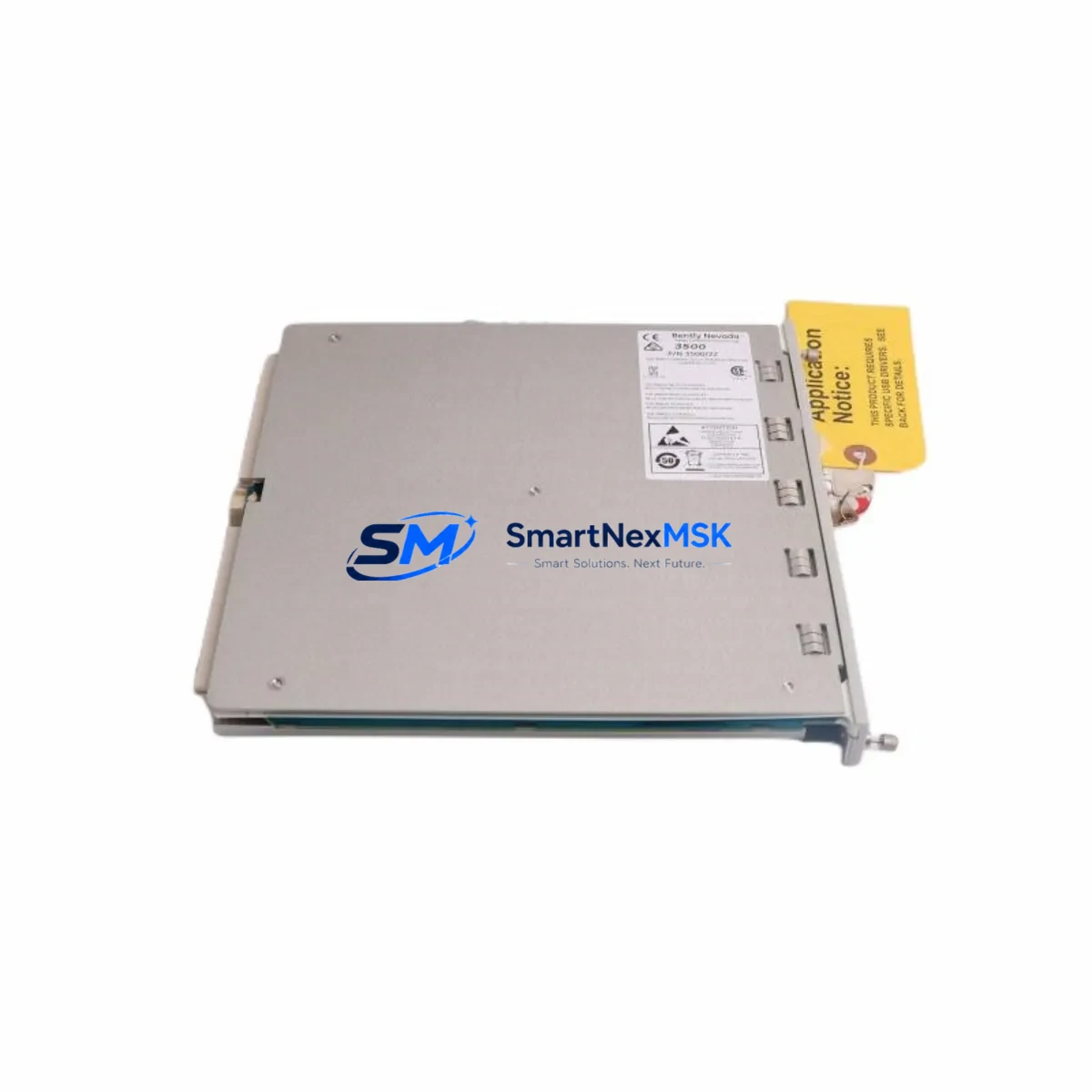

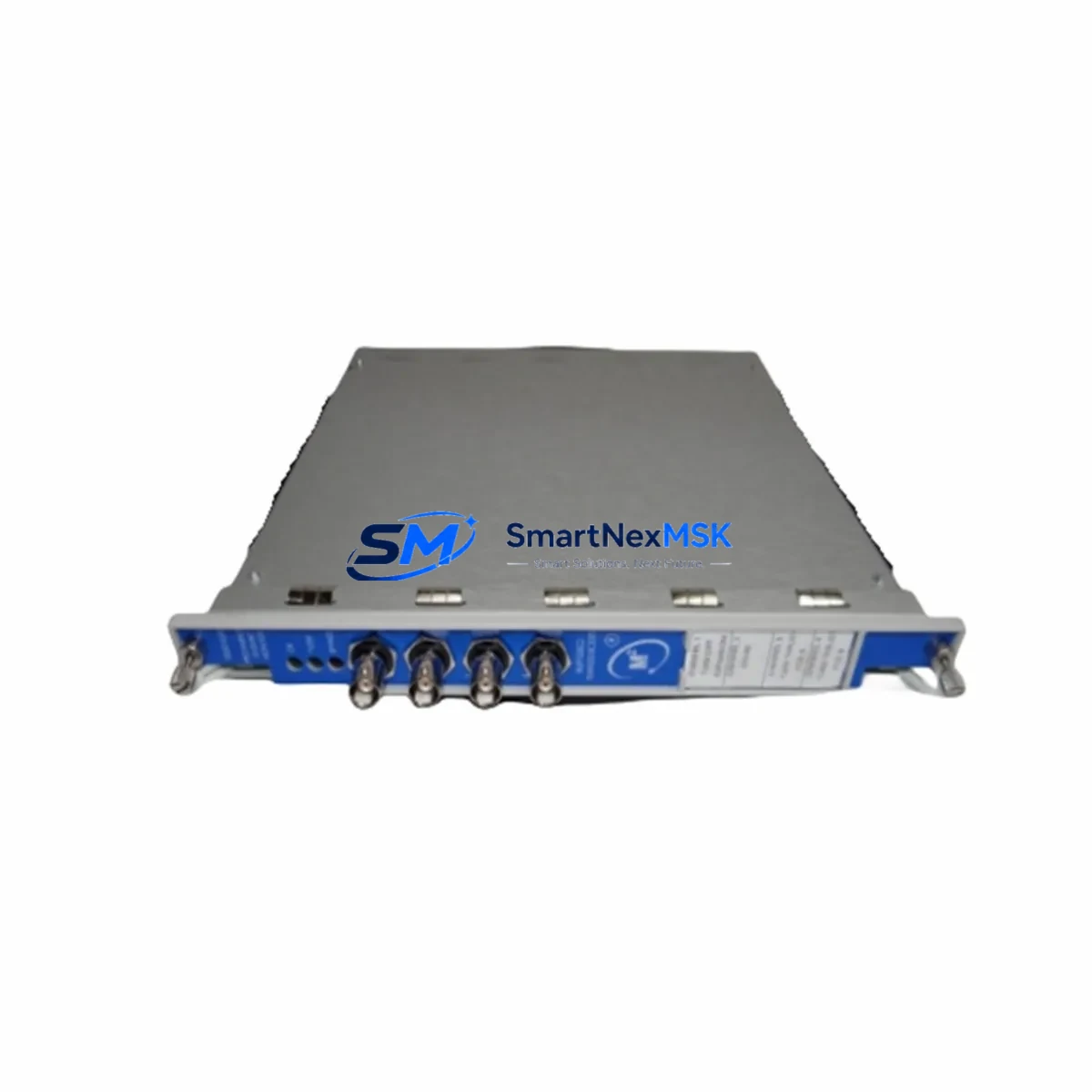

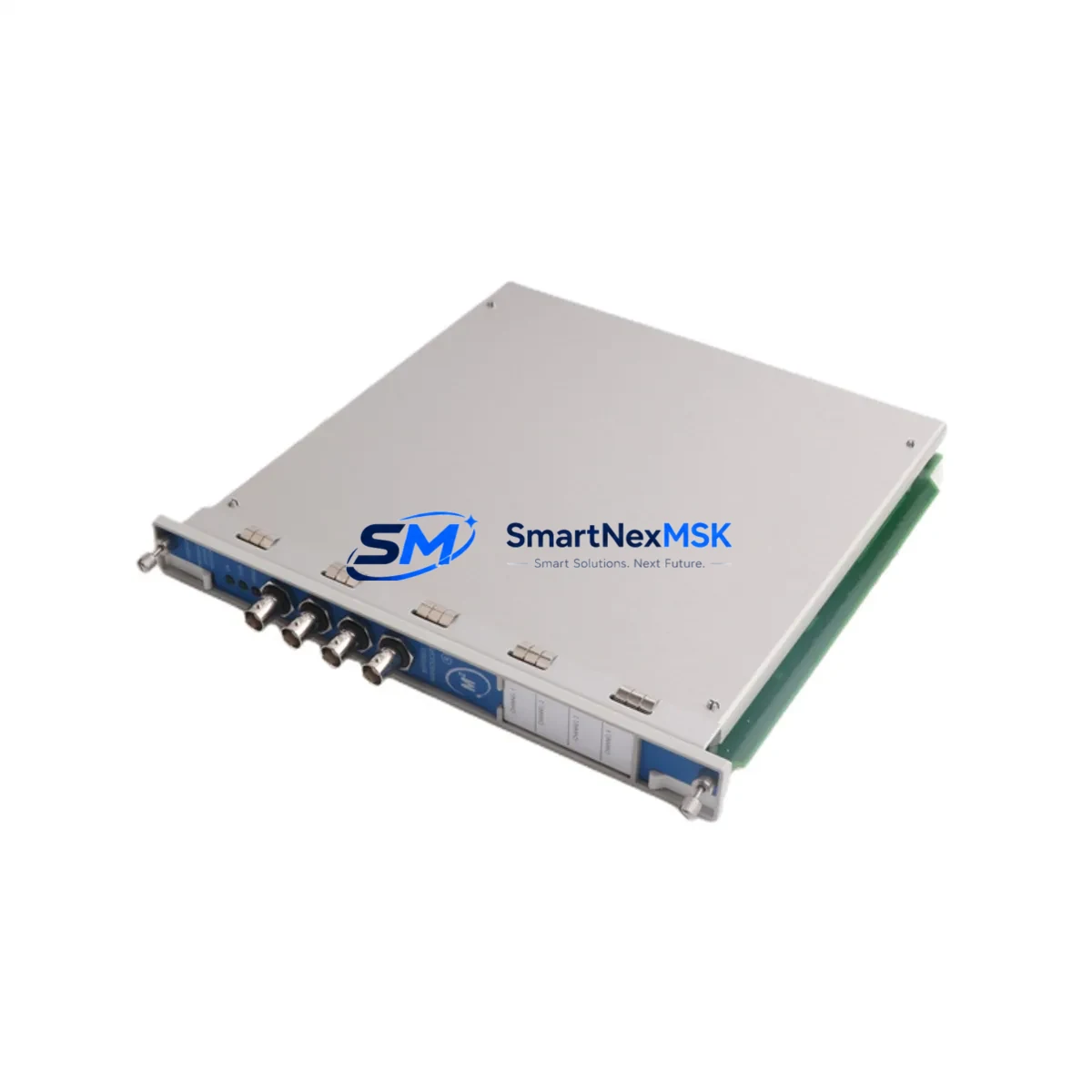

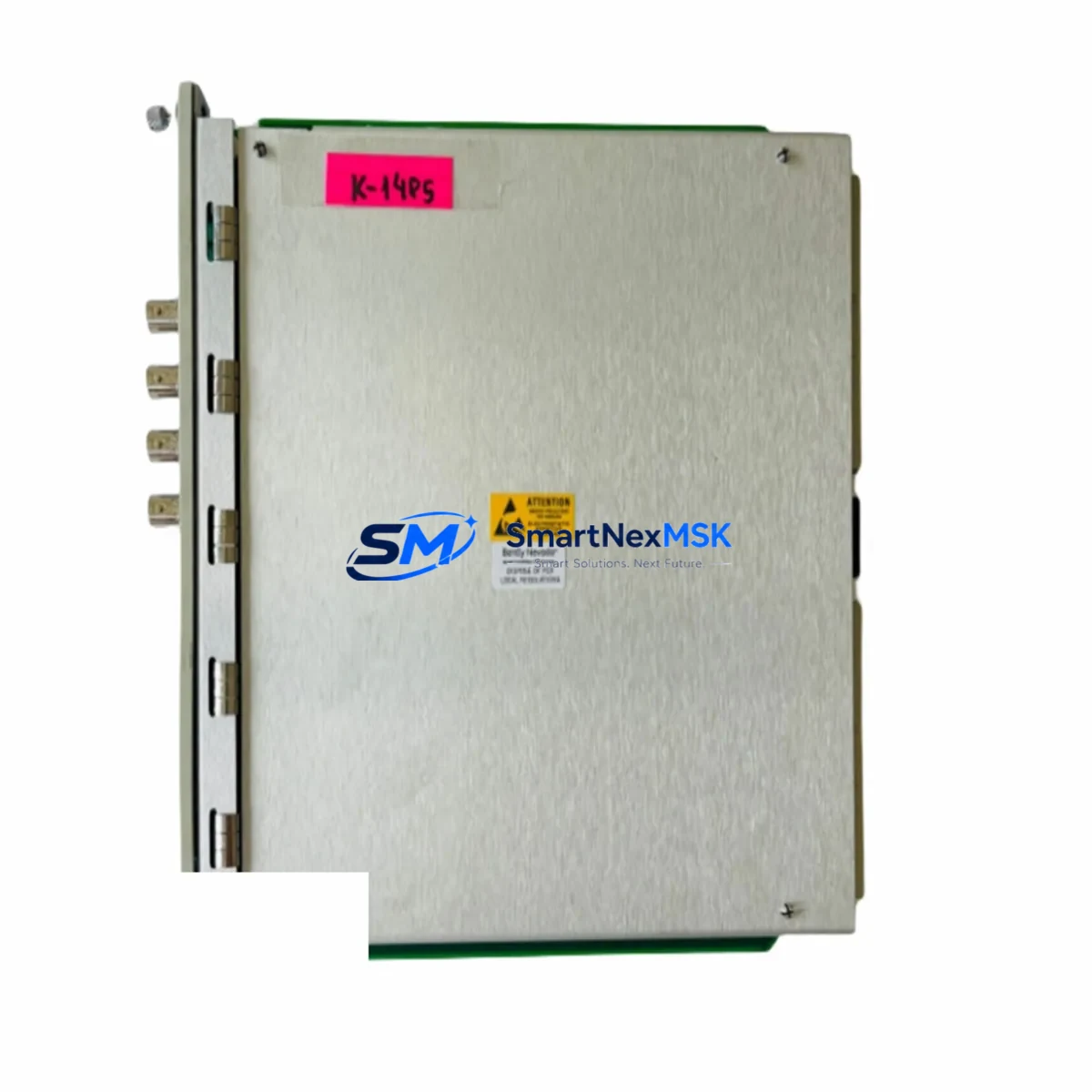

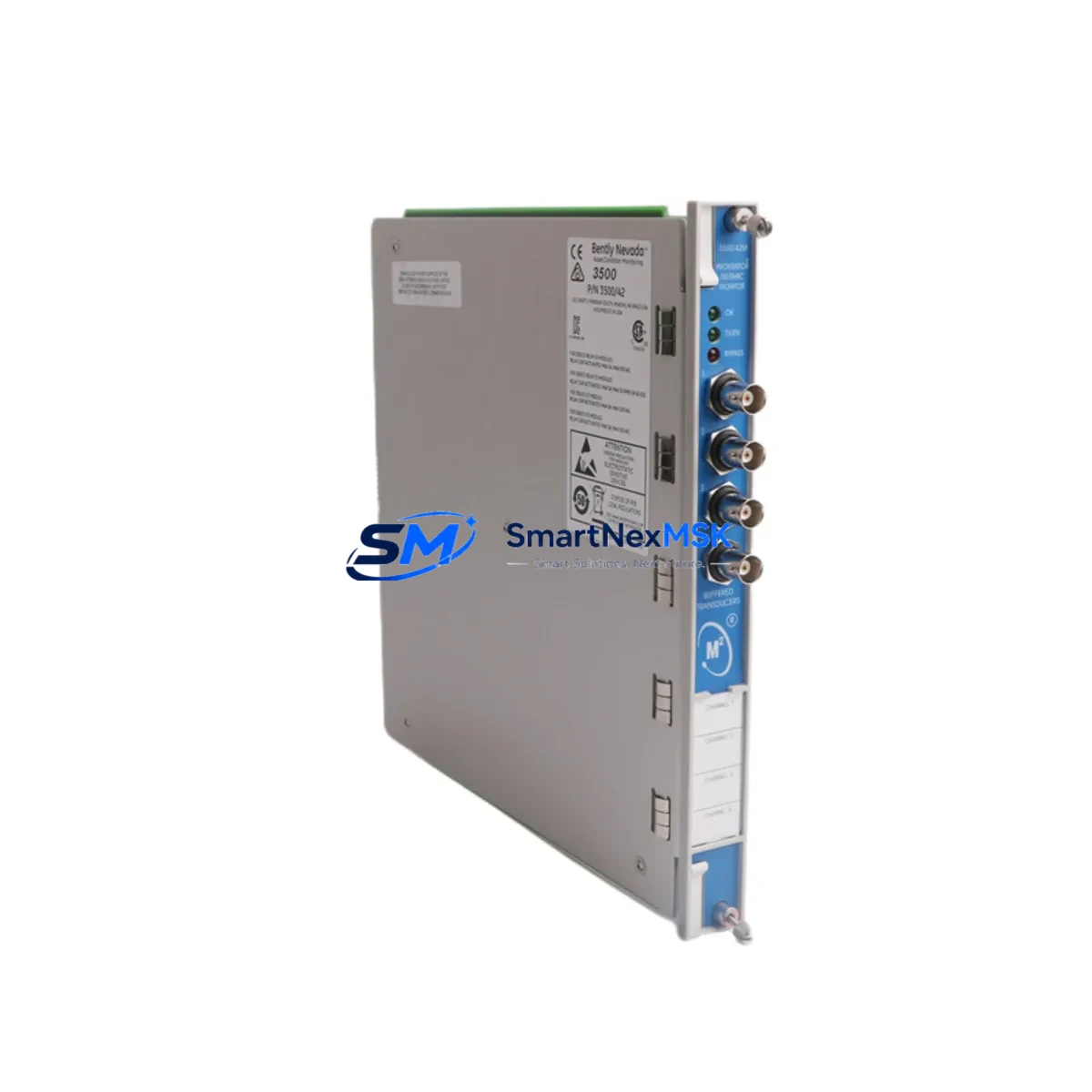

The Bently Nevada 3500/42M 176449-02 is a dual-channel proximity and seismic vibration monitor module engineered for continuous machinery protection within the Bently Nevada 3500 Series condition monitoring framework. Designed for rotating equipment such as steam turbines, gas compressors, centrifugal pumps, and large induction motors, this module provides real-time vibration amplitude measurement, alert/danger setpoint processing, and relay-driven trip output — all critical functions for preventing catastrophic mechanical failure and unplanned production shutdowns.

For maintenance engineers managing aging DCS or machinery protection systems, sourcing a verified original spare of the 3500/42M 176449-02 is a non-negotiable step in any planned outage or emergency corrective maintenance event. This module ships fully tested, function-verified, and backed by a 12-month warranty, ensuring your replacement cycle is both reliable and auditable.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3500/42M 176449-02 module is flagged during a routine control cabinet inspection or triggers a spurious alert/danger relay output, the replacement workflow must extend beyond the module itself. Experienced maintenance engineers know that vibration monitor faults are rarely isolated — they often indicate upstream transducer degradation, cable shield failures, or power supply instability within the 3500 rack.

Begin by verifying the 3500/15 Power Supply Module output voltage. A sagging –24 VDC rail is a common root cause of erratic vibration readings and false trips. If the rack houses a 3500/20 Rack Interface Module (RIM), confirm its communication link to the host DCS or historian is intact before pulling the 42M module — a RIM fault can mask or amplify apparent monitor errors.

Inspect the Bently Nevada 3300 XL Proximitor sensor and its associated extension cable for continuity and shield integrity. Damaged coaxial cable or a corroded connector at the junction box will produce gap voltage drift that the 3500/42M interprets as shaft displacement change. Replace the probe and cable assembly as a matched set when gap voltage cannot be zeroed within specification.

For seismic measurement channels, check the 330400 or 330425 seismic transducer mounting torque and base isolation. Loose mounting introduces structural resonance that corrupts the vibration baseline and can cause nuisance trips during normal load changes. Simultaneously, review the 3500/32 4-Channel Relay Module contact resistance — relay contacts that have experienced repeated trip cycling may exhibit high resistance, causing delayed or failed trip execution.

On the signal conditioning side, if the plant uses 3500/60 Temperature Monitor Modules or 3500/70 Process Variable Monitor Modules in the same rack, verify their channel health as part of the same inspection cycle. A shared backplane fault can affect multiple modules simultaneously. Also confirm that the 3500/22M Transient Data Interface (TDI), if installed, is logging waveform data correctly — TDI data is invaluable for post-event root cause analysis and should be archived before any module swap.

Procurement engineers should maintain at least one 3500/42M 176449-02 in the site spare parts inventory alongside a matched 3300 XL 8mm probe and extension cable set, a spare 3500/15 Power Supply Module, and a 3500/32 Relay Module. This four-component kit covers the majority of 3500 Series field failures and enables same-shift restoration of machinery protection coverage — a critical requirement for continuous process plants operating under API 670 machinery protection standards.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement 3500/42M 176449-02 part number and revision suffix (176449-02) match the installed module exactly. Revision mismatches between the -01 and -02 variants affect internal firmware and setpoint configuration compatibility. Do not substitute without confirming rack firmware version compatibility via the 3500 Rack Configuration Software.

Step 2 — Safe Isolation: Notify the control room and place the affected machinery protection channel in bypass mode via the 3500/20 RIM or the rack keyswitch before removing the module. Never hot-swap a 3500/42M without bypassing the trip relay — an unintended trip during module removal can cause an emergency shutdown of the protected machine.

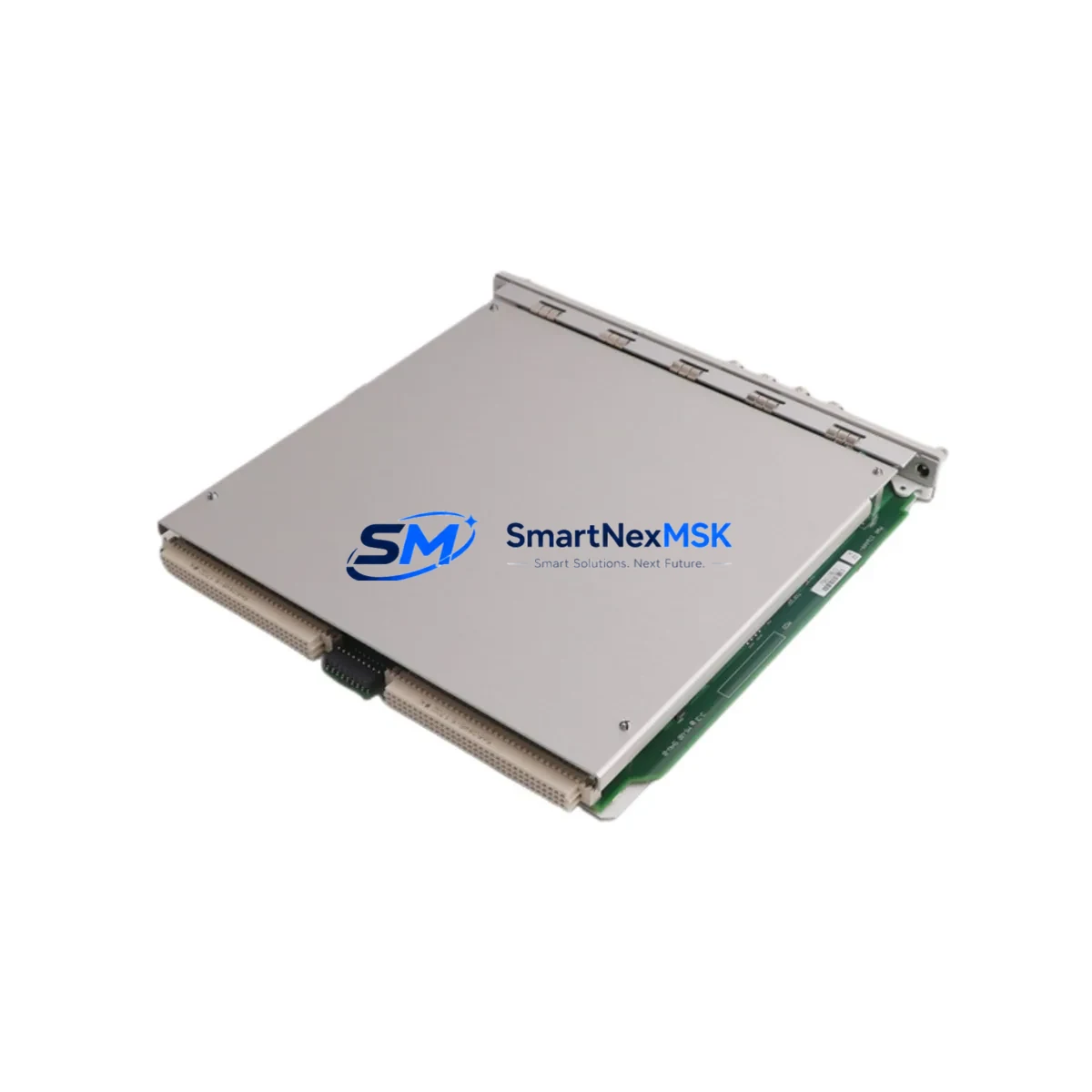

Step 3 — Module Removal and Inspection: Slide the module out of the rack slot and inspect the backplane connector pins for corrosion or mechanical damage. Clean with isopropyl alcohol if contamination is present. Inspect the rack slot for bent pins before inserting the replacement module.

Step 4 — Configuration Restore: Use the Bently Nevada System 1 Software or the 3500 Rack Configuration Software to upload the saved channel configuration (full-scale range, setpoints, transducer type, OK relay logic) to the new module. Never rely on default factory settings in a live machinery protection application.

Step 5 — Functional Test: Apply a calibrated signal from a Proximitor simulator or vibration calibrator to verify alert and danger setpoint relay operation before returning the channel to service. Document the as-left gap voltage and vibration reading in the maintenance management system.

Step 6 — Return to Service: Remove the bypass, confirm OK relay status on the front panel LED, and verify DCS historian is receiving valid channel data. Archive the replaced module with a fault tag for depot repair or disposal.

Spare Parts Support FAQ

Q1: Is the 3500/42M 176449-02 compatible with both proximity and seismic transducer inputs?
Yes. The -02 variant of the 3500/42M supports configurable dual-channel operation for either proximity (eddy-current) or seismic (velocity/acceleration) transducer types. Channel type is set via software configuration, not hardware jumpers, so the same module can be reconfigured for different measurement applications within the 3500 rack.

Q2: What is the lead time and how is the module tested before shipment?
In-stock units ship within 1–3 business days. Every 3500/42M 176449-02 is bench-tested for power-up, channel OK status, analog output accuracy, and relay contact operation before packaging. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this module replace an older 3500/42 (without the M suffix) installed in an existing rack?
The 3500/42M is the enhanced replacement for the legacy 3500/42. It is physically and electrically compatible with the same rack slot and backplane connector. However, the configuration software version must support the 42M module type — verify your System 1 or rack configuration software version before installation. In most cases, a firmware update to the 3500/20 RIM is also recommended when upgrading from 42 to 42M.

Q4: Do you support long-term supply for end-of-life Bently Nevada 3500 Series modules?
Yes. SMARTNEXMSK maintains a dedicated inventory of 3500 Series modules including the 3500/42M, 3500/15, 3500/20, 3500/32, and 3500/60 to support plants committed to extending the operational life of their existing machinery protection infrastructure. Long-term supply agreements and consignment stocking arrangements are available for high-volume maintenance programs.
