Bently Nevada 3500/50 Spare for 3500 Series Automation: Spare Replacement & Industrial Downtime Risk Control

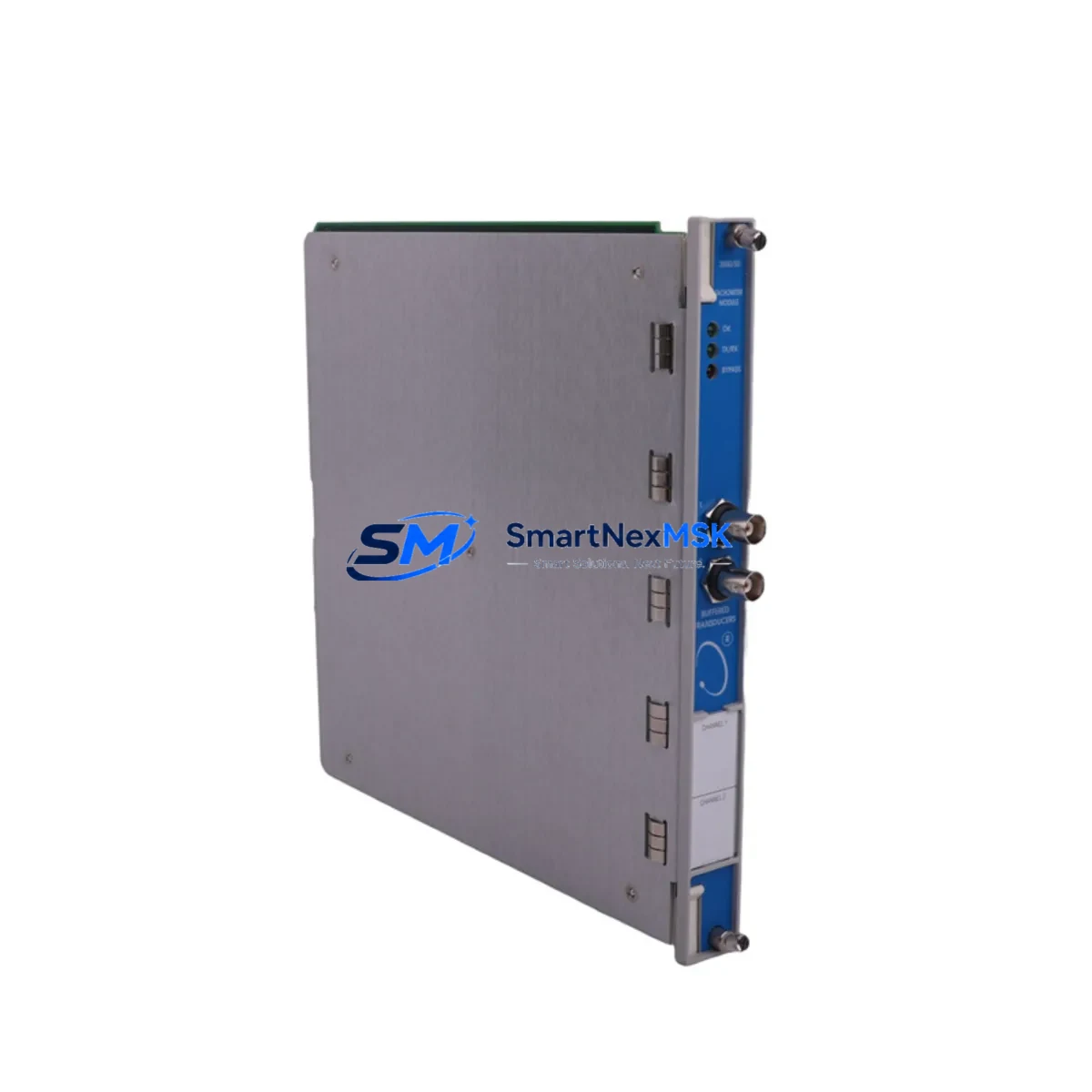

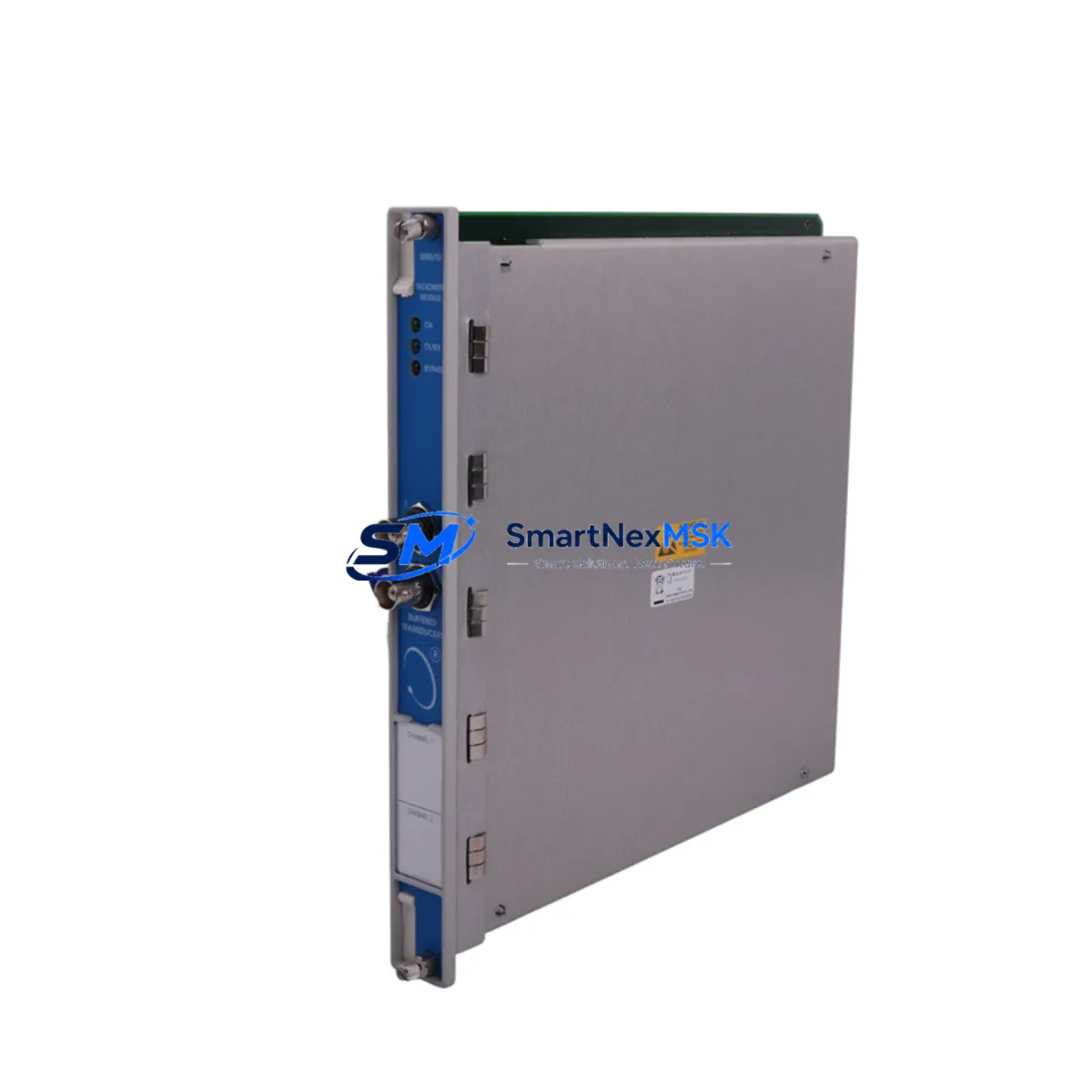

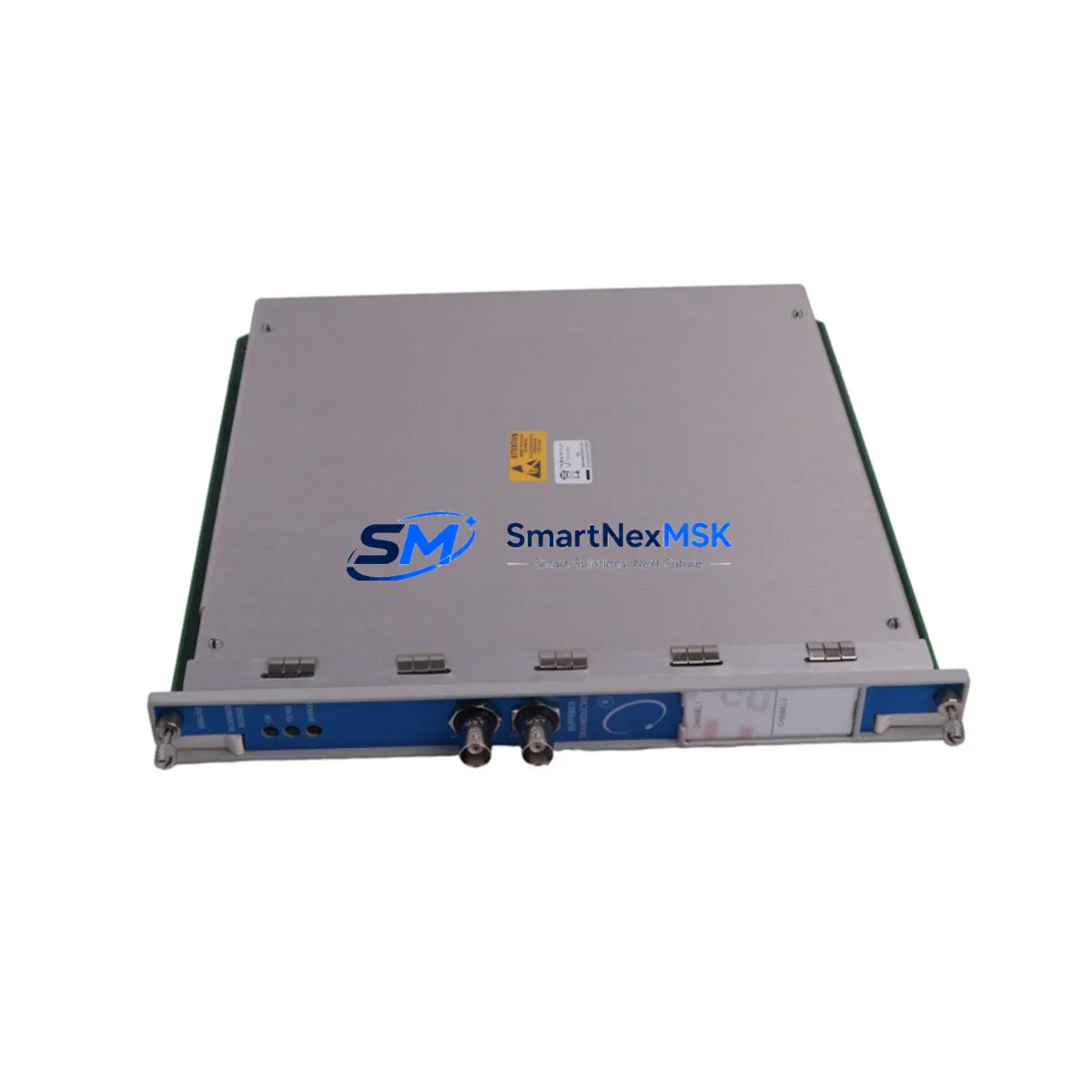

The Bently Nevada 3500/50 Tachometer Module is a critical speed-monitoring component within the 3500 Series machinery protection system. Designed for continuous operation in rotating machinery environments — including turbines, compressors, pumps, and motors — this module provides real-time shaft speed and overspeed detection signals to the 3500 rack system. When this card fails or degrades, the entire protection loop is compromised, creating immediate risk of undetected overspeed events and unplanned shutdowns. Maintaining a verified spare of the 3500/50 in your parts inventory is a fundamental requirement for any facility operating 3500 Series protection systems.
Our 3500/50 units are sourced as original Bently Nevada components, fully tested prior to shipment, and backed by a 12-month warranty. Each unit undergoes functional verification to confirm signal output integrity, channel response, and rack compatibility before dispatch. We support maintenance engineers and procurement teams who need a reliable, fast-turnaround source for 3500 Series spare parts — whether for planned outage kits, emergency replacements, or long-term inventory programs.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | 3500/50 |
| Brand | Bently Nevada |
| Series | 3500 Series Machinery Protection System |
| Module Type | Tachometer / Speed Monitor Module |
| Function | Shaft speed measurement, overspeed detection, keyphasor signal processing |
| Rack Compatibility | Bently Nevada 3500 Series rack (standard and TMR configurations) |
| Input Signal | Magnetic pickup (MPU) or proximity probe tachometer input |
| Output | Speed OK relay, overspeed relay, buffered tachometer output |
| Operating Voltage | Supplied via 3500 rack backplane (typically 24 VDC system) |
| Application Environment | Industrial plant rooms, turbine control cabinets, compressor skids |
| Installation | Rack-mount card, hot-swap capable in supported rack configurations |
| Condition | Original spare, functionally tested before shipment |
| Warranty | 12 Months |
| Origin | USA |
| Lead Time | In-stock, ships within 1–3 business days |
Maintenance Planning for Continuous Operation
When a 3500/50 Tachometer Module is flagged for replacement during a planned outage or emergency callout, experienced maintenance engineers know that the tachometer card is rarely the only component that requires attention. A thorough inspection of the surrounding system is essential to prevent repeat failures and ensure the protection loop is fully restored.
Start with the 3500/15 Power Supply Module — an unstable or aging power supply is one of the most common root causes of intermittent tachometer faults. Verify output voltage stability under load before reinstalling the replacement 3500/50. Next, inspect the 3500/22M Transient Data Interface if your system uses transient recording; a corrupted TDI can mask speed signal anomalies that appear to originate from the tachometer card itself.
Check the 3500/32 4-Channel Relay Module associated with the overspeed trip circuit. Relay contacts degrade over time, and a tachometer replacement is the ideal opportunity to verify relay response and contact resistance. Similarly, inspect the 3500/42M Proximitor / Seismic Monitor if the machine also uses vibration monitoring — these modules share the same rack backplane and power distribution, and a failing vibration card can introduce noise into adjacent tachometer channels.
For the field wiring side, examine the magnetic pickup (MPU) sensor and its associated cable. A worn or misaligned MPU is a frequent cause of erratic speed readings that are incorrectly attributed to the tachometer module. Verify gap setting, cable shielding continuity, and connector integrity at both the field junction box and the rack I/O terminal strip.
If your facility uses a Keyphasor module (3500/25), confirm that the Keyphasor signal is clean and properly phased — the 3500/50 relies on this reference for phase-referenced speed calculations. A degraded Keyphasor signal will produce erroneous readings even with a new tachometer card installed.
For systems integrated with a DCS or safety PLC, verify the 4–20 mA speed output signal at the marshalling cabinet terminal blocks and confirm that the receiving analog input card (such as a Rockwell 1756-IF16 or Siemens SM 331) is reading within expected range after the swap. Also check any signal isolators or barriers in the loop — Zener barriers and galvanic isolators in hazardous-area installations can degrade and introduce offset errors that appear as tachometer faults.
Finally, review the 3500 rack backplane and card-edge connectors for oxidation or mechanical damage. A thorough wipe-down of the card slot contacts and a torque check on the rack mounting hardware takes minutes but can prevent premature failure of the replacement module.
Site Replacement Workflow
Replacing the Bently Nevada 3500/50 in a live plant environment requires a structured approach to minimize downtime and avoid introducing new faults. Begin by confirming the replacement unit’s part number and revision level against the installed card — the 3500/50 has had multiple hardware revisions, and while most are backward-compatible within the 3500 rack, confirming compatibility with your specific rack firmware version is good practice.
Before pulling the card, document the current channel configuration using System 1 software or the rack’s front-panel display. Note the speed setpoints, alert and danger thresholds, and any custom scaling factors. These parameters are stored in the rack’s configuration memory, but a local record prevents configuration loss if the rack requires a reset during the swap.
Power down the affected rack slot if hot-swap is not supported in your configuration, or follow your site’s bypass and inhibit procedure to prevent spurious trips during the card exchange. Insert the replacement 3500/50, allow the module to initialize, and verify the speed OK LED and channel status on the rack front panel. Confirm the speed reading against an independent tachometer reference before releasing the bypass.
For legacy systems where the 3500/50 is replacing an older or discontinued speed monitor card, verify that the new module’s output relay wiring matches the original trip logic. Older 3500 Series installations sometimes used custom relay wiring schemes that differ from the standard factory configuration — a wiring diagram review before energizing the replacement card prevents miswired trip outputs.
Our 3500/50 units are shipped with a functional test report and are ready for immediate installation. We maintain ongoing stock to support both emergency callouts and planned maintenance programs, with the ability to supply multiple units for multi-rack or multi-train facilities.
Spare Parts Support FAQ
Q: Is this 3500/50 an original Bently Nevada component or a third-party replacement?
A: All units we supply are original Bently Nevada 3500/50 modules — not aftermarket or remanufactured substitutes. Each unit is individually tested for functional performance prior to shipment.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers functional failure under normal operating conditions. If the module fails to perform its specified tachometer and overspeed detection functions within the warranty period, we will replace or refund the unit. Warranty claims are supported by our technical team with a typical response time of 24–48 hours.
Q: How do I confirm compatibility with my specific 3500 rack configuration before ordering?
A: Provide us with your rack model number, firmware version, and any existing module revision information via email at sales@smartnexmsk.com. Our technical team will confirm compatibility and advise on any revision-specific considerations before you commit to the order.
Q: Can you supply multiple 3500/50 units for a planned outage spare kit?
A: Yes. We maintain stock to support bulk spare kit orders and can provide quantity pricing for facilities that require multiple units for multi-train or multi-rack installations. Contact us to discuss your inventory requirements and lead time expectations.
