Bently Nevada 3500/77M 140734-07 Retrofit-Ready Recip Monitor

Bently Nevada 3500/77M 140734-07 Retrofit-Ready Recip Monitor for 3500 Series Control Systems

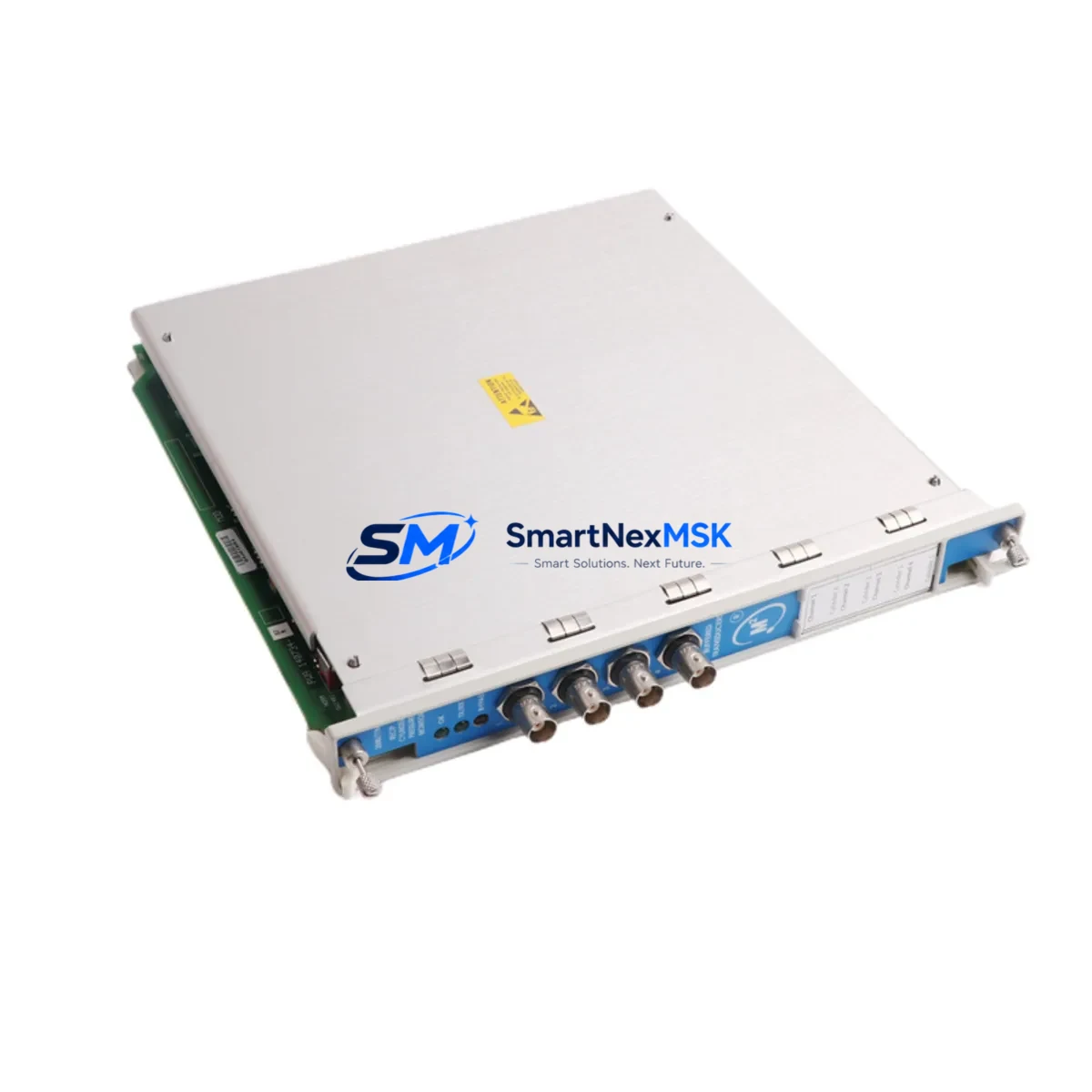

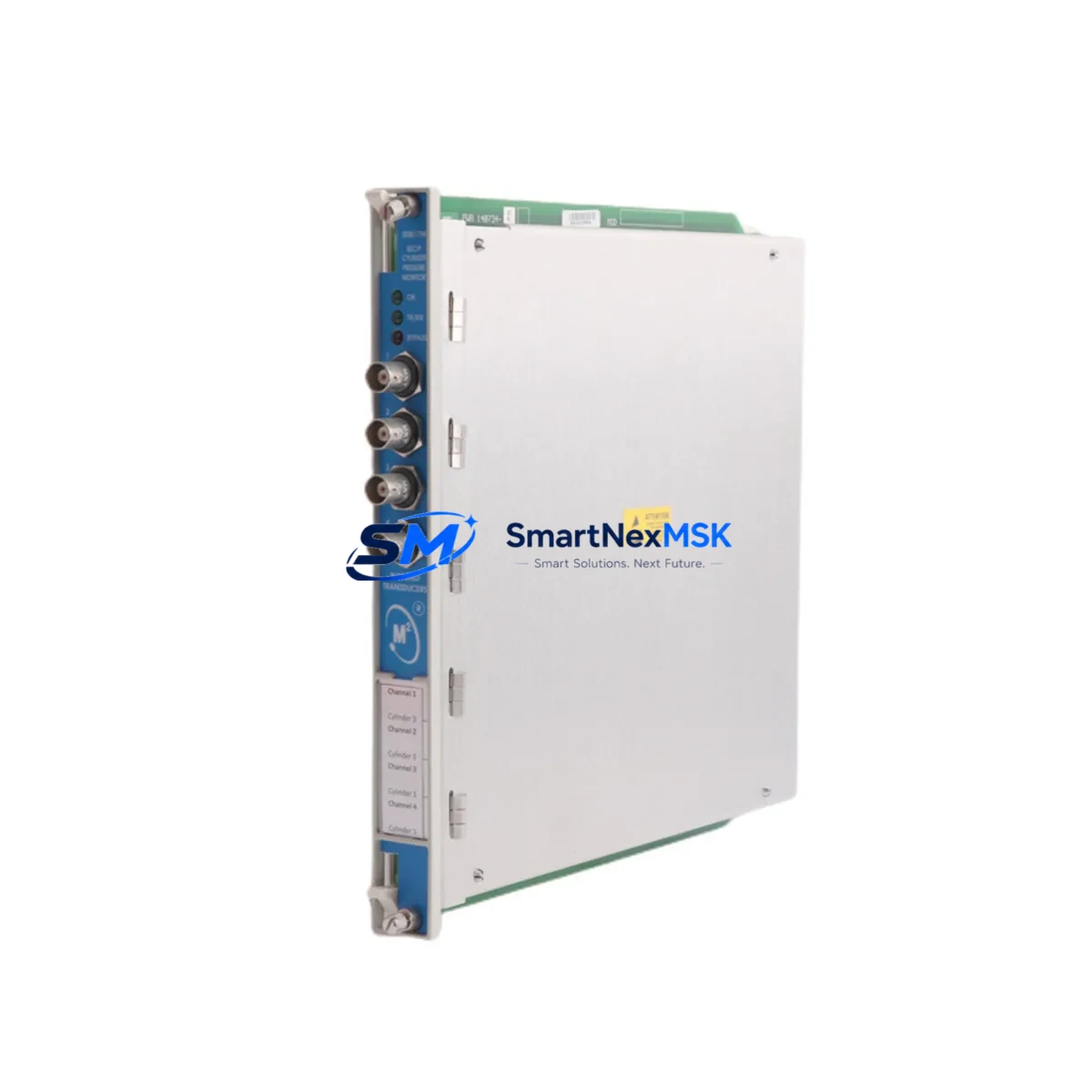

The Bently Nevada 3500/77M 140734-07 is a Reciprocating Machinery Cylinder Pressure Monitor module designed for integration within the Bently Nevada 3500 Series machinery protection rack. As legacy reciprocating compressor monitoring systems age and OEM support windows close, the 3500/77M 140734-07 has become one of the most sought-after retrofit and replacement modules for facilities seeking to extend the operational life of their existing 3500 rack infrastructure without committing to a full platform migration.

For maintenance engineers managing aging compressor protection systems, the 3500/77M 140734-07 offers a direct, slot-compatible replacement path within the standard 3500 Series 19-inch rack chassis. Unlike cross-platform migrations that require extensive rewiring, software reconfiguration, and HMI screen rebuilds, replacing a failed or end-of-life 3500/77M with a verified equivalent module preserves the existing rack architecture, terminal wiring, and System 1 configuration — dramatically reducing both planned downtime and the risk of commissioning errors.

SMARTNEXMSK maintains ready inventory of the 3500/77M 140734-07 with full pre-shipment functional testing and a 12-month warranty, supporting both emergency breakdown replacement and planned turnaround maintenance programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3500/77M 140734-07 retrofit begins well before the module arrives on site. Engineers should start by auditing the existing Bently Nevada 3500 Series rack to confirm available slot positions, backplane revision, and the current firmware version of the 3500/20 Rack Interface Module, which governs communication between individual monitor modules and the host system. If the rack interface module is running an older firmware revision, a coordinated update may be required to ensure full compatibility with a replacement 3500/77M.

Power capacity is a critical pre-check. The Bently Nevada 3500/15 Power Supply Module — or its enhanced variant, the 3500/15E — must have sufficient headroom to support the 3500/77M 140734-07 alongside all other installed modules. In racks that are fully populated with monitor modules, transducer power supplies, and communication cards, the total current draw can approach the power supply’s rated output. Adding a replacement module without verifying available power margin risks nuisance trips or supply instability during commissioning.

Terminal wiring compatibility should be confirmed against the existing 3500/77M I/O Terminal Block wiring diagram. In most cases, the field cables — carrying signals from cylinder pressure transducers — can be reconnected directly to the replacement module’s terminal block without modification. However, if the original installation used a 3500 Series Transducer Power Supply to excite the pressure sensors, the supply voltage and current ratings should be re-verified against the replacement module’s input specifications.

For facilities running Bently Nevada System 1 Evolution software for condition monitoring and alarm management, the replacement module’s configuration file should be exported from the existing rack before removal and re-imported after the new module is installed. This preserves channel scaling, alarm setpoints, danger limits, and OK relay logic without requiring manual re-entry — a significant risk reduction in high-consequence applications. If the site uses a 3500/92 Communication Gateway Module to bridge the 3500 rack to a DCS or SCADA system via Modbus or OPC, the gateway configuration should be reviewed to confirm that the replacement module’s tag addresses remain consistent with the existing data map.

In multi-rack installations — common in large reciprocating compressor trains with multiple cylinders — the 3500/05 System Monitor Module provides rack-level health monitoring and should be checked for any latched fault conditions related to the module being replaced. Clearing these faults as part of the commissioning sequence ensures that the new module’s OK status is correctly reflected at the system level. For sites that also monitor shaft vibration and position alongside cylinder pressure, the Bently Nevada 3500/42M Proximitor Monitor and 3500/45 Position Monitor are commonly installed in adjacent rack slots and should be verified for continued normal operation after the replacement procedure.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500/77M 140734-07 replacement requires a structured, pre-tested approach. The most effective strategy is to complete all configuration preparation — including System 1 configuration export, wiring diagram review, and spare module functional verification — before the maintenance window begins. SMARTNEXMSK’s pre-shipment functional test confirms that the replacement module powers up correctly, passes internal diagnostics, and responds normally to simulated input signals, so the first time the module is energized in the field is not also the first time its health is verified.

During the replacement window, the recommended sequence is: inhibit the affected channels in the System 1 software to suppress spurious alarms during the swap; remove the failed module; install the replacement; restore the saved configuration; verify channel OK status and alarm relay operation; and then remove the inhibit. This sequence typically takes 30–60 minutes for a single module replacement in a well-prepared environment, compared to several hours for an unplanned emergency swap without pre-staged spares and configuration backups.

For facilities with zero-downtime requirements — such as continuously operating gas compression stations or petrochemical process units — a hot-standby approach using a pre-configured spare 3500/77M 140734-07 held in the control room allows the swap to be completed during a brief process hold rather than a full shutdown. SMARTNEXMSK can support this strategy by supplying pre-tested, shelf-ready spare modules with configuration documentation, reducing the time from fault detection to restored protection coverage.

After the replacement is complete, a full proof-test of the cylinder pressure monitoring channels — including simulated high-pressure alarm and danger trip verification — should be performed and documented in accordance with the site’s functional safety management plan. This step is particularly important for facilities operating under IEC 61511 or API 670 compliance requirements, where proof-test records form part of the safety case documentation.

Retrofit Support FAQ

Q1: Is the 3500/77M 140734-07 a direct drop-in replacement for the original module?
Yes. The 3500/77M 140734-07 supplied by SMARTNEXMSK is slot-compatible with the standard Bently Nevada 3500 Series rack. It uses the same backplane connector, the same terminal block wiring interface, and the same System 1 configuration structure as the original module. In most cases, the existing field wiring and configuration file can be reused without modification, subject to a pre-installation compatibility check against your specific rack revision and software version.

Q2: What pre-shipment testing does SMARTNEXMSK perform on the 3500/77M 140734-07?
Every unit undergoes a full functional test before dispatch, including power-up diagnostics, internal self-test verification, and input channel response checks. Units are inspected for connector integrity, PCB condition, and firmware revision before being packaged in anti-static, moisture-barrier materials. A test report is available upon request for customers with documented quality management or functional safety requirements.

Q3: What warranty does SMARTNEXMSK provide, and what does it cover?
All 3500/77M 140734-07 modules supplied by SMARTNEXMSK are covered by a 12-month full functional warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, we will provide a replacement or full refund. The warranty applies to both new and tested-refurbished units, with the unit condition clearly stated at the time of quotation.

Q4: Can SMARTNEXMSK support long-term and emergency supply of the 3500/77M 140734-07?
Yes. SMARTNEXMSK maintains standing inventory of the 3500/77M 140734-07 to support both planned maintenance programs and emergency breakdown situations. We provide same-day quotation and rapid dispatch for urgent requests. For facilities managing multi-year maintenance contracts or turnaround schedules, we can discuss reserved stock arrangements to guarantee availability aligned with your planned maintenance windows.
