Bently Nevada 3500/92 Spare for 3500 Series Automation

Bently Nevada 3500/92 Spare for 3500 Series Automation

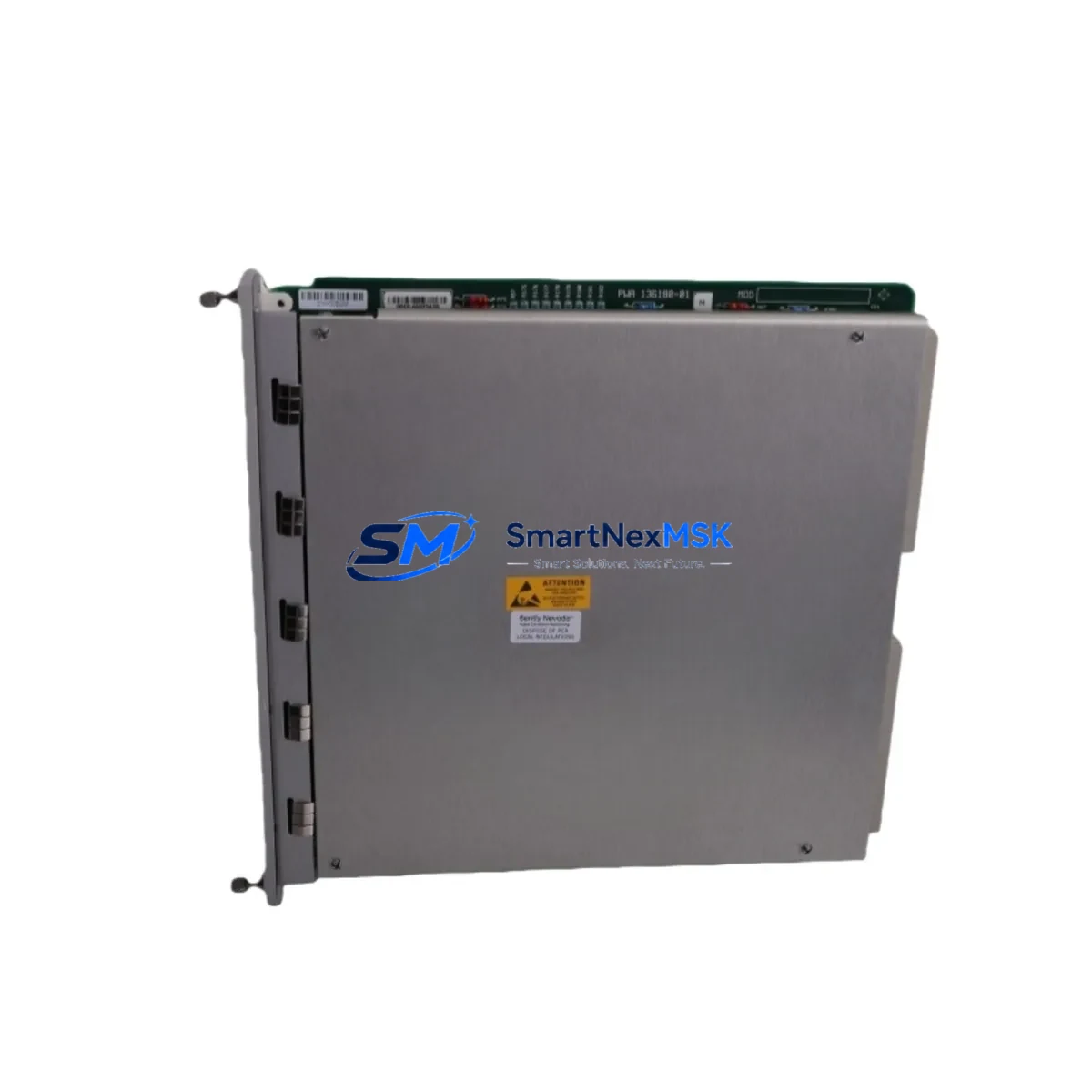

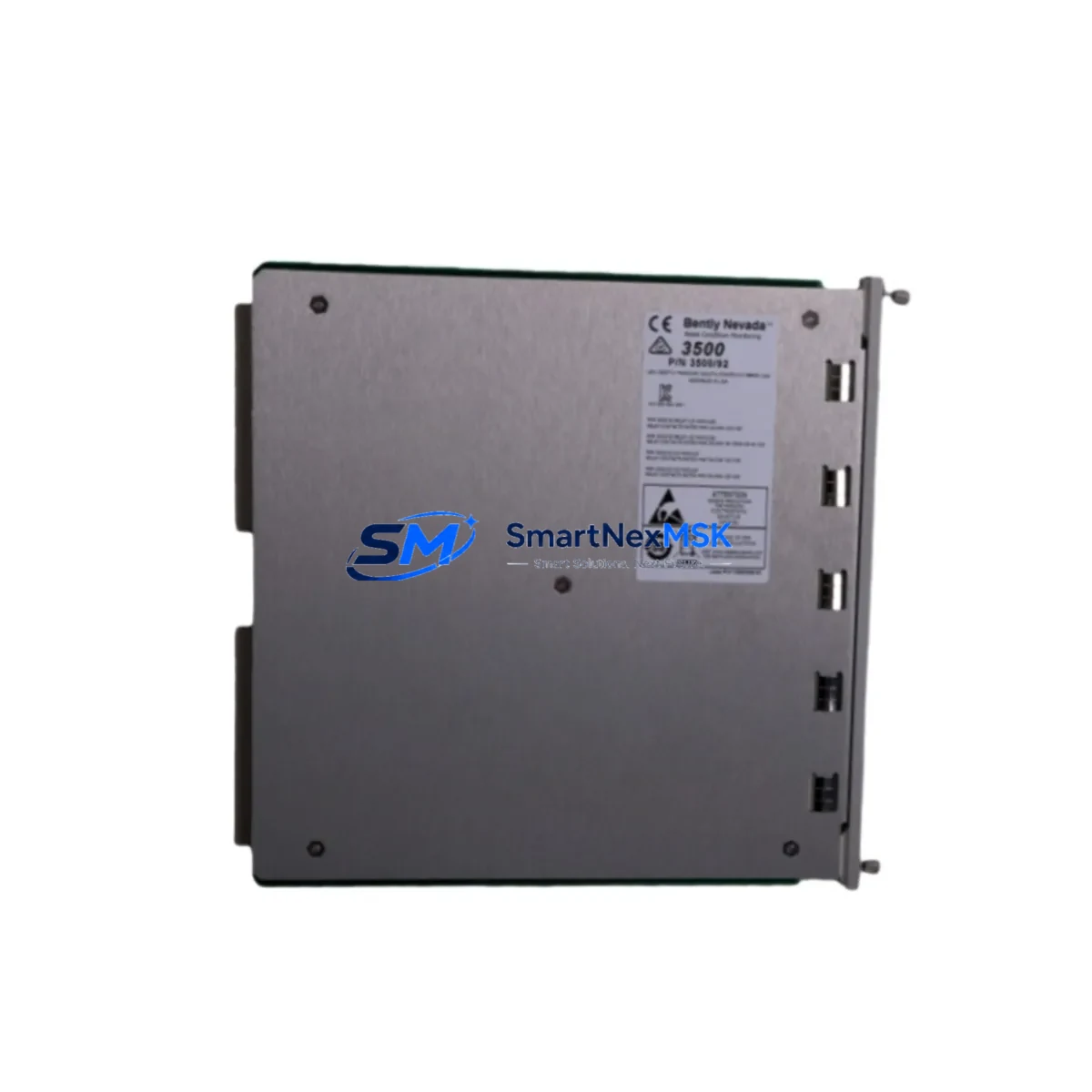

The Bently Nevada 3500/92 Communication Gateway Module is a critical interface component within the 3500 Series machinery protection system, enabling seamless data exchange between the rack-based monitoring platform and plant-level DCS, SCADA, or PLC networks via Modbus TCP/IP and RS-232/RS-485 protocols. For maintenance engineers managing rotating equipment protection systems — turbines, compressors, pumps, and generators — maintaining a verified original spare of the 3500/92 in the site inventory is a fundamental risk-mitigation strategy. A failed gateway module can sever the communication link between the protection rack and the control room, leaving operators blind to vibration, position, and process data at the exact moment it is most needed.

This listing supplies an original, factory-sourced 3500/92 module, fully tested prior to shipment, backed by a 12-month warranty, and available for rapid dispatch to minimize unplanned downtime. Whether you are executing a planned turnaround, responding to a communication fault alarm, or building out a critical-spares inventory for a long-term service agreement, this module is ready to drop into an existing 3500 rack without firmware reconfiguration in most standard deployments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3500/92 gateway module is flagged for replacement during a scheduled inspection or following a communication fault, the replacement event is an ideal opportunity to conduct a broader audit of the 3500 rack and associated control cabinet. Maintenance engineers should simultaneously verify the condition and firmware revision of the 3500/20 Rack Interface Module, which manages internal rack communications and is a common co-failure point when gateway faults occur. The 3500/15 Power Supply Module should be load-tested, as voltage instability on the backplane can cause intermittent communication errors that mimic a faulty gateway.

On the field wiring side, inspect the 3500/25 keyphasor module connections and confirm that shielded signal cables are properly grounded at one end only to prevent ground loops that corrupt serial data. If the site uses the 3500/92 to relay data to a Honeywell Experion PKS or Emerson DeltaV DCS, verify the Modbus register map configuration has not drifted from the last documented baseline — a common issue after DCS software upgrades. Terminal blocks and DIN-rail mounted Phoenix Contact or Weidmüller signal isolators on the RS-485 loop should be inspected for oxidation and torque-checked to manufacturer specification.

For sites running the 3500 rack alongside a Bently Nevada 3300 Series legacy system, confirm that the gateway’s dual-port Ethernet configuration is correctly segmented to prevent broadcast storms on the plant network. Spare 3500/40M Proximitor I/O Module and 3500/42M Proximitor/Seismic I/O Module units should also be held in the critical-spares kit, as these are the most frequently replaced modules in high-vibration environments. Additionally, review the condition of the 3500/22M Transient Data Interface if the site captures waveform data for advanced diagnostics — a degraded TDI can produce misleading spectral data even when the gateway itself is functioning correctly.

Procurement engineers building a long-term spares strategy for 3500 Series installations should note that Bently Nevada has transitioned several 3500 modules to limited-availability status. Securing a verified original 3500/92 from a reliable industrial spare parts supplier ensures continuity of the protection system architecture without forcing a full rack upgrade on an accelerated timeline.

Site Replacement Workflow

Step 1 – Pre-replacement documentation: Record the current Modbus node address, baud rate, parity settings, and Ethernet IP configuration from the existing 3500/92 front-panel display or System 1 software before powering down the slot.

Step 2 – Safe rack isolation: Notify the control room and DCS operator that the communication gateway will be offline during replacement. Confirm that the protection system remains in a monitored state via the local rack relay outputs — the 3500 rack continues to protect machinery even without the gateway module installed.

Step 3 – Module swap: With the rack powered, the 3500/92 is hot-swappable in most configurations. Slide the module out, insert the replacement unit, and allow the rack to recognize the new module (typically 30–60 seconds).

Step 4 – Configuration restore: Re-enter the documented communication parameters via the front-panel keypad or System 1 configuration tool. Verify Modbus polling is re-established by confirming live data flow at the DCS or SCADA workstation.

Step 5 – Functional verification: Confirm all monitored channels are reporting correctly, alarm setpoints are active, and the event log shows no unacknowledged faults before returning the system to normal operation.

This workflow minimizes exposure time and ensures the replacement does not introduce configuration errors that could mask a genuine machinery fault.

Spare Parts Support FAQ

Q1: Is this 3500/92 module compatible with all 3500 rack configurations?
The 3500/92 is designed for the standard Bently Nevada 3500 rack backplane. Compatibility is confirmed for the majority of 3500 Series rack configurations. For sites with customized firmware or non-standard Modbus register maps, we recommend providing your existing configuration file so our technical team can verify compatibility before shipment.

Q2: What pre-shipment testing is performed on this module?
Each 3500/92 unit undergoes functional power-on testing, communication port verification, and visual inspection for connector integrity and PCB condition before dispatch. A test report is available upon request.

Q3: How long is the warranty, and what does it cover?
All modules supplied carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical impact.

Q4: Can you support long-term or blanket purchase orders for critical spares programs?
Yes. We support scheduled release orders, consignment stock arrangements, and annual supply agreements for maintenance teams managing multiple 3500 Series installations. Contact our sales team to discuss volume pricing and guaranteed availability commitments.
