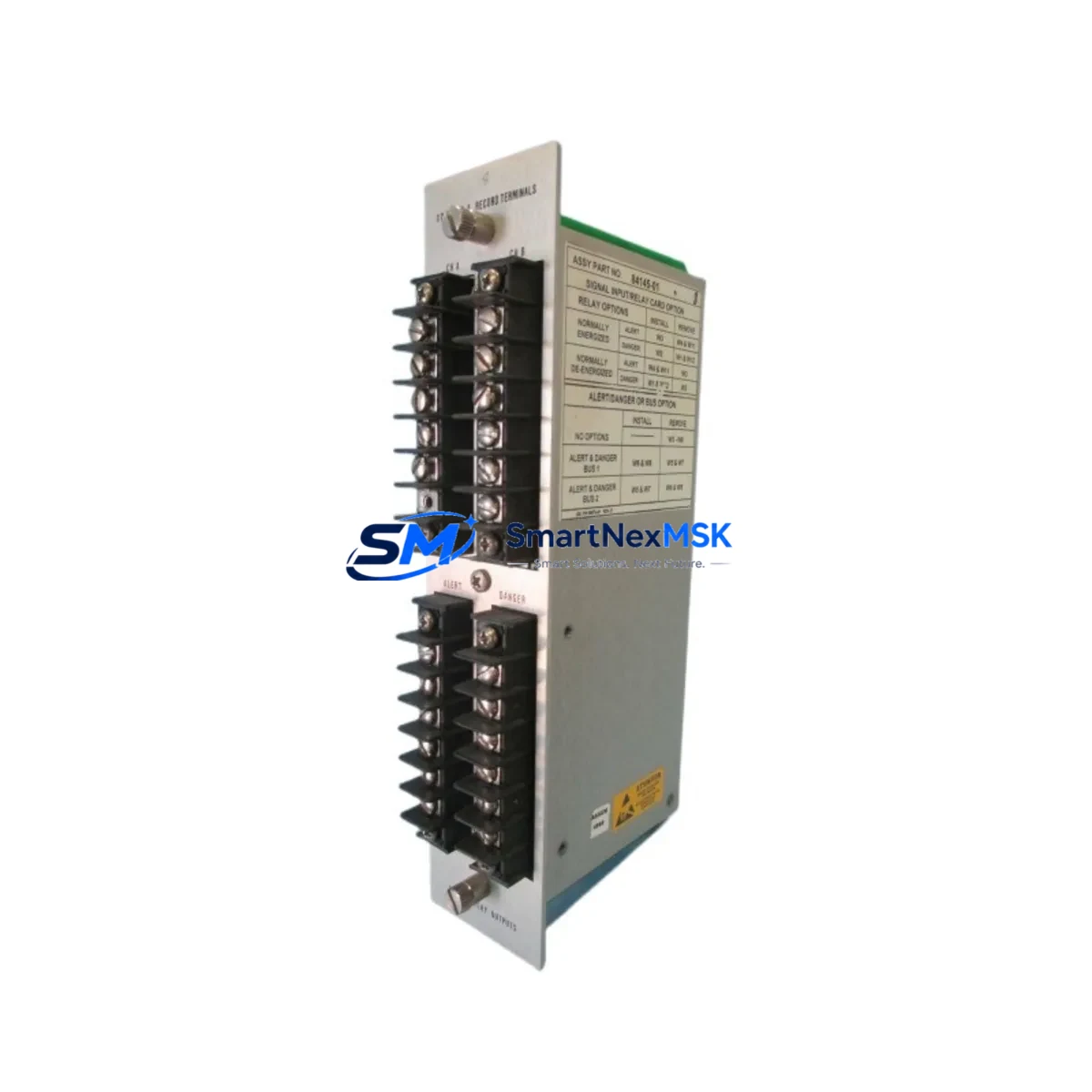

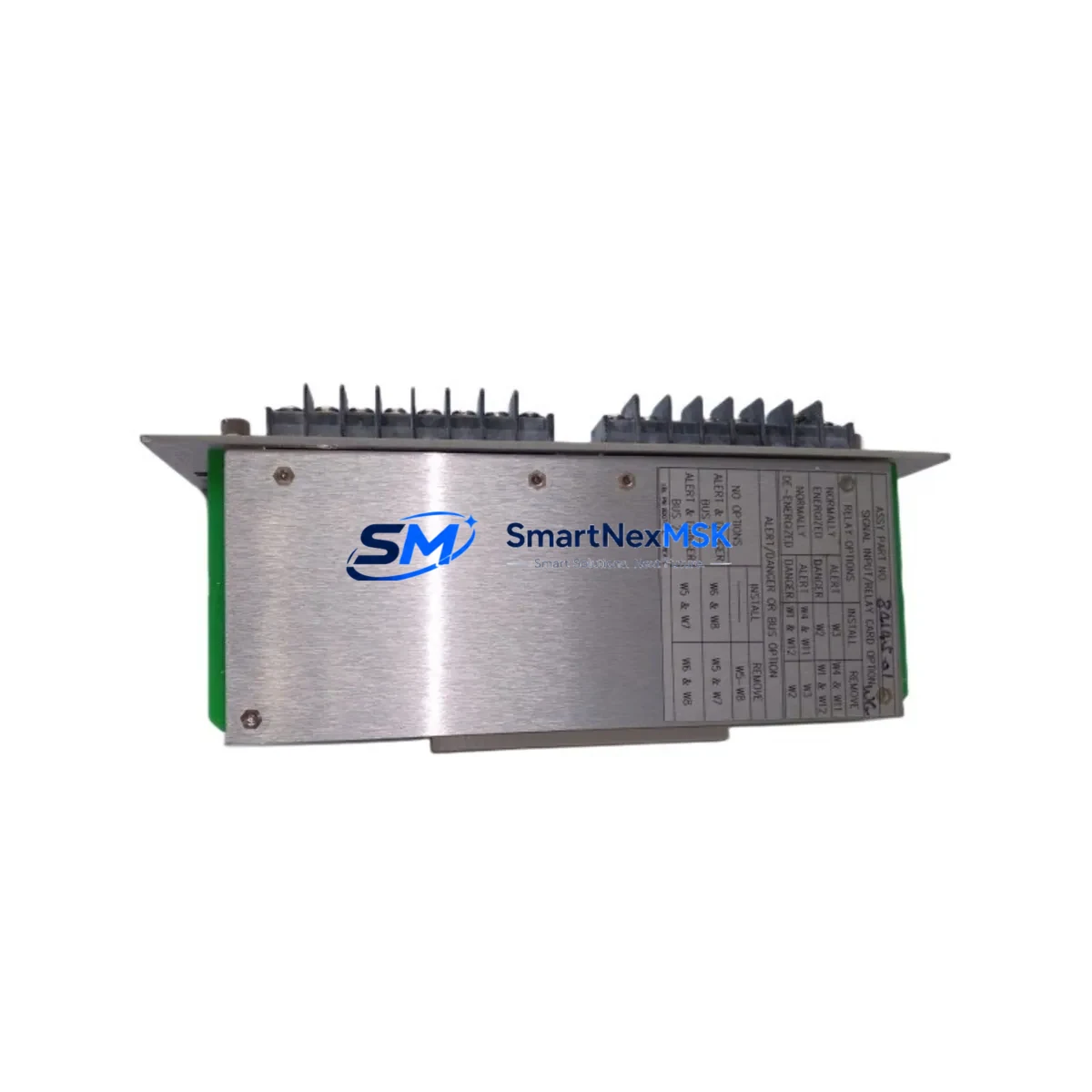

The Bently Nevada 84140-01 is an original I/O Record Terminal Module designed for the 3500 Series Machinery Protection System — one of the most widely deployed continuous vibration monitoring platforms in rotating equipment facilities worldwide. For maintenance engineers managing turbines, compressors, pumps, and generators, this module represents a critical interface point between field sensors and the 3500 rack’s monitoring and protection logic. When this component fails or degrades, the entire protection channel it supports goes offline, exposing rotating machinery to unmonitored operating conditions and triggering mandatory shutdown protocols under most plant safety procedures.

Sourcing a verified, tested replacement unit of the 84140-01 is the fastest path to restoring full protection coverage and returning equipment to safe, monitored operation. Our inventory is drawn from original manufacturer stock and thoroughly inspected prior to dispatch. Each unit ships with a 12-month warranty and full pre-shipment functional verification, giving maintenance and procurement teams the confidence to plan replacements without extended lead-time risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 84140-01 I/O Record Terminal Module sits at the field-wiring boundary of the 3500 rack. During planned maintenance windows or emergency fault isolation, replacing this module alone is rarely sufficient for a complete system health check. Experienced maintenance engineers treat a terminal module replacement as an opportunity to audit the full protection channel.

Begin by inspecting the associated 3500/22M Transient Data Interface or the relevant monitor card — such as the 3500/42M Proximitor/Seismic Monitor or 3500/45 Position Monitor — for alarm history, relay output status, and any latched fault conditions. The 3500/20 Rack Interface Module (RIM) should be checked for communication integrity with the host DCS or historian, as a degraded RIM can mask downstream faults even after a terminal module swap.

Field wiring connected to the 84140-01 typically carries signals from Bently Nevada 3300 XL or 7200 Series proximity probes and extension cables. Inspect these cables for insulation damage, connector corrosion, and continuity before reconnecting to the new terminal module. A faulty probe or cable will immediately re-trigger alarms on the replacement unit and waste diagnostic time.

The 3500 rack power supply module — commonly the 3500/15 Power Supply — should be load-tested during the same maintenance window. An aging or under-spec power supply is a frequent root cause of intermittent terminal module faults and unexplained channel dropouts. If the rack uses a redundant power supply configuration, verify automatic failover is functioning correctly.

For facilities running Modbus or Ethernet-based integration, confirm that the 3500/92 Communication Gateway Module is correctly mapped to the restored channel after the 84140-01 replacement. Misconfigured channel mapping in the gateway is a common post-maintenance oversight that results in incorrect data appearing in the plant historian or SCADA system.

Where the 3500 rack interfaces with a broader DCS — such as a Honeywell Experion, Emerson DeltaV, or ABB 800xA platform — coordinate with the control system engineer to verify that the I/O point associated with the replaced terminal module is correctly re-commissioned and that no hardcoded alarm suppression was left active from the fault period. Signal isolators or galvanic isolation barriers in the field loop should also be inspected, as these components are often overlooked during terminal module replacements but can introduce ground loops or signal offset errors that affect protection accuracy.

Finally, update the plant’s spare parts register to reflect the consumed 84140-01 unit and initiate a replenishment order. For critical rotating equipment, maintaining at least one on-shelf spare of the terminal module — alongside a spare 3500/42M or 3500/45 monitor card — is standard practice in facilities targeting sub-4-hour MTTR for protection system faults.

Site Replacement Workflow

Step 1 — Preparation: Confirm the replacement 84140-01 part number matches the installed unit. Cross-reference the rack slot assignment in the 3500 System Configuration software. Notify the control room of the planned maintenance action and confirm any required permit-to-work procedures.

Step 2 — Safe Isolation: Place the associated monitor channel into bypass mode via the 3500 rack front panel or System Configuration software to prevent spurious trips during the swap. Do not power down the full rack unless site procedures require it — the 3500 system supports hot-swap of terminal modules in most configurations.

Step 3 — Field Wiring Disconnect: Photograph or document the existing field wiring termination layout on the 84140-01 before disconnecting. Label each wire if not already marked. Loosen terminal screws and carefully remove field wiring, keeping conductors organized to prevent cross-connection on reinstallation.

Step 4 — Module Swap: Slide the old 84140-01 out of the rear rack panel. Insert the replacement unit and secure it. Reconnect field wiring in the documented sequence, torquing terminal screws to the manufacturer’s specified value to ensure reliable contact.

Step 5 — Verification: Remove the channel bypass. Observe the monitor card front-panel indicators and the System Configuration software for correct signal levels, alarm thresholds, and OK relay status. Confirm that the DCS or historian is receiving valid data on the restored channel.

Step 6 — Documentation: Record the replacement in the plant maintenance management system (CMMS), including the old module’s serial number, fault symptom, replacement date, and technician sign-off. Update the spare parts inventory accordingly.

Spare Parts Support FAQ

Q1: Is the 84140-01 compatible with all 3500 Series rack configurations?
The 84140-01 I/O Record Terminal Module is designed for use within the Bently Nevada 3500 rack system and is compatible with the standard rear-panel slot assignments used by the majority of 3500 monitor cards. Compatibility should always be verified against the specific rack configuration file and monitor card type installed at your site. Contact our technical team with your rack slot layout for confirmation before ordering if you have a non-standard configuration.

Q2: What pre-shipment testing is performed on the 84140-01?
Each unit undergoes visual inspection for physical damage, connector integrity verification, and functional continuity testing prior to dispatch. Units sourced from original manufacturer stock are cross-checked against known-good reference specifications. A test report is available upon request for critical applications.

Q3: What is the warranty coverage and what does it include?
All 84140-01 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority turnaround to minimize plant downtime.

Q4: Can you support long-term or blanket spare parts orders for the 3500 Series?
Yes. For facilities managing aging 3500 Series installations or planning multi-year maintenance contracts, SMARTNEXMSK can support scheduled spare parts supply agreements, including the 84140-01 terminal module and associated monitor cards, power supplies, and communication modules. Contact our sales team to discuss volume pricing, reserved stock arrangements, and delivery scheduling tailored to your maintenance calendar.
