Bently Nevada 84152-01 Spare for 3500 Automation: Alarm Relay Replacement & Downtime Risk Control

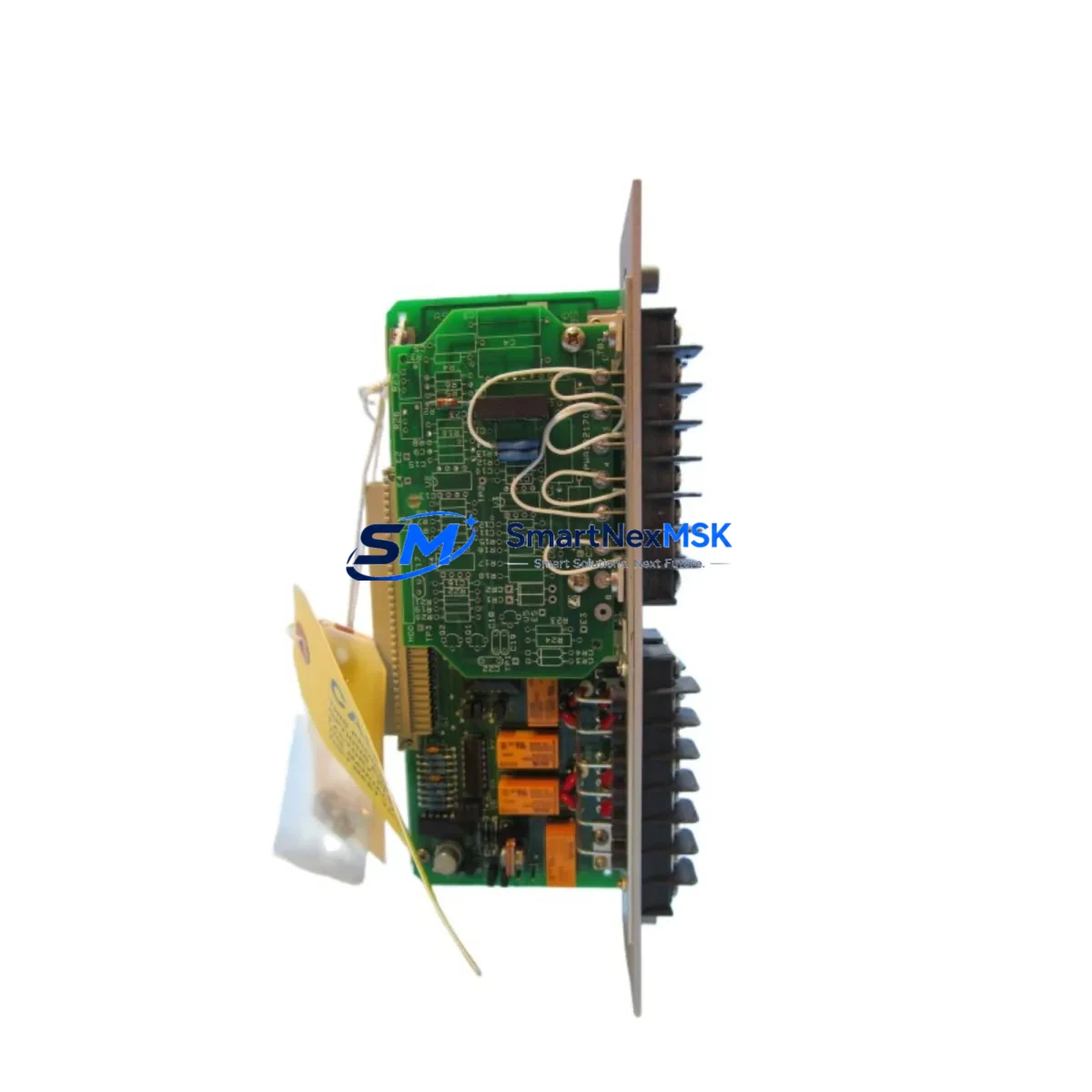

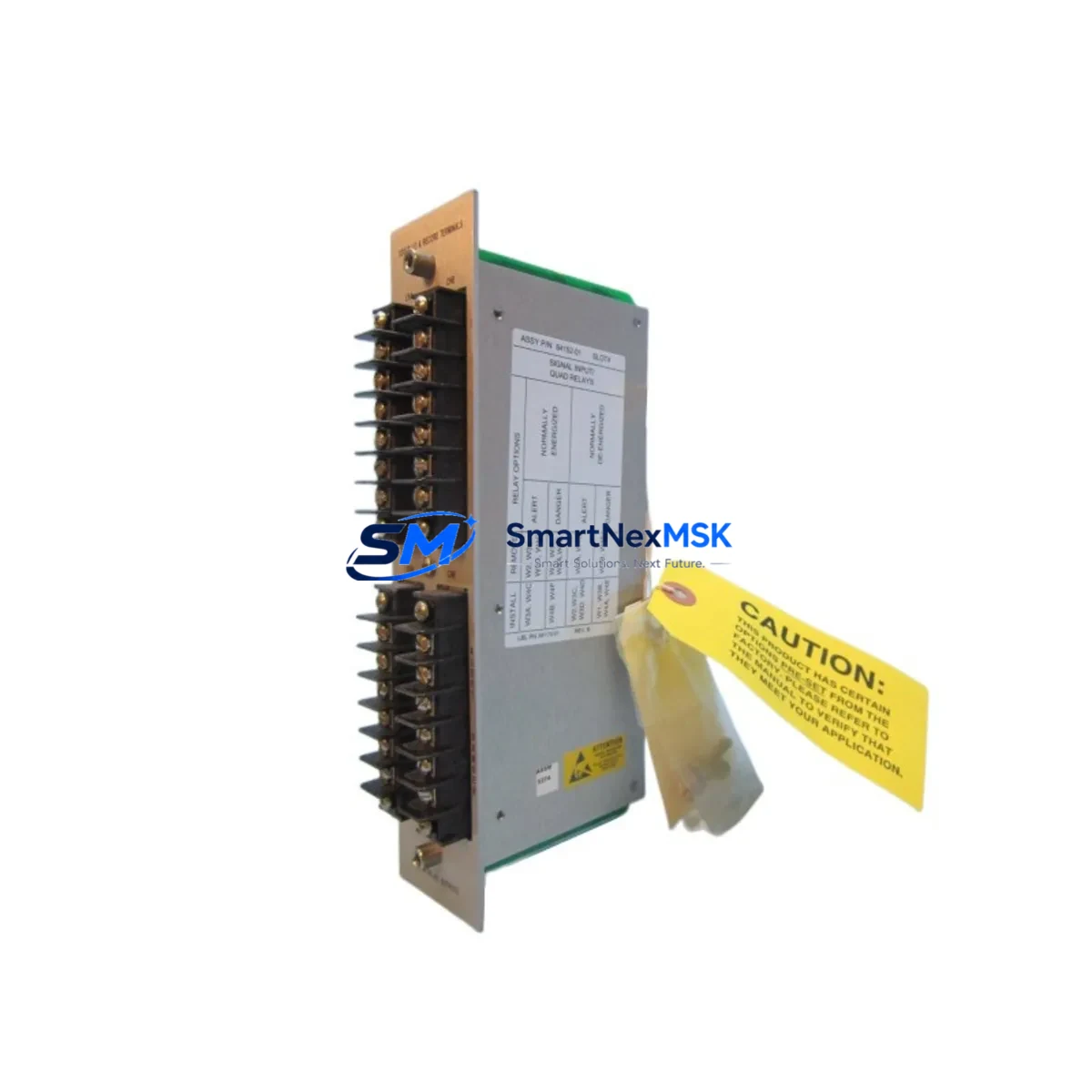

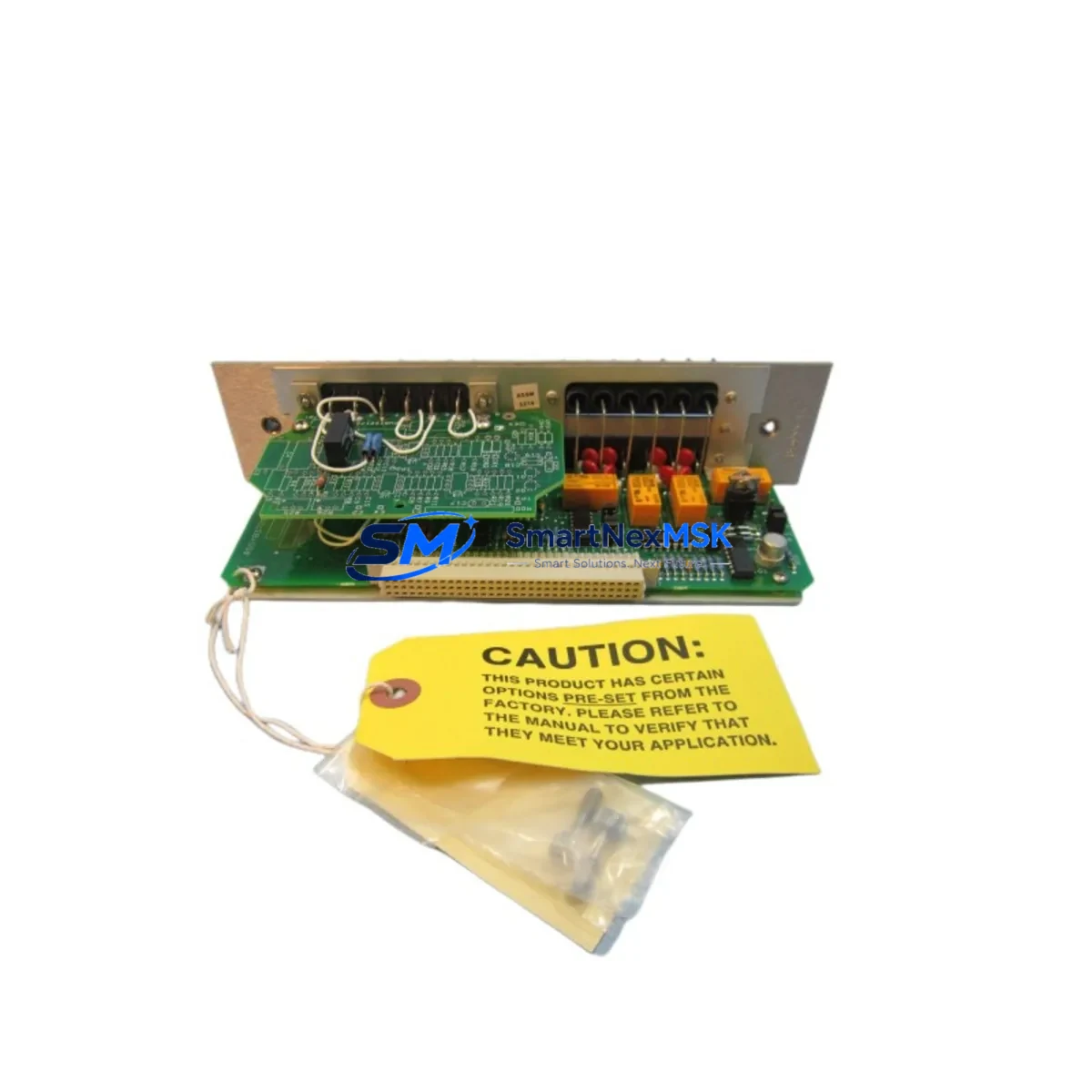

The Bently Nevada 84152-01 is a Quad SIRM (Single Input Relay Module) Alarm Relay Output Module designed for the Bently Nevada 3500 Series machinery protection system. In continuous-process industries — including oil & gas, petrochemical, power generation, and heavy manufacturing — the 3500 rack-based monitoring platform is a cornerstone of rotating equipment protection. The 84152-01 module provides four independent relay output channels, each configurable for alarm or trip logic, making it a critical interface between the 3500 monitoring system and plant-level shutdown or annunciation circuits.

When this module fails or degrades, the consequences extend beyond a single relay: the entire alarm output chain for the associated monitoring channel is compromised. Maintenance engineers and reliability teams must treat the 84152-01 as a priority spare — not only because of its functional role, but because lead times for original Bently Nevada modules can extend weeks or months through standard distribution channels. Holding a verified, tested spare on-site is the most effective strategy for minimizing mean time to repair (MTTR) and protecting uptime commitments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 84152-01 in a live 3500 system is rarely an isolated task. Experienced maintenance engineers know that alarm relay failures are often symptomatic of broader issues in the monitoring loop. A structured inspection during the same maintenance window significantly reduces the risk of repeat failures and unplanned shutdowns.

Begin by auditing the 3500/20 Power Supply Module feeding the rack. Relay output modules are sensitive to power quality; a degraded or aging power supply can cause intermittent relay chatter or false trips. Simultaneously, inspect the 3500/22 Transient Data Interface (TDI) if installed, as it shares the rack backplane and can influence module communication integrity.

Check all terminal blocks and field wiring connected to the relay output terminals. Loose or corroded terminations are a leading cause of relay output failures that are misdiagnosed as module faults. Verify that the 3500/32 4-Channel Relay Module (if used in parallel alarm circuits) is also functioning correctly, as cross-channel alarm logic may mask a single-module fault.

For systems using 3500/40M Proximitor/Seismic Monitor Modules or 3500/42M Proximitor/Seismic Monitor Modules as the signal source feeding alarm relay logic, confirm that vibration setpoints and gap voltage readings are within specification after the relay module swap. A relay replacement that is not followed by setpoint verification can leave the system in an unprotected state.

If the 3500 rack communicates with a DCS or SCADA via 3500/92 Communication Gateway Modules, verify that alarm status is correctly reflected in the control system after the 84152-01 is replaced and the rack is re-initialized. Communication modules can cache alarm states and may require a soft reset to synchronize correctly.

Finally, inspect the rack backplane connectors for oxidation or mechanical damage. In high-humidity or coastal environments, backplane connector degradation is a common root cause of module-level failures. Cleaning and re-seating the module during replacement is standard practice for 3500 Series maintenance.

Site Replacement Workflow

The 84152-01 is designed for in-rack replacement within the Bently Nevada 3500 Series architecture. Follow this workflow to minimize downtime and ensure system integrity:

Step 1 — Pre-Replacement Verification: Confirm the replacement module part number matches 84152-01 exactly. Verify rack slot assignment using the 3500 Rack Configuration Software. Document current alarm setpoints and relay output assignments before removal.

Step 2 — Safe Isolation: Coordinate with the control room to place the affected monitoring channel in bypass or inhibit mode. This prevents false trips during the swap. Do not remove the module while the system is in an unacknowledged alarm state without authorization.

Step 3 — Module Swap: Remove the faulty 84152-01 by releasing the front-panel locking mechanism. Insert the replacement module firmly into the rack slot until the backplane connector is fully seated. The 3500 system will auto-detect the new module within seconds.

Step 4 — Configuration Restore: Using the 3500 Rack Configuration Software, reload the saved configuration to the new module. Verify relay output assignments, alarm setpoints, and trip multiply settings match the pre-replacement documentation.

Step 5 — Functional Test: Simulate an alarm condition (using the software’s test function or a calibrated signal source) to confirm each relay channel operates correctly. Verify annunciation at the DCS or SCADA level.

Step 6 — Return to Service: Remove the bypass/inhibit from the monitoring channel. Log the replacement in the maintenance management system (CMMS) with the module serial number, date, and technician ID.

This workflow applies equally to planned maintenance replacements and emergency spare activations. Keeping a pre-configured, tested 84152-01 spare on-site reduces the total replacement time from hours to under 30 minutes.

Spare Parts Support FAQ

Q1: Is the 84152-01 compatible with all 3500 Series rack configurations?
The 84152-01 is designed for the Bently Nevada 3500 Series rack system and is compatible with standard 3500 rack backplanes. Compatibility with specific rack revisions or firmware versions should be confirmed against your system’s configuration documentation. Contact our technical team with your rack serial number for pre-purchase compatibility verification.

Q2: What testing is performed before shipment?
Every 84152-01 unit is functionally tested prior to shipment. Testing includes relay contact continuity verification, output channel isolation checks, and backplane connector inspection. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should the 84152-01 be stored as a long-term spare?
Store in original anti-static packaging in a dry, temperature-controlled environment (recommended: 10–40°C, <85% RH non-condensing). Avoid storage near strong magnetic fields or high-vibration areas. Inspect the module annually for connector oxidation. For long-term storage beyond 24 months, request a pre-deployment functional test before installation.

Q4: What is the lead time and can I source multiple units for a spare parts inventory program?
Units are available from stock with a typical lead time of 1–3 business days. Volume orders for spare parts inventory programs are supported — contact sales@smartnexmsk.com for quantity pricing, consignment stock arrangements, and long-term supply agreements. We support ongoing spare parts programs for 3500 Series systems across multiple plant sites.
