Bently Nevada 84661-12 Retrofit-Ready Extension Cable for 3300 XL

Bently Nevada 84661-12 Retrofit-Ready Extension Cable for 3300 XL Control Systems

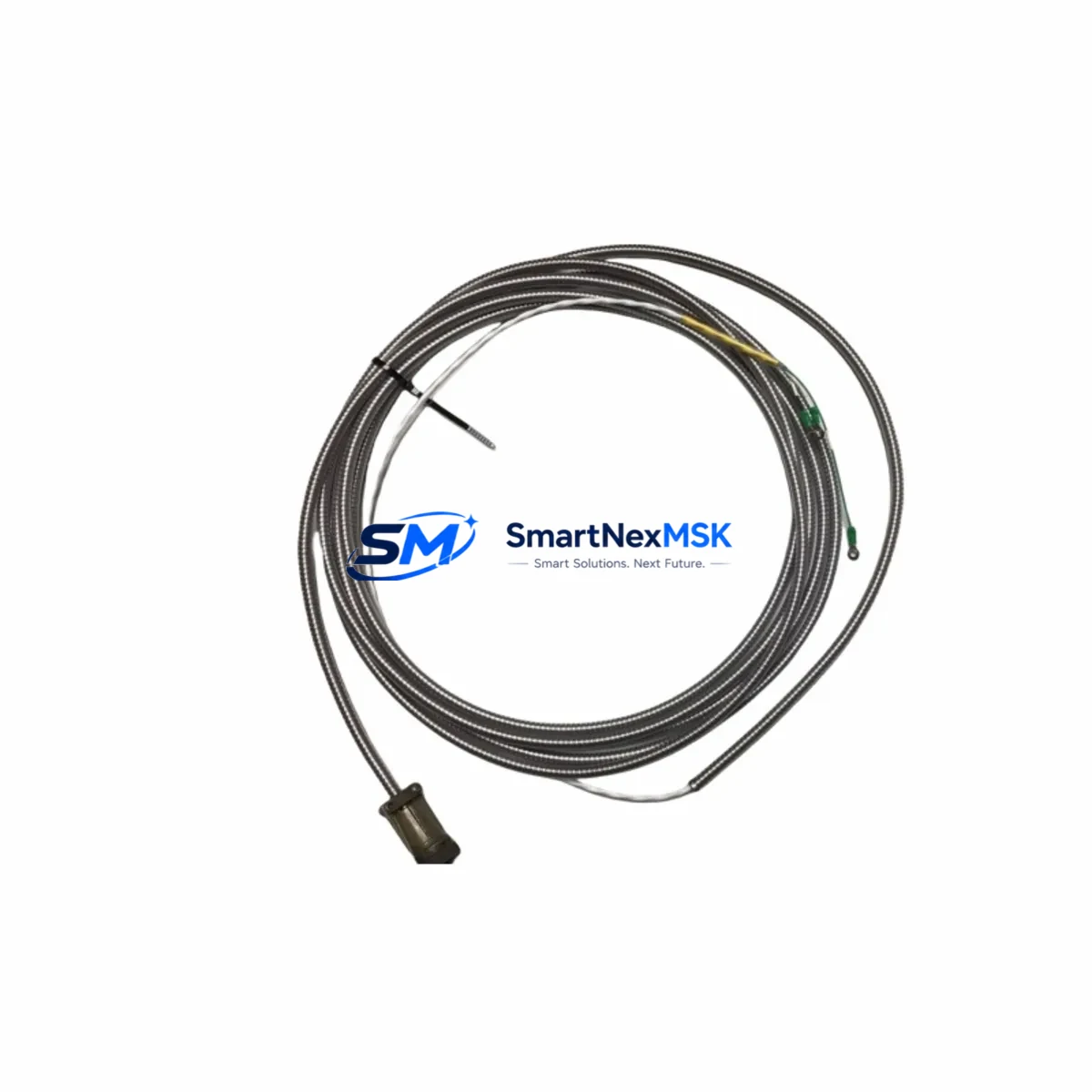

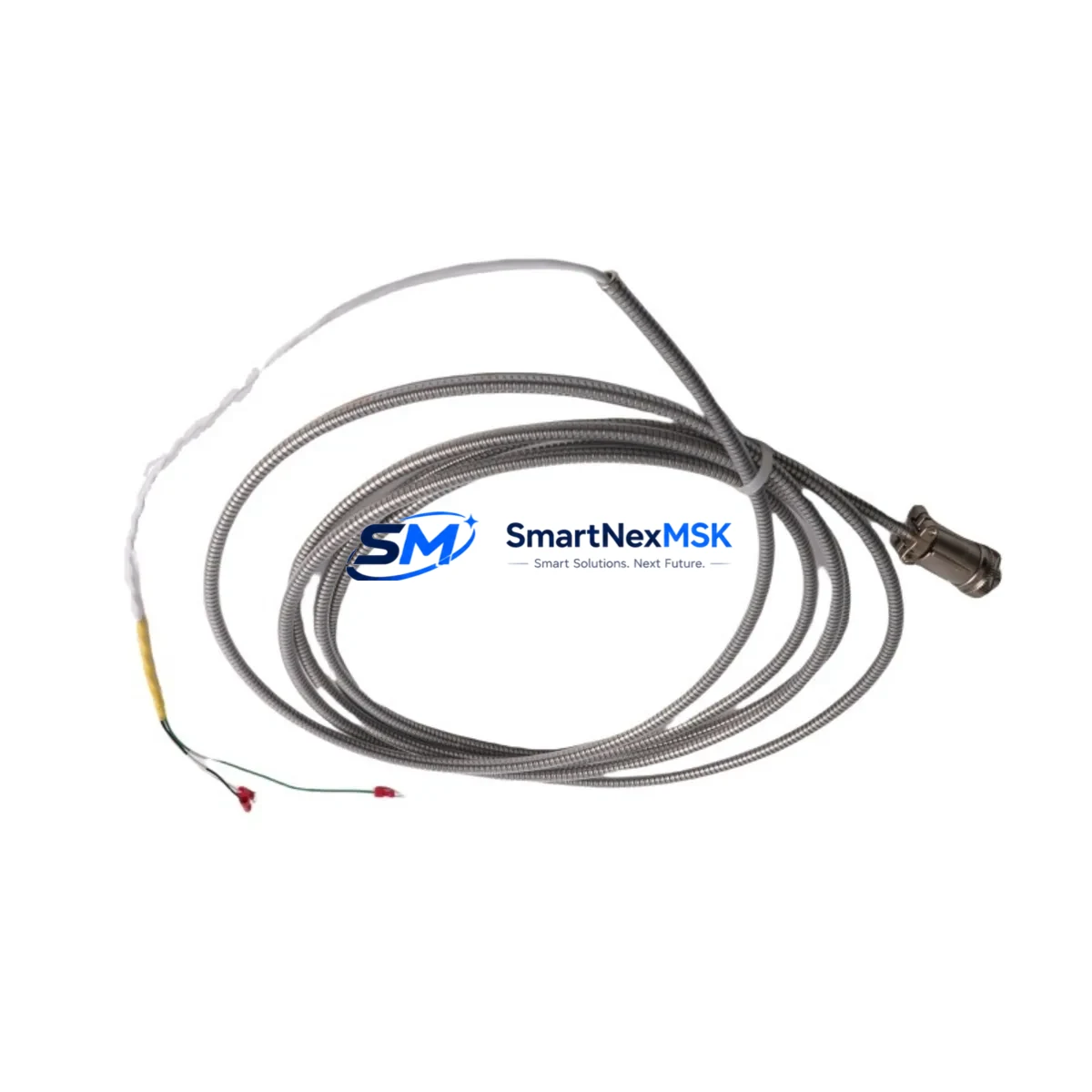

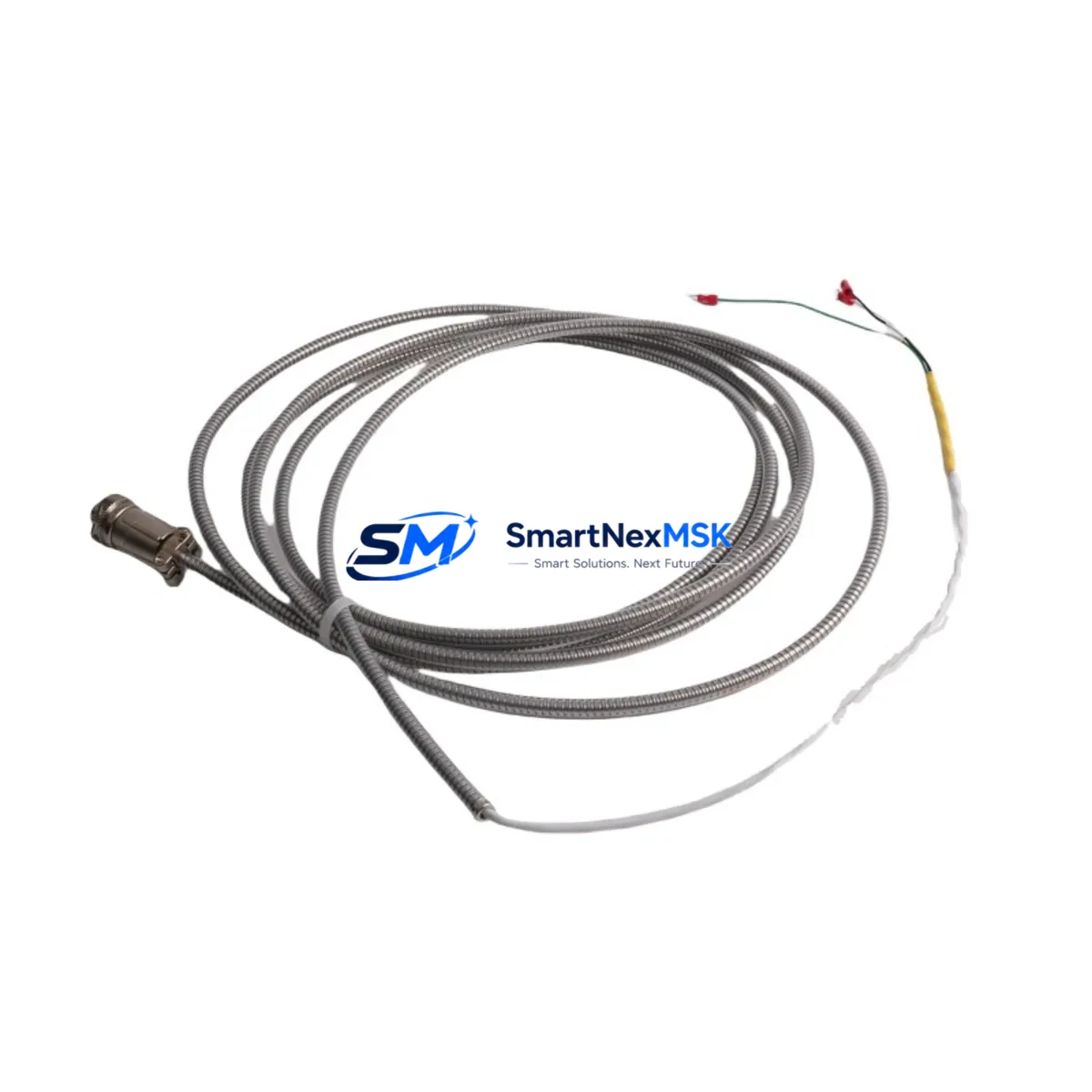

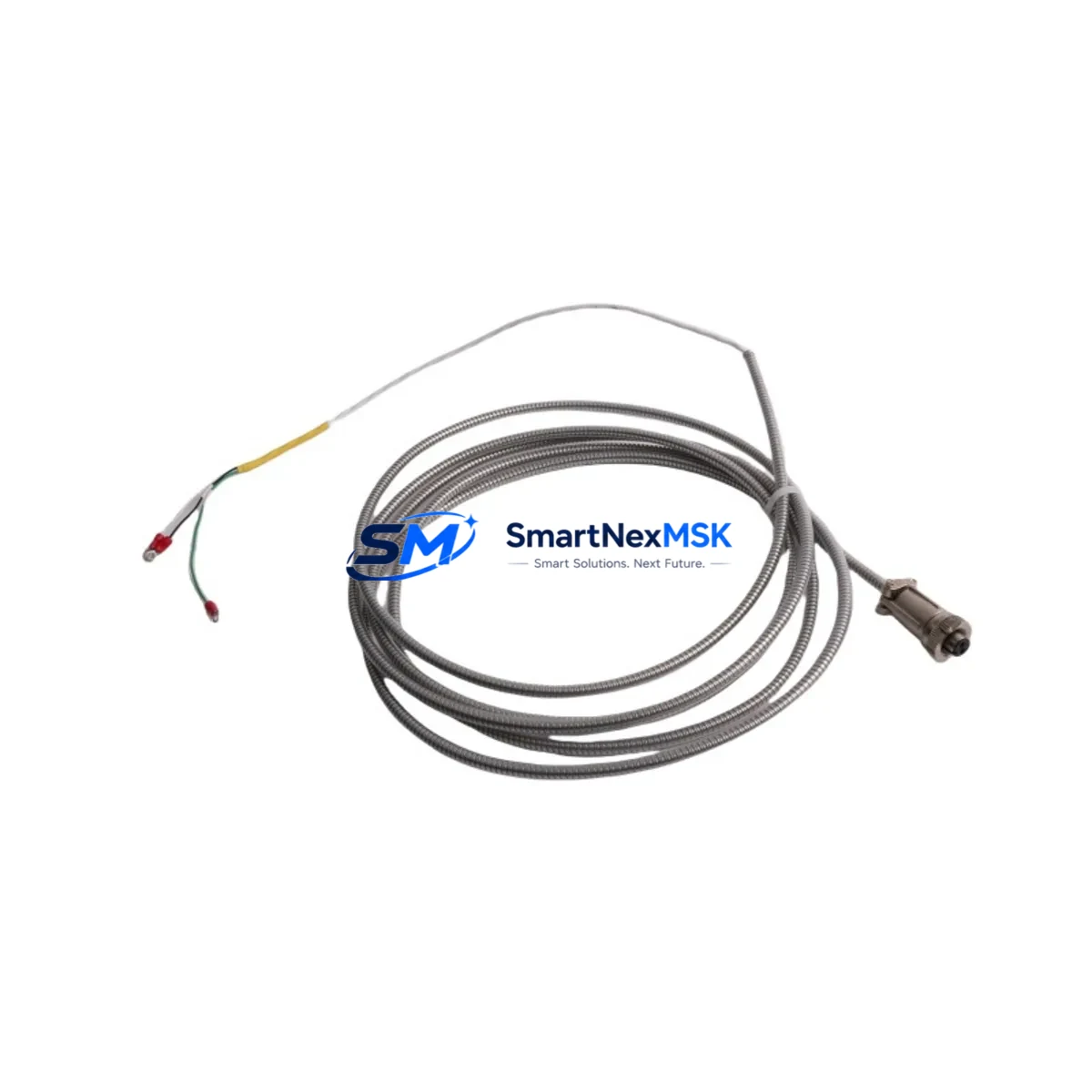

The Bently Nevada 84661-12 is a precision-engineered proximity probe extension cable designed for seamless integration into legacy 3300 XL vibration monitoring systems and forward-compatible deployment within the Bently Nevada 3500 Series platform. As aging 3300 XL installations approach end-of-support milestones, plant engineers and reliability teams increasingly rely on verified drop-in replacement components like the 84661-12 to extend operational life, reduce unplanned downtime, and defer full system overhauls. This cable is stocked, factory-tested, and backed by a 12-month warranty, making it a dependable choice for both emergency spares and planned retrofit programs.

The 84661-12 extension cable serves as the critical signal link between the proximity probe tip and the Bently Nevada proximitor/driver module. Its shielded coaxial construction maintains signal integrity across the full operating range, ensuring accurate gap voltage readings that feed into the 3300 XL monitor cards and, where applicable, the 3500/42M Proximitor I/O Module. Correct cable length selection — the “12” suffix denotes a 12-foot (approximately 3.66 m) extension — is essential when retrofitting probes into existing conduit runs or when replacing a damaged cable without repositioning the probe assembly.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 84661-12 extension cable is rarely an isolated task. In most 3300 XL retrofit scenarios, the cable change is part of a broader effort to restore or upgrade the vibration monitoring chain. Before committing to a cable swap, engineers should audit the full probe assembly: the 330101 or 330103 proximity probe at the machine end, the 330130 or 330180 proximitor/driver module mounted in the field junction box or control cabinet, and the monitor card installed in the 3300 XL rack — typically a 3300/16 or 3300/20 dual-channel monitor. Each component in this chain must be calibrated as a matched system; substituting the extension cable without verifying the probe tip gap and proximitor output voltage can introduce measurement error that triggers false alarms or masks real machinery faults.

In control cabinet upgrades where the 3300 XL rack is being migrated to a 3500 Series frame, the 84661-12 extension cable remains compatible provided the total cable length (probe body + extension) falls within the proximitor’s specified range — typically 5 m or 9 m system configurations. The 3500/42M Proximitor I/O Module accepts the same coaxial signal format, so the cable itself does not need to change. However, the rack backplane, power supply module (such as the 3500/15 Power Supply), and I/O termination blocks will require reconfiguration. Terminal wiring from the field junction box to the new 3500 rack must be verified against the updated I/O termination diagram, and any existing 3300 XL configuration software settings should be exported and mapped to the 3500 System Configuration Utility before the cutover.

For plants running Modbus RTU or FOUNDATION Fieldbus communication from the 3300 XL monitors to a DCS or SCADA layer, the protocol migration path must be planned in parallel with the hardware swap. The 3500 Series supports both legacy serial communication and modern Ethernet-based protocols via the 3500/92 Communication Gateway Module, which can bridge the existing DCS tag structure to the new monitor platform without requiring a full HMI redraw. This is particularly valuable in facilities where the operator workstation displays vibration trends from multiple machine trains and a full HMI rebuild would extend the outage window unacceptably.

Downtime Control During System Migration

Minimizing production interruption during a 3300 XL cable or monitor replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the replacement 84661-12 cable should be bench-tested with a known-good proximitor and probe to confirm signal output within specification — typically –10 VDC ± 0.5 V at the calibrated gap. All terminal assignments from the existing field wiring should be photographed and documented against the as-built drawings, because terminal block layouts between the 3300 XL and 3500 Series racks differ and incorrect rewiring is the most common cause of extended commissioning time.

During the outage, the recommended sequence is: isolate the monitor channel, disconnect the extension cable at both the probe junction and the proximitor input, install the new 84661-12, restore power, and verify gap voltage before re-enabling the monitor channel in the DCS. If the machine cannot be barred over for a physical gap check, use the proximitor’s DC output voltage as a proxy — a reading within the linear range confirms the probe-cable-proximitor system is functioning correctly. Once the channel is verified, the DCS alarm setpoints and danger limits previously configured in the 3300 XL monitor card should be confirmed in the replacement module before returning the machine to service. Keeping a pre-tested spare 84661-12 on the shelf — alongside a spare 330130 proximitor and a 3300/16 monitor card — reduces mean time to repair to under two hours for most single-channel faults.

Retrofit Support FAQ

Q1: Is the 84661-12 a direct replacement for the original Bently Nevada cable, or does it require recalibration?
The 84661-12 is a direct form-fit-function replacement. Because it maintains the same coaxial impedance and length as the original, the proximitor calibration curve remains valid. A gap voltage verification at the proximitor output is recommended after installation, but full recalibration of the probe-cable-proximitor system is only required if the probe tip position has been disturbed.

Q2: Can this cable be used in a 3500 Series system replacing a 3300 XL installation?
Yes. The 84661-12 is signal-compatible with the 3500/42M Proximitor I/O Module. Verify that the total system cable length (probe body plus extension) matches the proximitor’s calibrated range (5 m or 9 m). No cable-side modification is required for the platform migration.

Q3: What should I check during commissioning after installing the replacement cable?
Confirm the DC gap voltage at the proximitor output falls within the linear range for the installed probe gap. Check that the monitor card is receiving a valid signal and that no “not OK” (NOK) status is active. Verify that DCS alarm and danger setpoints are correctly mapped and that the vibration trend is tracking normally before returning the machine to service.

Q4: What warranty coverage is included, and has the cable been tested before shipment?
Every 84661-12 shipped by SMARTNEXMSK is function-tested prior to dispatch and covered by a 12-month warranty against manufacturing defects and signal performance failures. If the cable fails to meet specification within the warranty period, we provide a replacement or full refund. Expedited shipping is available for emergency maintenance situations.
