Bently Nevada 84661-8 Spare for 3300 XL Automation: Precision Spare Parts Replacement for Industrial Downtime Control

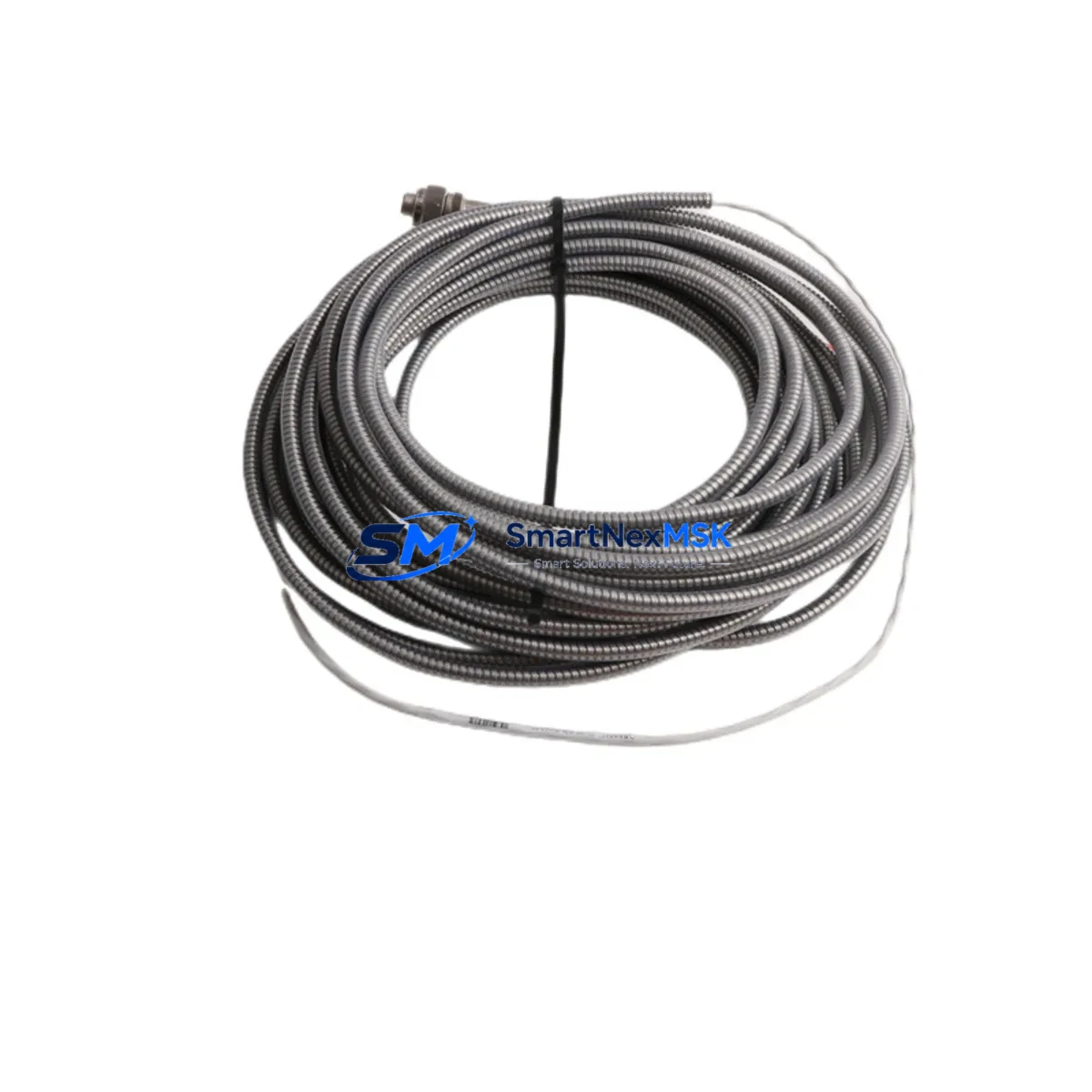

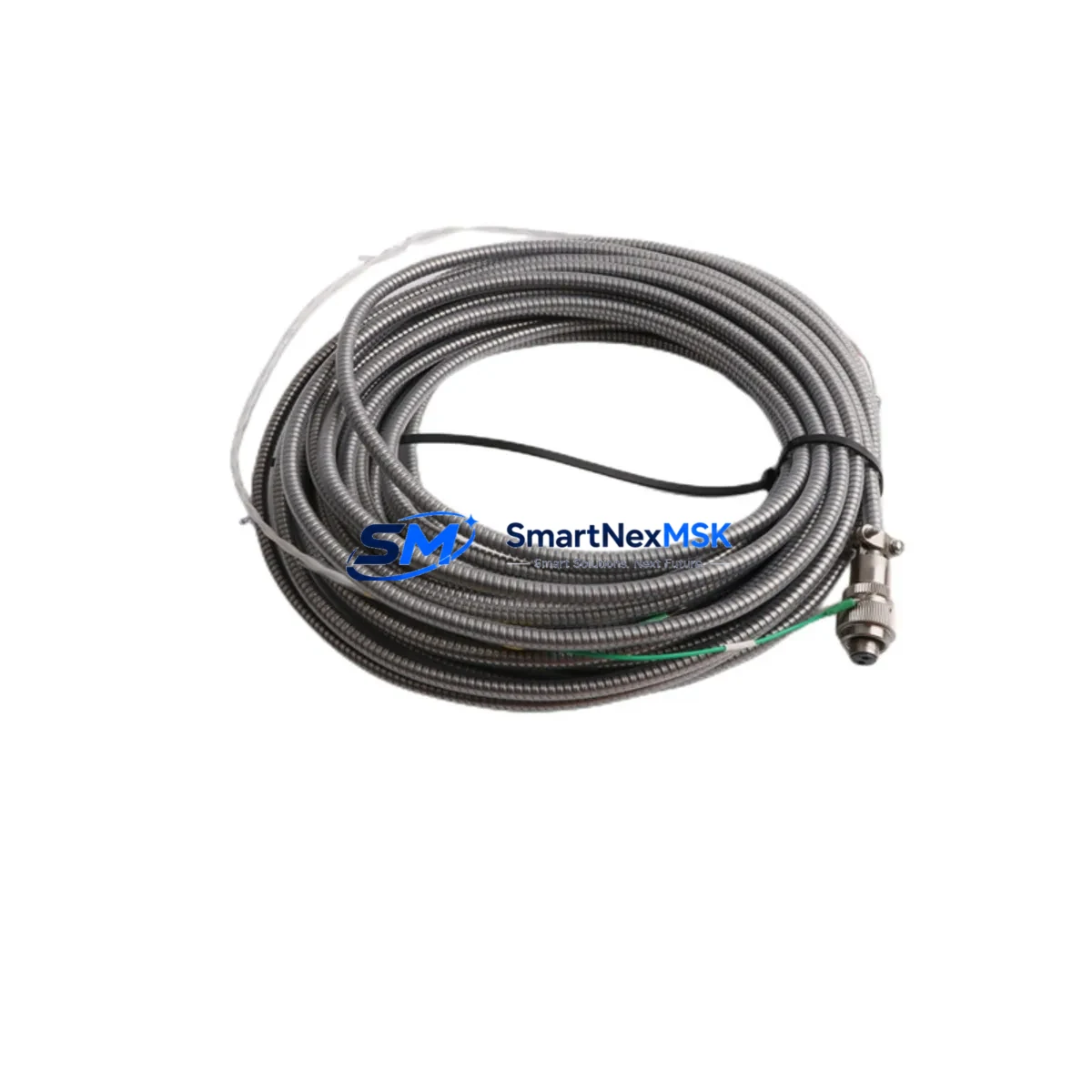

The Bently Nevada 84661-8 is an original proximity probe cable assembly engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a strategic spare parts inventory for a critical asset, the 84661-8 is a front-line component that directly affects your system’s ability to detect shaft vibration, axial position, and differential expansion in real time.

For maintenance engineers and reliability teams operating compressors, turbines, pumps, and gearboxes, the integrity of the probe-to-monitor signal chain is non-negotiable. A degraded or failed cable assembly introduces signal noise, false trips, or — more dangerously — masked faults. Stocking a verified replacement 84661-8 eliminates the most common single point of failure in the 3300 XL field wiring loop.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 84661-8 cable assembly is flagged during routine inspection or after a vibration monitor alarm, experienced maintenance engineers know that the cable is rarely the only component that warrants attention. A comprehensive site inspection should extend to the full signal chain and the surrounding control cabinet environment.

Start at the 3300 XL Proximitor Sensor (driver/oscillator module) — the active electronics that power the probe and condition the output signal. If the cable shows signs of insulation breakdown, connector corrosion, or mechanical damage, the Proximitor may have been exposed to the same environmental stress. Inspect the 3300/16 or 3300/20 monitor module in the rack for alarm setpoint drift and verify that the OK relay output is functioning correctly.

Check the terminal blocks and field wiring terminations in the junction box and the monitor rack. Loose or oxidized terminations on the coaxial center conductor or shield drain wire are a leading cause of intermittent OK dropouts that are often misdiagnosed as probe failures. Inspect the cable conduit and gland fittings for moisture ingress, especially in outdoor or wash-down environments.

At the rack level, verify the 24 VDC power supply module feeding the 3300 XL system. Voltage sag or ripple on the DC bus can cause false OK relay chatter and should be measured under load. If the facility uses a Bently Nevada 3500 Series rack in parallel for cross-validation, confirm that the 3500/42M or 3500/45 position monitor is receiving clean signals from its own dedicated probe loops.

For systems integrated with a DCS or safety PLC, verify the 4–20 mA or voltage output wiring from the 3300 XL monitor to the marshalling cabinet. Check signal isolators or barriers (such as those used in IS/Ex-rated installations) for correct loop resistance and isolation integrity. In hazardous area installations, the Zener barrier or galvanic isolator in the intrinsically safe circuit should be tested for continuity and leakage current.

If the machine is also equipped with a keyphasor probe assembly (e.g., 330180 series), inspect it during the same outage window — keyphasor signal quality directly affects phase-referenced vibration analysis and balancing accuracy. Finally, review the rack backplane connectors and module card-edge contacts for fretting corrosion, particularly in high-vibration environments where the monitor rack itself is mounted close to the machine train.

A disciplined approach to spare parts inventory should include at minimum: one spare 84661-8 cable assembly, one spare Proximitor sensor of the matching 8mm type, and one spare monitor module per critical machine train. This three-component kit covers the most statistically probable failure modes and enables a complete loop swap within a single shift.

Site Replacement Workflow

Step 1 — Isolation and permit: Coordinate with operations to place the affected channel in bypass mode at the 3300 XL monitor before disconnecting field wiring. Issue a hot-work or electrical isolation permit as required by site procedures.

Step 2 — Cable removal: Disconnect the coaxial cable at both the probe tip and the Proximitor sensor junction box. Label the shield and center conductor terminations before removal. Inspect the probe tip for mechanical damage, target gap erosion, or contamination — if the probe tip is damaged, replace the full probe assembly rather than the cable alone.

Step 3 — Replacement installation: Route the new 84661-8 cable assembly through the existing conduit. Maintain the original cable routing to preserve the specified cable-length-dependent sensitivity calibration. Torque coaxial connectors to the manufacturer’s specification — over-tightening damages the center pin dielectric.

Step 4 — Gap verification: Before re-energizing, set the probe-to-target gap using a calibrated gap tool or digital multimeter measuring Proximitor output voltage. The nominal gap for an 8mm probe on a steel target is typically 1.0–1.5 mm, corresponding to a Proximitor output of approximately −10 to −12 VDC. Confirm this against the machine-specific calibration record.

Step 5 — Functional test: Remove the channel bypass, observe the OK relay status, and verify that the vibration reading is within the expected baseline range for the machine at its current operating condition. Document the as-left gap voltage and vibration reading in the maintenance management system.

Step 6 — Return to service: Notify operations that the channel is restored. Update the spare parts inventory record and initiate a replenishment order for the consumed 84661-8 to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the 84661-8 a direct drop-in replacement for older Bently Nevada 3300 series probe cables?
The 84661-8 is designed for the 3300 XL system and is compatible with 3300 XL 8mm Proximitor sensors. Compatibility with earlier non-XL 3300 series monitors depends on the specific monitor model and calibration range. We recommend confirming the Proximitor part number and monitor model before ordering. Our technical team can assist with cross-reference verification prior to shipment.

Q2: What pre-shipment testing is performed on the 84661-8?
Each unit undergoes electrical continuity verification, coaxial impedance check, and connector integrity inspection before dispatch. Units sourced from original manufacturer stock are shipped with original packaging and documentation where available. A 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: How should the 84661-8 be stored as a long-term spare?
Store in a dry, temperature-controlled environment (10°C–35°C) away from direct sunlight and electromagnetic sources. Keep the coaxial connectors capped with the supplied dust covers. Inspect the cable jacket and connectors annually for signs of insulation degradation or connector oxidation. Rotate stock on a first-in, first-out basis and replace any unit showing visible jacket cracking or connector corrosion.

Q4: Can you supply multiple units for a plant-wide spare parts standardization program?
Yes. We support bulk procurement for plant turnarounds, spare parts standardization initiatives, and OEM-equivalent replacement programs. Volume pricing, consolidated shipment, and documentation packages (including test records and certificates of conformance) are available on request. Contact our sales team to discuss your site’s specific inventory requirements and lead-time commitments.
