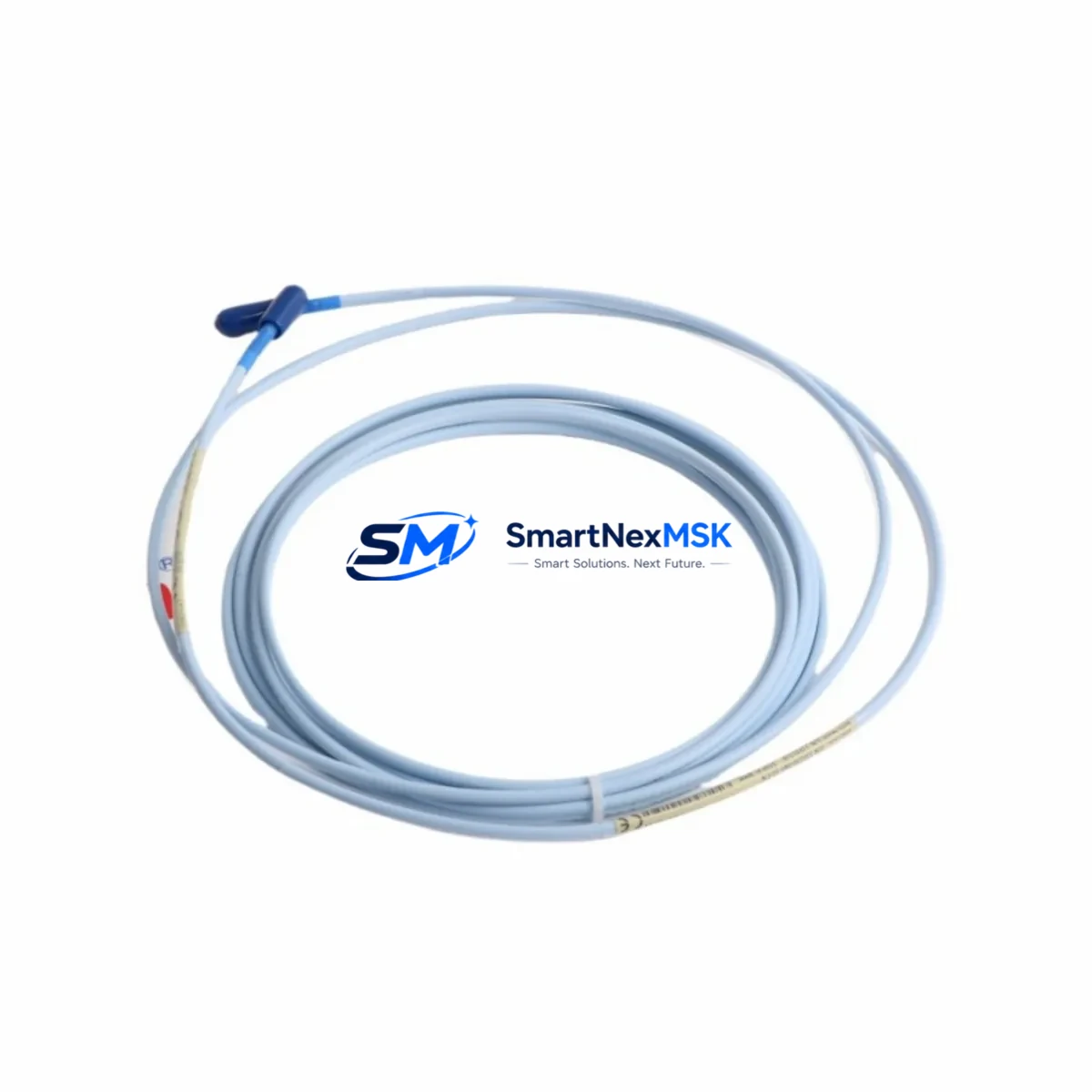

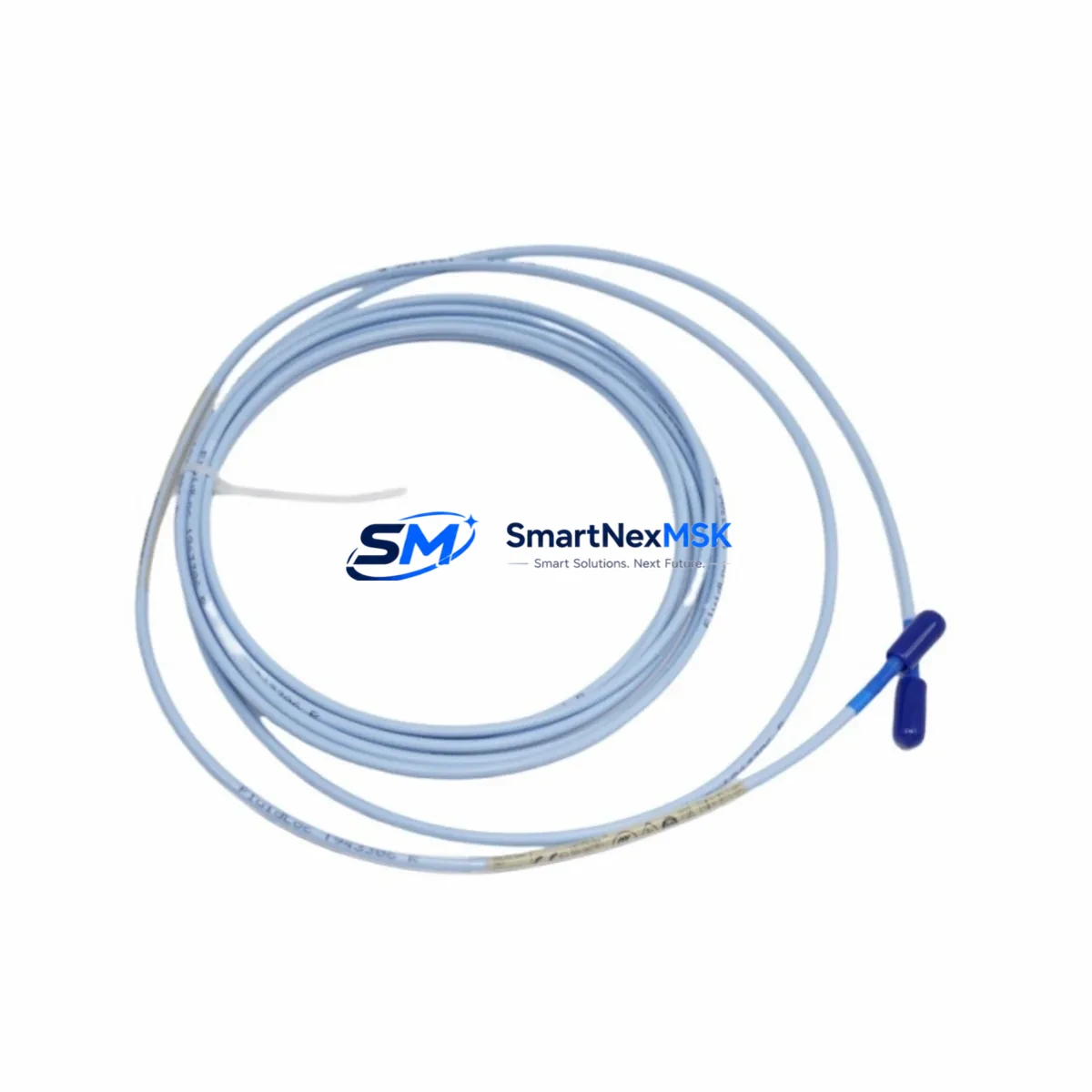

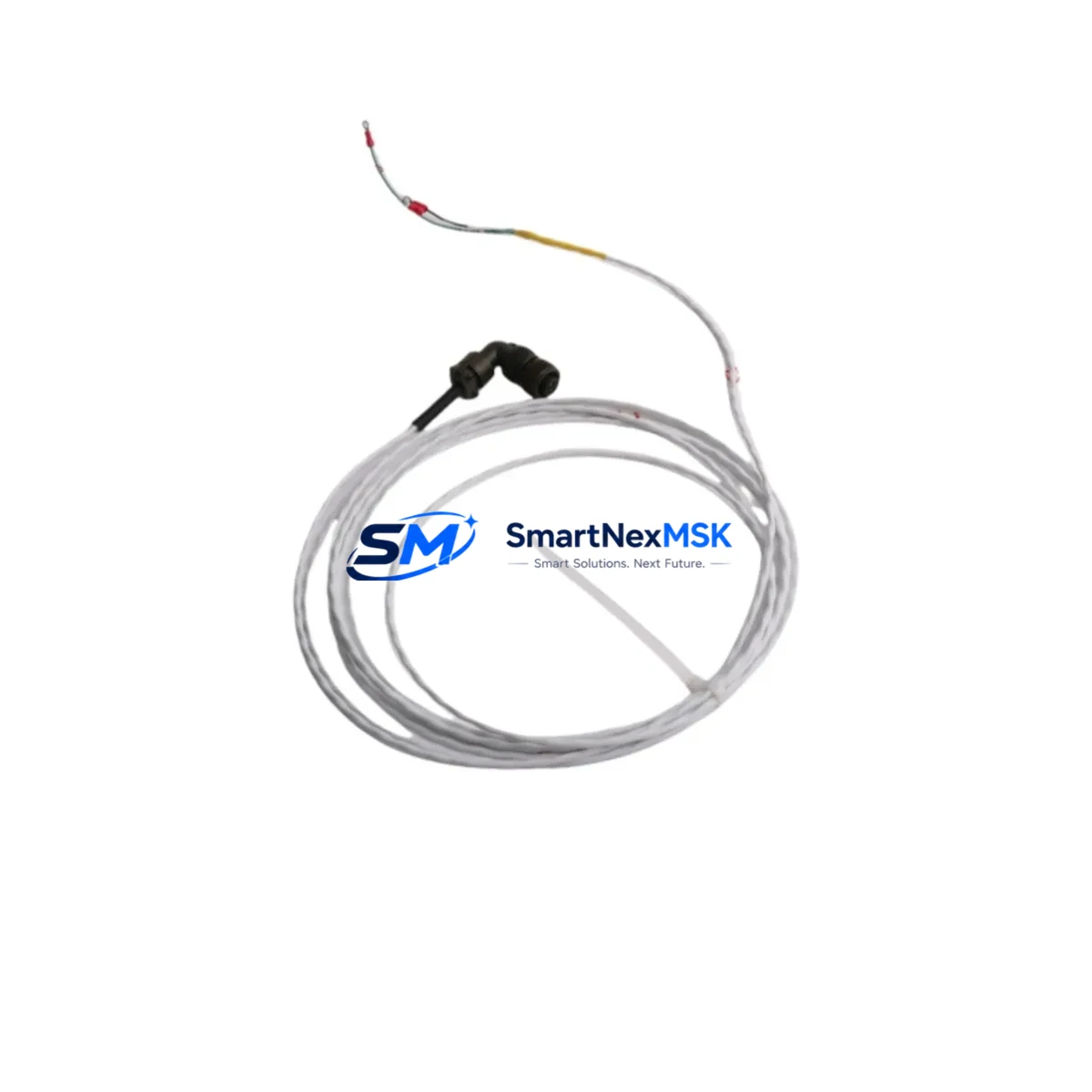

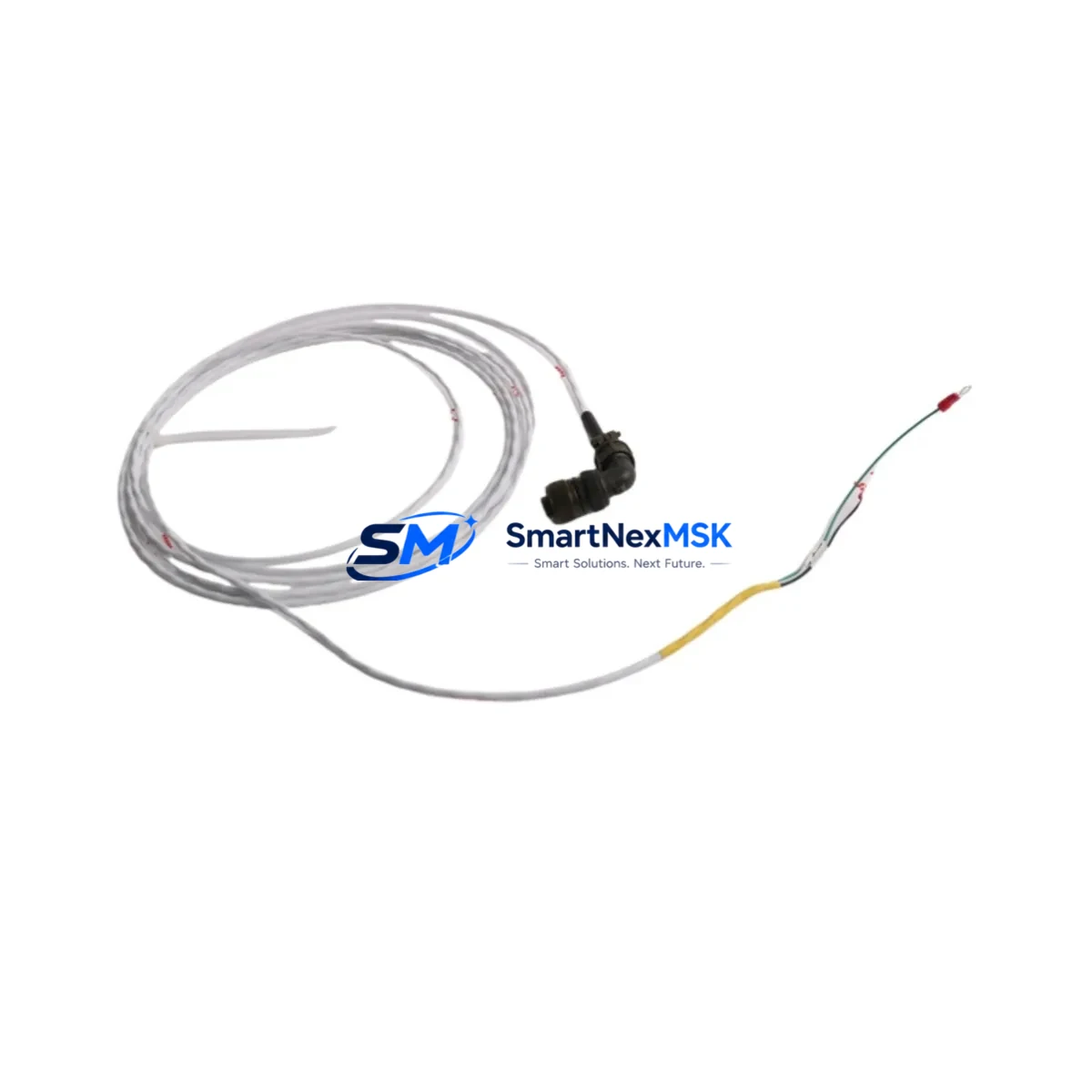

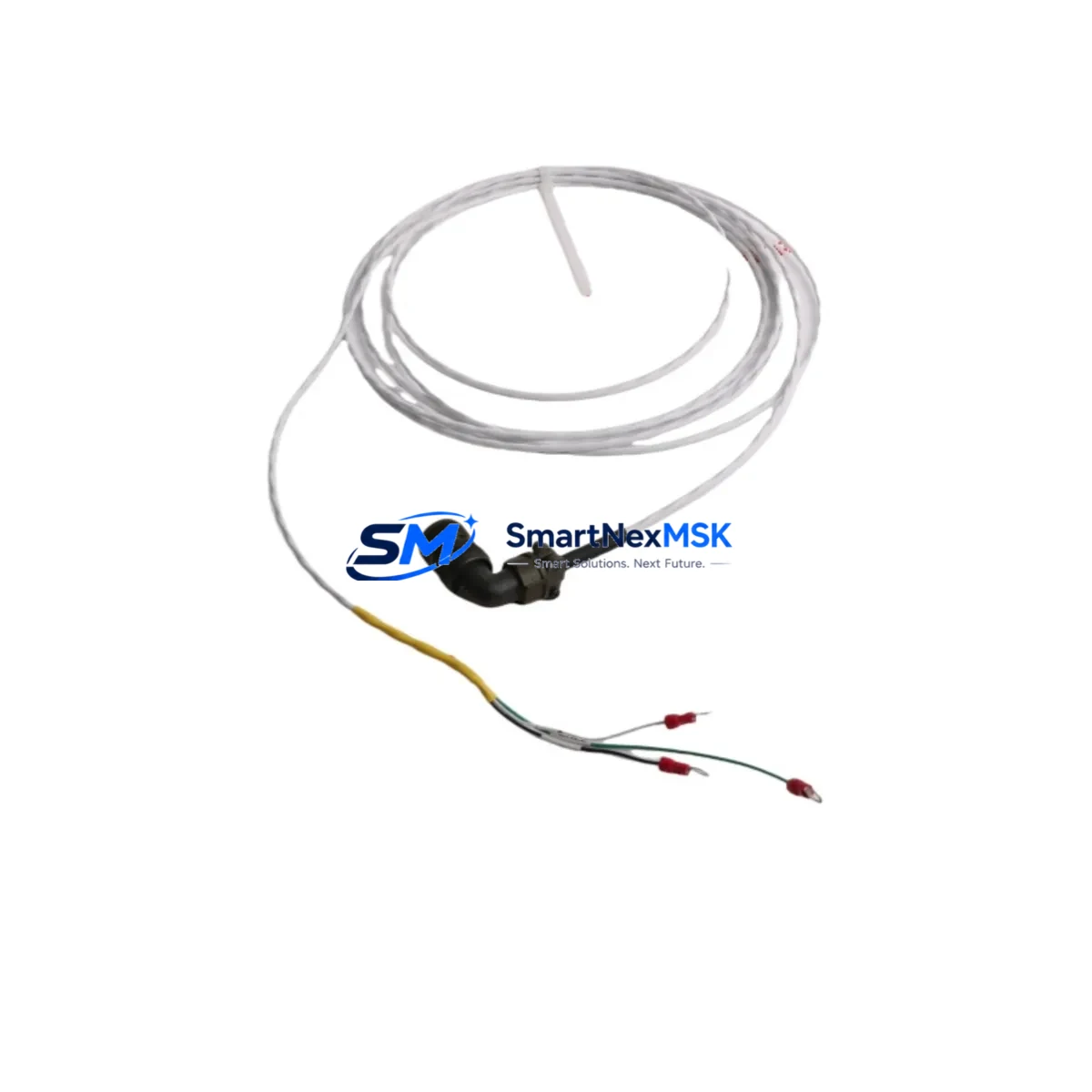

Bently Nevada 89477-20 Retrofit-Ready Interconnect Cable: Seamless Compatibility for Legacy Proximitor System Upgrades
The Bently Nevada 89477-20 Interconnect Cable is a precision-engineered retrofit solution designed to support the replacement, upgrade, and modernization of legacy vibration monitoring and machinery protection systems built around the Bently Nevada Proximitor Series. Whether you are migrating from an end-of-life 3300 Series Proximitor to a current-generation 3500 Series rack, or restoring a critical monitoring loop in an aging turbine control cabinet, the 89477-20 provides the verified electrical and mechanical compatibility required to minimize downtime and protect program logic continuity.
Industrial facilities operating rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and gearboxes — rely on Proximitor-based eddy-current proximity probes to deliver real-time shaft displacement and vibration data to the control system. When the interconnect cable between the probe tip, the Proximitor sensor, and the monitoring rack becomes damaged, corroded, or simply reaches end of service life, the entire measurement loop is compromised. The 89477-20 is the correct replacement cable for restoring this loop without requiring re-engineering of the probe mount, terminal block wiring, or rack configuration.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Series | Bently Nevada Proximitor 3300, 3500, 7200 Series |
| Connector Interface | Standard BNC / MIL-spec coaxial termination |
| Installation Requirement | No bracket modification; direct drop-in replacement |
| Communication Compatibility | Analog 4–20 mA loop; compatible with existing DCS/PLC signal conditioning |
| Replacement Recommendation | Direct substitute for OEM 89477-20; verify cable length against field routing |
| Commissioning Notes | Confirm gap voltage at Proximitor output after installation; re-zero if required |
| Warranty | 12 Months from date of shipment |
Retrofit Planning for Existing Automation Systems
Successful retrofit of the 89477-20 begins well before the cable arrives on site. Engineers should first audit the existing Proximitor sensor — typically a 3300 XL 8mm or 3300 5mm Proximitor — to confirm the sensor body is still within calibration range and that the probe tip gap is correctly set per the Bently Nevada installation manual. If the Proximitor itself is flagged for replacement, the 3500/42M Proximitor I/O Module is the recommended upgrade path for facilities already operating a 3500 Series rack.
Terminal block wiring must be verified against the original loop drawing. The 89477-20 connects the field-mounted proximity probe to the Proximitor sensor, and from there the conditioned signal travels via shielded twisted-pair to the 3500 rack’s I/O terminal board. Confirm that the existing 3500/20 Rack Interface Module or 3500/22M Transient Data Interface is correctly addressed and that the channel configuration in System 1 software reflects the new cable’s routing. If the facility uses a 3300 Series rack that is being retired, the migration path typically involves installing a 3500/40M Proximitor I/O Module in a new 3500 rack and re-terminating the field wiring at the new I/O terminal board.
Power supply capacity is a critical checkpoint. The 3500 rack draws regulated DC power from a 3500/15 Power Supply Module; verify that the existing power supply has sufficient headroom to support any additional I/O modules added during the upgrade. Backplane slot addressing must also be confirmed — each 3500 module occupies a defined slot pair, and incorrect addressing will prevent the rack from recognizing the new channel. If the control cabinet includes a 3500/92 Communication Gateway Module for Modbus or PROFIBUS integration, confirm that the gateway’s channel map is updated to reflect the new Proximitor loop assignment.
For facilities using a DeltaV or Honeywell Experion DCS as the supervisory layer, the 4–20 mA analog output from the Proximitor feeds directly into an AI card — such as a DeltaV MD Plus Controller’s analog input channel — and no protocol conversion is required. However, if the plant is migrating to a digital fieldbus architecture, a signal converter or HART-enabled transmitter may be required between the Proximitor output and the DCS input card.
Downtime Control During System Migration
Minimizing unplanned downtime during a Proximitor cable replacement requires a structured pre-outage checklist. Before isolating the measurement loop, export the current System 1 configuration file and archive the active alarm setpoints for the affected channel. If the machine cannot be taken offline, consider installing a temporary bypass jumper at the rack terminal board to hold the last valid reading while the cable is replaced — this prevents a spurious trip on the machinery protection relay.
Once the 89477-20 is installed and terminated, restore power to the Proximitor and measure the DC gap voltage at the sensor output. For a standard 8mm probe with a 3300 XL Proximitor, the nominal gap voltage at the recommended 1.0 mm air gap is approximately −10.0 VDC. Deviation beyond ±0.5 VDC indicates a wiring fault, incorrect probe gap, or a damaged sensor that requires replacement. After gap verification, confirm that the System 1 trend display shows a stable, noise-free signal before releasing the machine to normal operation. Document the as-left gap voltage and cable routing in the plant maintenance management system to support future audits.
Retrofit Support FAQ
Q1: Is the 89477-20 a direct drop-in replacement for the original OEM cable?
Yes. The 89477-20 is dimensionally and electrically equivalent to the original Bently Nevada factory cable. No modifications to the probe mount, Proximitor housing, or rack terminal board are required. Verify the cable length against your field routing before ordering.
Q2: What commissioning steps are required after installation?
After terminating the cable, power up the Proximitor and measure the output gap voltage. Confirm the reading is within the specified range for your probe and gap setting. Update the System 1 channel configuration if the cable routing has changed, and verify that the alarm and trip setpoints are correctly restored.
Q3: Can this cable be used with both 3300 Series and 3500 Series Proximitor sensors?
Yes, the 89477-20 is compatible with both the 3300 Series and 3500 Series Proximitor families, as well as the 7200 Series, provided the connector termination matches. Confirm the connector type at both the probe end and the sensor end before installation.
Q4: What warranty coverage is provided?
All 89477-20 cables supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. Warranty coverage includes manufacturing defects, connector integrity, and cable continuity. Units are function-tested prior to dispatch. Contact sales@smartnexmsk.com for warranty claims or technical support.
