Bently Nevada 9200-09-02-10-00 Spare 9200 Series

Bently Nevada 9200-09-02-10-00 Spare 9200 Series: Precision Replacement for Industrial Vibration Monitoring

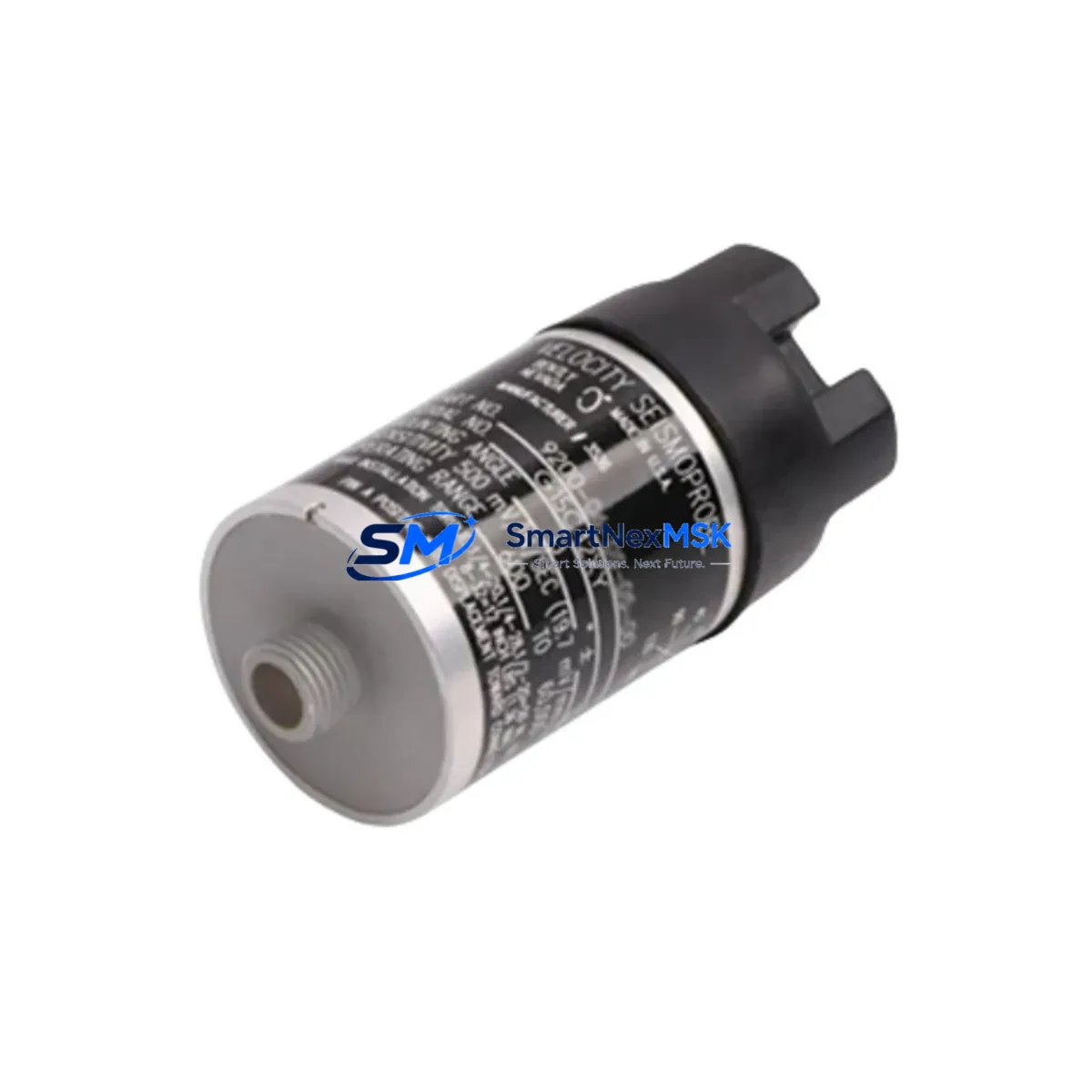

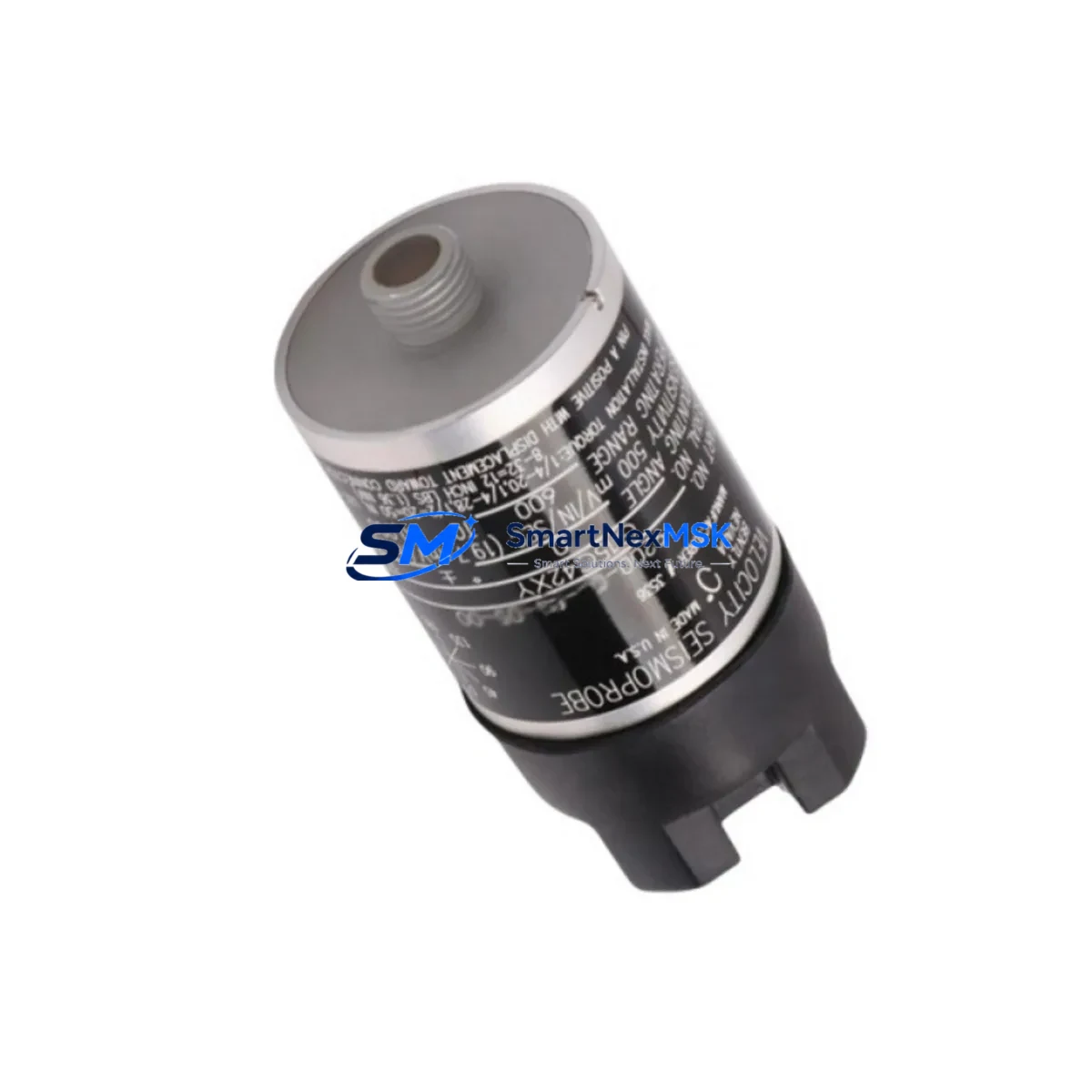

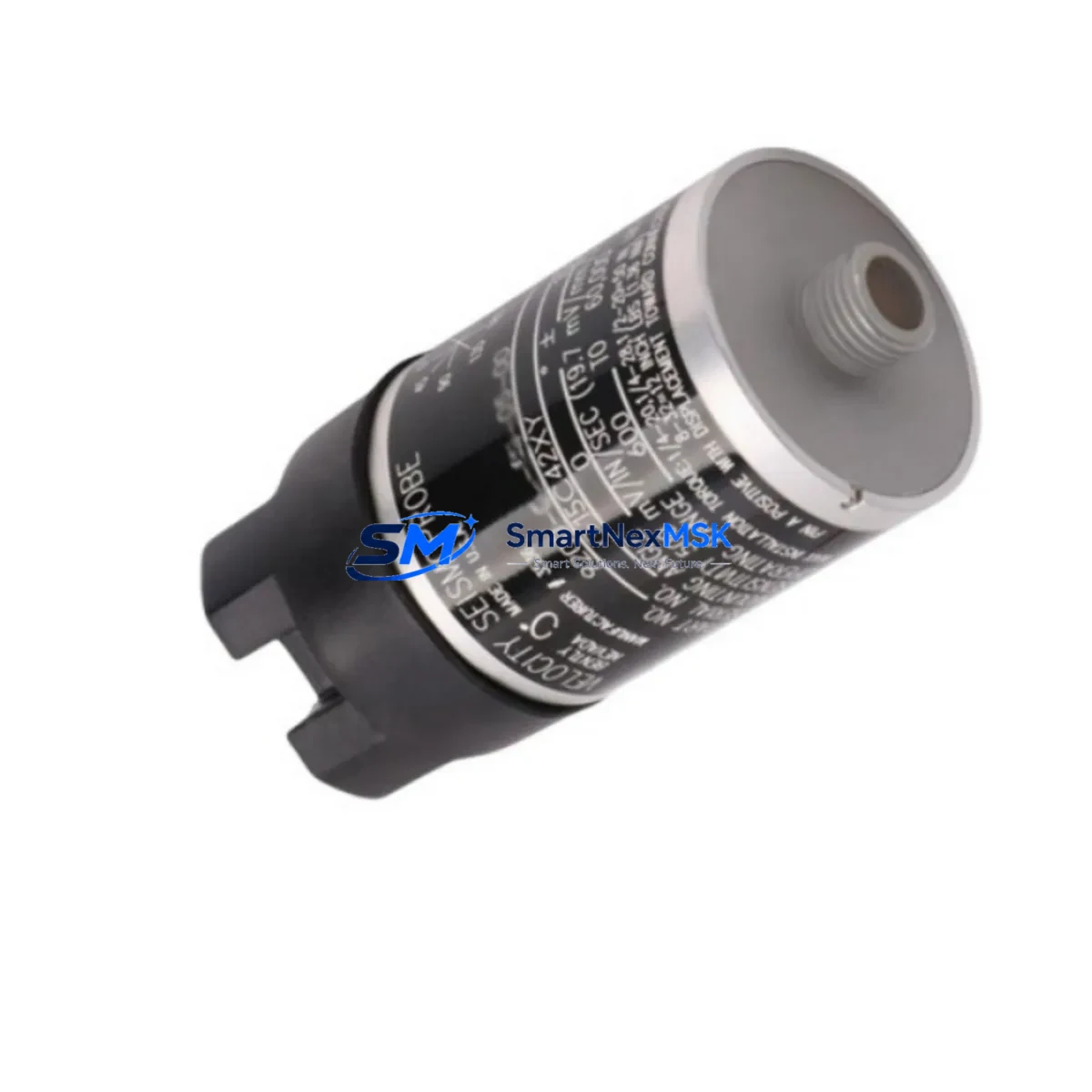

The Bently Nevada 9200-09-02-10-00 is a two-wire eddy current proximity transducer engineered for continuous vibration and position monitoring in rotating machinery. As a maintenance-ready spare for the 9200 Series system, this unit is a direct replacement for aging or failed transducers in turbines, compressors, pumps, and other critical rotating assets. Sourced as an original component, it delivers the measurement accuracy and signal integrity that plant maintenance engineers depend on for reliable machinery protection and condition monitoring.

Unplanned downtime caused by a failed proximity transducer can cascade into hours of lost production. Stocking the 9200-09-02-10-00 as a certified spare ensures your maintenance team can execute a rapid swap during a planned outage or emergency shutdown, restoring system integrity without waiting on extended lead times. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty, giving procurement and reliability engineers confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 9200-09-02-10-00 proximity transducer is flagged during a routine control cabinet inspection or machinery health scan, experienced maintenance engineers know that replacing the transducer alone is rarely sufficient for a complete corrective action. A thorough site assessment should include the associated 9200 Series Proximitor® sensor (the signal conditioning module mounted in the junction box or rack), which converts the transducer’s raw eddy current signal into a usable DC output. If the Proximitor shows drift, erratic output, or physical damage, it should be replaced concurrently to avoid a repeat callout.

The extension cable assembly connecting the transducer to the Proximitor is a frequent source of intermittent faults — inspect the coaxial cable for jacket cracking, connector corrosion, and continuity. In high-vibration environments, cable clamps and conduit fittings should also be checked. At the rack level, verify the 3300 Series or System 1® monitor card input channel for correct gap voltage reading (typically -10 VDC at nominal gap) and confirm that alarm and danger setpoints are correctly configured after reinstallation.

For plants running integrated machinery protection systems, the replacement workflow should also include a check of the power supply module feeding the Proximitor circuit — a sagging or noisy -24 VDC rail can introduce measurement error that mimics a failing transducer. Terminal blocks and field wiring terminations in the junction box should be inspected for loose connections, moisture ingress, and corrosion, particularly in outdoor or high-humidity installations. Where the 9200 system feeds a DCS analog input card, verify the 4–20 mA or DC voltage signal at the marshalling panel to confirm end-to-end signal integrity after the transducer swap.

In older plant configurations where the 9200 Series interfaces with a Bently Nevada 3500 Series rack, confirm that the transducer and Proximitor combination is listed in the 3500 system’s approved transducer list. If the installation also includes keyphasor transducers for phase reference, inspect those probes and their cables as part of the same planned maintenance window to avoid a second outage. Plants with temperature monitoring modules co-located in the same machinery protection cabinet should verify thermocouple or RTD input cards are functioning correctly, as thermal events often accompany vibration anomalies in rotating equipment.

For procurement engineers building a strategic spare parts inventory, the 9200-09-02-10-00 should be paired with at least one spare Proximitor, one extension cable set, and a set of terminal block connectors appropriate for the junction box configuration. Long-lead items such as monitor cards and power supply modules for legacy 9200 and 3300 Series racks should be identified and sourced proactively, as OEM availability for discontinued models can be unpredictable. SMARTNEXMSK maintains long-term supply capability for Bently Nevada legacy components, supporting both emergency replacement and planned lifecycle extension programs.

Site Replacement Workflow

Step 1 — Isolation and Permit: Coordinate with operations to place the affected machine in a safe state. Issue a work permit and isolate the Proximitor power supply before disconnecting the transducer. Record the existing gap voltage reading from the monitor display as a baseline reference.

Step 2 — Transducer Removal: Disconnect the extension cable at the transducer connector. Using the appropriate spanner, carefully unthread the transducer from its mounting bracket. Note the number of turns used to achieve the original gap setting, or measure the installed gap with a feeler gauge before removal.

Step 3 — Inspection and Cleaning: Inspect the mounting threads, bracket, and target area on the shaft for wear, corrosion, or mechanical damage. Clean the target surface if contaminated. Verify the replacement 9200-09-02-10-00 part number matches the removed unit exactly, including cable length suffix.

Step 4 — Installation and Gap Setting: Thread the new transducer into the bracket and set the gap per the OEM specification (typically 1.0–1.5 mm, confirmed by the gap voltage reading of approximately -10 VDC at nominal gap). Reconnect the extension cable and restore Proximitor power.

Step 5 — Verification: Confirm the monitor channel displays a valid gap voltage within the calibrated range. Check that vibration readings are stable and within expected baseline values before returning the machine to service. Document the replacement in the CMMS with the new part serial number and gap setting recorded.

This structured workflow minimizes re-work risk, ensures system compatibility is maintained, and supports a clean audit trail for reliability and compliance records — critical for facilities operating under API 670 or equivalent machinery protection standards.

Spare Parts Support FAQ

Q1: Is the 9200-09-02-10-00 a direct drop-in replacement for my existing transducer?
Yes, provided your existing installation uses the same SKU. The suffix digits encode cable length and connector configuration — confirm the full part number matches before ordering. If you are replacing a different cable-length variant (e.g., 9200-09-02-05-00 for 5 ft), the transducer body is identical but the extension cable length will differ. SMARTNEXMSK can advise on cross-reference compatibility if your existing label is damaged or unreadable.

Q2: How does SMARTNEXMSK verify the condition of spare parts before shipment?
Every unit undergoes a pre-shipment functional check including visual inspection, connector integrity verification, and where applicable, electrical continuity testing. Original packaging and documentation are preserved where available. Each shipment is accompanied by a packing list and test record. The 12-month warranty covers defects in materials and workmanship from the date of receipt.

Q3: Can you support emergency orders for plants facing unplanned downtime?
Yes. SMARTNEXMSK prioritizes emergency spare requests and can arrange expedited dispatch for in-stock items. Contact our sales team directly at sales@smartnexmsk.com or +86 18259474341 with your part number, required quantity, and delivery location. We will confirm stock availability and lead time within one business day.

Q4: What is your long-term supply strategy for legacy Bently Nevada 9200 Series components?
We maintain dedicated inventory for legacy Bently Nevada components, including 9200 Series transducers, Proximitor sensors, and associated cable assemblies, to support plants committed to extending the operational life of existing machinery protection systems. Our sourcing network covers original surplus and new old stock, enabling reliable supply even for components that are no longer in active OEM production. We recommend customers with large installed bases discuss a consignment or blanket order arrangement to secure long-term availability.
