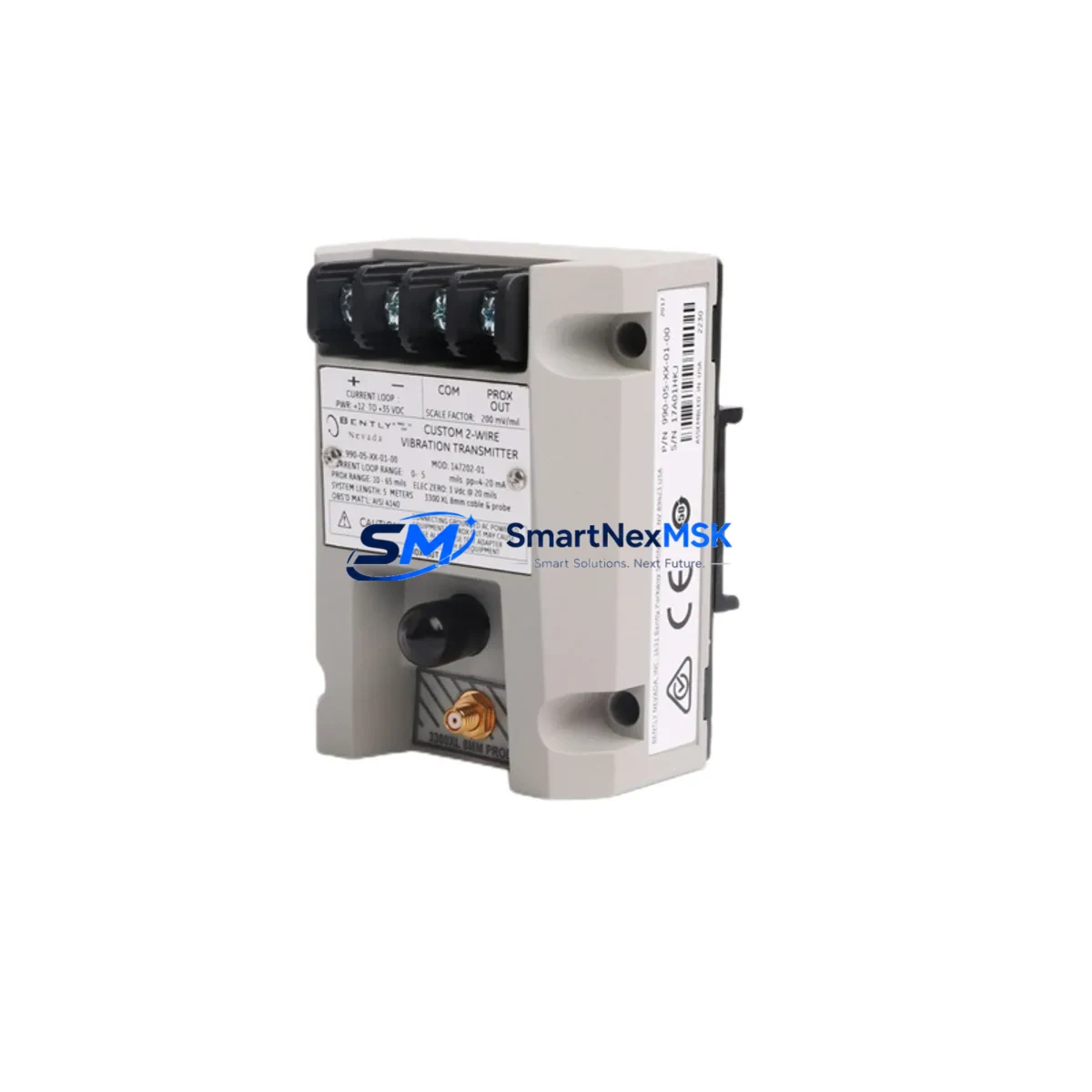

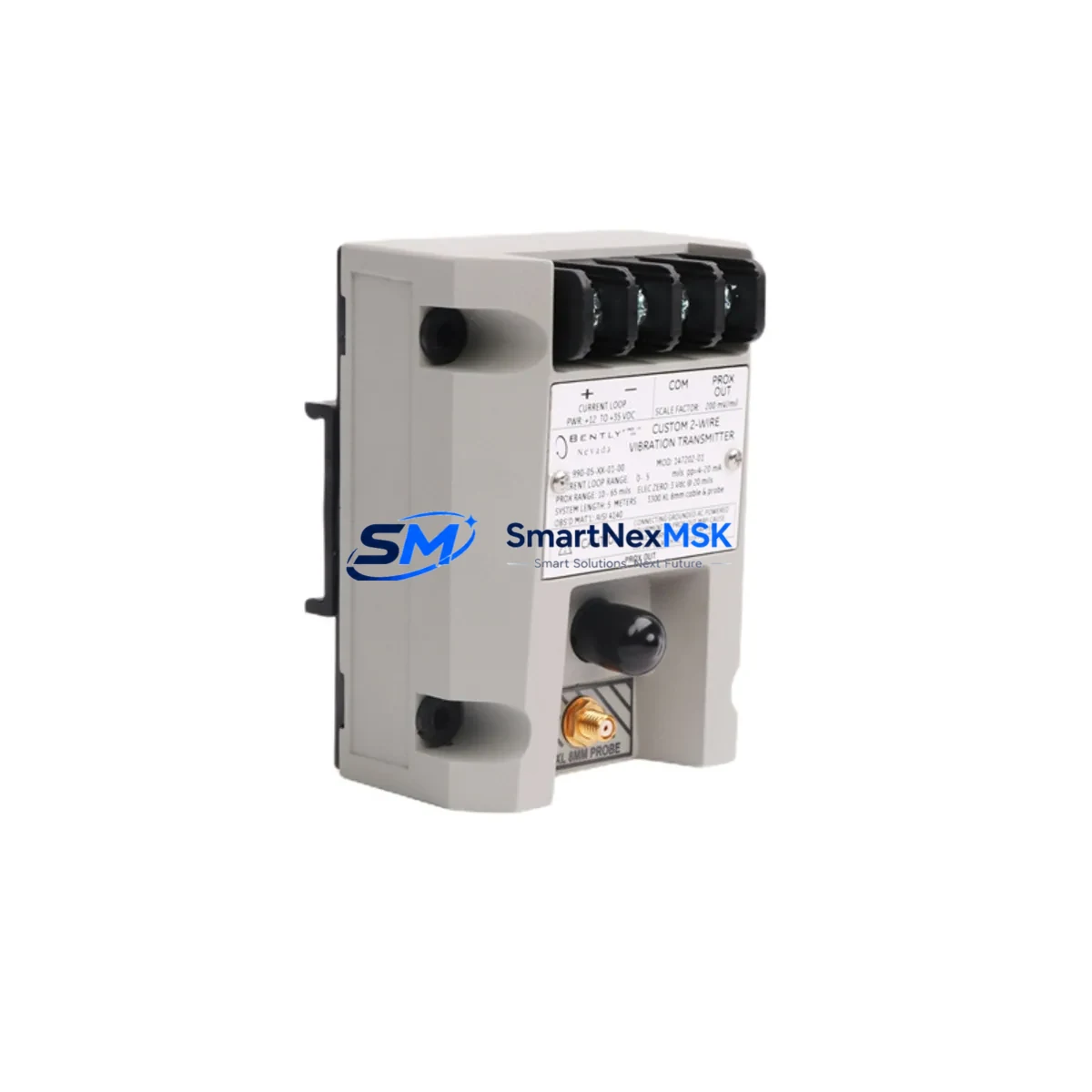

Bently Nevada 990-05-50-02-05 Safety Proximity Transmitter

Bently Nevada 990-05-50-02-05 Safety Proximity Transmitter: Ruggedized Control for Harsh Industrial Sites

The Bently Nevada 990-05-50-02-05 is a ruggedized proximity transmitter from the industry-proven 3300 XL Series, engineered to deliver continuous, high-integrity vibration and position monitoring in the most demanding industrial environments. Designed for critical machinery protection systems, this transmitter maintains stable signal output under conditions of high electromagnetic interference, extreme temperature cycling, mechanical shock, and continuous heavy-load operation — making it a cornerstone component in safety-critical control cabinets and protective relay circuits across global heavy industry.

In high-stakes applications such as turbine protection, compressor monitoring, and rotating machinery safety interlocks, signal integrity is non-negotiable. The 990-05-50-02-05 delivers consistent eddy-current proximity sensing with minimal signal drift, ensuring that your machinery protection system receives accurate, real-time shaft displacement data at all times. This directly reduces the risk of undetected rotor excursions, bearing failures, and catastrophic machinery trips caused by false or missing signals.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the Bently Nevada 990-05-50-02-05 transmitter operates as the primary sensing element feeding into a Bently Nevada 3300 XL Monitor or a 3500/42M Proximitor Monitor rack card. The 4–20 mA analog output integrates directly with safety PLCs, DCS input modules, and dedicated vibration monitoring racks without requiring signal conditioning intermediaries — reducing potential failure points in the signal chain.

To ensure complete loop integrity, the transmitter is typically paired with a Bently Nevada 330180 Proximitor Sensor and a matched 330130 Extension Cable, forming a calibrated probe-cable-transmitter system. This three-component assembly is critical: mismatched cable lengths or probe types will introduce scale factor errors that compromise the accuracy of your protection setpoints. When replacing the 990-05-50-02-05 in the field, always verify the full probe system compatibility against the original calibration certificate.

Power supply stability is equally important. The transmitter’s 18–30 VDC input range accommodates most industrial panel power supplies, but in environments with significant load switching — such as those using Phoenix Contact QUINT Power or Siemens SITOP series DIN-rail PSUs — it is advisable to install transient suppression on the supply rail. Surge events from motor starts, contactor switching, or nearby VFD operation can introduce voltage spikes that degrade transmitter electronics over time. A properly rated surge protection device (SPD) on the 24 VDC bus protects not only the 990-05-50-02-05 but also co-located modules such as Bently Nevada 3500/20 Power Supply rack cards and analog input modules on your safety PLC.

For communication-intensive cabinets where the proximity data feeds into a DCS historian or SCADA system via Modbus RTU or FOUNDATION Fieldbus, signal isolation between the 4–20 mA loop and the digital communication bus is strongly recommended. Isolation barriers — such as those from the Pepperl+Fuchs KFD series or equivalent galvanic isolators — prevent ground loop interference from corrupting vibration readings, a common failure mode in large petrochemical plants where cable runs exceed 200 meters.

In safety interlock architectures, the transmitter output is often wired in parallel to both the machinery protection monitor and a safety instrumented system (SIS) input card — for example, a Triconex 3703E or Hima F3 DIO analog input module. This dual-use wiring requires careful loop burden calculation to ensure the transmitter can drive both loads simultaneously without signal degradation. The 990-05-50-02-05’s robust output driver is rated for standard loop burdens, but always verify total loop resistance against the transmitter’s output compliance specification before commissioning.

Critical Industrial Safety Applications

The Bently Nevada 990-05-50-02-05 is deployed across a wide spectrum of safety-critical industrial sectors where continuous machinery availability and early fault detection are essential to both operational continuity and personnel safety.

Petrochemical & Refinery: In crude distillation units, catalytic crackers, and compressor trains, this transmitter monitors shaft radial displacement on centrifugal compressors and steam turbines. Early detection of rotor instability — such as oil whirl or surge-induced shaft excursion — allows the protection system to initiate a controlled shutdown before catastrophic bearing failure or seal damage occurs, preventing both equipment loss and hazardous hydrocarbon release.

Power Generation: Gas turbine and steam turbine generator sets in power plants rely on proximity transmitters for continuous shaft monitoring. The 990-05-50-02-05’s stable output under high-temperature, high-vibration conditions makes it suitable for installation in turbine bearing pedestals where ambient temperatures can approach the upper operating limit. Reliable shaft position data feeds directly into the turbine control system’s overspeed protection and load-shedding logic.

Mining & Mineral Processing: Large ball mills, SAG mills, and crusher drives in mining operations subject monitoring equipment to extreme mechanical shock and dust ingress. The IP67-rated enclosure of the 990-05-50-02-05 ensures continued operation in these environments, providing early warning of mill shell eccentricity or pinion gear misalignment before a catastrophic drivetrain failure halts production.

Water & Wastewater Treatment: High-capacity pump stations and blower systems in water treatment facilities require continuous monitoring to prevent unplanned outages that could compromise public health infrastructure. The transmitter’s low-maintenance, loop-powered design minimizes intervention requirements in remote or unmanned pump stations.

Metallurgy & Steel: Rolling mill drives, continuous casters, and blast furnace blowers operate under extreme thermal and mechanical stress. Proximity transmitters in these applications must withstand radiated heat, coolant mist, and strong magnetic fields from induction heating systems — conditions the 990-05-50-02-05 is specifically designed to endure.

Port & Heavy Lifting: Crane hoist motors and gantry drive systems in port operations benefit from vibration monitoring to detect bearing wear before it progresses to a failure that could drop a load or strand a vessel. The transmitter’s ruggedized connector and cable system resists the mechanical stress of cable flexing in mobile machinery applications.

Safety and Quality FAQ

Q1: What warranty does the 990-05-50-02-05 carry, and what does it cover?
All units supplied by SMARTNEXMSK carry a 12-month quality warranty from the date of shipment. The warranty covers functional defects identified under normal operating conditions consistent with the product’s published specifications. Each unit undergoes pre-shipment functional testing and inspection before dispatch. If a unit fails within the warranty period under normal use, we provide replacement or full technical support to resolve the issue.

Q2: How is each unit tested before shipment?
Every Bently Nevada 990-05-50-02-05 unit is subject to pre-shipment inspection covering output signal verification, supply current draw, connector integrity, and physical condition assessment. Surplus and refurbished units are additionally bench-tested against the original Bently Nevada performance specification to confirm scale factor accuracy and output linearity before release. Test records are available upon request for critical safety applications.

Q3: Is the 990-05-50-02-05 compatible with existing 3300 XL and 3500 Series systems?
Yes. The 990-05-50-02-05 is a direct replacement transmitter within the Bently Nevada 3300 XL proximity system. It is also compatible with 3500 Series monitoring racks when used with the appropriate Proximitor interface. Always verify probe-cable-transmitter system calibration when replacing components in an existing installation to maintain protection setpoint accuracy. Contact our technical team if you require compatibility confirmation for a specific rack configuration.

Q4: Can you guarantee long-term supply and support for this part?
SMARTNEXMSK maintains dedicated inventory of Bently Nevada 3300 XL Series components, including the 990-05-50-02-05 and associated probes, extension cables, and monitor cards. We support long-term maintenance contracts, planned outage spare kits, and emergency same-day dispatch for critical plant shutdowns. Our sourcing network ensures continued availability even for parts that have reached end-of-production status with the OEM.
