Bently Nevada 991-01-XX-01-00 MOD 284318-01 3500 Upgrade

Bently Nevada 991-01-XX-01-00 MOD 284318-01: Retrofit-Ready Vibration Transmitter for 3500 Series Control Systems

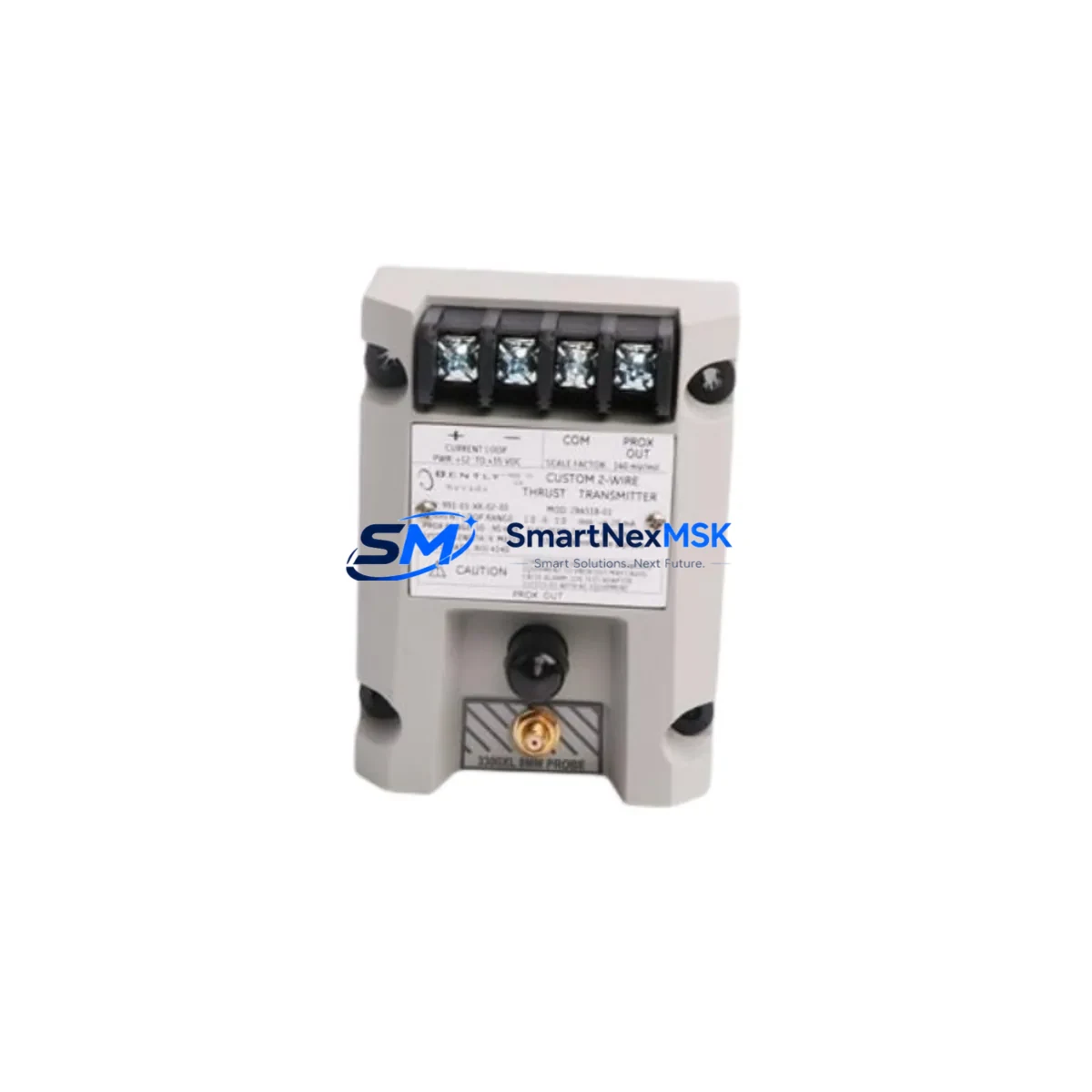

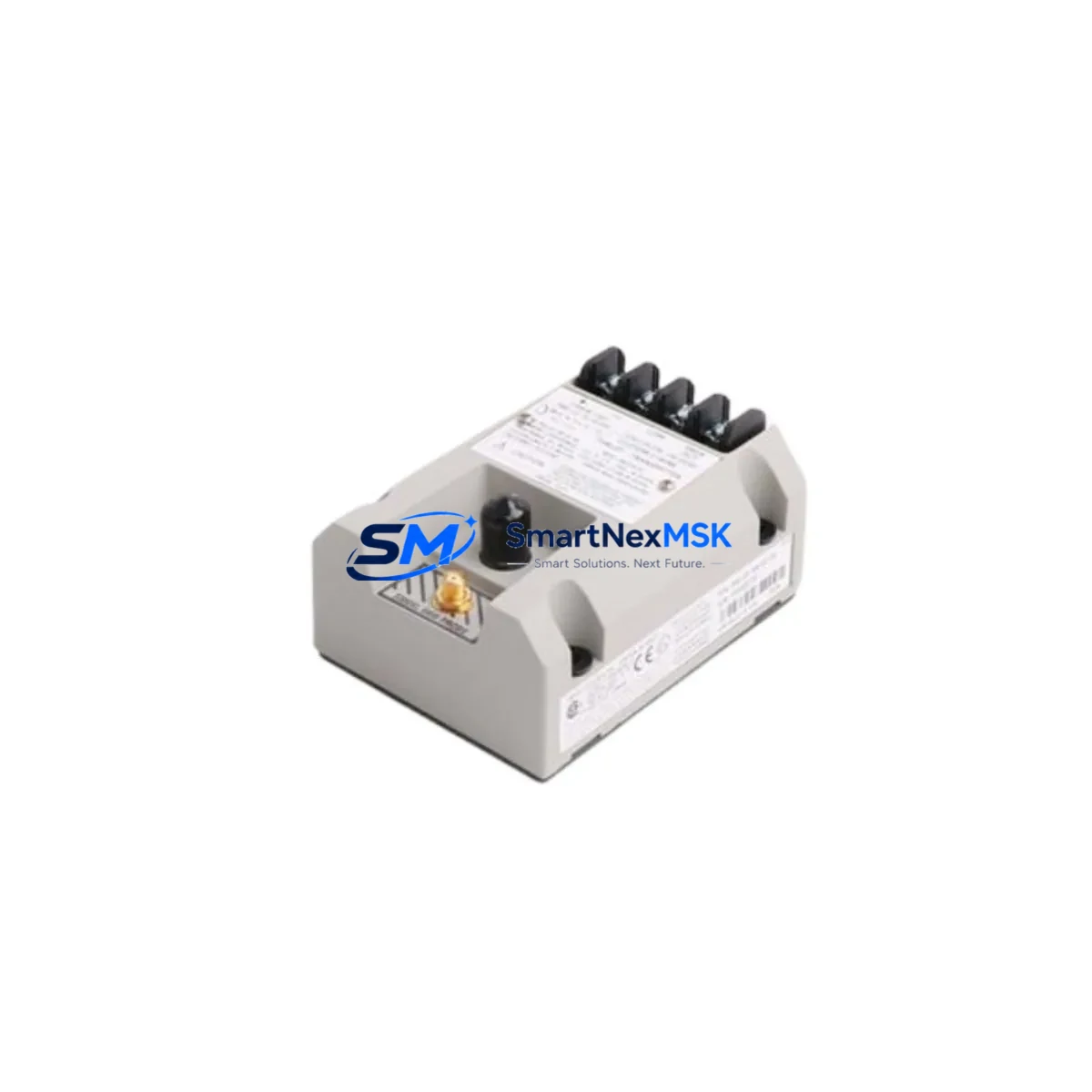

The Bently Nevada 991-01-XX-01-00 MOD 284318-01 is a precision vibration signal transmitter engineered for seamless integration into the Bently Nevada 3500 Series machinery protection and condition monitoring platform. Designed with retrofit compatibility as a core requirement, this module addresses the growing demand for drop-in replacements in aging turbomachinery protection systems — particularly in petrochemical, power generation, compressor stations, and heavy industrial facilities where the 3500 rack infrastructure remains in service but original signal conditioning components have reached end-of-life or are no longer available through standard supply channels.

Whether you are replacing a failed unit on an emergency basis, executing a planned outage upgrade, or migrating from an earlier Bently Nevada 7200 Series or 3300 Series architecture to the 3500 platform, the 991-01-XX-01-00 MOD 284318-01 provides the electrical and mechanical compatibility required to restore full system functionality with minimal engineering intervention. Each unit is pre-tested against Bently Nevada factory specifications before shipment, and is backed by a 12-month warranty covering both component integrity and signal output accuracy.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 991-01-XX-01-00 MOD 284318-01 into an existing 3500 Series rack begins with a thorough pre-installation audit. Engineers should first confirm the available slot positions within the 3500/05 Rack or 3500/05-01 Rack and verify that the 3500/15 Power Supply Module has sufficient current headroom to support the additional signal conditioning load. In high-density installations where multiple I/O channels are active, power budget calculations are critical to avoid nuisance trips or undervoltage conditions on adjacent modules.

Terminal block wiring should be reviewed against the original field wiring schedule. In most standard 3500 Series installations, the existing cable harness and terminal assignments remain compatible with the MOD 284318-01 variant, eliminating the need for re-termination. However, where field cables were originally routed for earlier 3300 Series or 7200 Series proximitor systems, a wiring adapter or re-termination at the I/O terminal block may be required to match the 3500 rack’s input impedance and signal range expectations.

For facilities running Bently Nevada System 1 Evolution software, the module must be recognized and addressed within the rack configuration database. After physical installation, engineers should use the rack configuration utility to assign the correct channel address, set the measurement type (displacement, velocity, or acceleration as applicable), and confirm that alarm setpoints previously configured for the replaced module are correctly transferred to the new unit. Where the plant HMI — such as a Wonderware InTouch or GE iFIX panel — displays vibration trend data sourced from the 3500 rack, the tag mapping and scaling parameters should be verified to ensure continuity of historical trend data and alarm annunciation.

Communication link integrity is another key checkpoint. The 3500 rack communicates with the plant DCS or SCADA system via the 3500/92 Communication Gateway Module, which supports Modbus TCP, Modbus RTU, and Ethernet/IP protocols depending on the gateway variant installed. After replacing the signal transmitter module, engineers should confirm that the gateway is correctly polling the new module’s channel data and that no communication timeout alarms are generated at the DCS level. In plants using Honeywell Experion PKS or Emerson DeltaV as the primary control platform, the OPC server or Modbus driver configuration may require a channel refresh to recognize the updated module address.

For I/O expansion scenarios — where the retrofit is part of a broader upgrade to add new measurement points — the 3500/40M Proximitor/Seismic Monitor or 3500/42M Proximitor/Seismic Monitor modules are commonly deployed alongside the 991-01-XX-01-00 to extend the rack’s channel capacity. Programming cables such as the 3500/93 Rack Interface Module programming lead are required for offline configuration and firmware verification prior to live commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing vibration monitoring modules in a live machinery protection environment. The recommended approach is to pre-configure the 991-01-XX-01-00 MOD 284318-01 offline using a spare rack or bench test setup before the scheduled maintenance window. This allows engineers to verify module addressing, alarm setpoints, and communication link behavior without exposing the production system to configuration risk.

During the physical swap, the 3500 rack’s bypass function should be activated for the affected channel to prevent spurious trip signals from reaching the turbine or compressor control system. The bypass state should be logged and communicated to the control room operator before any module is removed. Once the new module is seated and the rack has completed its self-test sequence — typically indicated by the module’s status LED transitioning from amber to green — the bypass can be released and the channel returned to normal protection mode.

Original program logic stored in the plant DCS or safety instrumented system (SIS) is not affected by the module replacement, as the 3500 rack operates as a standalone protection layer with its own internal configuration. However, any custom alarm logic or calculated variables in the DCS that reference vibration channel values should be verified post-commissioning to confirm that signal scaling and engineering unit conversion remain consistent with the replaced module’s output characteristics. Retaining a configuration backup of the original rack setup — exportable via the System 1 software — is strongly recommended before any module change is executed.

Retrofit Support FAQ

Q1: Is the 991-01-XX-01-00 MOD 284318-01 a direct drop-in replacement for the original 991-01-XX-01-00 without the MOD suffix?
A: In most 3500 Series rack configurations, yes. The MOD 284318-01 designation indicates a factory-authorized modification to the base module, typically involving updated internal components for improved signal stability or EMC compliance. Physical dimensions, backplane connector pinout, and terminal wiring assignments are unchanged. We recommend confirming the rack slot assignment and channel configuration in your System 1 database before installation to ensure full compatibility.

Q2: What commissioning steps are required after installing this module?
A: After seating the module in the 3500 rack, use the rack configuration utility or System 1 software to assign the module address, verify channel measurement type and full-scale range, and confirm that alarm setpoints are correctly loaded. Perform a functional test by applying a known vibration signal or using the module’s built-in self-test function. Verify that the DCS or SCADA system is receiving correct engineering unit values before releasing the channel from bypass.

Q3: Can this module be used in a 3500 rack that also contains 3500/40M or 3500/42M monitor modules?
A: Yes. The 3500 Series rack architecture supports mixed module configurations. The 991-01-XX-01-00 MOD 284318-01 occupies a standard I/O slot and does not conflict with monitor modules installed in adjacent slots. Ensure that the 3500/15 Power Supply Module’s current capacity is sufficient for the total module complement installed in the rack.

Q4: What does the 12-month warranty cover, and what is the return process?
A: The 12-month warranty covers manufacturing defects, component failures, and signal output performance deviations from Bently Nevada specifications. It does not cover damage resulting from incorrect installation, overvoltage conditions, or physical mishandling. To initiate a warranty claim, contact our sales team with the module serial number and a description of the fault condition. Replacement units are dispatched within 3–5 business days upon warranty confirmation.
