Bently Nevada CB2W100-015 Spare for 3500 Automation

Bently Nevada CB2W100-015 Spare for 3500 Automation: Spare Replacement & Industrial Downtime Risk Control

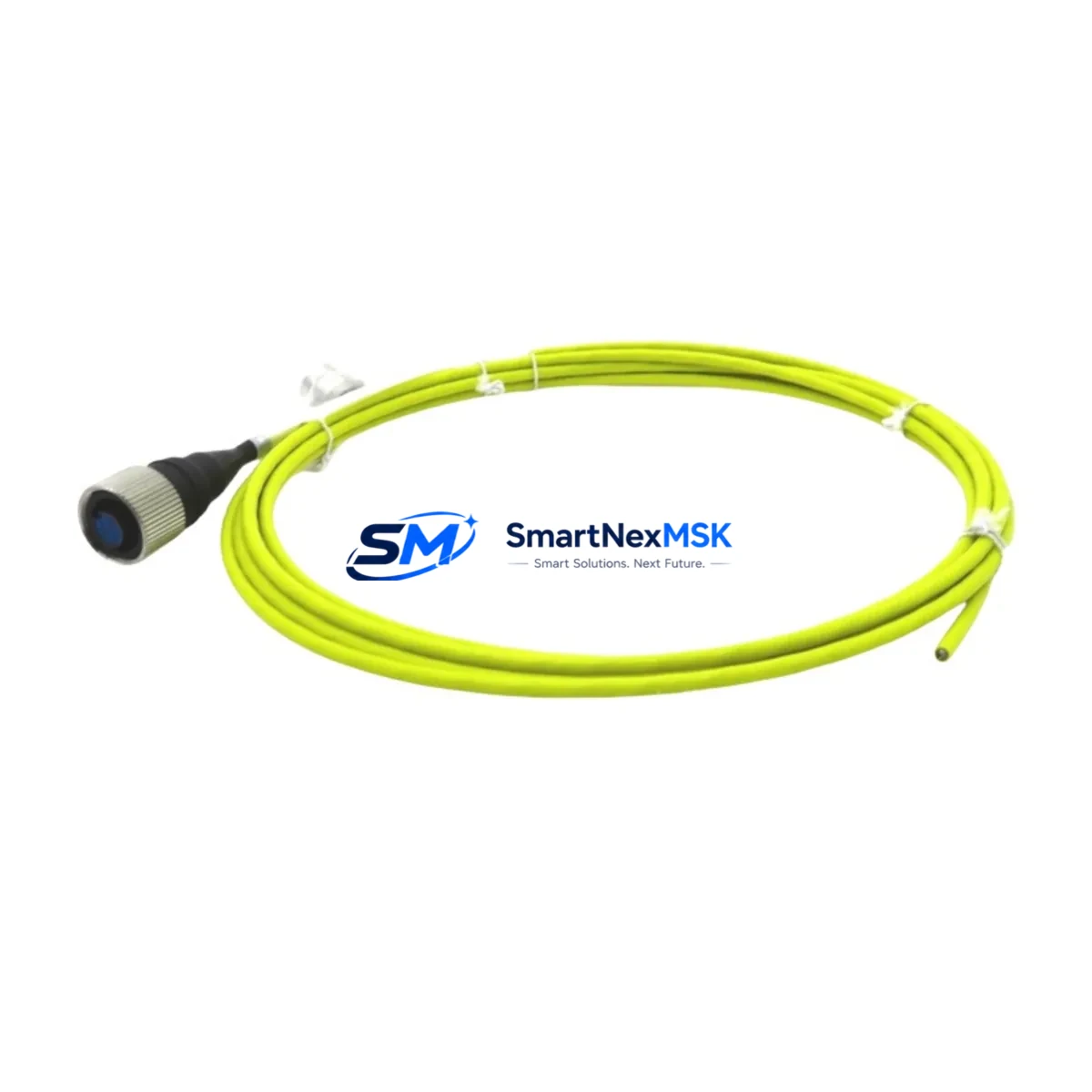

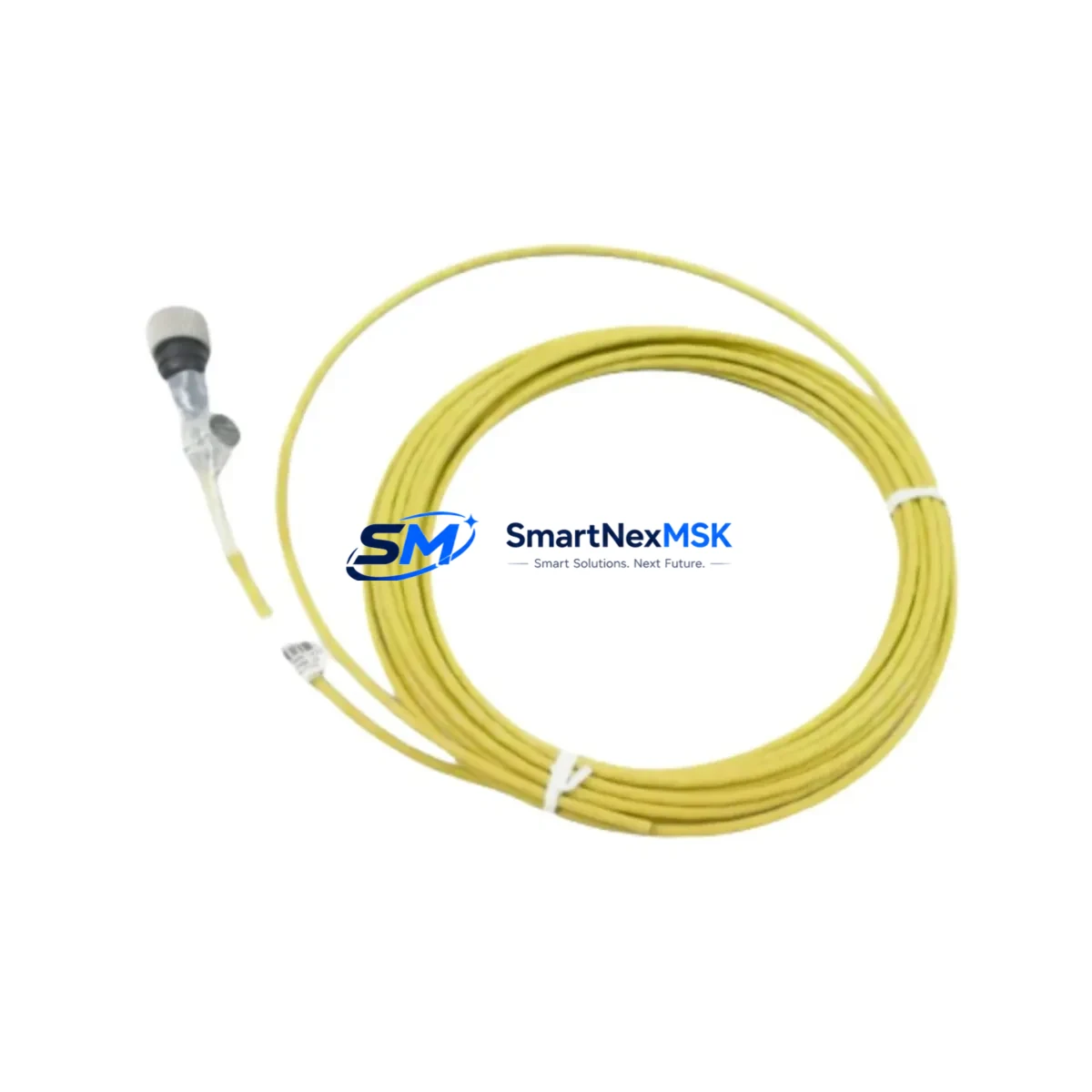

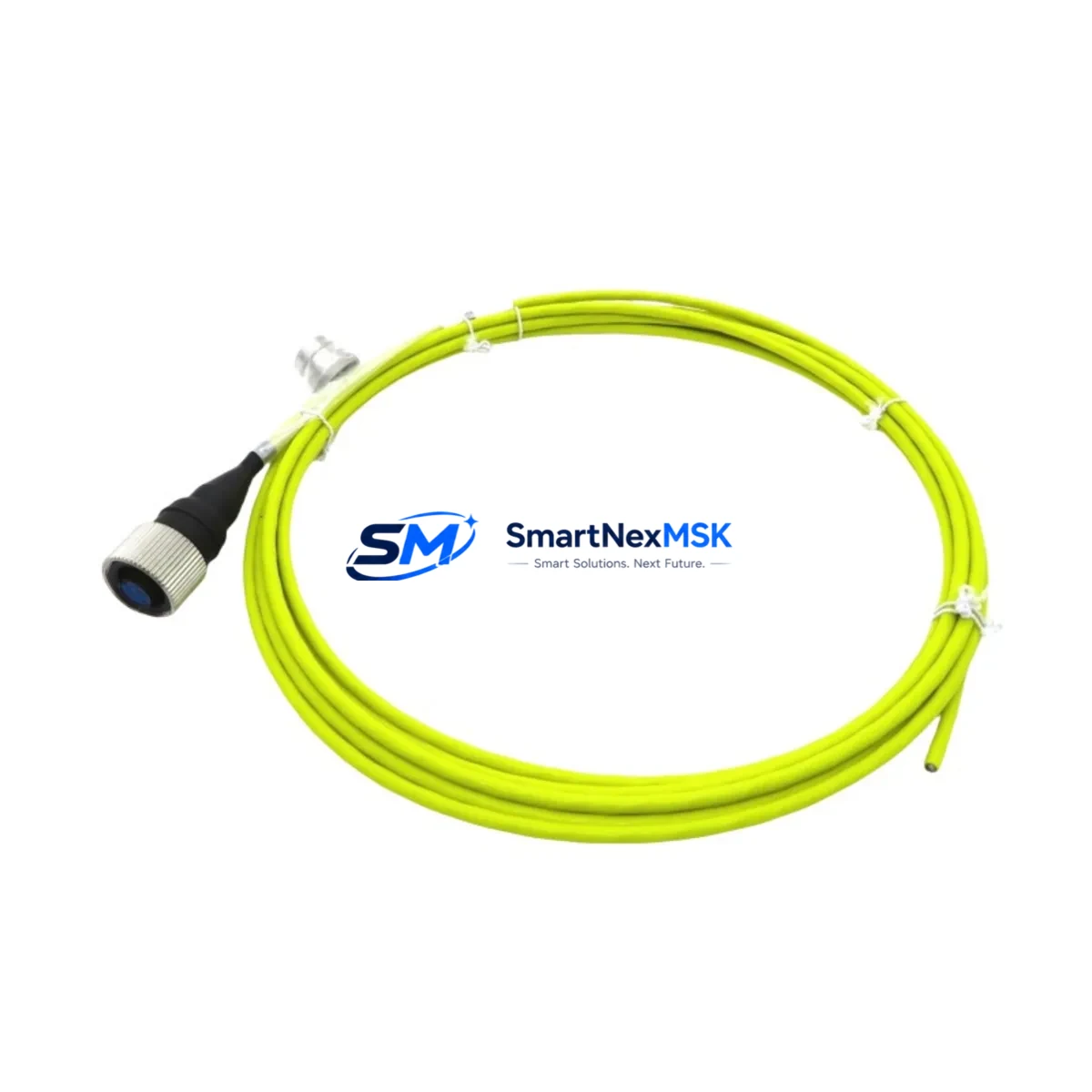

The Bently Nevada CB2W100-015 is an original OEM proximity transducer interconnect cable engineered for the 3500 Series machinery protection and condition monitoring platform. In industrial facilities where rotating machinery — turbines, compressors, pumps, and gearboxes — operates continuously, the integrity of the transducer signal chain is mission-critical. A degraded or failed interconnect cable between the proximity probe and the 3500 Series monitor rack can result in false trip events, loss of vibration data, or undetected rotor instability. Stocking the CB2W100-015 as a verified spare eliminates this single point of failure and supports rapid restoration of full monitoring capability.

Maintenance engineers responsible for rotating equipment reliability understand that the CB2W100-015 is not an isolated component — it is part of a tightly integrated measurement chain. The cable connects the field-mounted proximity probe (such as the 330130 or 330180 series) to the proximitor/extension cable assembly, which in turn feeds the 3500/40M or 3500/42M proximity monitor modules housed in the 3500 rack. Any interruption in this chain — whether from cable fatigue, connector corrosion, mechanical damage, or EMI ingress — directly compromises the accuracy of shaft displacement and eccentricity measurements that the protection system relies upon.

For procurement engineers, sourcing the CB2W100-015 from a verified industrial spare parts supplier with documented testing and a 12-month warranty provides the assurance needed for critical asset maintenance programs. Each unit shipped by SMARTNEXMSK undergoes functional verification prior to dispatch, with full traceability documentation available upon request.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the CB2W100-015 during a planned outage or emergency callout, a disciplined maintenance engineer will not stop at the cable alone. The 3500 Series measurement chain involves multiple interdependent components, and a comprehensive inspection during the same work window significantly reduces the probability of a repeat callout.

Begin at the field end: inspect the 330130 or 330180 proximity probe tip for mechanical damage, thread wear, or contamination. Verify the probe gap setting against the OEM specification — typically 1.0–1.5 mm for standard shaft applications. Move to the proximitor/extension cable (such as the 330130-080-00-05 or equivalent), checking for jacket abrasion, connector pin corrosion, and continuity. The CB2W100-015 interconnect cable itself should be inspected for kinking, crush damage at conduit entry points, and connector seating integrity before replacement.

At the rack end, open the 3500 chassis and inspect the 3500/40M or 3500/42M monitor module input connector for bent pins or oxidation. Confirm that the 3500/20 rack power supply module is delivering stable ±24 VDC to the monitor slots — a marginal power supply can cause intermittent channel faults that mimic cable failures. If the rack has been in service for more than five years, consider scheduling a preventive replacement of the 3500/15 power supply or verifying its output under load with a calibrated meter.

For facilities running dual-channel redundant monitoring, verify that the 3500/42M dual-channel proximitor monitor is correctly configured for the replacement cable’s electrical characteristics. Check the 3500/22M transient data interface module if the system is integrated with a condition monitoring software platform — a cable replacement is an appropriate time to confirm that transient capture is functioning correctly.

Procurement engineers building a spare parts kit around the CB2W100-015 should also stock the 330130 proximity probe, a spare proximitor extension cable, and at least one spare 3500/40M monitor module for each critical machine train. For facilities with older 3300 Series installations being migrated to 3500, the 3300/16 proximitor and associated cables should be cross-referenced to confirm dimensional and electrical compatibility before committing to a direct replacement strategy.

Additionally, inspect the 3500 rack backplane for corrosion or loose module retention screws, and verify that the 3500/92 communication gateway module (if installed) is maintaining its Modbus or OPC-DA link to the plant DCS — a cable replacement outage is an efficient time to confirm end-to-end data integrity from field sensor to control room historian.

Site Replacement Workflow

Step 1 — Permit and Isolation: Obtain a work permit for the machine train. Confirm with the control room that the 3500 channel is in bypass or that the machine is safely isolated before disconnecting any transducer cabling. Bypassing the channel prevents a spurious trip during the replacement.

Step 2 — Document As-Found Condition: Record the existing cable routing, connector orientation, and any cable identification tags before removal. Photograph the connector seating and cable path. This documentation supports post-maintenance verification and future outage planning.

Step 3 — Remove and Inspect: Disconnect the CB2W100-015 at both the probe/proximitor end and the monitor rack end. Inspect the mating connectors on the proximitor and the monitor module for damage. Clean connector threads with an appropriate contact cleaner if oxidation is present.

Step 4 — Install Replacement: Route the new CB2W100-015 following the original cable path. Avoid routing near high-voltage power cables or variable frequency drive (VFD) output conductors to minimize EMI. Torque connectors to the OEM specification. Secure the cable at regular intervals to prevent vibration-induced fatigue.

Step 5 — Functional Verification: With the machine still isolated, restore power to the 3500 rack and confirm that the channel displays a valid gap voltage within the OEM-specified range (typically -10 to -18 VDC for standard gap settings). Remove the bypass and confirm that the channel is active and alarm-free before returning the machine to service.

Step 6 — Update Maintenance Records: Log the replacement in the CMMS with the new part serial number, installation date, and as-left gap voltage. Schedule the next inspection interval per the facility’s reliability-centered maintenance (RCM) program.

Spare Parts Support FAQ

Q1: Is the CB2W100-015 a direct drop-in replacement for older Bently Nevada 3500 Series cable assemblies?
Yes. The CB2W100-015 is an OEM Bently Nevada part designed specifically for the 3500 Series measurement chain. It is dimensionally and electrically compatible with the standard 330xxx proximity probe and proximitor assemblies used across the 3500 platform. Always verify the cable length suffix against your system layout drawing before installation to confirm the correct variant is being installed.

Q2: What testing is performed before shipment?
Each CB2W100-015 unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including continuity testing, connector integrity inspection, and visual examination for mechanical damage. Units are packaged in anti-static, moisture-resistant packaging to maintain condition during transit. Full test documentation is available upon request for quality-critical applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions consistent with the OEM application specification. It does not cover damage resulting from incorrect installation, mechanical abuse, or operation outside the rated environmental parameters. Warranty claims are supported with replacement or credit at SMARTNEXMSK’s discretion following technical review.

Q4: How should the CB2W100-015 be stored as a long-term spare?
Store in a clean, dry environment at 15–35°C with relative humidity below 75% non-condensing. Keep in the original or equivalent anti-static packaging. Inspect connectors annually for oxidation and replace desiccant packs in the storage container as needed. Cables stored under these conditions maintain full serviceability for a minimum of five years, supporting long-term asset management programs for aging 3500 Series installations.
