Bently Nevada JNJ5300-08-03-000-060-10-00-00-03 Spare 3300 XL

Bently Nevada JNJ5300-08-03-000-060-10-00-00-03 Maintenance-Ready Spare for 3300 XL Automation

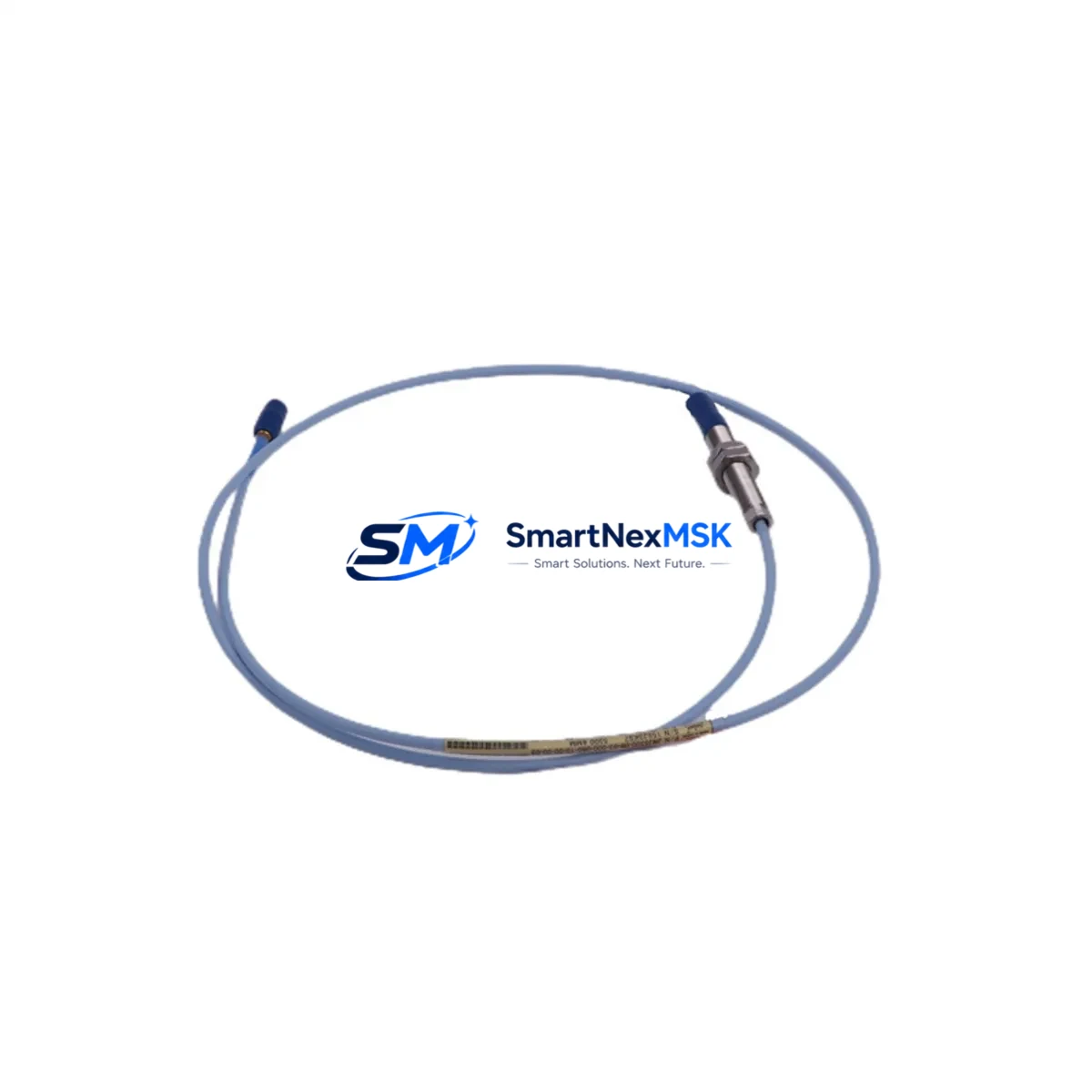

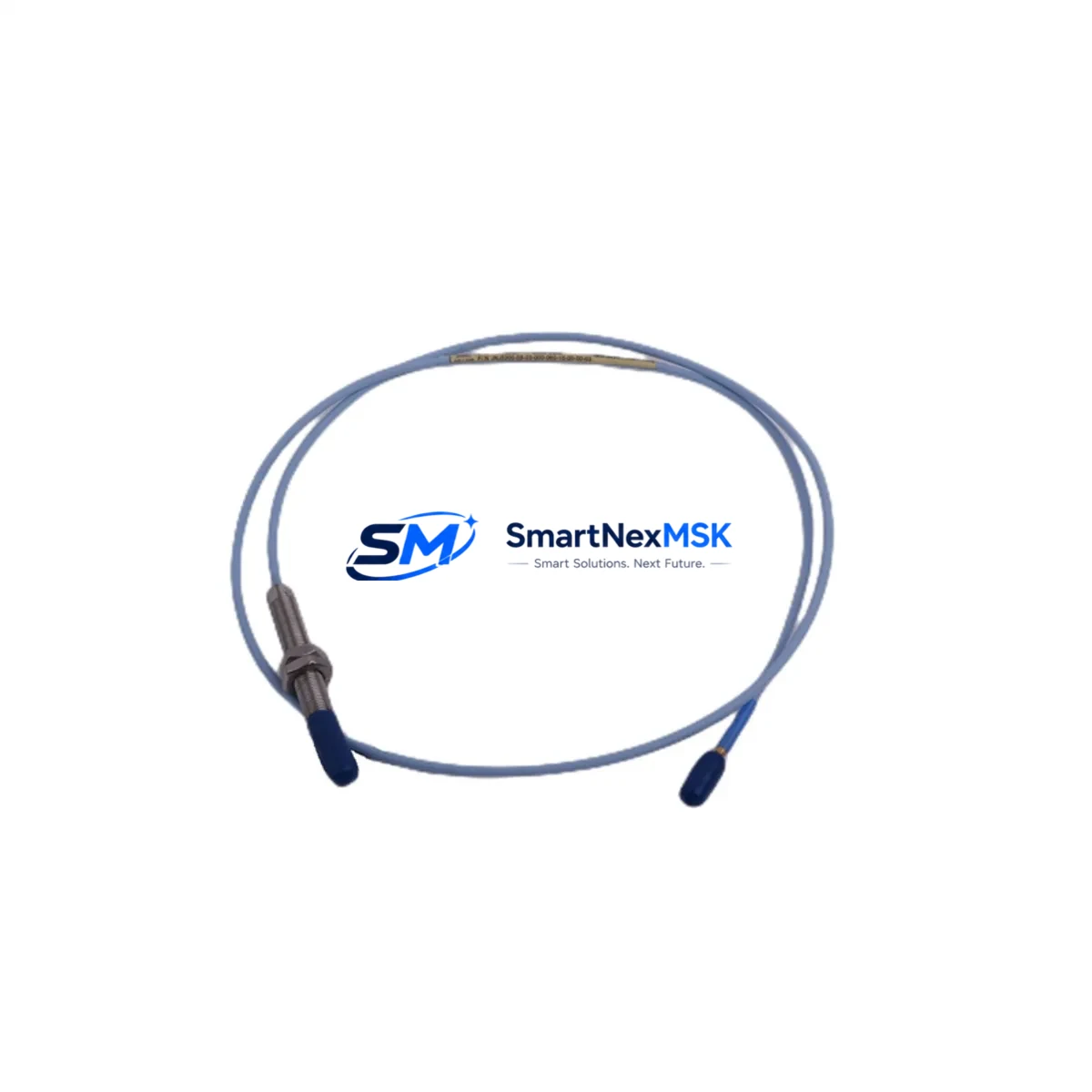

The Bently Nevada JNJ5300-08-03-000-060-10-00-00-03 is an original eddy-current proximity transducer engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection — turbines, compressors, pumps, and gearboxes — this probe is a front-line component whose failure directly triggers unplanned downtime. Holding a verified spare in your maintenance inventory is the single most effective action a reliability engineer can take to compress mean-time-to-repair (MTTR) and protect production continuity.

This unit ships tested, serialized, and packaged to OEM specification. Every probe is bench-verified for gap voltage linearity, sensitivity (mV/mil), and cable integrity before dispatch. A 12-month warranty covers manufacturing defects from the date of delivery, giving procurement teams the confidence to stock this part as a long-cycle spare without quality risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a JNJ5300-08-03-000-060-10-00-00-03 probe is flagged during a routine control cabinet inspection or a vibration alarm event, experienced maintenance engineers know that replacing the probe alone is rarely sufficient for a complete corrective action. The 3300 XL monitoring chain is an integrated system, and each element must be evaluated before the machine is returned to service.

Begin with the 3300 XL Proximitor Sensor (e.g., 330180-X1-CN) — the signal conditioning module that powers the probe and converts gap voltage to a 4–20 mA or ±10 V output. A degraded Proximitor can produce erratic readings even with a new probe installed. Inspect the 3300 XL I/O module and verify that channel input impedance and scaling match the replacement probe’s sensitivity curve.

Check the coaxial extension cable (typically 3300 XL armored or standard extension, matched to the probe cable length) for insulation breakdown, connector corrosion, and shield continuity. A compromised cable is the most common root cause of intermittent vibration faults and is frequently overlooked during emergency replacements. Inspect terminal blocks and DIN rail connectors inside the junction box for fretting corrosion, particularly in high-vibration environments.

Review the power supply module feeding the Proximitor rack — typically a 24 VDC regulated supply. Voltage ripple or transient spikes degrade probe linearity and accelerate sensor aging. If the installation includes a signal isolator or barrier (common in hazardous-area Zone 1/2 installations), verify that the isolator’s frequency response is compatible with the 3300 XL bandwidth requirements.

For systems integrated with a Bently Nevada 3500 Series rack or a System 1 condition monitoring platform, confirm that the channel configuration database reflects the new probe’s serial number and calibration constants. Failure to update the configuration can result in false alarms or masked faults after replacement. If the plant uses a DCS historian (such as Emerson DeltaV or Honeywell Experion), verify that the vibration tag is correctly mapped and trending after the swap.

During planned shutdowns, it is best practice to simultaneously inspect keyphasor probes, thrust position probes, and any temperature sensors (RTDs or thermocouples) mounted on the same bearing housing. These components share the same environmental stresses and often reach end-of-life within the same maintenance cycle. Stocking a matched set — probe, extension cable, and Proximitor — eliminates the risk of a second unplanned outage within weeks of the first repair.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: Follow plant LOTO procedures. De-energize the Proximitor channel before disconnecting the probe cable to avoid electrostatic discharge damage to the sensor tip.

Step 2 — Gap Measurement: Using a calibrated gap tool or digital multimeter, record the existing probe gap voltage before removal. This baseline confirms whether the original probe had drifted out of the linear range and provides a reference for setting the replacement.

Step 3 — Mechanical Installation: Thread the JNJ5300-08-03-000-060-10-00-00-03 into the probe holder. Set the gap to the system-specified value (typically 1.0–1.5 mm / 40–60 mil for most 8 mm probes). Lock the probe with the jam nut to the torque specified in the 3300 XL installation manual.

Step 4 — Cable Routing and Connection: Connect the extension cable, ensuring the coaxial connector is clean and fully seated. Route the cable away from high-voltage conductors and secure with cable ties to prevent vibration-induced fretting at the connector.

Step 5 — Functional Verification: Re-energize the Proximitor channel. Verify gap voltage is within the linear range (typically −10 to −18 VDC at the Proximitor output). Confirm the vibration reading is stable and within expected baseline for the machine at rest.

Step 6 — System Handover: Update the maintenance management system (CMMS) with the new probe serial number, installation date, and gap setting. Clear any latched alarms in the monitoring rack and confirm the DCS or historian is receiving valid data before releasing the machine to operations.

This workflow is compatible with direct replacement of legacy 3300 XL installations and supports system life extension without requiring rack or wiring modifications.

Spare Parts Support FAQ

Q1: Is the JNJ5300-08-03-000-060-10-00-00-03 a direct drop-in replacement for existing 3300 XL installations?
Yes. This probe is dimensionally and electrically compatible with standard 3300 XL probe holders and Proximitor modules. No wiring changes or rack reconfiguration are required for a like-for-like replacement, provided the extension cable length and target material remain unchanged.

Q2: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of delivery. If a unit fails under normal operating conditions within the warranty period, contact sales@smartnexmsk.com with the order number and a brief fault description. Replacement or repair will be arranged promptly. Damage caused by incorrect installation, overvoltage, or mechanical impact is excluded.

Q3: How should this spare be stored to maintain its calibration and shelf life?
Store the probe in its original anti-static packaging in a dry environment between −20 °C and +60 °C, away from strong magnetic fields and solvents. The coaxial connector should be capped to prevent contamination. Under these conditions, shelf life exceeds 5 years without recalibration. Inspect the cable jacket and connector annually if stored for extended periods.

Q4: Can you supply matched sets — probe, extension cable, and Proximitor — for a complete channel spare kit?
Yes. We recommend stocking complete channel kits for critical machinery to eliminate secondary delays during emergency repairs. Contact sales@smartnexmsk.com or call +86 18259474341 to request a matched kit quotation with compatibility confirmation for your specific 3300 XL rack configuration.
