Bently Nevada JNJ5300-08-045-00-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

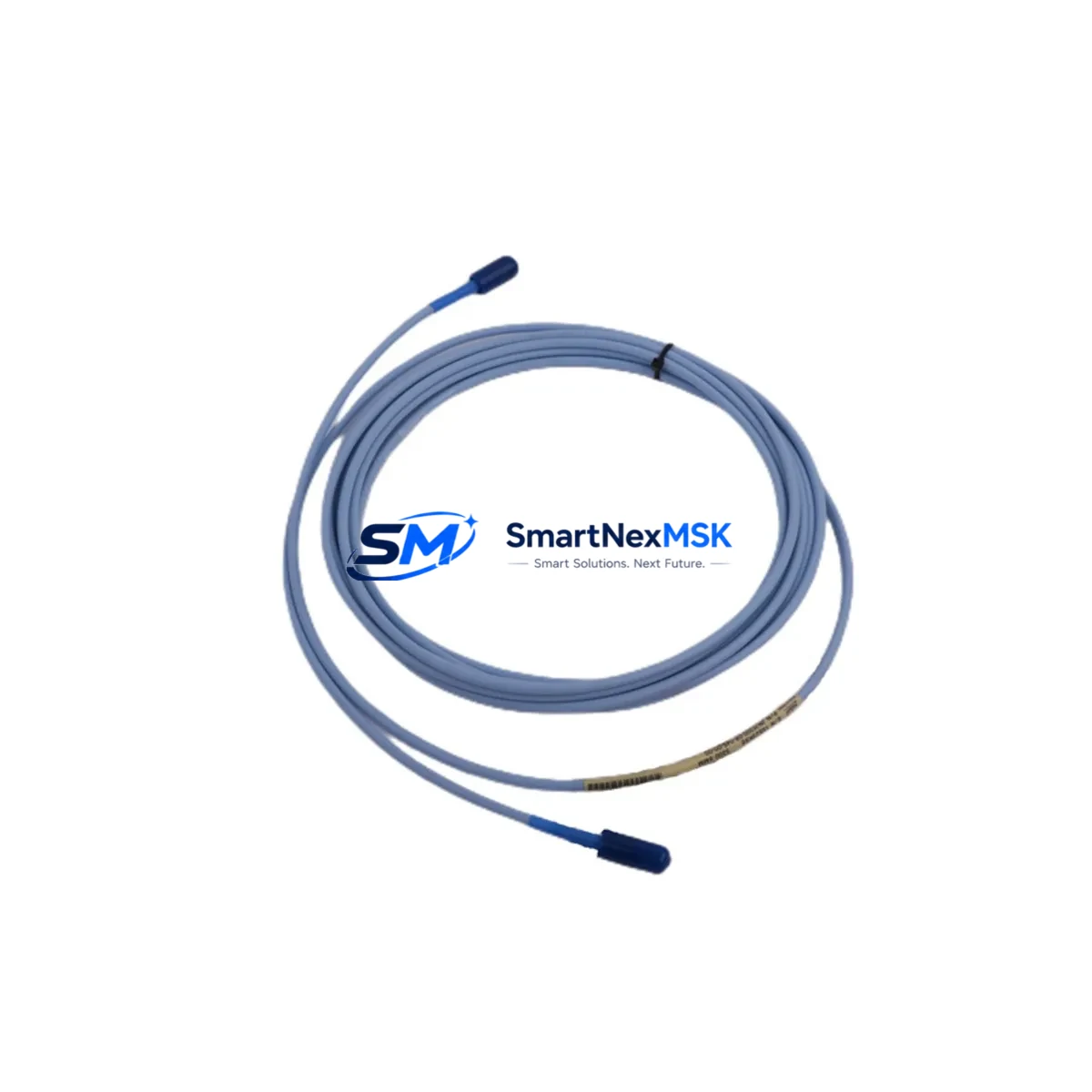

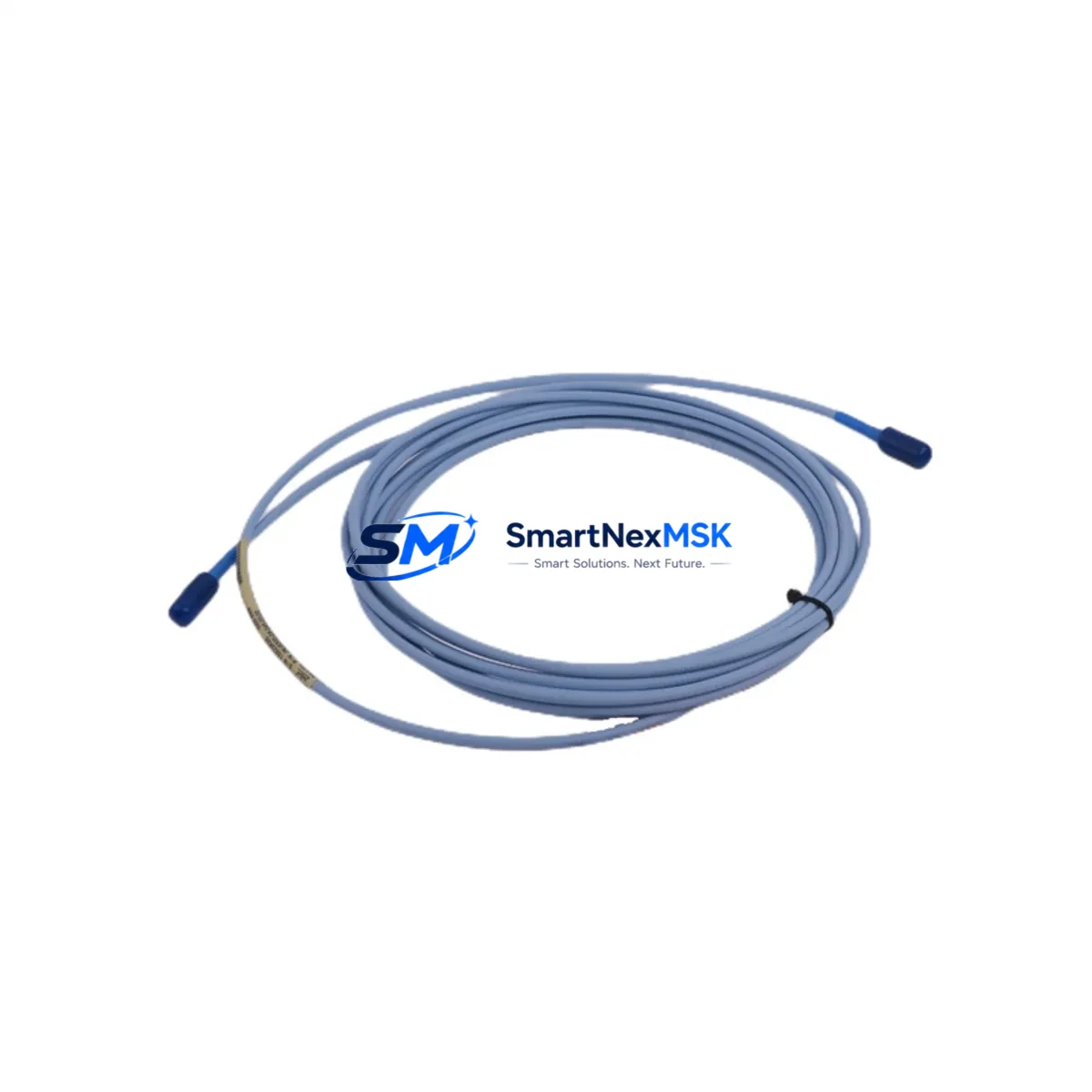

The Bently Nevada JNJ5300-08-045-00-00 is an 8mm eddy current proximity probe with a 45-inch (1143 mm) armored extension cable, engineered as a retrofit-ready replacement for aging 3300 XL Series vibration monitoring systems. Whether you are restoring a discontinued spare, upgrading a legacy control cabinet, or migrating from an older 3300 Series platform, this probe delivers the dimensional accuracy, signal linearity, and connector compatibility required for seamless field installation without reprogramming or panel modification.
Industrial facilities operating rotating machinery — turbines, compressors, pumps, and gearboxes — depend on continuous shaft vibration and position monitoring. When a probe in a 3300 XL rack fails or reaches end-of-life, unplanned downtime is the immediate risk. The JNJ5300-08-045-00-00 is stocked and tested to support rapid swap-out, with each unit shipped after full bench verification of gap voltage, sensitivity, and cable continuity. A 12-month warranty covers all units from date of shipment.
Upgrade Compatibility Table
| Parameter | JNJ5300-08-045-00-00 (This Unit) | Notes / Retrofit Guidance |
|---|---|---|
| Probe Diameter | 8 mm | Direct fit for standard 3300 XL 8mm probe bosses; no re-machining required |
| Cable Length | 45 inches (1143 mm) | Verify routing clearance in existing cable trays before installation |
| Connector Type | Standard 3300 XL coaxial | Mates directly with 3300 XL proximitor/driver inputs; no adapter required |
| Target Material Compatibility | Steel, stainless steel, iron alloys | Confirm shaft material; non-ferrous targets require sensitivity recalibration |
| Proximitor / Driver Compatibility | 3300 XL 8mm Proximitor (e.g., 3300/16, 3300/20) | Pair with matching Bently Nevada 3300 XL proximitor module in the same rack |
| Communication / Signal | Analog voltage output (–24 VDC bias) | Compatible with existing 3300 XL rack I/O wiring; no protocol migration needed |
| Installation Interface | Threaded probe tip, locknut included | Torque to OEM specification; verify gap setting with oscilloscope or gap meter |
| Replacement Scope | Drop-in for JNJ5300-08-045-00-00 and equivalent 8mm/45″ variants | Cross-reference original part number before ordering if label is worn |
| Warranty | 12 Months from shipment date | Covers manufacturing defects; excludes physical damage from improper installation |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the JNJ5300-08-045-00-00 begins well before the maintenance window opens. Start by auditing the existing 3300 XL rack configuration: identify the proximitor module slot (commonly a Bently Nevada 3300/16 or 3300/20 proximitor), confirm the channel assignment in the System 1 or ADRE monitoring software, and document the current gap voltage reading as a baseline. If the rack also houses a 3300/55 Keyphasor module for phase reference, verify that the Keyphasor signal path remains undisturbed during probe replacement.
For facilities running a mixed-generation monitoring architecture — for example, a 3500 Series rack alongside legacy 3300 XL hardware — confirm that the replacement probe’s sensitivity specification (typically 200 mV/mil or 7.87 V/mm) matches the proximitor’s expected input range. Mismatched sensitivity will produce incorrect vibration amplitude readings and may trigger false alarms or mask real faults. If the plant is in the process of migrating from 3300 XL to 3500 Series, the JNJ5300-08-045-00-00 can serve as an interim solution while the new 3500/42M or 3500/40M monitor modules are commissioned in parallel.
Terminal wiring should be verified against the original loop drawing. The probe cable shield must be grounded at one end only — typically at the proximitor input terminal — to prevent ground loops that introduce noise into the vibration signal. If the control cabinet uses a Bently Nevada TK-3 or TK-23 junction box for field wiring termination, inspect the terminal block condition and replace corroded terminals before reinstalling the probe. For systems using a 3300 XL I/O module with a 25-pin D-sub interface, confirm pin assignments match the replacement probe’s wiring color code.
Where the plant’s DCS or safety system (such as a Triconex or Yokogawa CENTUM VP controller) receives 4–20 mA retransmission signals from the 3300 XL rack, verify that the retransmission output scaling remains valid after probe replacement. A change in probe gap or sensitivity can shift the 4–20 mA span and cause the DCS historian to log erroneous trend data. Coordinate with the control room operator to confirm that the DCS faceplate and HMI alarm setpoints reflect the correct engineering units after the swap.
If the facility uses a GE Mark VI or Emerson Ovation DCS that interfaces with the 3300 XL rack via Modbus RTU or a hardwired relay output, document the relay trip setpoints before beginning work. After installation, perform a bump test or slow-roll check to confirm that the new probe produces a clean gap voltage within the linear range (typically –10 VDC ±0.5 VDC at the nominal gap) before returning the machine to service.
Downtime Control During System Migration
Minimizing downtime during a proximity probe replacement on a live 3300 XL system requires a structured pre-outage checklist. Before the maintenance window, export the current System 1 or ADRE database configuration — including channel tags, alarm setpoints, and trend history — so that the monitoring record is preserved regardless of what happens during the swap. If the plant operates on a hot-standby or redundant monitoring architecture, confirm that the redundant channel remains active and alarmed while the primary probe is disconnected.
During the outage, follow a strict sequence: isolate the proximitor channel in the monitoring software (place it in bypass or maintenance mode), disconnect the probe cable at the junction box or proximitor input, remove the probe from the machine casing, install the JNJ5300-08-045-00-00, set the air gap using a non-ferrous feeler gauge or gap meter to the OEM-specified distance (typically 1.0–1.5 mm for 8mm probes), reconnect the cable, and restore the channel from bypass. Record the new gap voltage immediately after restoration and compare it to the pre-outage baseline.
For facilities that cannot tolerate any monitoring gap, a temporary portable vibration analyzer — such as a CSI 2140 or Emerson AMS 2140 — can be clamped to the bearing housing to maintain continuous vibration surveillance while the permanent probe is being replaced. This approach is particularly valuable on critical compressors or steam turbines where API 670 compliance requires uninterrupted monitoring. Once the new probe is confirmed stable, remove the portable analyzer and restore the permanent monitoring channel. Total elapsed time for a single-probe swap on a prepared machine is typically 30–90 minutes, keeping unplanned production loss to a minimum.
Retrofit Support FAQ
Q: Is the JNJ5300-08-045-00-00 a direct drop-in replacement for the original Bently Nevada part?
A: Yes. This unit is manufactured to the same dimensional and electrical specifications as the original JNJ5300-08-045-00-00. It installs in the same probe boss, uses the same coaxial connector, and produces the same gap voltage output when paired with a compatible 3300 XL proximitor module. No mechanical modification or software reconfiguration is required for a like-for-like swap.
Q: What commissioning checks are required after installation?
A: After installation, set the probe gap to the OEM-specified distance and verify the gap voltage at the proximitor output (target: –10 VDC ±0.5 VDC at nominal gap). Confirm that the vibration channel reads a clean, noise-free signal at slow roll. Check that alarm setpoints in the monitoring system are still valid and that any DCS retransmission outputs are within the expected 4–20 mA range. Document the as-found and as-left gap voltages in the maintenance record.
Q: Can this probe be used with a Bently Nevada 3500 Series rack instead of the 3300 XL?
A: The JNJ5300-08-045-00-00 is optimized for 3300 XL proximitor modules. While the physical probe may fit a 3500 Series rack mechanically, the 3500 Series uses different proximitor modules (e.g., 3500/42M) with specific probe qualification requirements. Consult the 3500 Series documentation and verify probe compatibility before cross-platform use. For a confirmed 3500-compatible replacement, contact our technical team.
Q: What does the 12-month warranty cover, and how is a claim processed?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit is bench-tested for gap voltage, sensitivity, and cable continuity before dispatch. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the fault. Replacement units are dispatched within 3 business days of claim approval. Physical damage resulting from improper installation, incorrect gap setting, or mechanical impact is excluded from warranty coverage.
