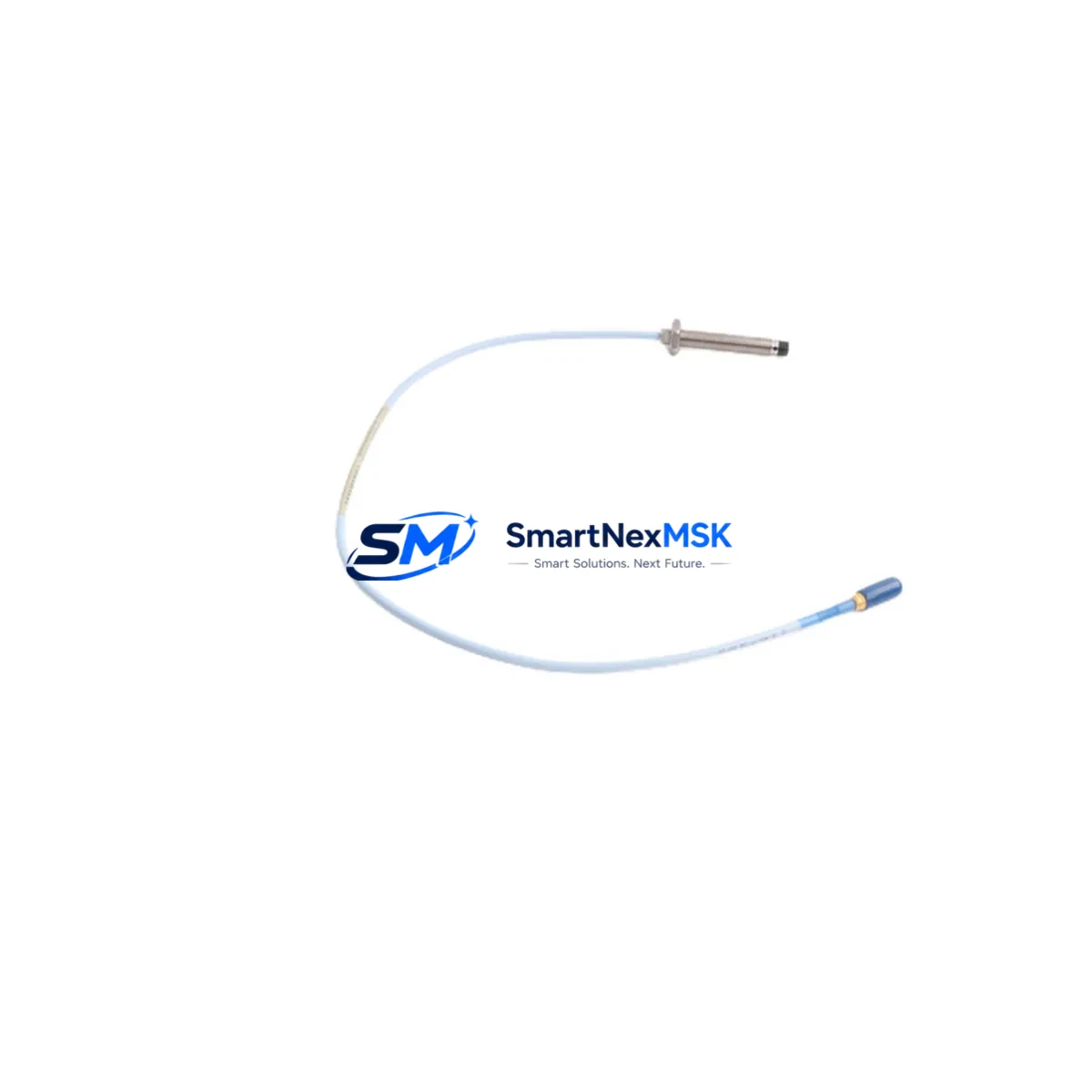

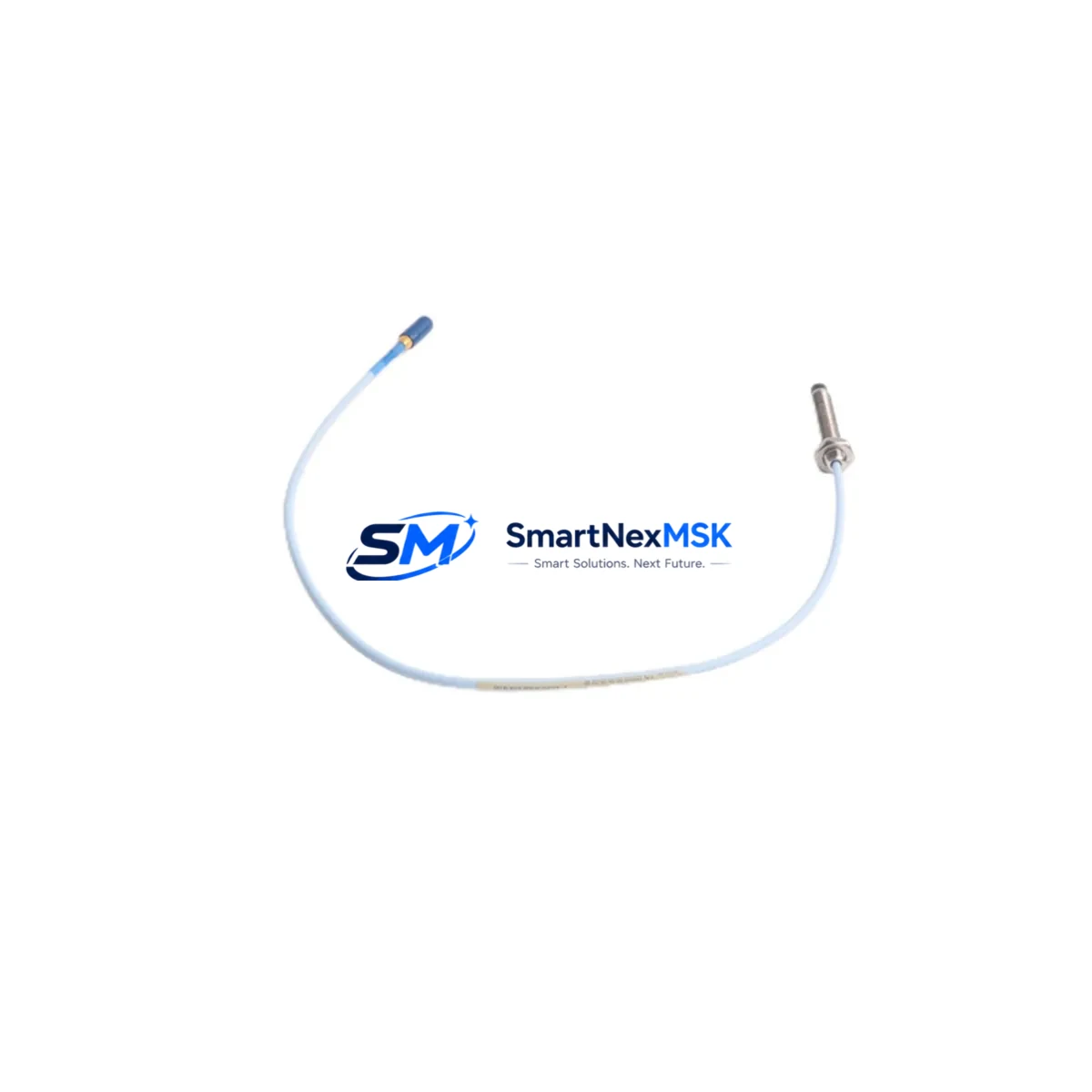

The Bently Nevada RS900106-05-30-05-02-00 is an original eddy-current proximity transducer engineered for the 3300 XL continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Designed for turbines, compressors, pumps, and gearboxes operating in critical process environments, this transducer delivers precise non-contact displacement measurement essential for shaft vibration, axial position, and differential expansion monitoring.

For maintenance engineers managing aging turbomachinery or planning scheduled outages, having a verified, tested spare of the RS900106-05-30-05-02-00 on the shelf is a fundamental risk-reduction strategy. Unplanned transducer failures in 3300 XL systems can trigger protective shutdowns, cascade into extended downtime, and compromise the integrity of the entire machinery protection loop. Sourcing a pre-tested, OEM-compatible replacement in advance eliminates the critical path delay that often extends outages by days.

This unit ships fully tested, with original specifications confirmed, and is backed by a 12-month warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment inspection to verify output sensitivity, gap voltage linearity, and cable integrity before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the RS900106-05-30-05-02-00 in a 3300 XL monitoring loop, a disciplined maintenance engineer will not stop at the transducer alone. The proximity transducer is one node in an interconnected measurement chain, and the reliability of the entire loop depends on the condition of every component in that chain.

Begin with the 3300 XL Proximitor signal conditioner — the companion module that powers the transducer and converts the raw oscillator signal into a DC voltage proportional to gap distance. If the Proximitor shows drift, noise, or output clipping, replacing the transducer alone will not restore measurement accuracy. Inspect the 3300 XL extension cable (typically 5 m or 9 m) for insulation damage, connector corrosion, or impedance mismatch, as cable degradation is a leading cause of false vibration alarms in field installations.

At the rack level, verify the condition of the 3500/42M Proximitor I/O module or the equivalent 3300 rack I/O card that receives the transducer signal. Check the 3500 rack power supply module — an unstable DC supply rail will introduce noise into every channel simultaneously, masking real machinery faults. If the installation uses a 3300 XL dual-channel monitor, confirm that both channels are re-zeroed and re-gapped after transducer replacement to maintain balanced protection logic.

For facilities running integrated machinery protection, also inspect the 3500/22M transient data interface module if waveform capture is part of the diagnostic workflow. In control cabinets where the 3300 XL system interfaces with a DCS or safety PLC, verify the 4–20 mA output isolator or signal conditioner barrier that bridges the monitoring rack to the control system — these components are frequently overlooked during transducer-level maintenance and can introduce ground loops or signal offset errors post-replacement.

Finally, inspect the terminal blocks and field wiring within the junction box at the machine train. Loose terminations, oxidized contacts, or incorrect shielding grounding are common root causes of intermittent vibration readings that are misdiagnosed as transducer failure. A complete loop verification — from probe tip to DCS input card — is the only way to confirm that the replacement RS900106-05-30-05-02-00 is performing to specification in the installed system.

Site Replacement Workflow

Step 1 — Pre-Shutdown Baseline: Record the current gap voltage, vibration amplitude, and phase readings from the 3300 XL monitor before isolating the machine. This baseline is essential for post-installation comparison and acceptance testing.

Step 2 — Isolation and Lockout: Follow site LOTO procedures. Disconnect the extension cable at the junction box before removing the transducer from the bracket to avoid damaging the Proximitor oscillator circuit.

Step 3 — Mechanical Removal: Use the correct spanner for the M8 x 1.0 thread. Note the existing gap setting (typically measured with a feeler gauge or gap voltage reference) before removal. Clean the mounting boss and inspect for thread damage or shaft surface wear.

Step 4 — Installation and Gapping: Install the RS900106-05-30-05-02-00 and set the gap to the manufacturer-specified voltage (typically -10.0 VDC ± 0.5 V at nominal gap for 3300 XL 8mm systems). Use a calibrated DC voltmeter at the Proximitor output terminals. Do not rely on mechanical gap measurement alone.

Step 5 — Loop Verification: Reconnect the extension cable and confirm Proximitor output is within the linear range. Check for alarm and danger setpoint integrity at the monitor. Verify that the DCS or safety system receives the correct 4–20 mA signal before returning the machine to service.

Step 6 — Documentation: Record the new gap voltage, installation date, and technician ID in the maintenance management system. Update the spare parts inventory to trigger reorder of a replacement RS900106-05-30-05-02-00 for the next planned outage cycle.

This workflow minimizes re-work risk, ensures system compatibility is maintained, and supports the audit trail required for machinery protection compliance in regulated industries.

Spare Parts Support FAQ

Q1: What is the expected service life of the RS900106-05-30-05-02-00, and when should I plan for replacement?
Bently Nevada proximity transducers in continuous service typically have a functional life of 5–10 years depending on operating temperature, vibration exposure, and cable handling. Planned replacement at the 5–8 year mark during scheduled outages is recommended. Gap voltage drift exceeding 10% from the original baseline, intermittent signal noise, or physical cable damage are indicators that immediate replacement should be prioritized regardless of age.

Q2: Is this unit compatible with both 3300 XL and 3500 Series monitoring racks?
The RS900106-05-30-05-02-00 is natively designed for the 3300 XL 8mm proximity transducer system. Compatibility with 3500 Series racks is achievable in many configurations but requires verification of the Proximitor model, cable impedance, and I/O module input range. Contact our technical team with your rack configuration details before ordering for cross-series applications.

Q3: How is each unit tested before shipment, and what does the 12-month warranty cover?
Every RS900106-05-30-05-02-00 unit undergoes pre-shipment functional testing including output sensitivity verification, gap voltage linearity check across the full operating range, and cable continuity and insulation resistance testing. The 12-month warranty covers manufacturing defects and confirmed functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact.

Q4: Can I stock this part as a long-term strategic spare, and what are the storage requirements?
Yes. The RS900106-05-30-05-02-00 is well-suited for long-term strategic sparing. Store in original packaging in a dry, temperature-controlled environment (10°C–40°C, <70% RH, non-condensing). Avoid storing near strong magnetic fields or corrosive atmospheres. For storage periods exceeding 3 years, a functional re-test is recommended before installation. We maintain ongoing stock and can support long-term supply agreements for facilities managing multiple 3300 XL installations.
