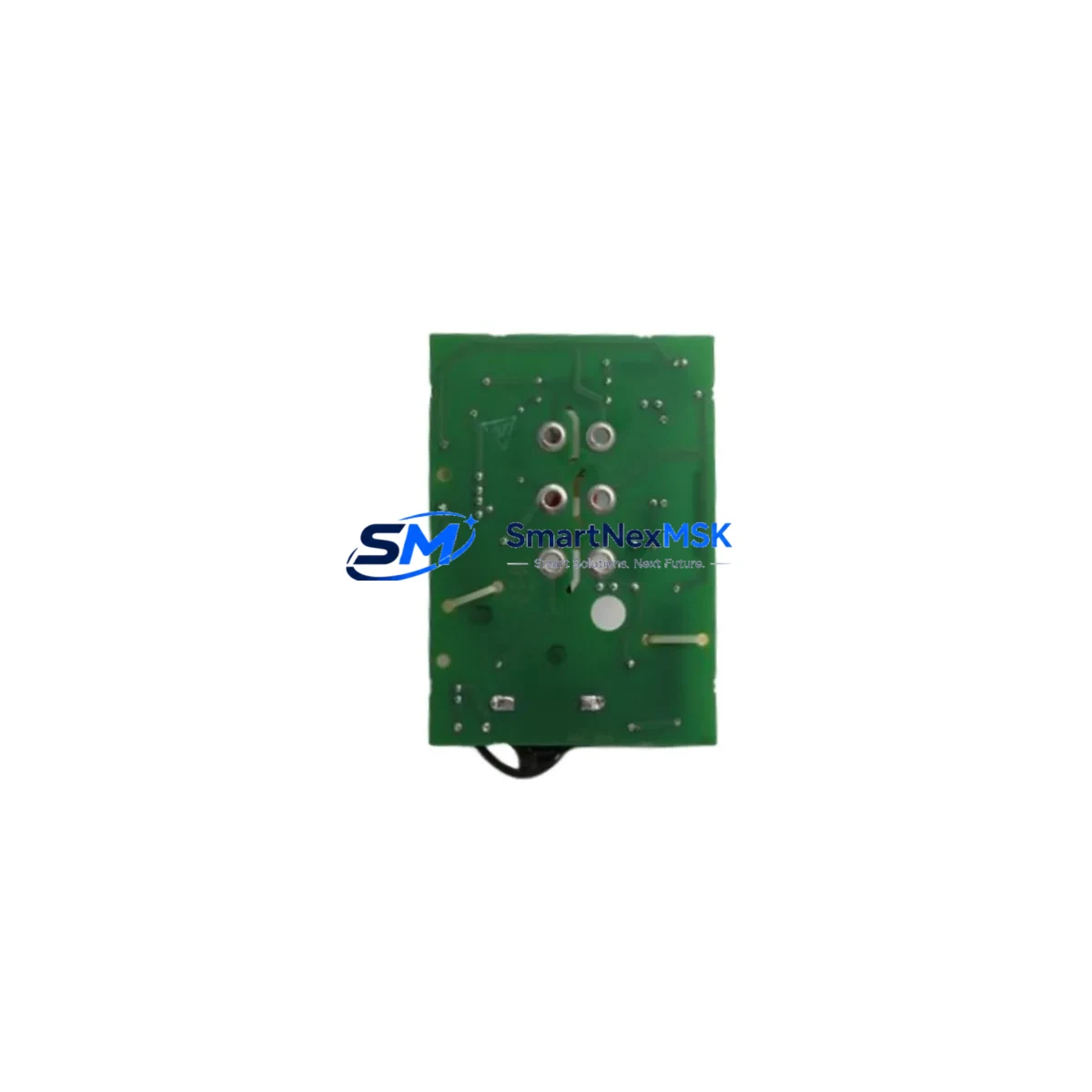

GE 109W3914P002 Retrofit-Ready Interface Module for Series 90 Control Systems
The GE 109W3914P002 is a retrofit-ready interface module engineered for seamless integration into legacy GE Series 90 programmable logic controller platforms and GE Multilin protection relay systems. As original equipment reaches end-of-life and OEM spare parts become increasingly scarce, the 109W3914P002 provides a verified, drop-in compatible replacement path that preserves existing rack architecture, terminal wiring, and program logic — minimizing engineering rework and unplanned downtime during system modernization projects.
This module is widely deployed in power generation, oil and gas, water treatment, and heavy manufacturing environments where GE Series 90-30, Series 90-70, and associated Multilin relay panels remain in active service. Engineers and maintenance teams sourcing this part typically face one of three scenarios: emergency breakdown replacement, planned preventive upgrade, or phased system migration toward a newer GE PACSystems RX3i or RX7i platform. The 109W3914P002 addresses all three scenarios with a verified hardware profile and pre-shipment functional test.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | GE Series 90-30, Series 90-70, GE Multilin |
| Module Type | Interface / Communication Module |
| Backplane Interface | Series 90 standard backplane bus; compatible with IC693CHS391, IC693CHS392 expansion racks |
| Communication Compatibility | SNP, SNP-X, Genius Bus; compatible with IC693CMM302, IC693CMM321 comm modules |
| Installation Requirement | Standard DIN-rail or rack slot; no hardware modification required |
| Replacement Recommendation | Direct replacement for discontinued OEM part; verify slot address assignment in programmer |
| Commissioning Focus | Module address configuration, I/O table mapping, HMI tag re-binding, comms link test |
| Warranty | 12-Month Warranty — covers manufacturing defects and functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
A successful retrofit using the GE 109W3914P002 begins with a thorough audit of the existing control cabinet. Before removing the legacy module, engineers should document the current slot assignment within the IC693CHS391 or IC693CHS392 rack, capture a full program backup using Proficy Machine Edition or the legacy Logicmaster 90 programming software, and photograph all terminal wiring on adjacent I/O modules such as the IC693MDL645 discrete input module and IC693ALG390 analog output module.
Power supply capacity is a critical pre-check. The IC693PWR321 or IC693PWR330 rack power supply must have sufficient headroom to support the 109W3914P002 alongside co-installed modules. Overloaded power supplies are a common root cause of intermittent faults after module replacement and should be load-calculated before the swap is executed.
For systems using Genius Bus communication, the IC693BEM331 Bus Interface Module must remain correctly addressed and the Genius block drop numbers must be preserved in the replacement configuration. If the site is also migrating communication from SNP to Ethernet, the IC693CMM321 serial communication module may need to be supplemented or replaced with an Ethernet interface card appropriate for the target SCADA or DCS platform.
HMI panels connected via serial links — including older QuickPanel or Cimplicity-based operator stations — require tag re-binding after the module swap if any I/O addresses shift. Technicians should prepare a tag cross-reference table before the maintenance window opens. Where the control system interfaces with a GE Multilin 750 or 850 series protection relay, the relay’s communication settings and event log should be exported prior to any rack-level work to prevent configuration loss.
For sites planning a longer-term migration to GE PACSystems RX3i, the 109W3914P002 can serve as a bridge module during the phased transition, maintaining Series 90 rack continuity while new RX3i racks are commissioned in parallel. The IC695CHS012 RX3i universal backplane and IC695CPU310 controller can be staged alongside the existing Series 90 infrastructure, allowing program conversion and I/O cutover to proceed zone by zone without a full plant shutdown.
Downtime Control During System Migration
Minimizing downtime during a Series 90 module replacement requires a structured pre-outage preparation protocol. The maintenance window should be scoped to include: program backup verification, spare module pre-testing on a bench rack if available, terminal labeling on all field wiring, and a communications link test with the upstream SCADA or DCS host.
The 109W3914P002 is shipped pre-tested and includes a functional verification report. Upon installation, the module should be powered up with the rack in stop mode before transitioning to run mode. This allows the CPU — typically an IC693CPU374 or IC693CPU364 — to perform a configuration check and flag any slot address conflicts before live I/O is engaged. If the system uses a redundant CPU configuration, the standby CPU should be held in stop mode until the primary has confirmed stable operation with the new module.
Field wiring continuity should be verified with a loop test on all connected I/O channels before the system is returned to automatic control. For process-critical loops, a manual override or bypass should be in place at the field device level during the transition period. Commissioning records, including module serial number, installation date, slot position, and test results, should be logged for the site maintenance database and warranty tracking purposes.
Retrofit Support FAQ
Q1: Is the GE 109W3914P002 a direct drop-in replacement for the original OEM part?
Yes. The 109W3914P002 is form-fit-function compatible with the original GE specification. It installs into the same rack slot, uses the same backplane connector, and requires no hardware modification. Slot address configuration in the programming software should be verified to match the original module assignment before returning the system to run mode.
Q2: What commissioning steps are required after installation?
After physical installation, power up the rack in stop mode and use Proficy Machine Edition or Logicmaster 90 to perform a hardware configuration comparison. Confirm the module is recognized at the correct slot address, verify I/O table mapping, and run a communications link test to any connected Genius Bus devices or serial hosts. HMI tag bindings should be checked if any address changes occurred during the swap.
Q3: How is terminal wiring compatibility confirmed before the swap?
Document all existing terminal connections using the original wiring diagram or a field survey before removing the legacy module. The 109W3914P002 uses the same terminal block interface as the original part, so existing field cables can be reconnected directly. A loop test on each I/O channel after reconnection confirms wiring integrity before the system is returned to service.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It includes free replacement or repair of the module if a covered defect is identified within the warranty period. Warranty claims require the original order reference and a description of the fault condition. Damage caused by incorrect installation, overvoltage, or environmental factors outside the module’s rated specifications is not covered.
