GE 531X305NTBACG1 Retrofit-Ready Terminal Board for Mark V Control Systems

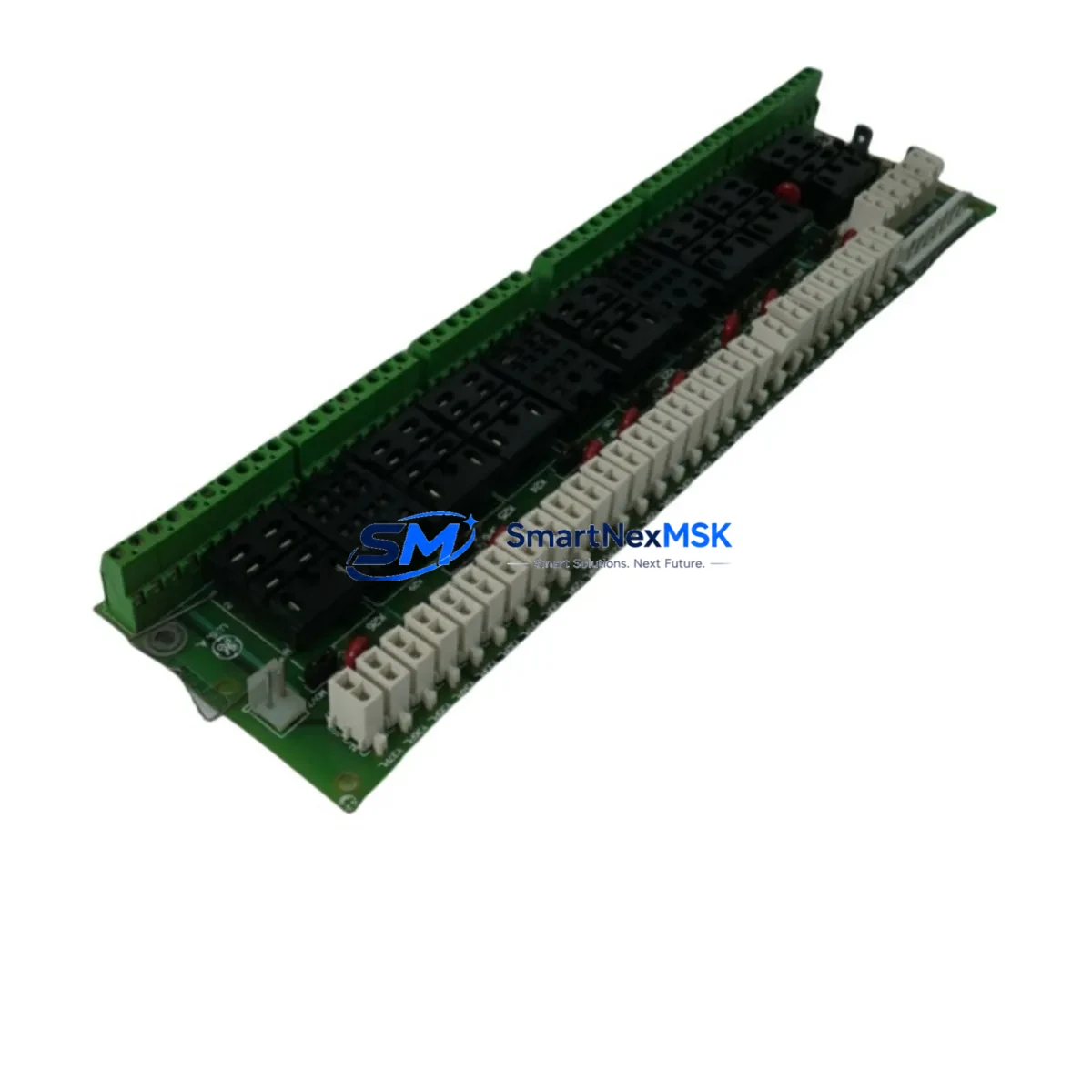

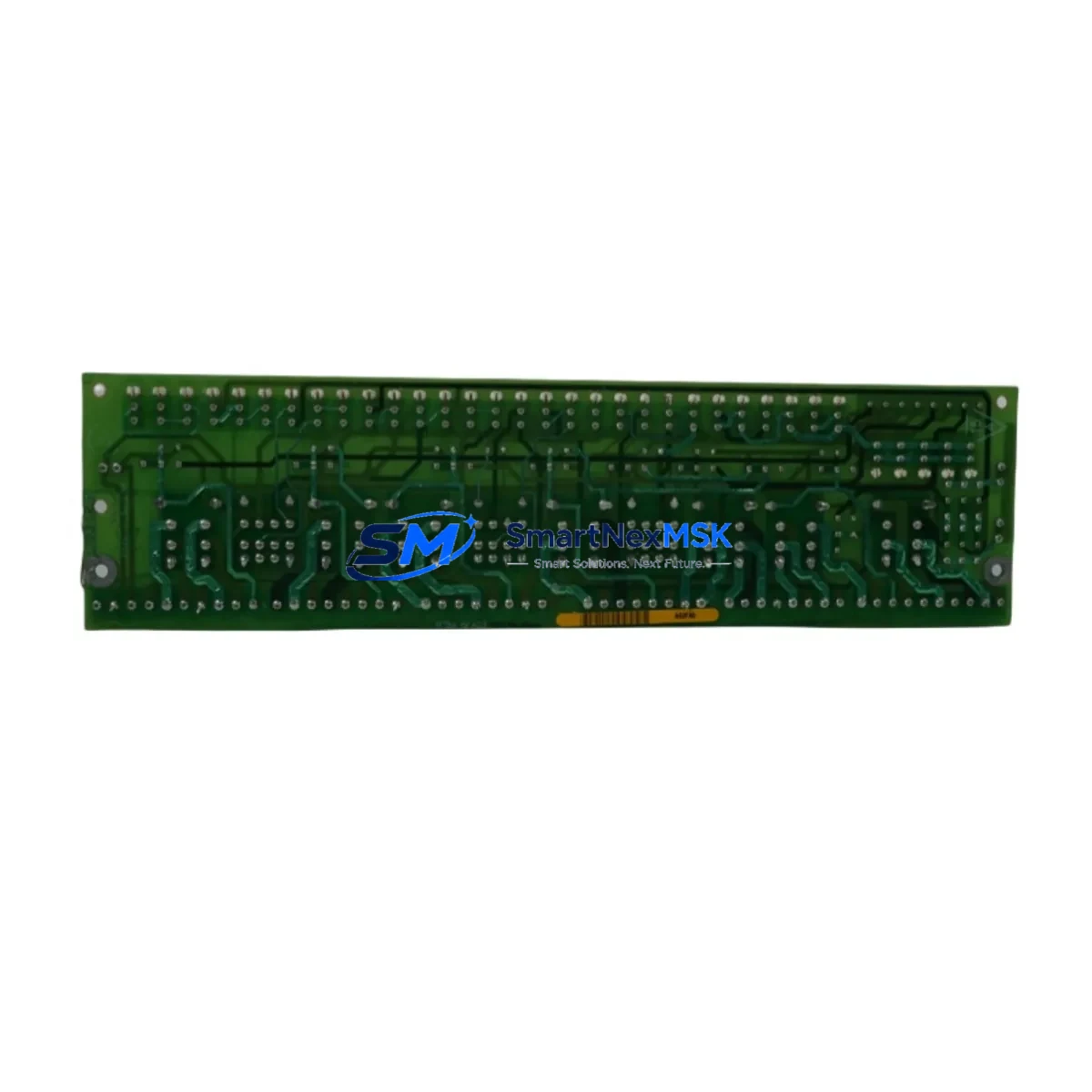

The GE 531X305NTBACG1 is a high-reliability NTB (Non-Turbine Board) terminal board engineered for GE Mark V turbine control systems. As legacy Mark V installations approach end-of-support milestones, this board serves as a critical interface component for engineers undertaking control panel upgrades, I/O rewiring projects, and full system migrations to Mark VIe or third-party DCS platforms. Whether you are replacing a failed unit on an active gas turbine, steam turbine, or compressor train, or pre-staging spares for a planned outage, the 531X305NTBACG1 provides the terminal density, signal compatibility, and mechanical form factor required for a seamless retrofit.

This terminal board is designed to interface directly with the Mark V , , and controller racks, providing organized field wiring termination for analog inputs, discrete I/O, and thermocouple channels. Engineers replacing aging terminal boards should verify the existing wiring harness pinout against the 531X305NTBACG1 terminal map before installation. In most retrofit scenarios, the original field cables can be reused without modification, significantly reducing downtime during the swap.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful Mark V retrofit begins well before the outage window. When the 531X305NTBACG1 terminal board is part of a broader control system modernization, the surrounding hardware must be evaluated in parallel. The controller board, controller board, and controller board each interface with terminal boards through the Mark V backplane, and any replacement plan must account for backplane slot assignments and I/O address mapping to avoid logic conflicts after restart.

Power distribution within the Mark V cabinet is managed through dedicated power supply modules — typically the DS200TCPSG1A or equivalent — and engineers should confirm that the replacement terminal board does not introduce additional current draw that exceeds the existing power budget. In aging installations, the PPRO (Protection, Permissive, and Relay Output) board and the VCMI (VME Communication Module Interface) may also require inspection, as degraded signal integrity on these boards can mask terminal board faults and complicate root-cause analysis.

For sites migrating from Mark V to Mark VIe, the 531X305NTBACG1 is often retained during the transition phase to preserve existing field wiring while the new I/O packs — such as the IS200IOCIH1A analog I/O module or IS200DTURH1A discrete I/O module — are staged in parallel. This phased approach allows the control logic to be validated in the new environment before the final cutover, minimizing the risk of unplanned trips. Communication migration from the Mark V ARCNET-based network to the Mark VIe IONet Ethernet backbone requires careful sequencing, and the terminal board serves as the stable anchor point for field signals throughout this process.

HMI integration is another consideration during retrofit. Sites running GE Cimplicity or third-party SCADA systems connected to the Mark V via serial or Modbus links will need to verify that tag addresses remain consistent after the terminal board replacement. In cases where the I/O map has shifted due to board substitution, HMI screen updates and alarm setpoint reviews should be scheduled as part of the commissioning checklist. Programming cables such as the IC693CBL316 or equivalent serial interface cables are typically required for online diagnostics and offline program backup before any hardware swap is initiated.

All units are shipped with pre-dispatch functional testing completed. Each 531X305NTBACG1 is verified for terminal continuity, insulation resistance, and mechanical integrity before packaging. Units are available from stock and can be dispatched within 24–48 hours for urgent outage support requirements.

Downtime Control During System Migration

Minimizing turbine downtime during a terminal board replacement requires a structured pre-outage preparation protocol. Before the unit is de-energized, a full I/O force list should be generated from the Mark V toolbox software, and all active control loops should be documented with their current setpoints and alarm thresholds. The existing 531X305NTBACG1 wiring should be photographed and labeled at the terminal level — not just at the cable bundle — to ensure accurate reconnection on the replacement board.

During the swap, the replacement board should be installed in the same backplane slot as the original to preserve the hardware address assignment recognized by the , , and controllers. After installation, a cold-start sequence with I/O verification against the force list is recommended before releasing the unit to automatic control. If the site uses a redundant Mark V configuration, the standby controller can be used to validate signal integrity on the new terminal board before transferring control, further reducing the risk of a process upset.

For sites with strict availability requirements, pre-staging a tested spare 531X305NTBACG1 in the control room — verified against the site-specific wiring schedule — is the most effective strategy for reducing mean time to repair (MTTR) in the event of an unplanned failure. Our 12-month warranty covers the replacement unit from the date of shipment, providing assurance throughout the commissioning and initial operating period.

Retrofit Support FAQ

Q1: Is the 531X305NTBACG1 a direct drop-in replacement for the original board in my Mark V cabinet?
In the majority of installations, yes. The 531X305NTBACG1 uses the same mechanical form factor and terminal layout as the original GE-manufactured board. However, we recommend comparing the revision suffix of your existing board against the replacement unit and reviewing the GE Mark V Application Manual (GEH-6195) for any revision-specific wiring differences before installation.

Q2: What pre-shipment testing is performed on each unit?
Every 531X305NTBACG1 dispatched from our inventory undergoes terminal continuity testing, insulation resistance verification, and visual inspection for mechanical damage, corrosion, and component integrity. A test report is available upon request. The 12-month warranty covers functional failure under normal operating conditions from the date of shipment.

Q3: Can this terminal board be used during a phased migration from Mark V to Mark VIe?
Yes. The 531X305NTBACG1 is commonly retained during phased migrations to maintain field wiring continuity while new Mark VIe I/O packs are staged in parallel. This approach allows engineers to validate the new control logic without disrupting existing field connections, and the terminal board can be decommissioned cleanly once the cutover is complete.

Q4: What information should I provide when ordering to confirm compatibility?
Please provide your Mark V cabinet serial number or unit ID, the existing board part number and revision (if legible), and the turbine type (gas, steam, or compressor). This allows our technical team to confirm the correct replacement configuration and advise on any wiring or addressing considerations specific to your installation.
