GE 8021-CE-LH Retrofit-Ready Carrier Extender for Series Six Control Systems

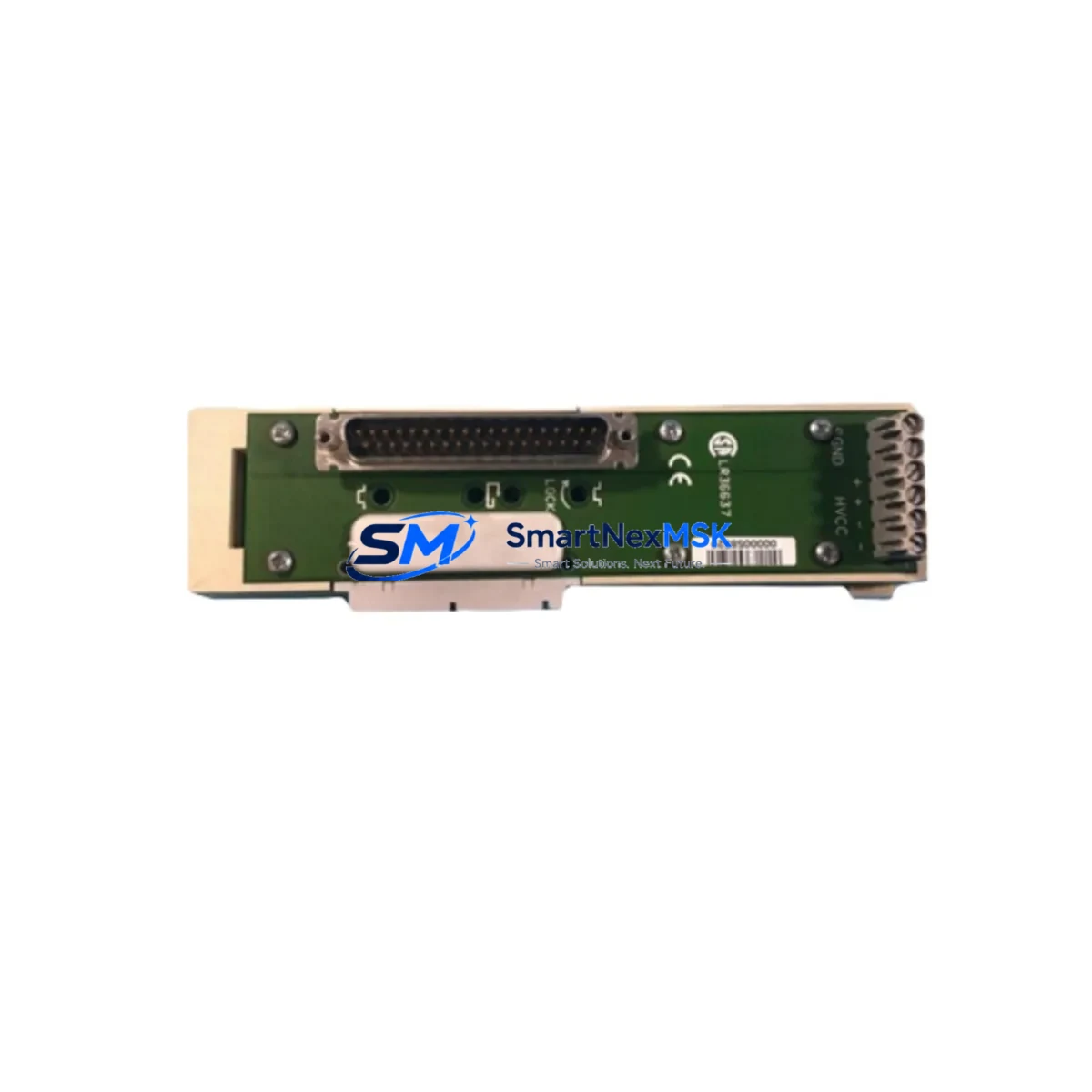

The GE 8021-CE-LH is a Carrier Extender module engineered for GE Series Six programmable logic controller platforms. As legacy Series Six installations approach end-of-service milestones, the 8021-CE-LH provides a direct, retrofit-ready solution for engineers and maintenance teams tasked with extending rack capacity, restoring discontinued hardware, or executing a controlled migration to a modernized control architecture. This module is stocked, tested, and shipped with a 12-month warranty, making it a reliable choice for both emergency replacement and planned system upgrades.

The 8021-CE-LH functions as a carrier extender within the Series Six backplane ecosystem, enabling additional I/O modules and specialty cards to be connected beyond the base rack. In retrofit scenarios, this is particularly valuable when the original rack configuration must be preserved while new I/O capacity — such as analog input modules, discrete output modules, or communications interface cards — is added to support expanded process control requirements. Engineers integrating the 8021-CE-LH into an existing control cabinet should verify the total power budget across the Series Six power supply module, as each additional carrier slot draws from the shared DC bus. Confirm that the existing GE IC600PS501 or equivalent Series Six power supply can sustain the expanded load before commissioning.

Backplane interface compatibility is a critical checkpoint during installation. The 8021-CE-LH connects to the Series Six main rack via the standard backplane edge connector. Verify that the backplane slot assignment does not conflict with existing module addresses programmed in the Series Six CPU — typically a GE IC600CPU105 or IC600CPU106 — as address conflicts will prevent the PLC from recognizing the extended carrier during the I/O scan cycle. Update the hardware configuration in the Logicmaster 6 programming software to reflect the new carrier address before powering the system.

Terminal wiring on field-side I/O modules seated in the 8021-CE-LH carrier follows the same wiring conventions as the base rack. Technicians should reference the original wiring diagrams and confirm that cable lengths from the junction box or marshalling panel to the extended carrier do not introduce excessive voltage drop on 24 VDC discrete input circuits. For analog signal wiring, maintain shielded twisted-pair runs and ground shields at a single point to prevent ground loops that can corrupt 4–20 mA process signals.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful Series Six retrofit begins with a thorough audit of the existing control cabinet. Before the 8021-CE-LH is installed, document all occupied rack slots, module part numbers, and their corresponding I/O addresses. Common modules found alongside the carrier extender in Series Six cabinets include the GE IC600BF831 discrete input module, IC600BF844 discrete output module, IC600BF900 analog input module, and IC600BF910 analog output module. Each of these modules must retain its original slot address in the Logicmaster 6 hardware configuration to avoid forcing a full program re-download after the carrier extension is added.

Communications infrastructure deserves equal attention. Many Series Six installations rely on a GE Genius Bus Controller — such as the IC600CB500 — to manage distributed I/O across the plant floor. When the 8021-CE-LH extends the local rack, confirm that the Genius Bus drop address assignments remain unaffected and that the bus scan time is recalculated if additional Genius I/O blocks are added downstream. For sites migrating from serial communications to Ethernet-based supervisory control, a GE IC693CMM321 Ethernet Interface module (from the 90-30 family, used in parallel migration architectures) may be introduced into the control network during the same project window, requiring careful attention to IP addressing and SRTP protocol configuration.

HMI integration is another area that requires validation during a carrier extender retrofit. If the plant uses a GE Cimplicity or iFIX SCADA system connected to the Series Six CPU via a serial driver, adding new I/O through the 8021-CE-LH will require updating the HMI tag database to reflect any new process points brought online. Verify that the HMI polling rate does not overload the CPU’s communication port, particularly on older IC600CPU105 processors with limited serial throughput. For sites using a standalone operator panel or push-button station wired directly to discrete outputs on the extended carrier, confirm that the output module’s coil addresses are correctly mapped in the ladder logic program before energizing the field devices.

Power distribution within the control cabinet should be re-evaluated when the 8021-CE-LH is added. The Series Six power supply module feeds both the backplane logic bus and the field-side I/O power rail. If the extended carrier adds high-current output modules — such as relay output cards or high-density 24 VDC sourcing modules — a supplemental 24 VDC DIN-rail power supply may be required to maintain stable field power without loading the main PLC power supply beyond its rated capacity. Always measure actual current draw after installation and compare against the power supply’s derating curve for the installed ambient temperature.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any Series Six retrofit project. The 8021-CE-LH can be pre-staged and bench-tested before the scheduled maintenance window. Load the updated Logicmaster 6 hardware configuration onto a laptop connected to the programming port of the Series Six CPU, and verify that the configuration compiles without errors before the cutover date. Back up the existing ladder logic program, hardware configuration, and register data table to at least two independent storage locations — a local hard drive and a USB drive — before making any changes to the live system.

During the maintenance window, follow a structured sequence: power down the control cabinet, install the 8021-CE-LH carrier extender and any new I/O modules, verify all backplane connections are fully seated, restore power, and observe the CPU’s RUN/FAULT LED status. If the CPU enters a fault state, use the Logicmaster 6 fault table to identify the specific I/O address causing the fault before attempting to clear it. Do not force outputs or bypass interlocks during the initial power-up sequence. Once the CPU enters RUN mode with no active faults, perform a structured I/O verification: toggle each new discrete input from the field, confirm the corresponding bit in the data table changes state, and verify each new discrete output by commanding it from the programmer and observing the field device response.

For processes that cannot tolerate a full shutdown, consider a phased approach: install the 8021-CE-LH during a partial shutdown of the affected process section while maintaining control of unaffected sections through the existing base rack. This approach preserves control continuity for the broader plant while allowing the extended carrier to be commissioned on the isolated section. Once the extended carrier is verified, the process section can be restarted without impacting the remainder of the production line. Document all changes in the as-built drawings and update the spare parts inventory to reflect the addition of the 8021-CE-LH to the installed base.

Retrofit Support FAQ

Q: Is the GE 8021-CE-LH a direct replacement for the original carrier extender in my Series Six rack?
A: Yes. The 8021-CE-LH is a direct form-fit-function replacement for the original GE Series Six carrier extender. No firmware changes or hardware modifications are required. Install the module into the existing backplane slot, update the hardware configuration in Logicmaster 6, and perform an I/O scan verification before returning the system to service.

Q: What wiring changes are needed when installing the 8021-CE-LH in an existing control cabinet?
A: The 8021-CE-LH itself does not require field wiring — it is a backplane carrier, not a field-termination module. Field wiring connects to the I/O modules seated in the carrier’s slots. Verify that existing cable runs from the marshalling panel reach the extended carrier location, and confirm that terminal block assignments on the I/O modules match the original wiring schedule. No changes to the Series Six CPU wiring or power supply wiring are required unless the expanded I/O load exceeds the power supply’s rated output.

Q: How is the 8021-CE-LH tested before shipment, and what does the 12-month warranty cover?
A: Each 8021-CE-LH unit undergoes functional testing prior to shipment, including backplane interface verification and visual inspection for physical damage. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specifications. Warranty claims are processed through our sales team at sales@smartnexmsk.com.

Q: Can the 8021-CE-LH be used in a migration project where the Series Six is being replaced by a GE 90-30 or PACSystems platform?
A: The 8021-CE-LH is specific to the Series Six backplane architecture and is not compatible with GE 90-30 (IC693 family) or PACSystems RX3i backplanes. However, it is commonly used to extend the operational life of the Series Six platform during a phased migration, allowing the existing Series Six to continue controlling part of the process while the new PACSystems controller is commissioned on a parallel section. This staged approach reduces migration risk and allows the engineering team to validate the new control logic before full cutover.
