GE DS200EXPSG1ACB Maintenance-Ready Spare for Mark VI Automation

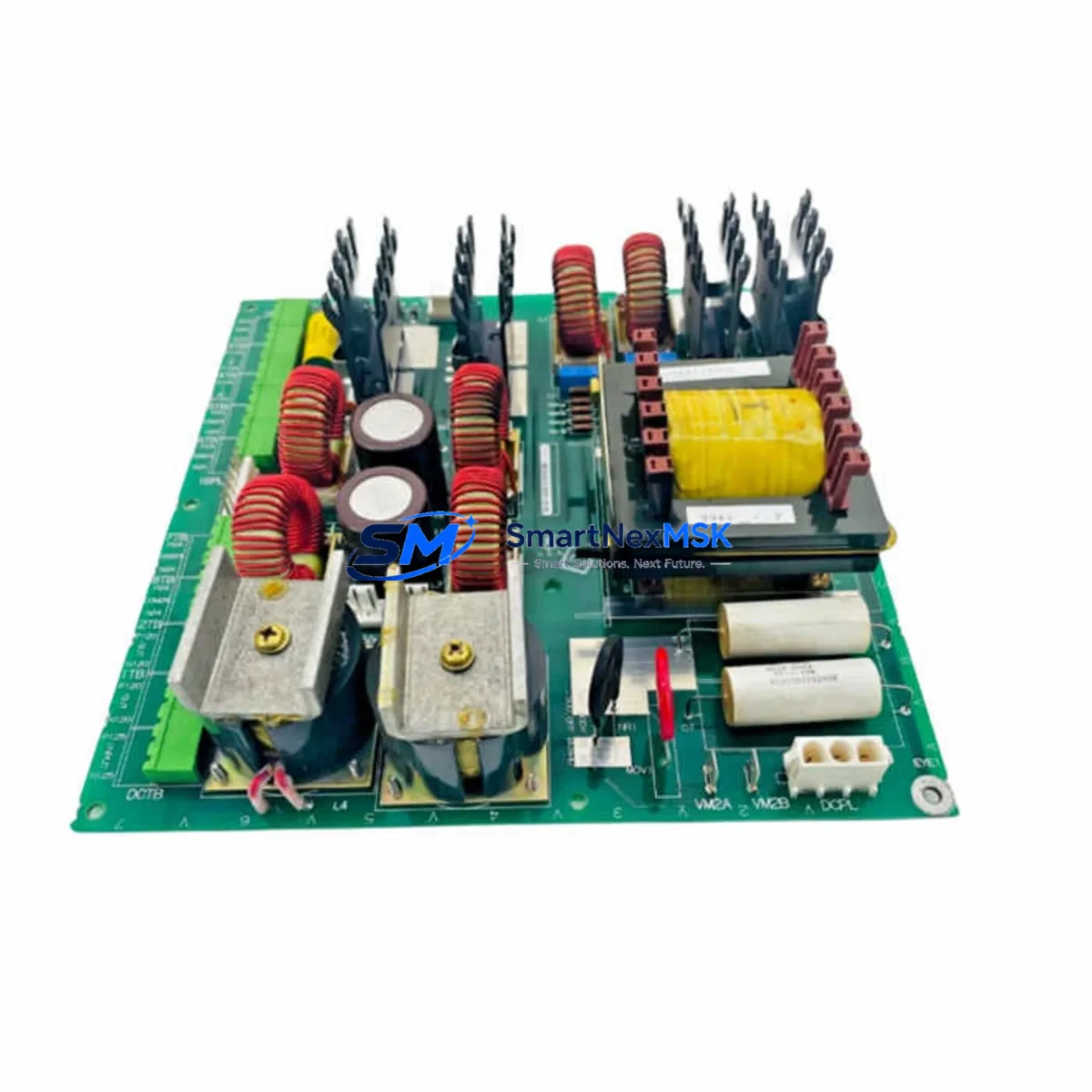

The GE DS200EXPSG1ACB is an original power supply module engineered for the GE Mark VI turbine control system — one of the most widely deployed DCS/turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As a maintenance-ready spare, the DS200EXPSG1ACB plays a critical role in sustaining continuous turbine operation, supporting planned inspection cycles, and enabling rapid recovery from unplanned shutdowns. Sourced directly from verified supply channels, every unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty.
For maintenance engineers managing aging Mark VI control cabinets, holding a qualified DS200EXPSG1ACB spare on the shelf is not optional — it is a fundamental element of any credible spare parts strategy. Power supply failures in turbine control systems can cascade rapidly: a single failed module can take an entire control rack offline, triggering emergency shutdowns, production losses, and costly emergency procurement under pressure. Proactive stocking of this module eliminates that risk.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | DS200EXPSG1ACB |
| Manufacturer | GE (General Electric) |
| Compatible System | GE Mark VI Turbine Control System |
| Module Function | Power Supply / Expansion Power Module |
| Input Voltage | 120/240 VAC, 50/60 Hz (nominal) |
| Output | Regulated DC power for Mark VI I/O and control racks |
| Form Factor | Mark VI rack-mount, direct slot replacement |
| Compatibility | GE Mark VI, Mark VIe (verify rack revision before installation) |
| Installation | Hot-swap capable in supported rack configurations; follow GEH-6421 procedures |
| Operating Environment | Industrial: 0–55°C, humidity 5–95% non-condensing |
| Condition | Original / Surplus New / Tested Refurbished (specify at order) |
| Pre-shipment Test | Functional power-on verification, output voltage check |
| Warranty | 12 Months from shipment date |
| Lead Time | In-stock: ships within 2 business days |
| Weight | Approx. 1,580 g |
| Origin | USA |
Maintenance Planning for Continuous Operation
When a DS200EXPSG1ACB power supply module is flagged during routine inspection or fails in service, experienced maintenance engineers know that the power supply is rarely the only component that warrants attention. A thorough cabinet audit at the time of replacement significantly reduces the probability of a repeat shutdown within the same maintenance window.
Begin by inspecting the DS200TCQAG1B or DS200TCQBG1B turbine control I/O boards in the same rack — these boards share the regulated DC bus supplied by the DS200EXPSG1ACB, and voltage transients during a power supply failure can stress their internal logic circuits. Similarly, the DS200SDCIG2A DC-to-DC converter module should be checked for output stability, as it operates in close electrical proximity to the expansion power supply.
Review the DS200IIBDG1A or DS200IIBDG1B I/O interface boards for any sign of blown protection fuses or damaged input channels — these are common collateral casualties when a power supply degrades slowly before failing. The DS200DSPCH1A digital signal processor board should also be inspected for firmware integrity and communication status with the UCCA/UCCB/UCCC controller cards.
On the communications side, verify the DS200TCRAG1A communication interface module is responding correctly on the Mark VI network. A power interruption can corrupt communication buffers or reset module parameters. If the system uses a DS200EXPSG1A or DS200EXPSG1B in a redundant power supply configuration, confirm that the redundant unit is healthy and that automatic switchover logic is functioning as designed.
Do not overlook the terminal blocks and wiring harnesses feeding the power supply input. Loose connections, corroded terminals, or undersized conductors are frequent root causes of premature power supply failure. Inspect all DIN-rail terminal strips in the cabinet for tightness and insulation condition. Replace any suspect fuses in the AC input circuit — standard ceramic fuses rated to the module’s input current specification.
For facilities running extended Mark VI lifecycles, consider scheduling a parallel inspection of the UCCA/UCCB controller module battery backup and the IS200TRLYH1B relay output terminal board, both of which are sensitive to sustained power quality issues. Proactive replacement of these components during the same planned outage window maximizes the value of each maintenance intervention and extends the operational life of the overall control system.
Site Replacement Workflow
Step 1 — Verify compatibility: Confirm the DS200EXPSG1ACB revision matches your rack’s backplane revision. Cross-reference GE Mark VI hardware compatibility matrix (GEH-6421 or equivalent site documentation). Note that DS200EXPSG1ACB is the “C” revision — verify against earlier “A” and “B” variants if your system was originally commissioned with a different revision.
Step 2 — Isolate and de-energize: Follow your site’s lockout/tagout (LOTO) procedure for the affected control cabinet. If the rack supports hot-swap, confirm with your site safety officer before proceeding without full de-energization.
Step 3 — Document current configuration: Before removing the failed module, photograph the wiring, record any DIP switch or jumper settings, and note the slot position. The DS200EXPSG1ACB does not store user-configurable parameters, but physical installation details must be preserved.
Step 4 — Install the replacement unit: Seat the DS200EXPSG1ACB firmly into the rack slot, ensuring the backplane connector is fully engaged. Re-connect all wiring per the original documentation. Torque terminal screws to specification.
Step 5 — Power-on and verify: Restore power and observe the module’s status LEDs. Confirm output voltage is within specification using a calibrated multimeter before allowing the Mark VI system to resume control. Check the HMI or operator workstation for any residual alarms related to the power supply or downstream I/O boards.
Step 6 — Update maintenance records: Log the replacement in your CMMS, record the new module’s serial number, and schedule the next inspection interval per your site’s preventive maintenance plan.
Spare Parts Support FAQ
Q1: What is the warranty coverage for the DS200EXPSG1ACB supplied by SMARTNEXMSK?
Every DS200EXPSG1ACB shipped by SMARTNEXMSK carries a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions. Each unit undergoes pre-shipment power-on testing and output voltage verification before dispatch.
Q2: How do I confirm compatibility between the DS200EXPSG1ACB and my existing Mark VI rack?
Compatibility depends on the rack backplane revision and the specific Mark VI sub-system (VCMI, VTUR, VPRO, etc.). Provide your rack part number and system configuration to our technical team at [email protected] and we will confirm compatibility before shipment. We recommend cross-referencing GE document GEH-6421 for hardware revision matrices.
Q3: Can the DS200EXPSG1ACB replace earlier revisions such as DS200EXPSG1AAB or DS200EXPSG1ABB?
In most cases, the “C” revision (DS200EXPSG1ACB) is backward compatible with earlier “A” and “B” revisions within the same rack family. However, always verify with your site’s GE Mark VI documentation or contact our technical support team to confirm before installation, particularly in safety-critical turbine control applications.
Q4: What is your typical lead time and how do you support emergency spare requirements?
In-stock units ship within 2 business days. For emergency requirements, contact us directly at +86 18259474341 or [email protected] — we maintain a dedicated fast-track process for unplanned outage situations, including expedited freight options to minimize your system downtime.
