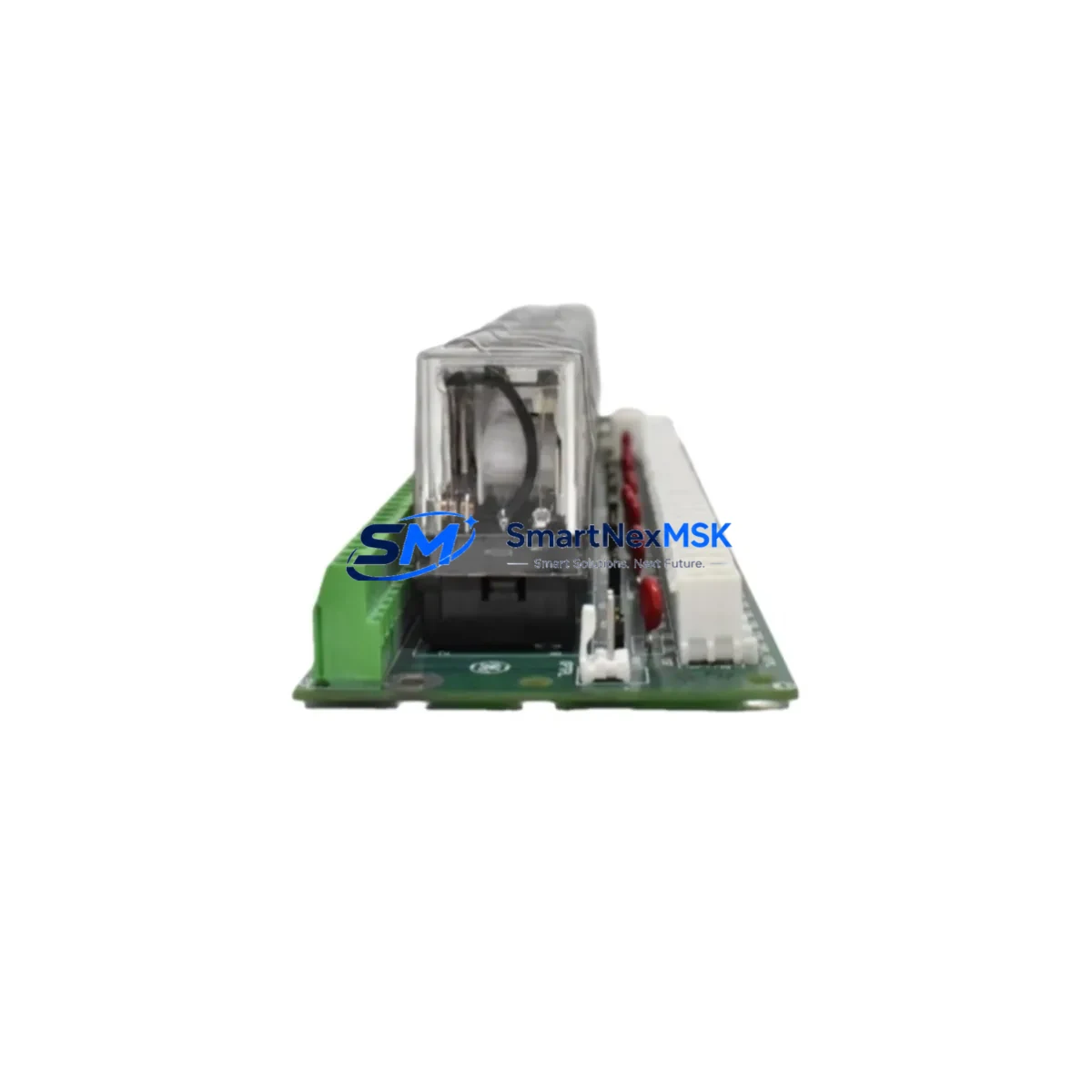

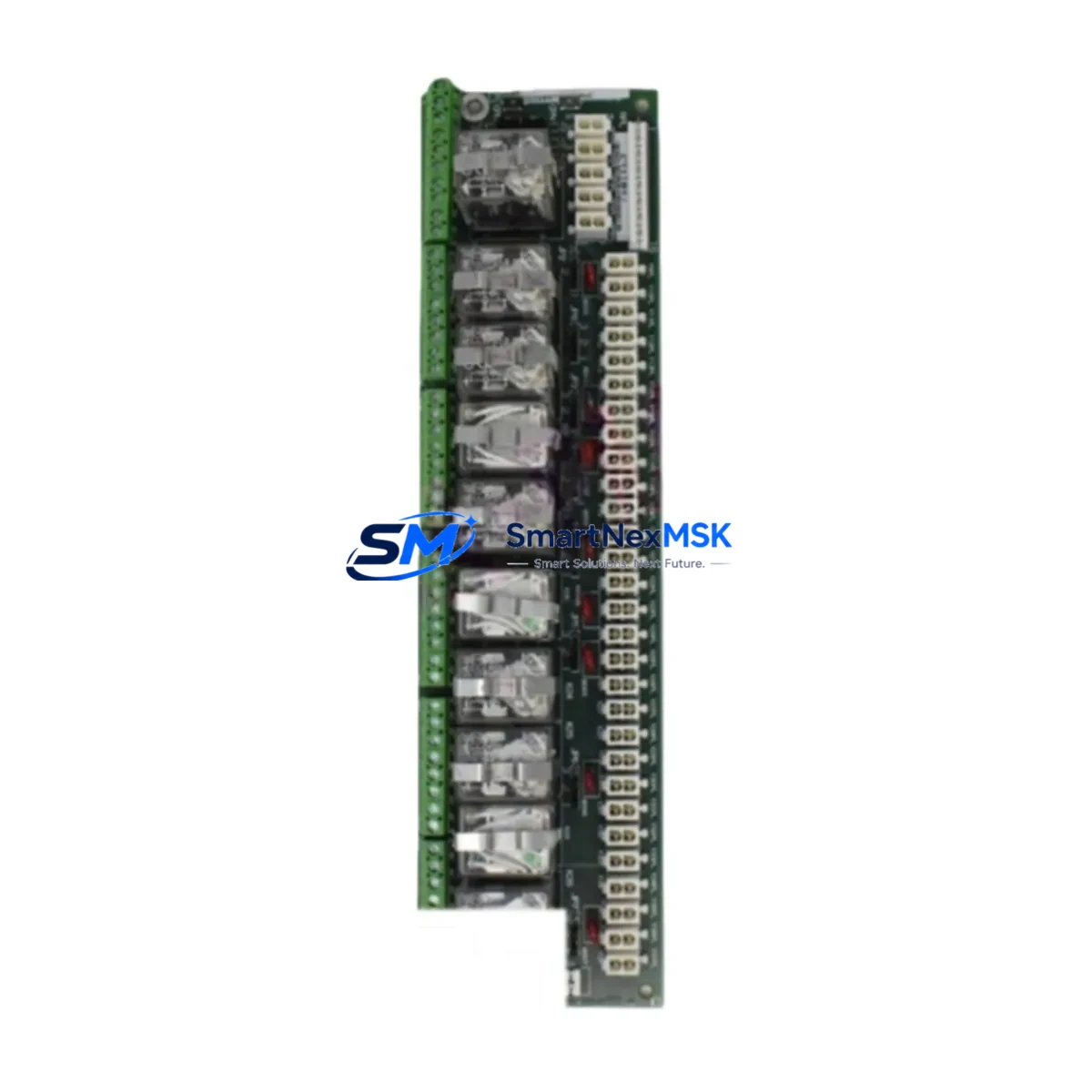

GE DS200RTBAG1AHC Retrofit-Ready Relay Terminal Board for Mark VI Control Systems
The GE DS200RTBAG1AHC is a Relay Terminal Board engineered for the GE Mark VI Turbine Control System, one of the most widely deployed turbine management platforms in power generation, oil & gas, and industrial process facilities worldwide. As aging Mark VI installations approach end-of-life or require capacity expansion, the DS200RTBAG1AHC serves as a critical interface component — bridging relay output signals between the controller backplane and field wiring terminals. This board is a direct retrofit replacement for facilities transitioning away from obsolete relay modules, upgrading degraded terminal assemblies, or restoring control continuity after unplanned failures.
Whether your plant is executing a planned outage upgrade, responding to an emergency spare requirement, or systematically modernizing a legacy turbine control cabinet, the DS200RTBAG1AHC is available from verified stock with full functional testing, documented traceability, and a 12-month warranty.
Upgrade Compatibility Table
| Parameter | DS200RTBAG1AHC Specification | Retrofit Notes |
|---|---|---|
| Compatible Platform | GE Mark VI Turbine Control System | Verify Mark VI firmware revision before installation |
| Board Function | Relay Terminal Board (RTB) | Replaces failed or degraded relay terminal assemblies |
| Backplane Interface | Mark VI VME-style backplane connector | Confirm backplane slot assignment and address jumper settings |
| Terminal Wiring | Screw-terminal field wiring block | Map existing field wiring diagram before disconnection; label all conductors |
| Communication Compatibility | IONET / Mark VI internal bus | No protocol migration required for same-series replacement |
| Power Supply Requirement | Supplied via backplane (no external PSU required) | Verify rack power budget; check DS200PCCAG1A or equivalent PSU capacity |
| Installation Type | Rack-mount, Mark VI standard enclosure | Compatible with standard Mark VI control cabinet form factor |
| Replacement Scope | Drop-in replacement for same-revision RTB boards | Cross-reference full part number suffix before ordering |
| Pre-shipment Testing | Full functional test performed | Test report available upon request |
| Warranty | 12-Month Warranty | Covers manufacturing defects and functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
Successful integration of the DS200RTBAG1AHC into an existing Mark VI control architecture requires systematic pre-installation planning. Begin by auditing the current relay terminal board’s wiring schedule — every field conductor connected to the existing RTB must be documented, labeled, and photographed before removal. The Mark VI system typically routes discrete output signals through the relay terminal board to field devices such as solenoid valves, motor starters, and trip relays, so any wiring error during replacement can result in incorrect actuator behavior or nuisance trips.
Next, verify the power budget of the control cabinet. The DS200PCCAG1A power conditioning card and associated DC power distribution within the Mark VI rack must have sufficient headroom to support the replacement board without causing voltage sag on adjacent I/O modules. In multi-rack configurations, also confirm that the DS200TCQAG1A I/O terminal board and any co-installed DS200SDCIG2A DC-to-DC converter modules are operating within specification.
For facilities running mixed I/O configurations, the DS200RTBAG1AHC is commonly installed alongside DS200IIBDG1A inter-board interface modules and DS200TBCBG1A terminal board assemblies. When replacing the RTB in a system that also uses DS200DSPCH6A digital signal processor boards or DS200ADPAG1A analog-to-digital processor cards, ensure that the module address configuration — typically set via DIP switches or jumper blocks on the board — matches the original assignment recorded in the Mark VI hardware configuration file (HWC). A mismatch in module addressing will prevent the controller from recognizing the replacement board and may generate a hardware fault alarm on the Mark VI HMI operator workstation.
Communication link integrity should also be verified. The Mark VI IONET architecture relies on redundant communication paths between the controller, I/O boards, and the operator interface. After installing the DS200RTBAG1AHC, confirm that the IONET diagnostic screen on the HMI shows the board as online and fault-free before re-energizing field outputs. If the system uses a DS200TCRAG1A communication interface card for remote I/O expansion, verify that the new RTB is visible within the remote I/O scan list.
Finally, review the application program logic in the Mark VI toolbox software. Relay output assignments mapped to the DS200RTBAG1AHC must correspond to the correct physical terminal points. If the original board had been field-modified or had non-standard wiring adaptations, these must be replicated on the replacement unit. Retain the original board for reference during commissioning and do not dispose of it until the replacement has been fully validated in service.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational concern when replacing a relay terminal board in an active turbine control system. The recommended approach is to schedule the DS200RTBAG1AHC replacement during a planned maintenance window, coordinated with operations to ensure the turbine or process unit is safely shut down and isolated before any control cabinet work begins.
Prior to the outage, prepare a complete pre-swap checklist: download and archive the current Mark VI hardware configuration and application program from the controller using the Mark VI toolbox; capture a full I/O status snapshot from the HMI; and photograph all terminal wiring on the existing RTB. This documentation protects the original program logic and ensures that the replacement board can be commissioned to an identical functional state.
During the swap, work methodically — disconnect field wiring one terminal at a time, transferring each conductor to the corresponding terminal on the DS200RTBAG1AHC using the wiring schedule as a reference. After mechanical installation and wiring completion, power up the rack and monitor the Mark VI diagnostic display for board recognition. Run a forced I/O test from the toolbox to verify that each relay output operates correctly before returning the system to automatic control. This structured approach typically allows a single-board RTB replacement to be completed within a two-to-four hour maintenance window, preserving control continuity and protecting the integrity of the original application logic.
Retrofit Support FAQ
Q1: Is the DS200RTBAG1AHC a direct drop-in replacement for other GE Mark VI relay terminal boards?
The DS200RTBAG1AHC is designed as a direct replacement within the Mark VI relay terminal board family. However, GE Mark VI boards use alphanumeric revision suffixes that indicate hardware revisions. Always cross-reference the full part number — including the revision suffix — against your existing board before ordering. Our technical team can assist with cross-reference verification prior to shipment.
Q2: What pre-shipment testing is performed on the DS200RTBAG1AHC?
Every DS200RTBAG1AHC unit shipped by SMARTNEXMSK undergoes full functional testing prior to dispatch. Testing covers relay coil actuation, contact continuity, backplane connector integrity, and terminal block condition. A test report is available upon request. All units are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.
Q3: How do I verify wiring compatibility before installing the replacement board?
Obtain the original Mark VI wiring schedule and I/O assignment drawing for your specific turbine control configuration. Compare the terminal numbering and relay output assignments on the DS200RTBAG1AHC against the existing board. If your site does not have current as-built drawings, our engineering support team can assist with terminal identification based on the board revision and system configuration data you provide.
Q4: What is the lead time and availability for the DS200RTBAG1AHC?
The DS200RTBAG1AHC is maintained in verified stock for rapid dispatch. Standard lead time is 1–3 business days for international shipments, with expedited options available for emergency outage situations. Contact our sales team at sales@smartnexmsk.com or call +86 18259474341 to confirm current stock status and arrange priority shipping.
