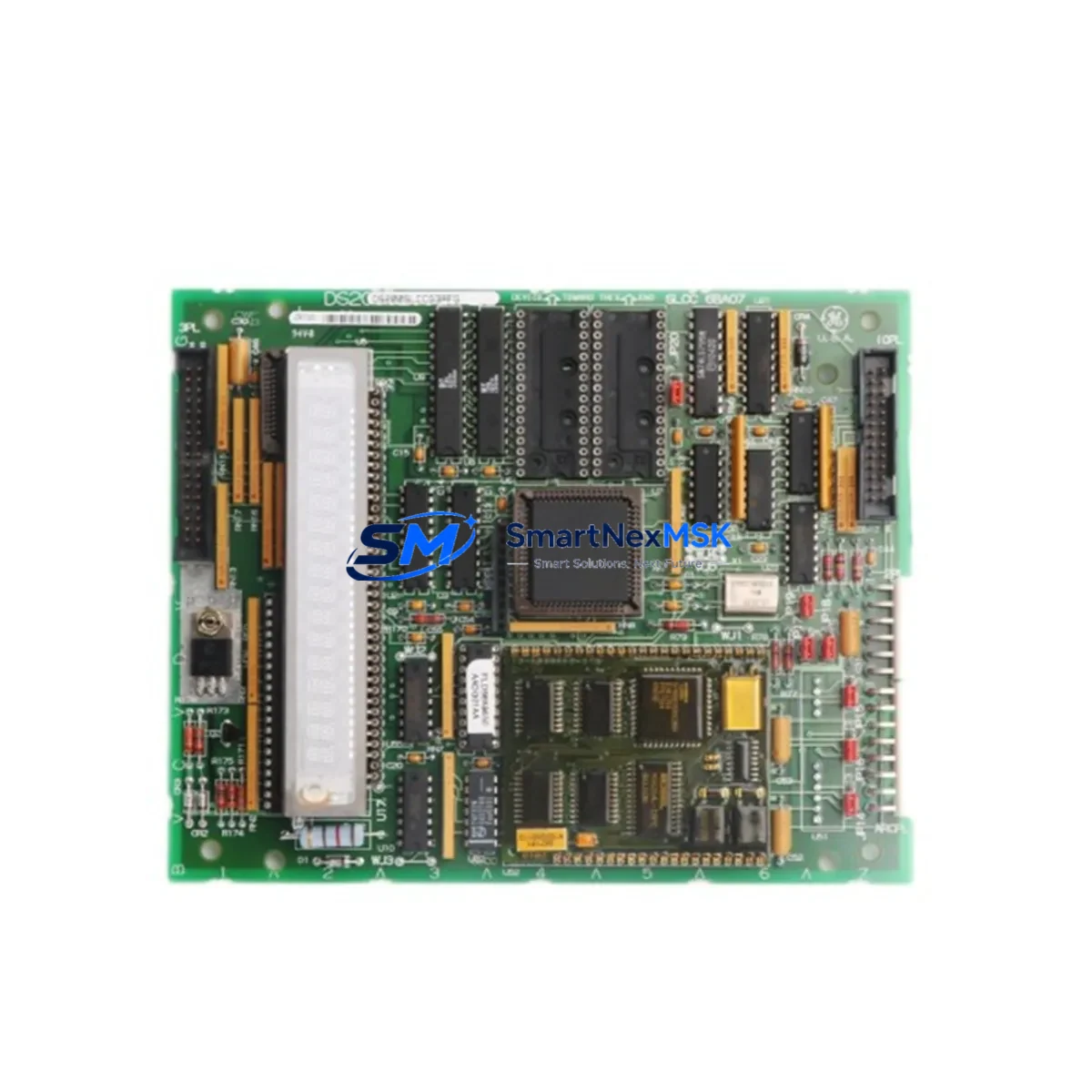

GE DS200SLCCG3AFG Retrofit-Ready Serial Link Card for Mark VI

GE DS200SLCCG3AFG Retrofit-Ready Serial Link Card for Mark VI Control Systems

The GE DS200SLCCG3AFG is a Serial Link Communication Card engineered for the GE Speedtronic Mark VI turbine control platform. As legacy Mark VI installations approach end-of-support milestones, plant engineers and control system integrators increasingly rely on verified retrofit-ready replacements to sustain operational continuity without committing to full DCS overhauls. The DS200SLCCG3AFG serves as a direct drop-in replacement for failed or degraded serial link modules within the Mark VI I/O rack, restoring high-speed serial communication between the controller core and distributed I/O packs with no firmware re-flashing required in most configurations.

This card occupies a standard Mark VI VME-style backplane slot and interfaces directly with the VCMI (VME Communication Module Interface) and associated VTUR or VTCC turbine control boards. During retrofit planning, engineers must confirm the backplane revision level and verify that the existing DS200TCQCG1A or DS200TCQAG1A I/O terminal boards remain compatible with the replacement card’s serial link protocol version. Mismatch between protocol revisions is the most common source of post-installation communication faults and should be validated against the site’s Mark VI application software version before the card is installed.

Power supply compatibility is a critical pre-installation checkpoint. The DS200SLCCG3AFG draws regulated 5 VDC and ±15 VDC from the rack’s internal power bus. Sites running aging DS200PCCAG1A or DS200PCCBG1A power supply modules should conduct a load audit before adding or replacing communication cards, as degraded capacitors in legacy PSUs can cause intermittent resets under transient load conditions. Where power margin is insufficient, upgrading to a current-production power supply module is recommended as part of the same maintenance window.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DS200SLCCG3AFG retrofit begins well before the maintenance window opens. The first step is a full audit of the Mark VI rack configuration using GE ToolboxST, documenting all active I/O pack assignments, serial link addresses, and communication health status. Engineers should export the current application configuration as a backup before any hardware is disturbed — this preserves the ladder logic, function block diagrams, and I/O mapping that will need to be verified post-swap.

Terminal wiring on the associated DS200TCQCG1A terminal board should be photographed and documented before disconnection. In older installations, wire labeling may have degraded, and undocumented field wiring is a leading cause of extended commissioning time. If the site uses DS200IOCSG1A or DS200IOCAG1A I/O controller boards in adjacent slots, their communication link status should be confirmed healthy before and after the card swap to isolate any pre-existing faults.

For sites migrating from Mark VI to Mark VIe, the DS200SLCCG3AFG can serve as an interim bridge module while the new IS420ESWAH1A Ethernet switch and IS215UCVEH2A controller boards are staged. This phased approach allows the plant to maintain turbine control continuity on the legacy platform while the new control cabinet is commissioned in parallel — a strategy that significantly reduces the risk of unplanned outages during the transition period.

HMI screen updates are often overlooked during communication card replacements. If the site runs GE Cimplicity or a third-party SCADA connected via the Mark VI serial link, the communication path configuration in the HMI project must be verified after the card swap. A change in serial link node address — even by one digit — will cause the HMI to lose live data without generating a controller fault, making it appear as a display issue rather than a communication failure.

Downtime Control During System Migration

Minimizing turbine downtime during a serial link card replacement requires a structured hot-swap protocol. Where the Mark VI rack supports redundant communication paths, the standby serial link channel should be confirmed active and healthy before the primary DS200SLCCG3AFG is removed. This allows the controller to maintain I/O communication throughout the swap, reducing the outage window to the time required for physical card exchange and link re-synchronization — typically under 15 minutes for an experienced technician.

For non-redundant configurations, the replacement window should be coordinated with the operations team to align with a planned load reduction or unit trip. The replacement card should be bench-tested and confirmed powered-on before installation. Pre-staging the DS200SLCCG3AFG in a test rack with a DS200TCQCG1A terminal board and a known-good DS200PCCAG1A power supply allows the technician to verify LED status patterns and serial link initialization before the card enters service on the live unit.

Post-installation, the ToolboxST diagnostic interface should be used to confirm serial link synchronization, I/O pack health, and alarm status before the unit is returned to service. Any residual communication faults logged during the swap should be cleared and the event log reviewed to confirm no pre-existing faults were masked by the failed card. Original program logic requires no modification for a like-for-like DS200SLCCG3AFG replacement — the application software continues to execute without interruption once the serial link re-establishes.

Retrofit Support FAQ

Q1: Is the DS200SLCCG3AFG a direct replacement for DS200SLCCG1A and DS200SLCCG2A?
Yes. The G3AFG revision is backward compatible with G1A and G2A variants in standard Mark VI rack configurations. Verify the backplane slot assignment and serial link address in ToolboxST before installation to confirm no address conflicts exist with other communication modules in the rack.

Q2: What commissioning steps are required after installation?
After physical installation, use ToolboxST to run a serial link diagnostic scan. Confirm all I/O packs report healthy status and that the serial link node address matches the application configuration. Check the Mark VI event log for any new faults generated during power-up. HMI communication paths should be verified independently if the site uses Cimplicity or a third-party SCADA system.

Q3: How is terminal wiring handled during the card swap?
The DS200SLCCG3AFG connects to the field via the associated DS200TCQCG1A or DS200TCQAG1A terminal board, which remains in place during the card swap. Field wiring does not need to be disturbed. Only the communication card itself is removed and replaced, making the process low-risk from a wiring perspective. Document all terminal board connections before beginning work as a precaution.

Q4: What does the 12-month warranty cover?
All DS200SLCCG3AFG units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing prior to dispatch. Warranty claims are supported by our technical team at [email protected]. Units are shipped with full traceability documentation to support site acceptance testing and maintenance records.
