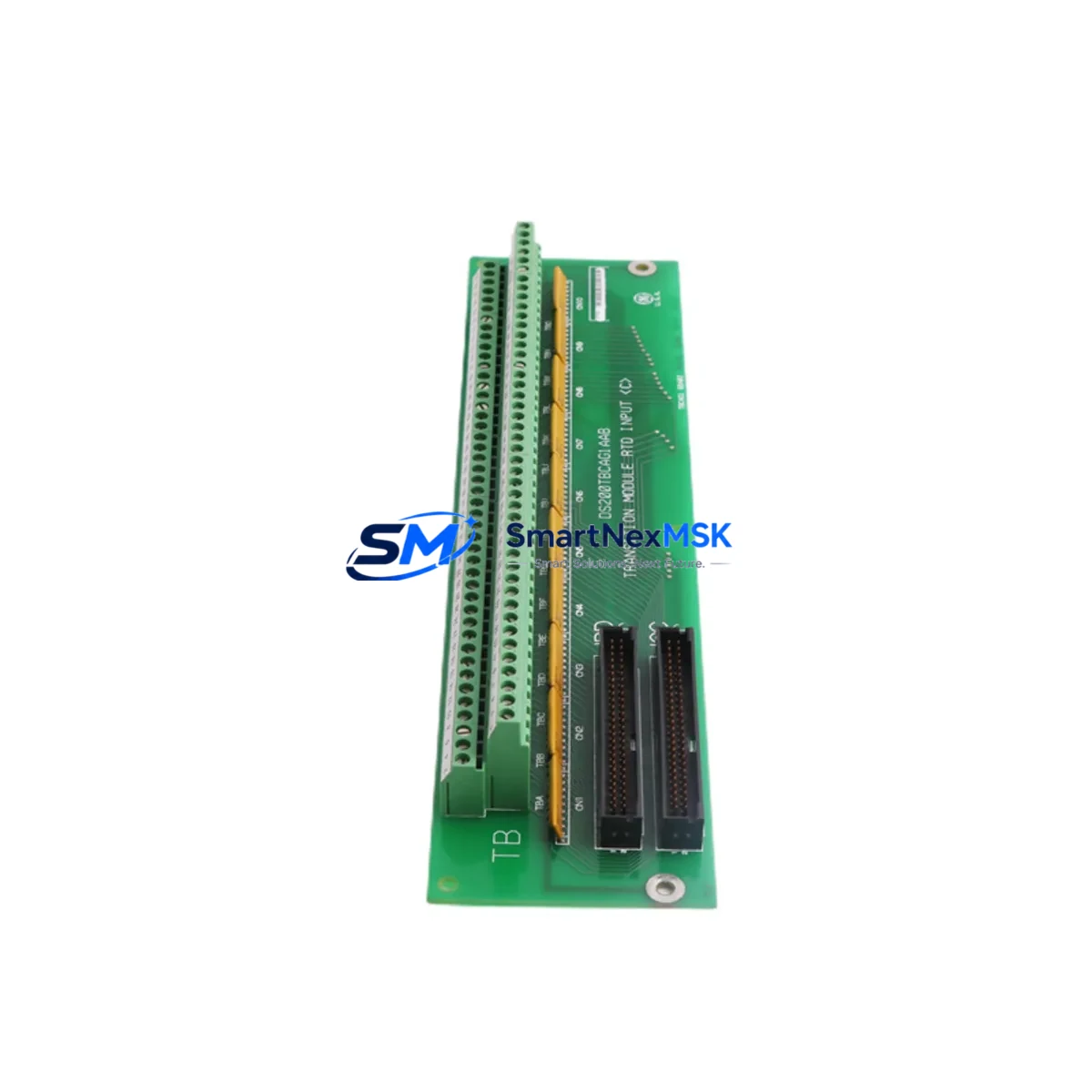

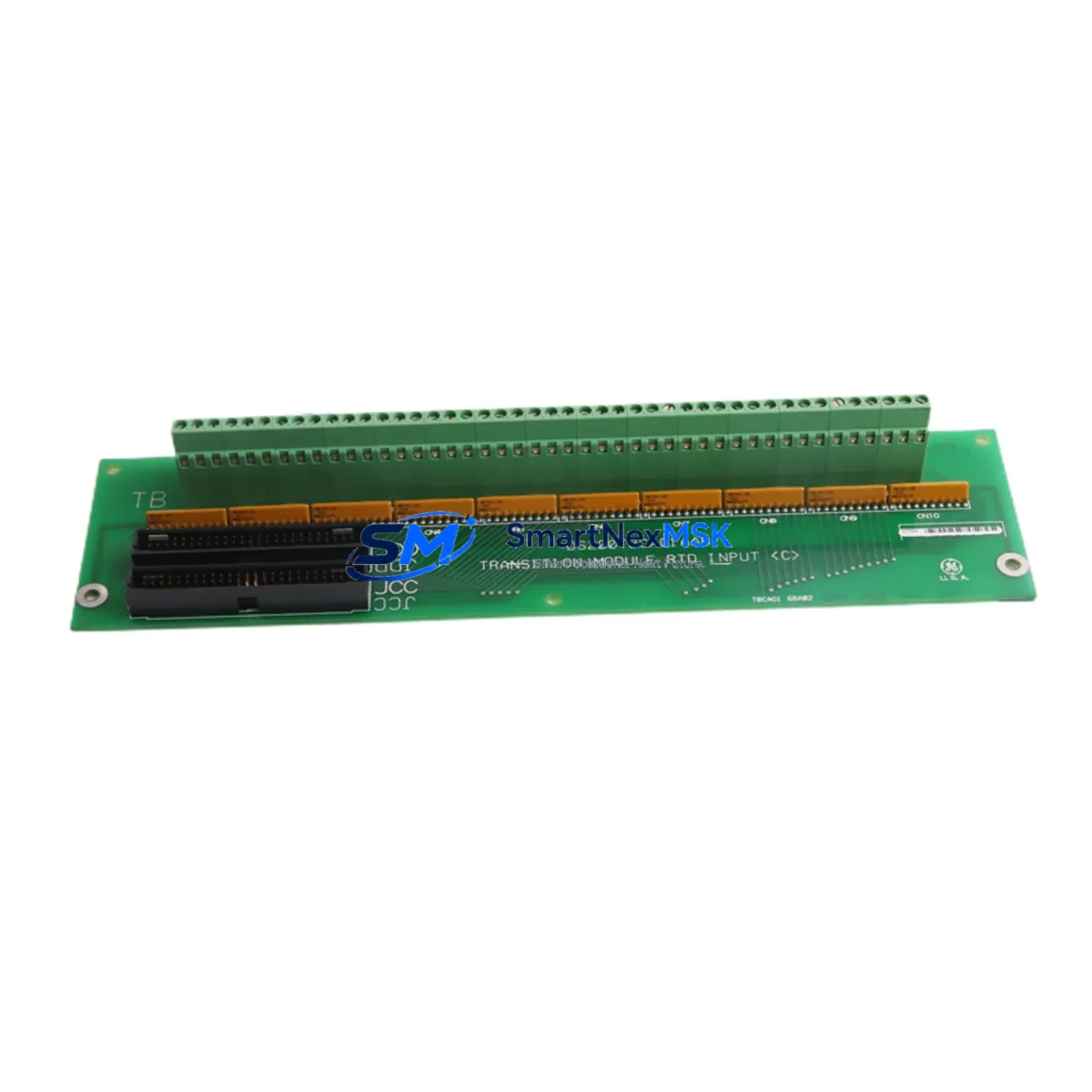

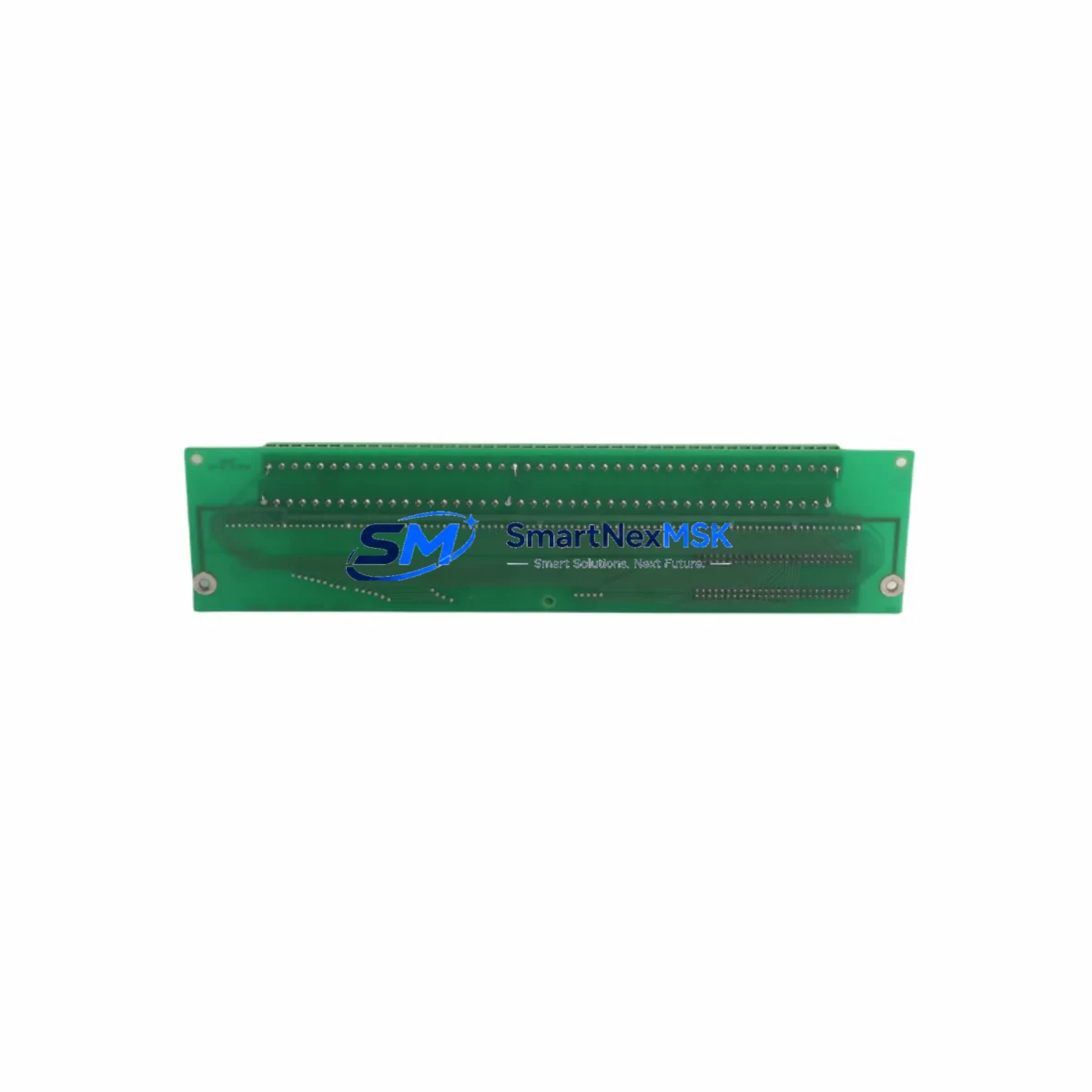

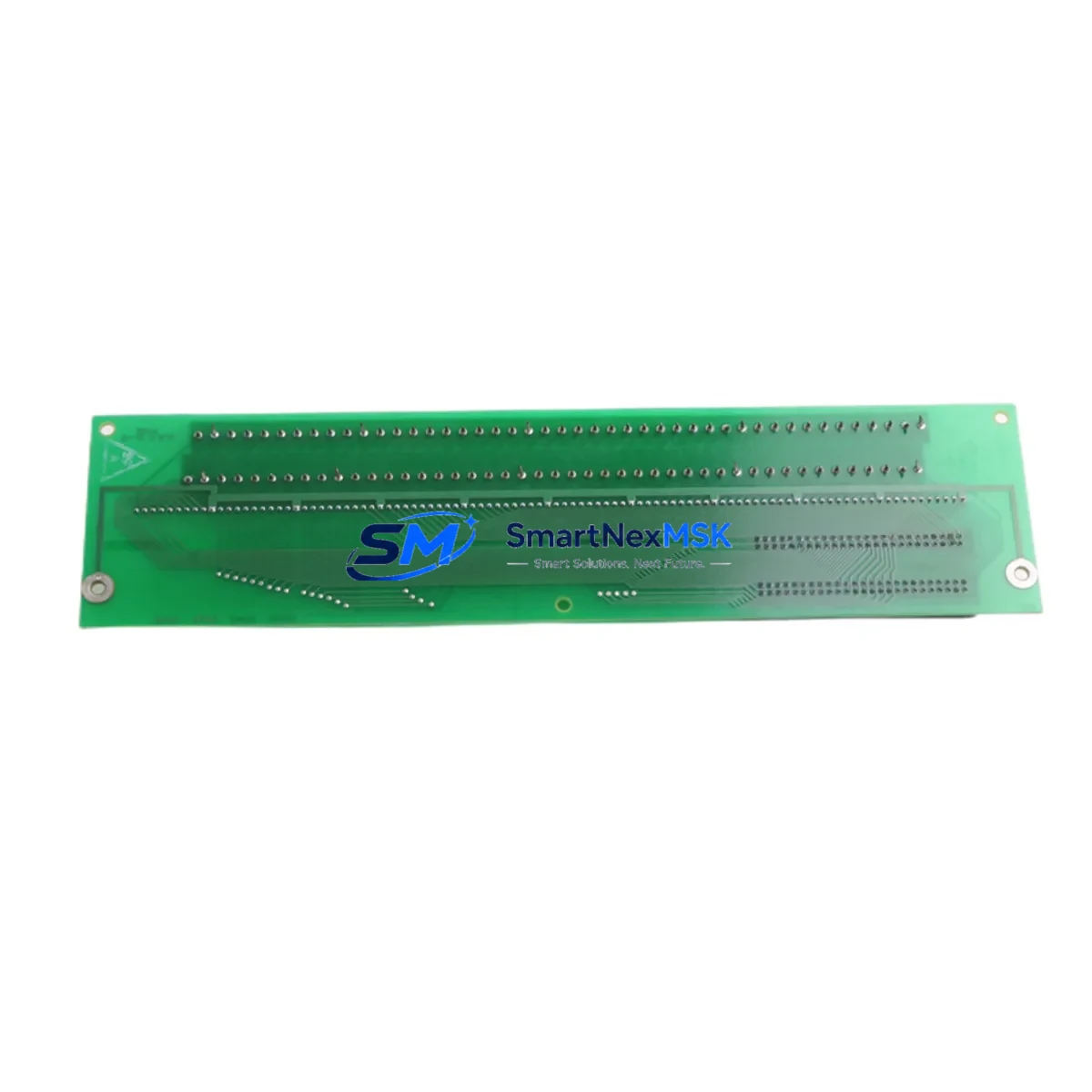

GE DS200TBCAG1AAB Maintenance-Ready Spare for DS200 Automation
The GE DS200TBCAG1AAB is an original analog I/O terminal board designed for the GE Mark VI turbine control system within the DS200 Series platform. As a critical interface component between field instrumentation and the Mark VI controller, this terminal board handles analog signal conditioning, wiring termination, and I/O channel routing for gas turbines, steam turbines, and combined-cycle power generation systems. For maintenance engineers managing aging Mark VI control cabinets, securing a verified spare of the DS200TBCAG1AAB is a foundational step in any planned outage strategy or emergency recovery protocol.
Industrial facilities operating GE Mark VI systems understand that unplanned downtime caused by a failed terminal board can cascade into extended outages affecting entire generation units. The DS200TBCAG1AAB serves as the analog termination backbone — connecting thermocouples, RTDs, pressure transmitters, and 4–20 mA process signals to the Mark VI controller backplane. When this board degrades or fails, signal integrity is compromised across multiple I/O channels simultaneously, making rapid replacement with a tested, original spare the only viable path to restoring control system confidence.
Our DS200TBCAG1AAB units are sourced as original GE components, individually inspected, and functionally tested prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional performance. We maintain standing inventory to support both planned maintenance windows and emergency procurement scenarios, with expedited shipping available for critical outage situations worldwide.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | DS200TBCAG1AAB |
| Manufacturer | GE (General Electric) |
| Series | DS200 / Mark VI Turbine Control System |
| Product Type | Analog I/O Terminal Board |
| Function | Analog signal termination and I/O channel routing for Mark VI controller |
| Signal Types | Thermocouple, RTD, 4–20 mA, voltage analog inputs |
| Compatibility | GE Mark VI, DS200 Series control cabinets |
| Mounting | DIN rail / panel mount within Mark VI control enclosure |
| Operating Environment | Industrial control room / turbine control cabinet |
| Operating Temperature | 0°C to 60°C (typical industrial control cabinet range) |
| Origin | USA (Original GE manufacture) |
| Condition | Original spare — inspected and tested before shipment |
| Warranty | 12 months from date of shipment |
| Lead Time | In stock — ships within 1–3 business days |
| Maintenance Recommendation | Replace on signal drift, channel failure, or during scheduled Mark VI overhaul |
Maintenance Planning for Continuous Operation
When a DS200TBCAG1AAB replacement is scheduled or triggered by a fault condition, experienced maintenance engineers treat it as an opportunity to audit the surrounding control architecture. The terminal board does not operate in isolation — its performance depends on the integrity of the entire analog signal chain and the health of adjacent Mark VI components.
During a planned replacement of the DS200TBCAG1AAB, the following components should be inspected or staged as concurrent spares:
- DS200TCQAG1BHF / DS200TCQAG1BHG (Mark VI I/O Pack) — The I/O pack that interfaces directly with the terminal board. A degraded I/O pack can mask or mimic terminal board faults; both should be verified during the same maintenance window.
- DS200SDCCG1AFB (Mark VI SDCC Controller Card) — The core controller card coordinating I/O data from terminal boards. If analog channel errors persist after terminal board replacement, the SDCC card is the next diagnostic target.
- DS200TCDAG1AAA (Analog I/O Terminal Board, alternate) — A functionally related terminal board in the same DS200 family, often installed in parallel cabinets or redundant control loops. Inspect for similar wear patterns.
- DS200EXPSG1AEB (Power Supply Module) — Terminal boards require stable DC power from the Mark VI power supply rail. Voltage sag or ripple on the 28 VDC bus can cause intermittent analog signal errors that appear as terminal board faults.
- Terminal blocks and field wiring connectors — Corroded or loose screw terminals on the DS200TBCAG1AAB connector rows are a common source of signal noise. Replace terminal blocks and re-torque all field wiring connections during board swap.
- DS200DSPXG1ADB (Digital Signal Processor Board) — In mixed analog/digital control loops, the DSP board processes conditioned signals from the terminal board. Verify DSP firmware version compatibility after terminal board replacement.
- Signal isolators and surge protection modules — Field-side surge suppressors protecting the analog inputs should be tested for degradation, particularly in outdoor or high-lightning-exposure installations.
- Fiber optic communication cables (Mark VI VME backplane) — Internal fiber links between Mark VI racks can introduce latency or data errors that are misdiagnosed as terminal board analog faults. Inspect connectors and clean ferrules.
- DS200TCRAG1AAA (Relay Output Terminal Board) — Often co-located in the same control cabinet, relay output boards share the same enclosure environment. Inspect for relay contact wear and coil insulation integrity during the same outage.
- HMI workstation and historian connectivity — After restoring the DS200TBCAG1AAB, verify that analog process values are correctly reflected in the operator HMI (typically GE ToolboxST or Cimplicity) and that historian tags are logging within expected engineering unit ranges.
Staging these components as concurrent inspection items — rather than reactive replacements — is the hallmark of a mature spare parts strategy. Procurement engineers should consider maintaining at minimum one DS200TBCAG1AAB and one associated I/O pack as on-site cold spares, reducing mean time to repair (MTTR) from days to hours in the event of an unplanned fault.
Site Replacement Workflow
Replacing the DS200TBCAG1AAB in a live Mark VI control system requires a structured approach to minimize risk and ensure system compatibility is maintained throughout the process.
Step 1 — Pre-replacement verification: Confirm the replacement unit’s part number suffix matches the installed board (G1AAB vs. G1AAA variants may have different analog channel configurations). Cross-reference the GE Mark VI Bill of Materials or the cabinet wiring diagram before proceeding.
Step 2 — Safe isolation: Follow the site’s Lock-Out/Tag-Out (LOTO) procedure for the affected Mark VI I/O rack. Document all field wiring terminal assignments using the existing wiring schedule before disconnecting any conductors.
Step 3 — Board extraction and inspection: Remove the DS200TBCAG1AAB carefully, noting the condition of the connector pins and PCB surface. Inspect for burn marks, corrosion, or component damage that may indicate a root cause beyond normal wear.
Step 4 — Installation and wiring restoration: Install the replacement DS200TBCAG1AAB, reconnect all field wiring per the documented terminal schedule, and torque all screw terminals to specification. Verify that no wires are cross-terminated.
Step 5 — Power-up and diagnostic verification: Restore power to the I/O rack and use GE ToolboxST to verify that all analog channels are reading within expected ranges. Compare live values against the historian baseline to confirm signal integrity.
Step 6 — Documentation and spare replenishment: Update the maintenance log with the replacement date, removed board serial number, and post-replacement test results. Initiate a purchase order to replenish the on-site DS200TBCAG1AAB spare inventory immediately after consumption.
Spare Parts Support FAQ
Q: What is the warranty coverage for the DS200TBCAG1AAB?
A: Every DS200TBCAG1AAB we supply carries a 12-month warranty from the date of shipment. This covers functional performance and manufacturing defects. Each unit is tested before dispatch to verify analog channel integrity and connector condition. If a unit fails within the warranty period under normal operating conditions, we provide a replacement or full refund.
Q: How do I confirm compatibility before ordering?
A: The DS200TBCAG1AAB is designed for GE Mark VI turbine control systems using the DS200 Series I/O architecture. Verify compatibility by checking your cabinet’s Bill of Materials or the existing board’s part number label. If your installed board has a different suffix variant (e.g., G1AAA), contact us with your full part number and cabinet configuration — we can confirm interchangeability or identify the correct replacement.
Q: Can you support emergency or expedited orders for unplanned outages?
A: Yes. We maintain standing inventory of the DS200TBCAG1AAB specifically to support emergency procurement scenarios. Expedited shipping options are available for critical outage situations. Contact our team directly at sales@smartnexmsk.com or +86 18259474341 to confirm stock availability and arrange priority dispatch.
Q: What is your long-term supply strategy for discontinued or obsolete GE Mark VI parts?
A: We specialize in sourcing and stocking original spare parts for legacy GE Mark VI and DS200 Series systems, including components that are no longer in active GE production. Our inventory strategy is designed to support facilities committed to extending the operational life of existing Mark VI installations rather than undertaking full control system upgrades. We can discuss long-term supply agreements and consignment stocking arrangements for high-priority spares.
