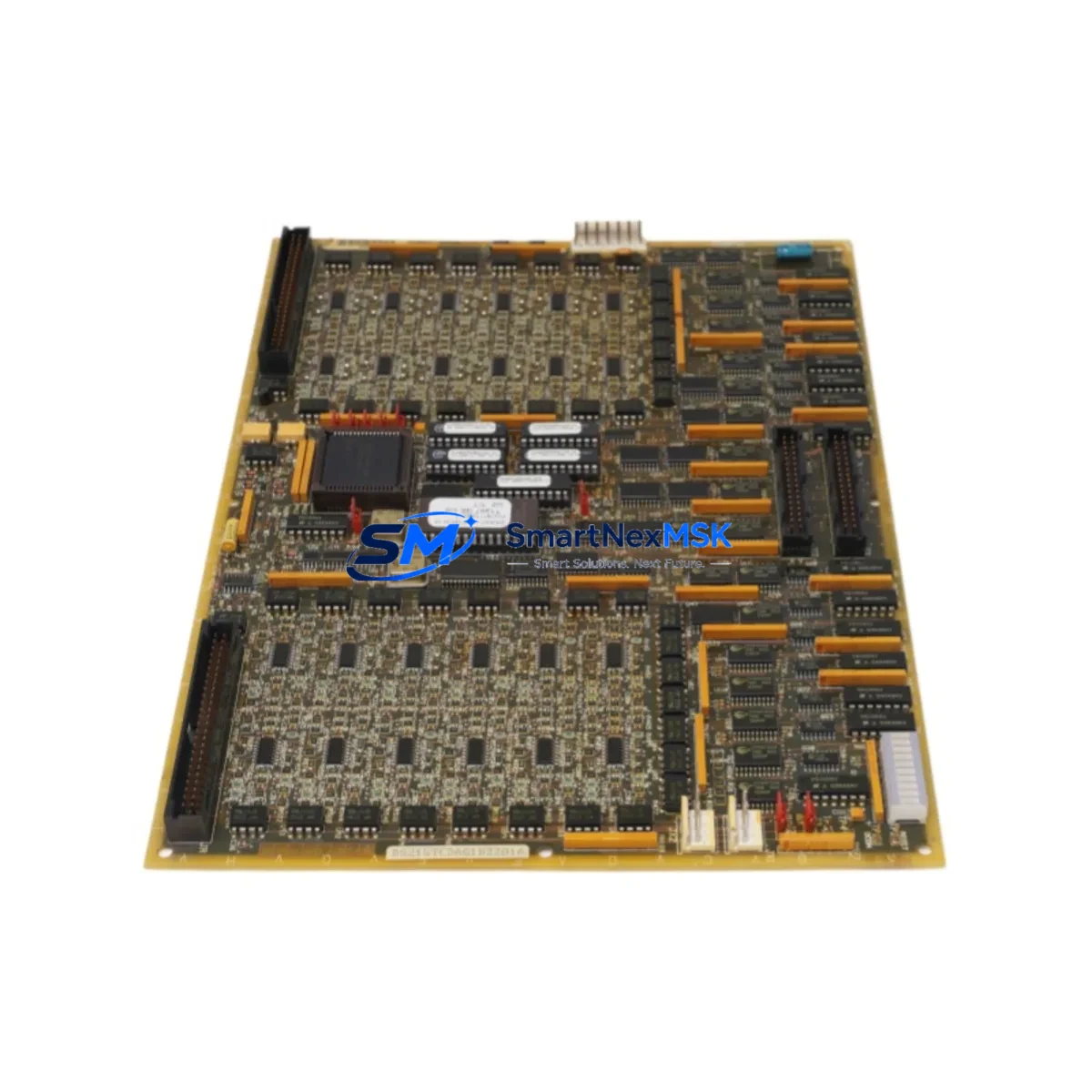

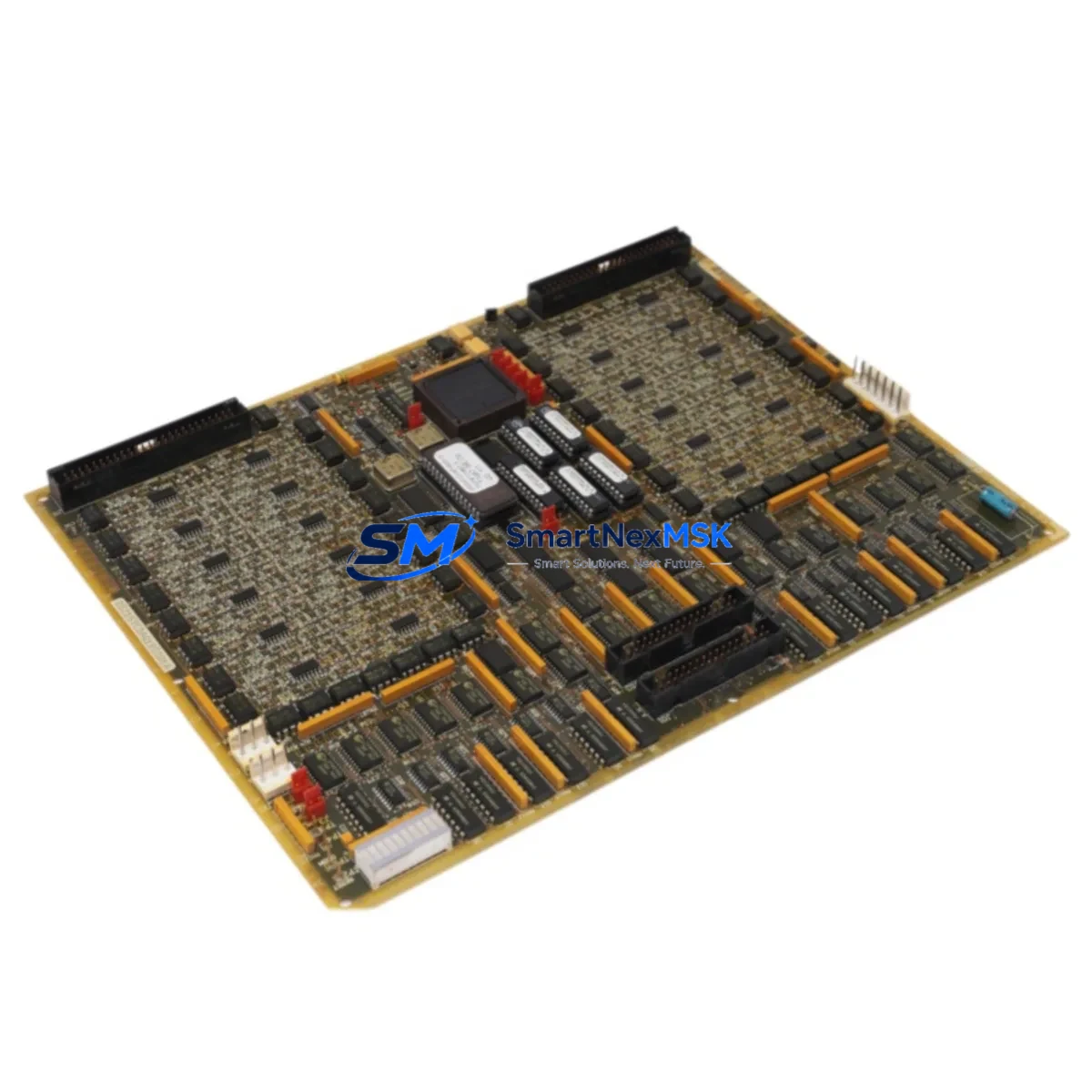

GE DS200TCDAF1BCM Retrofit-Ready EPROM Module for Mark VI Control Systems
The GE DS200TCDAF1BCM is a retrofit-ready EPROM firmware module engineered for seamless integration into legacy GE Mark VI Speedtronic turbine control systems. As industrial facilities face the challenge of maintaining aging gas turbine control infrastructure, the DS200TCDAF1BCM provides a verified drop-in replacement path that preserves existing control logic, minimizes engineering rework, and dramatically reduces unplanned downtime. Whether you are executing a planned outage upgrade, responding to an end-of-life component failure, or modernizing a control cabinet for long-term reliability, this module delivers the firmware continuity and hardware compatibility your operation demands.
Sourced from verified supply channels and subjected to pre-shipment functional testing, each DS200TCDAF1BCM unit ships with a 12-month warranty covering manufacturing defects and firmware integrity. Our inventory is maintained to support urgent replacement scenarios, with expedited dispatch available for critical plant shutdowns.
Upgrade Compatibility Table
| Parameter | DS200TCDAF1BCM Specification | Retrofit Notes |
|---|---|---|
| Compatible Platform | GE Mark VI Speedtronic | Direct replacement; verify firmware revision before installation |
| Module Type | EPROM Firmware Module | Replaces obsolete or corrupted firmware carrier boards |
| Backplane Interface | Mark VI VME-style backplane | Confirm slot assignment matches original module address |
| Communication Compatibility | ARCNET / IONet (Mark VI native) | No protocol conversion required for same-generation systems |
| Installation Requirement | Power-down, slot-match, firmware load | ESD precautions mandatory; use grounded wrist strap |
| Replacement Recommendation | 1:1 drop-in for same SKU | Cross-reference DS200TCDAF1A for earlier firmware variants |
| Commissioning Focus | Firmware version verification, I/O scan, HMI tag mapping | Run diagnostic sequence post-installation via ToolboxST |
| Warranty | 12 Months | Covers firmware integrity and hardware manufacturing defects |
Retrofit Planning for Existing Automation Systems
Successful integration of the DS200TCDAF1BCM into an operating Mark VI Speedtronic environment requires systematic pre-installation planning. Begin by auditing the existing control cabinet layout, confirming the rack and slot position of the outgoing module against the system’s I/O configuration map. The Mark VI architecture organizes I/O through dedicated terminal boards — components such as the DS200TBQBG1A terminal board and DS200IOCAG1A I/O controller board must be inspected for terminal wiring integrity before the firmware module is swapped.
Power supply capacity is a critical checkpoint. The Mark VI PPRO power distribution board and associated DC bus rails must be verified to deliver stable voltage within specification before the new EPROM module is seated. Voltage fluctuations during firmware initialization can corrupt the boot sequence and require a full re-flash procedure.
For systems where the DS200TCDAF1BCM is being introduced as part of a broader control system upgrade — for example, migrating from an older Mark V platform — additional steps are required. The DS200SDCIG2A serial communications module and DS200DSPCH1A digital signal processor board may need firmware alignment to ensure the new EPROM module’s instruction set is recognized across the control network. In multi-controller configurations, the DS200TCQAG1B turbine control board and DS200EXPSG1A expansion board must also be confirmed compatible with the updated firmware baseline.
HMI integration is another area requiring attention. If the plant operates a GE Cimplicity or iFIX SCADA interface, tag database updates may be necessary following the firmware change. Verify that all analog and digital I/O tags mapped through the DS200TCDAF1BCM’s address space are correctly reflected in the HMI screen configuration before returning the unit to service. Communication links over the IONet Ethernet backbone should be tested end-to-end using the ToolboxST diagnostic suite to confirm that the module is visible to the Mark VI controller and that no address conflicts exist on the network segment.
Downtime Control During System Migration
Minimizing turbine downtime during a firmware module replacement is achievable with disciplined pre-outage preparation. The recommended approach is to complete all configuration verification, spare part staging, and personnel briefing before the planned maintenance window opens. This includes pre-loading the correct firmware image onto a programming device, confirming the DS200TCDAF1BCM’s revision level matches the system’s software baseline, and preparing a rollback plan in the event that the replacement module requires additional configuration.
During the swap, the original module’s configuration data — including I/O module addresses, trip setpoints, and sequencing logic stored in the Mark VI controller — should be backed up using ToolboxST prior to power-down. This backup protects against data loss and allows rapid restoration if the replacement procedure encounters an unexpected compatibility issue. The control program itself resides in the Mark VI VCMI or VCRC controller boards rather than the EPROM module, so application logic continuity is maintained across the hardware swap provided the controller boards remain undisturbed.
Post-installation, a structured commissioning sequence should be followed: power-up verification, firmware boot confirmation, I/O scan validation, communication link test, and a supervised functional test of the turbine control sequences before returning to automatic operation. This structured approach consistently achieves replacement completion within a single planned outage window, protecting production continuity and reducing the risk of extended unplanned downtime.
Retrofit Support FAQ
Q: Is the DS200TCDAF1BCM a direct drop-in replacement for all Mark VI Speedtronic configurations?
A: The DS200TCDAF1BCM is designed as a direct replacement for the same SKU within Mark VI Speedtronic systems. However, firmware revision levels vary across system generations. Always cross-reference the existing module’s firmware label against the replacement unit’s revision before installation. For systems running earlier firmware baselines, a firmware update procedure via ToolboxST may be required.
Q: What wiring changes are required when installing the DS200TCDAF1BCM?
A: In a like-for-like replacement scenario, no wiring changes to the terminal boards or field cables are required. The module seats directly into the existing backplane slot. If the replacement is part of a broader rack upgrade involving new terminal boards such as the DS200TBQBG1A, terminal wiring should be re-verified against the original I/O drawing set.
Q: How is compatibility with the existing control program verified after installation?
A: Following installation, connect to the Mark VI controller via ToolboxST and run a full I/O diagnostic scan. Verify that all module addresses are correctly recognized, that no fault codes are present in the controller event log, and that analog and digital I/O channels respond correctly to test signals. HMI tag mapping should also be confirmed live before returning the turbine to service.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and firmware integrity of the DS200TCDAF1BCM as supplied. Each unit undergoes pre-shipment functional testing prior to dispatch. Warranty claims are supported by our technical team with replacement or repair options. The warranty does not cover damage resulting from incorrect installation, electrostatic discharge, or operation outside specified voltage and environmental parameters.
—
