GE DS200UPSAG1AFD Retrofit-Ready UPS for Mark VI Systems

GE DS200UPSAG1AFD Retrofit-Ready UPS Power Supply for Mark VI Control Systems

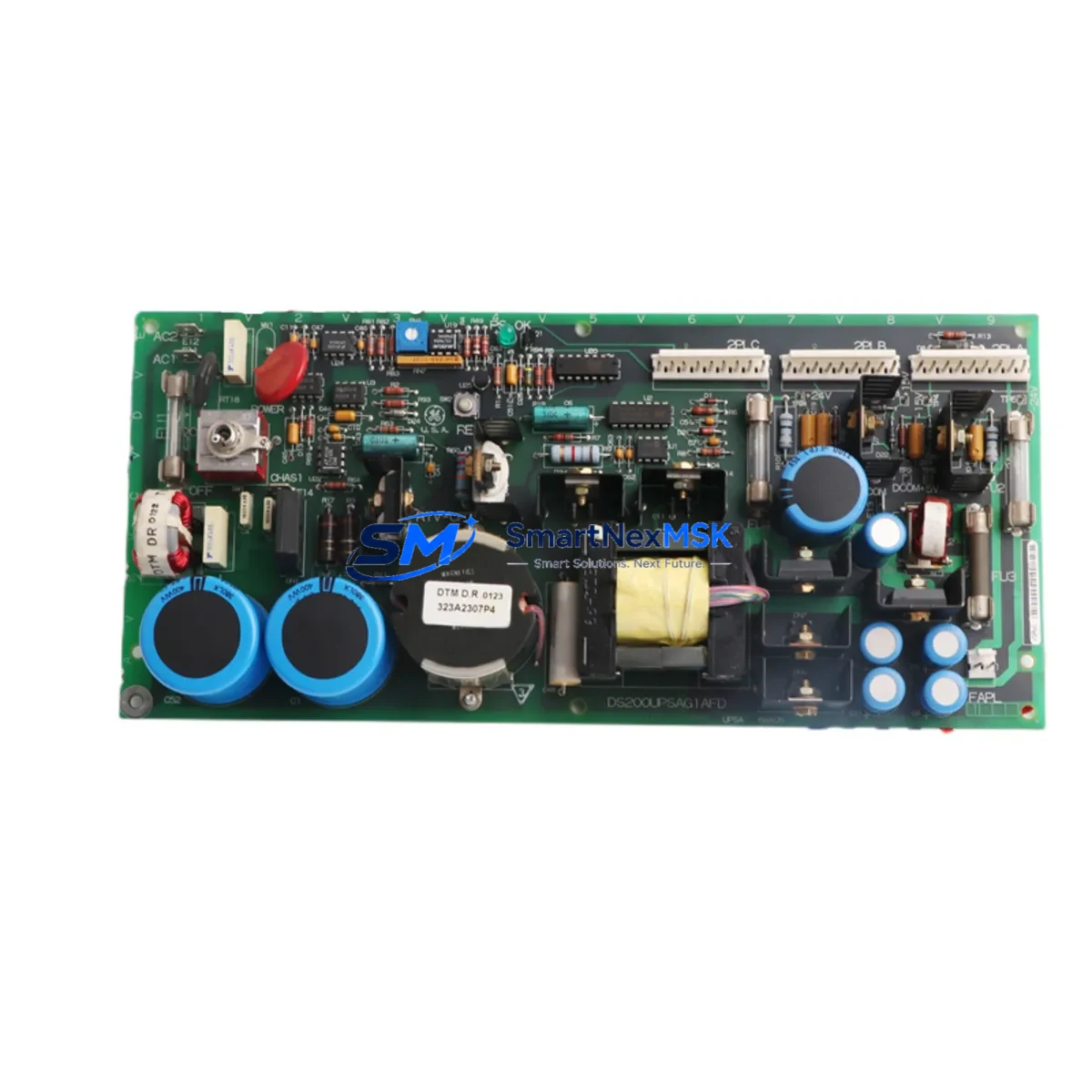

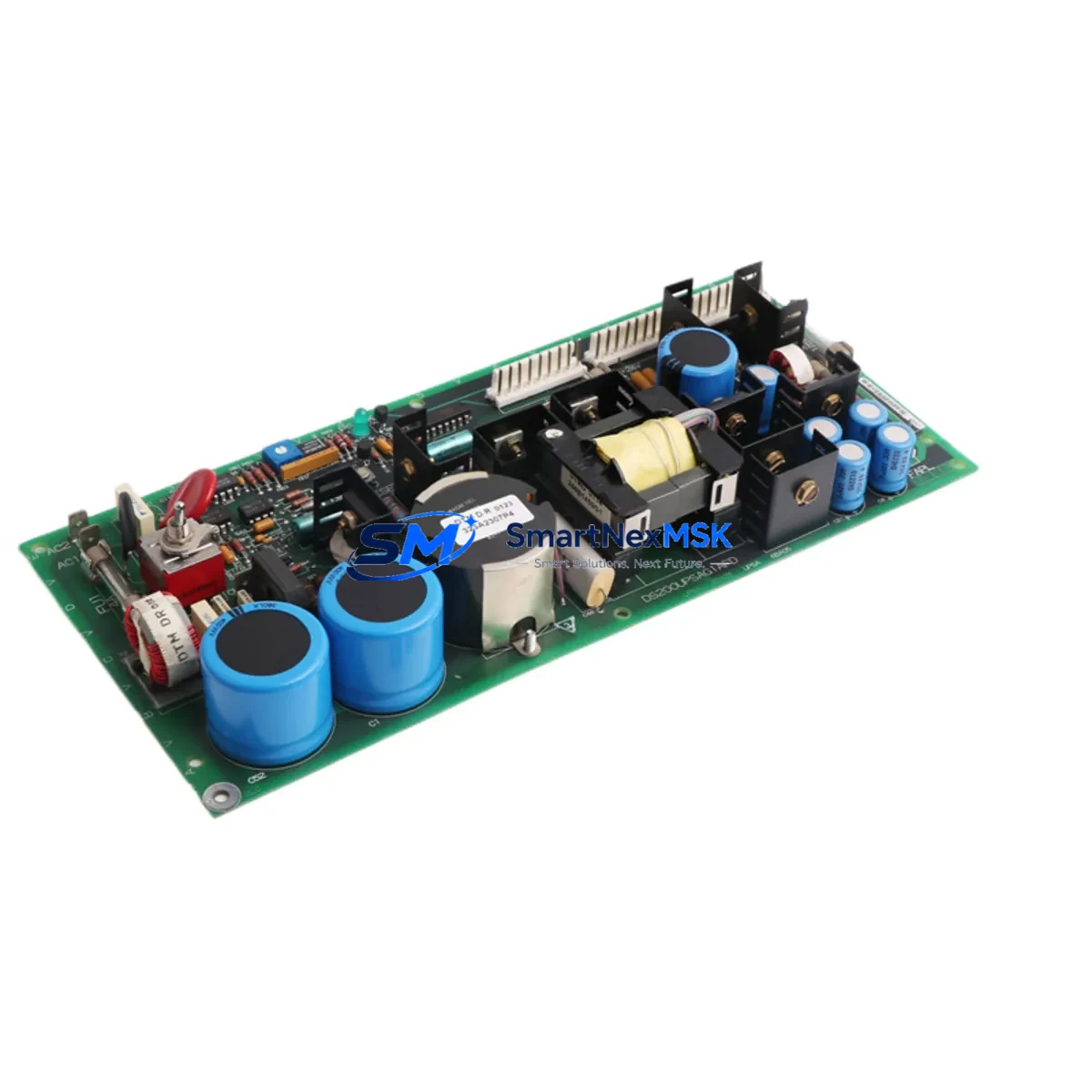

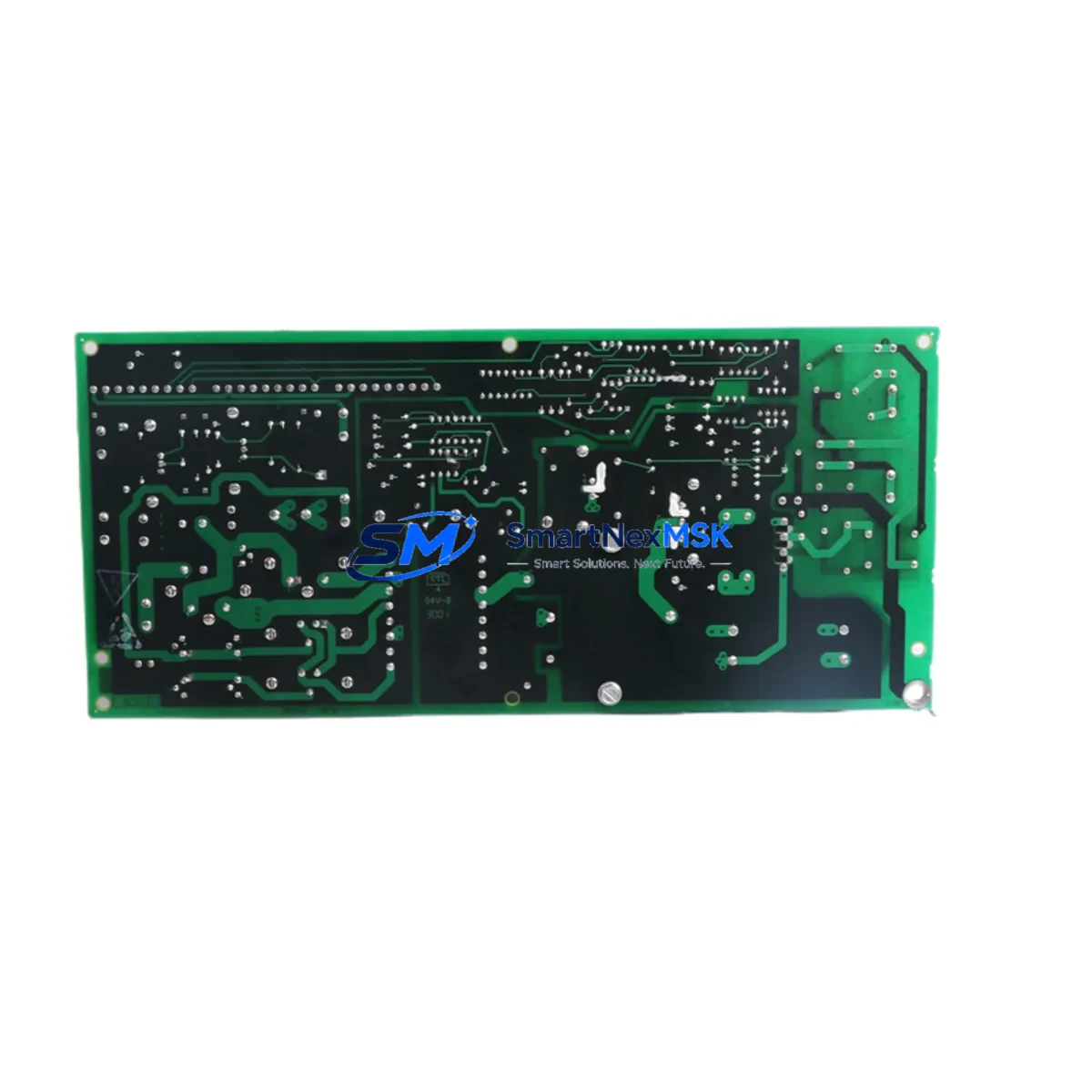

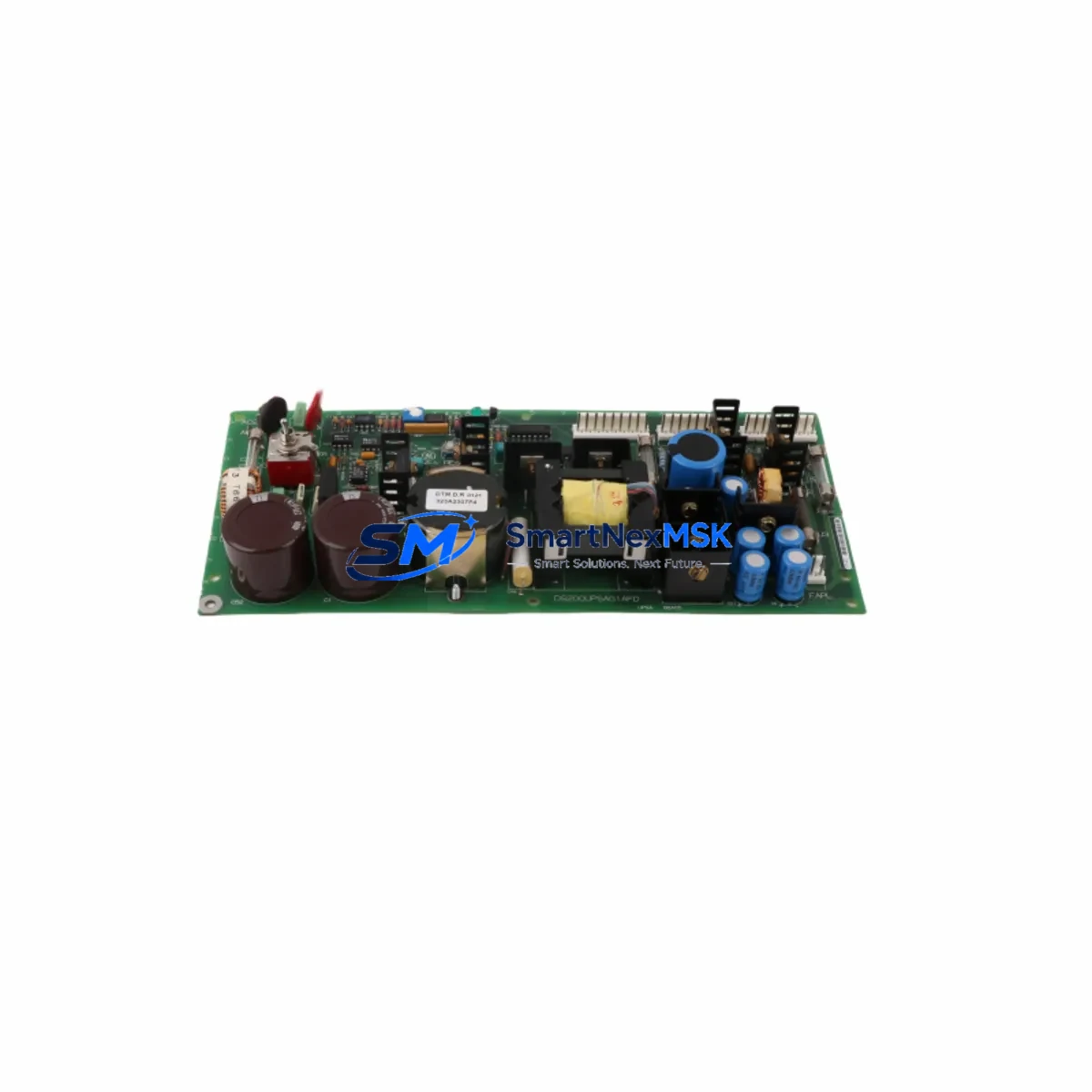

The GE DS200UPSAG1AFD is a high-reliability uninterruptible power supply (UPS) module engineered for the GE Speedtronic Mark VI turbine control platform. As legacy Mark V and early Mark VI installations approach end-of-life, plant engineers and system integrators increasingly rely on the DS200UPSAG1AFD as a proven, drop-in compatible replacement that preserves existing control architecture while delivering modern power conditioning performance. Whether you are executing a planned outage upgrade, responding to an unplanned module failure, or building a critical spare inventory, this module ships tested, serialized, and backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DS200UPSAG1AFD retrofit begins well before the module arrives on site. During the pre-outage engineering review, technicians should pull the existing rack layout from the GE Mark VI VCMI controller configuration and confirm the UPS slot address assigned in ToolboxST. The DS200UPSAG1AFD shares the same backplane pinout as earlier suffix revisions, but the firmware embedded in the DS200SDCIG2AGB I/O pack and the DS200TCQAG1BHF turbine control card must be at compatible revision levels — mismatched firmware is the single most common cause of post-swap communication faults on IONet.

Power budget verification is equally critical. The Mark VI rack draws from a shared 28 VDC bus; adding or replacing the UPS module without auditing the total connected load — including the DS200IIBDG1ABA analog input board, DS200DSPCH1ADA digital signal processor, and any installed DS200EXPNG1A I/O expansion modules — can result in bus undervoltage alarms during battery-backup transitions. Confirm that the replacement DS200UPSAG1AFD’s rated output capacity covers the full rack load with at least 20% headroom.

Terminal wiring on the AC input side should be inspected and torqued to specification during the same outage window. If the installation includes a DS200PCCAG1ABB power conditioning card, verify that its output filter capacitors are within service life — a degraded filter card will stress the new UPS module and shorten its operational lifespan. For sites migrating from ARCNET to IONet Ethernet topology, the DS200CPCAG1A communication processor card must be configured and tested before the UPS module is energized, as the IONet heartbeat is required for the UPS status register to report correctly to the GE HMI WorkstationST operator interface.

Where the control cabinet houses a DS200TBCBG1AAA terminal board for field I/O marshalling, technicians should photograph and document all field wiring before de-energizing the rack. Label each conductor against the as-built drawing — discrepancies between the drawing and actual field wiring are common in systems that have been in service for 15+ years and represent a significant source of commissioning delay. A pre-tested DS200UPSAG1AFD installed into a well-documented, properly loaded rack will typically achieve first-power-on success without requiring ToolboxST parameter adjustments.

Downtime Control During System Migration

Minimizing turbine trip duration during a UPS module swap requires a structured hot-standby strategy. On Mark VI installations with TMR (Triple Modular Redundancy) architecture — using R, S, and T controller racks — it is possible to replace the UPS module in one rack while the remaining two racks maintain voting control. This approach eliminates the need for a full unit trip in most cases, provided the plant’s safety instrumented system (SIS) permits single-rack maintenance mode.

Before pulling the failed or end-of-life DS200UPSAG1AFD, export the full ToolboxST project to a USB drive and verify the backup against the last known-good configuration. This protects the application logic, I/O assignments, alarm setpoints, and HMI tag bindings in the event that the replacement module triggers an unexpected configuration reset. Once the new module is seated and the rack is re-energized, ToolboxST will perform an automatic hardware discovery scan — allow this scan to complete fully before attempting to download the application. Forcing a download before hardware discovery completes is a leading cause of partial I/O initialization faults.

Post-swap, verify UPS battery charge status via the ToolboxST diagnostic screen and confirm that the 28 VDC bus voltage is within the ±2% tolerance band specified in the Mark VI hardware manual. Run a controlled battery discharge test during the commissioning window to validate backup hold-up time before returning the unit to automatic operation. All test results, firmware versions, and torque records should be logged in the plant’s maintenance management system to support future audits and warranty claims.

Retrofit Support FAQ

Q1: Is the DS200UPSAG1AFD a direct drop-in replacement for earlier DS200UPSAG1A suffix revisions?
Yes. The DS200UPSAG1AFD is backward compatible with DS200UPSAG1AEB, AEC, and AED suffix variants at the backplane and wiring level. However, always verify firmware compatibility in ToolboxST before powering the rack, as mixed firmware revisions across redundant racks can generate IONet communication faults.

Q2: What commissioning steps are required after installation?
After seating the module, allow ToolboxST to complete hardware discovery, then verify the UPS status register, confirm 28 VDC bus voltage within tolerance, and perform a battery discharge test. Download the application only after hardware discovery is complete. Document all firmware versions and test results for warranty and audit purposes.

Q3: How is the module tested before shipment?
Each DS200UPSAG1AFD unit undergoes functional power-on testing, output voltage verification, and communication interface checks prior to shipment. A test report is available upon request. The module ships with a 12-month warranty covering manufacturing defects and functional failure on arrival (FOA).

Q4: What is the warranty coverage and how do I make a claim?
The DS200UPSAG1AFD carries a 12-month warranty from the date of shipment. Coverage includes manufacturing defects and functional failures under normal operating conditions. To initiate a warranty claim, contact our technical support team with the module serial number, installation date, and a description of the fault. Replacement or repair will be processed within 5 business days of fault confirmation.
