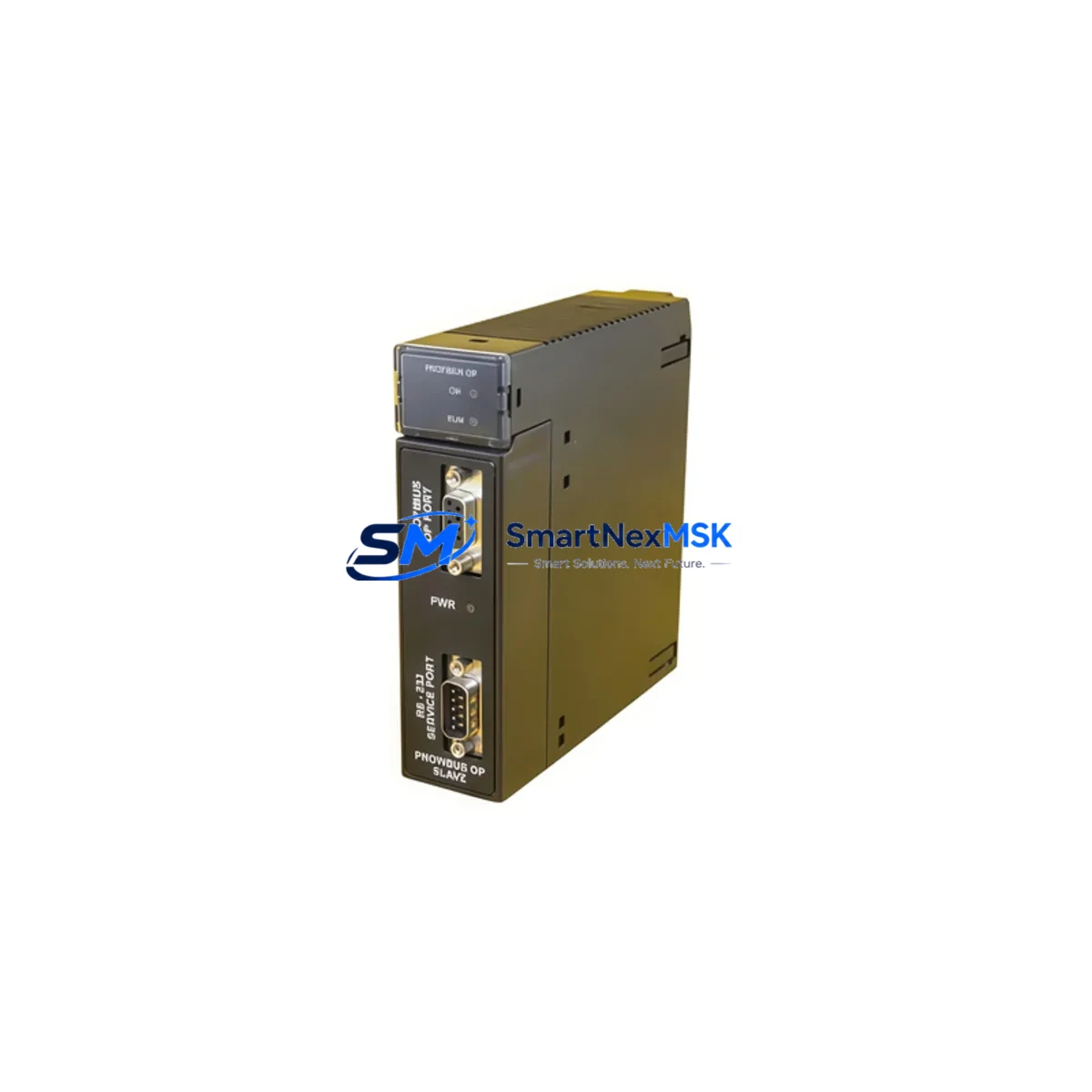

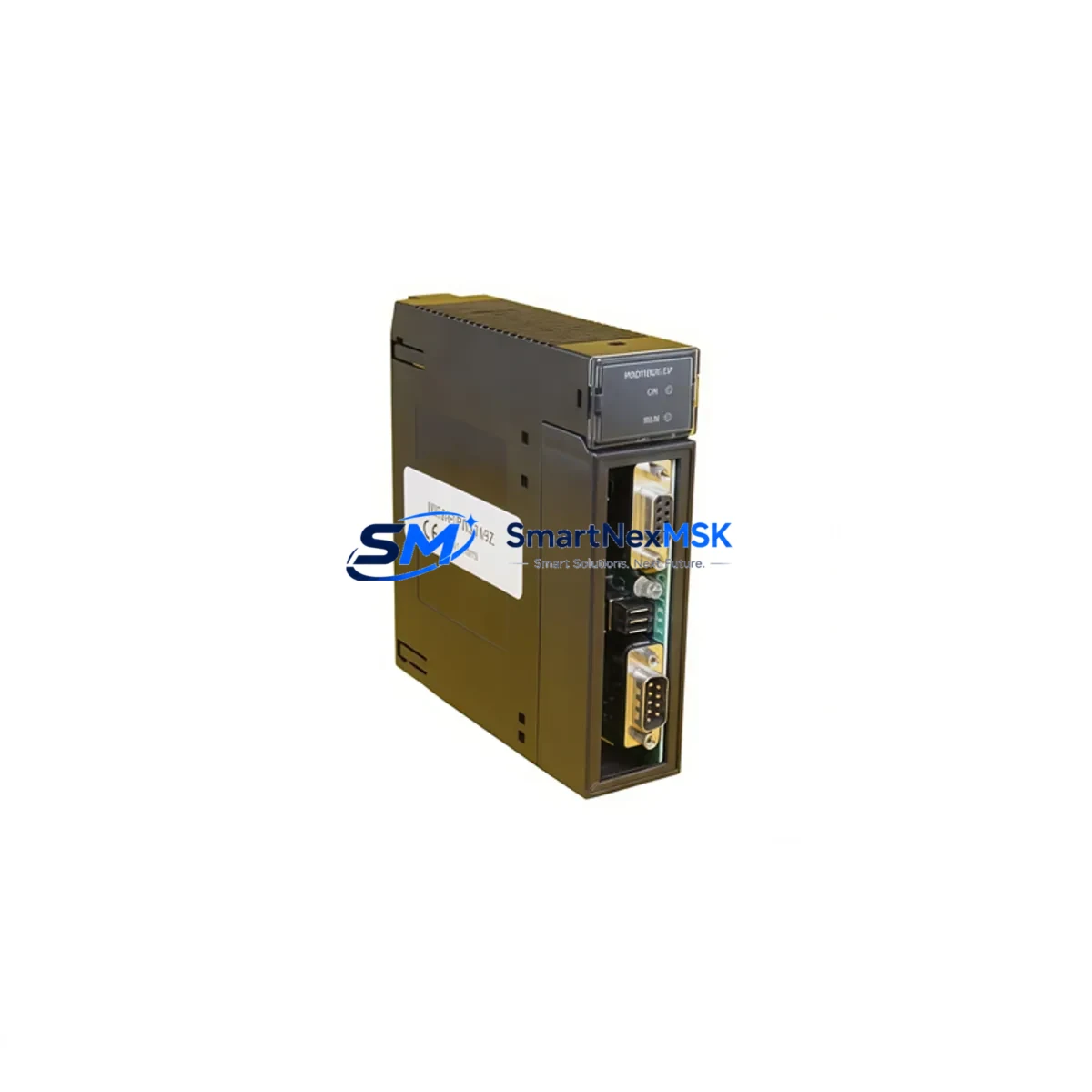

GE HE693PBS105 Safety-Enhanced Profibus-DP Slave Module

GE HE693PBS105 Safety-Enhanced Profibus-DP Slave Module: Reliable Control in Harsh Industrial Sites

The GE HE693PBS105 is a Profibus-DP Slave Communication Module engineered for the GE Series 90-30 PLC platform, purpose-built to deliver uninterrupted fieldbus communication in high-load, electrically noisy, and safety-critical industrial environments. Designed to meet the rigorous demands of continuous production facilities, hazardous area control cabinets, and critical interlock circuits, the HE693PBS105 provides deterministic data exchange between the Series 90-30 CPU and Profibus-DP master controllers — ensuring that process signals remain stable, accurate, and immune to the electromagnetic interference that plagues conventional communication hardware in heavy industrial settings.

In petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and port automation systems, communication integrity is not a convenience — it is a safety requirement. The HE693PBS105 addresses this by maintaining robust Profibus-DP protocol compliance at baud rates up to 12 Mbps, supporting up to 244 bytes of input and output data per cycle, and sustaining reliable slave node operation even when the control cabinet is subjected to voltage transients, ground loops, surge events, and high-frequency radiated noise from variable frequency drives, motor starters, and high-current switching equipment.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the GE HE693PBS105 within a Series 90-30 control cabinet requires a holistic approach to signal integrity and power quality. The module operates as a Profibus-DP slave node, receiving cyclic process data from a Profibus-DP master — typically a GE Series 90-70 CPU or a third-party Profibus master card — and relaying that data across the Series 90-30 backplane to the CPU module, such as the GE IC693CPU374 or IC693CPU364, for real-time logic execution.

To protect the HE693PBS105 and the broader control architecture from power-related disturbances, the cabinet power supply — commonly a GE IC693PWR321 or IC693PWR330 Series 90-30 power supply module — must be properly sized and protected with upstream surge suppression devices. Voltage spikes originating from motor starts, contactor switching, or utility grid disturbances can propagate through the backplane and corrupt active communication cycles; a well-specified power supply with adequate hold-up time and transient rejection is the first line of defense.

On the Profibus network side, the HE693PBS105 connects via a shielded twisted-pair Profibus cable terminated with a Profibus-DP bus connector with integrated termination resistor at each physical end of the segment. Improper termination is one of the most common causes of intermittent communication faults, signal reflection errors, and node dropouts in high-speed Profibus networks. Alongside the HE693PBS105, analog input modules such as the GE IC693ALG221 or IC693ALG392 may share the same backplane rack, feeding process variables — temperature, pressure, flow — into the CPU for safety interlock evaluation. Ensuring that these analog modules are shielded and grounded correctly prevents common-mode noise from corrupting the 4–20 mA signals that feed critical safety logic.

For digital I/O protection in the same cabinet, discrete input modules like the GE IC693MDL645 and output modules such as the IC693MDL940 handle field device signals from limit switches, solenoid valves, and motor control relays. These modules, when paired with the HE693PBS105 in a well-designed interlock architecture, form a complete safety-oriented control node capable of executing emergency shutdown sequences, process trip logic, and permissive control functions without reliance on external communication networks that may be subject to latency or packet loss.

Where the control system interfaces with remote I/O drops or distributed field panels, a GE IC693CMM321 communications coprocessor or a dedicated Ethernet TCP/IP module may complement the Profibus-DP architecture, providing supervisory data paths for SCADA integration while the HE693PBS105 handles deterministic real-time fieldbus control. This layered communication strategy ensures that a fault on the supervisory network does not interrupt the safety-critical Profibus control loop managed by the HE693PBS105.

Critical Industrial Safety Applications

The GE HE693PBS105 is deployed across a wide range of heavy industrial sectors where communication reliability directly impacts personnel safety, environmental compliance, and production continuity.

In petrochemical and refinery facilities, the HE693PBS105 serves as the fieldbus communication backbone for process control panels managing reactor temperature interlocks, pressure relief valve sequencing, and flare system activation. The module’s ability to sustain Profibus-DP communication in environments saturated with electromagnetic interference from high-voltage cable trays, heat tracing systems, and large motor drives makes it a preferred choice for safety instrumented system (SIS) support loops where communication dropout could trigger unplanned shutdowns or, worse, unsafe process states.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — the HE693PBS105 integrates Series 90-30 control systems with Profibus-DP field devices such as intelligent motor control centers, digital positioners, and protection relays. The module’s deterministic communication cycle ensures that turbine governor feedback, generator excitation control signals, and auxiliary system status data are exchanged with the CPU within the required scan time, supporting both normal operation and fast-acting protective relay coordination.

In mining and mineral processing operations, where conveyor systems, crushers, ball mills, and flotation cells operate under extreme mechanical vibration and electrical noise, the HE693PBS105 provides the communication link between the Series 90-30 PLC and distributed Profibus-DP field devices. Its robust construction and EMI resistance ensure that conveyor interlock signals, motor overload status, and emergency stop commands are transmitted reliably even in the presence of high-current motor switching transients and ground potential differences across large plant areas.

In water and wastewater treatment facilities, the HE693PBS105 supports Profibus-DP communication for pump control panels, chemical dosing systems, and UV disinfection units. Continuous operation requirements in these facilities demand that the communication module maintain node availability 24 hours a day, 365 days a year, with no tolerance for communication timeouts that could interrupt dosing sequences or allow untreated water to pass through the system.

In metallurgical and steel production plants, the module operates within control cabinets managing electric arc furnace electrode positioning, rolling mill speed control, and ladle transfer car automation — all environments characterized by extreme electromagnetic interference from high-current DC bus systems and thyristor-controlled drives. The HE693PBS105’s shielded Profibus interface and robust backplane isolation allow it to maintain communication integrity in these demanding conditions, supporting the precise, coordinated control sequences that metallurgical processes require.

Safety and Quality FAQ

Q1: What warranty coverage does the GE HE693PBS105 carry?
The HE693PBS105 is supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified Profibus-DP communication functions within the warranty period, SMARTNEXMSK will provide a replacement or repair at no additional cost. Warranty claims are processed promptly to minimize control system downtime.

Q2: What pre-shipment testing is performed on the HE693PBS105?
Every HE693PBS105 unit undergoes a full functional test prior to dispatch, including Profibus-DP communication verification, backplane interface integrity check, and visual inspection for physical damage. This ensures that the module arrives at your facility in confirmed working condition, ready for installation without the risk of receiving a defective unit that could delay commissioning or cause unexpected control system faults.

Q3: Is the HE693PBS105 compatible with all Series 90-30 rack configurations?
Yes. The HE693PBS105 is compatible with all standard GE Series 90-30 I/O racks, including 5-slot and 10-slot configurations, and is supported by Series 90-30 CPUs including the IC693CPU331, IC693CPU341, IC693CPU351, IC693CPU364, and IC693CPU374. It is configured via GE Proficy Machine Edition (formerly Logicmaster 90-30) and supports standard Profibus-DP GSD file-based configuration for integration with third-party Profibus masters.

Q4: Can SMARTNEXMSK guarantee long-term supply and replacement support for the HE693PBS105?
Yes. SMARTNEXMSK maintains dedicated inventory of the HE693PBS105 and other GE Series 90-30 modules to support long-term spare parts programs for facilities that rely on this platform. As GE Series 90-30 systems approach end-of-life from the OEM, sourcing reliable replacement modules becomes increasingly critical. SMARTNEXMSK specializes in providing tested, warranted legacy automation components to ensure that your control system can continue operating safely without forced migration to a new platform before you are ready.
