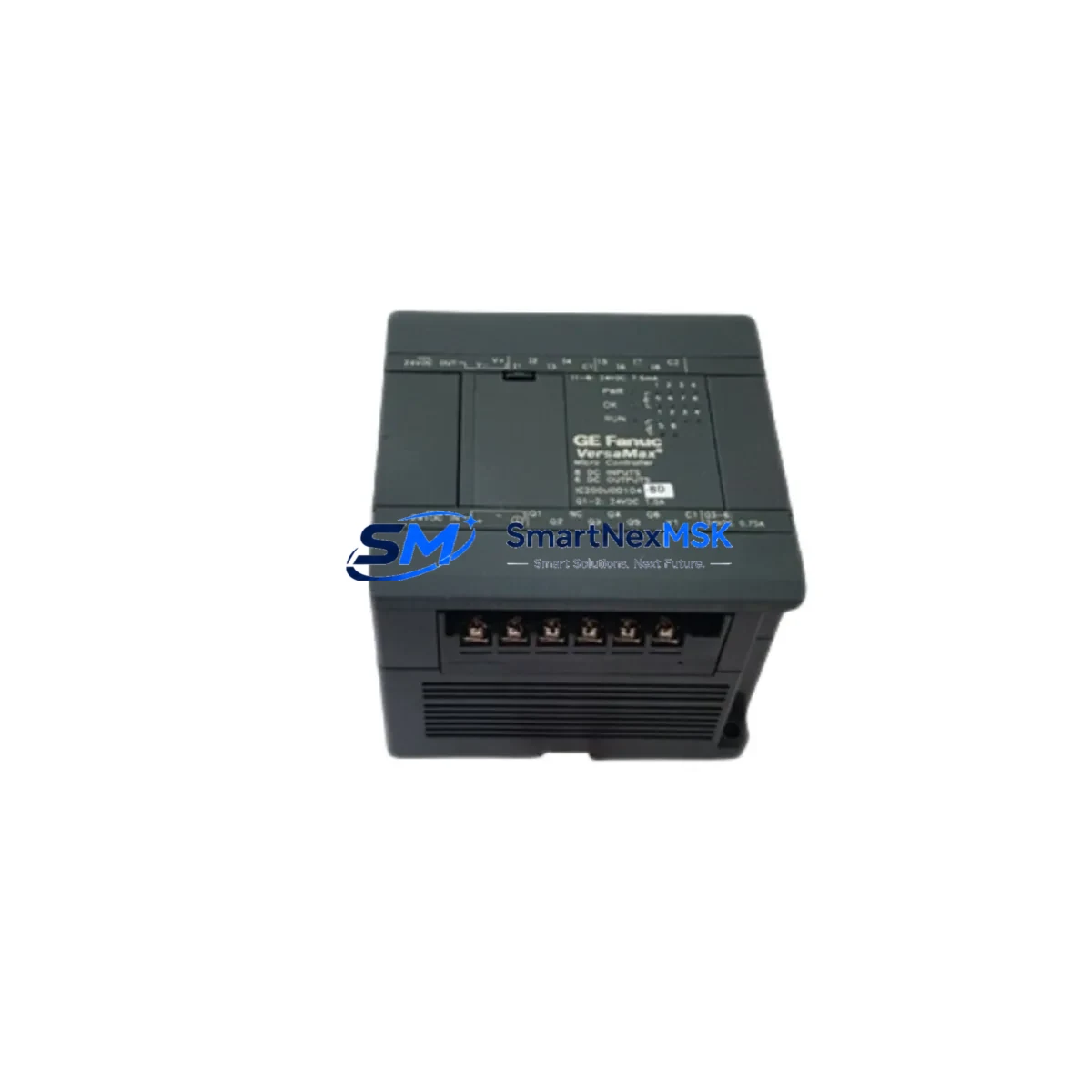

GE IC200UDD104-BG Maintenance-Ready Spare VersaMax Micro

GE IC200UDD104-BG Maintenance-Ready Spare VersaMax Micro

Unplanned downtime in industrial automation environments is one of the most costly events a maintenance team can face. The GE IC200UDD104-BG — a 28-point DC input/output unit from the GE VersaMax Micro series — is a critical controller node found in a wide range of discrete manufacturing, material handling, packaging, and process control applications. When this module fails or reaches end-of-service life, having a verified, maintenance-ready spare on hand is the difference between a two-hour recovery and a two-day production halt.

At SMARTNEXMSK, every IC200UDD104-BG unit is sourced as an original GE Automation & Controls component, inspected prior to dispatch, and shipped with a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams who need reliable, fast-turnaround spare parts for legacy and active GE VersaMax Micro systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the GE IC200UDD104-BG is rarely an isolated task. Experienced maintenance engineers know that when a VersaMax Micro controller is pulled from service, the surrounding electrical environment deserves equal scrutiny. A systematic inspection during the replacement window significantly reduces the risk of repeat failures and unplanned stoppages.

Begin with the 24 VDC power supply feeding the controller — voltage sag or ripple is a leading cause of premature PLC failure and is often overlooked until a second unit fails. Check the IC200PWR002 or equivalent VersaMax power supply module for output stability and capacitor aging. Next, inspect all I/O terminal blocks and field wiring connections; loose or corroded terminals on input circuits can cause erratic program execution that mimics a faulty CPU.

The RS-232 communication cable connecting the IC200UDD104-BG to the programming device or HMI panel should be tested for continuity and shielding integrity — degraded serial communication is a common source of intermittent faults in older VersaMax Micro installations. If the system includes an IC200USB001 USB-to-serial converter or a dedicated serial communication module, verify driver compatibility with the replacement unit’s firmware revision.

For systems where the VersaMax Micro interfaces with an HMI panel — such as a GE QuickPanel or a third-party operator terminal — confirm that the HMI communication parameters (baud rate, parity, station address) match the replacement controller’s default configuration before powering up. Mismatched settings are a frequent cause of post-replacement communication failures that extend downtime unnecessarily.

Relay output modules and intermediate relay banks wired to the controller’s discrete outputs should be inspected for contact wear, especially in high-cycle applications such as packaging or press control. Relay coil voltage and contact ratings must be confirmed against the IC200UDD104-BG’s output specifications. Similarly, signal isolators on analog input circuits — if present in the same control cabinet — should be checked for drift, as aging isolation barriers can introduce measurement errors that affect PLC logic decisions.

Finally, review the fuse and circuit breaker protection on each I/O group. Blown fuses on output circuits are sometimes the root cause of the apparent controller failure, and replacing the PLC without restoring proper overcurrent protection will result in repeat damage. A complete cabinet inspection — covering the power supply, I/O wiring, communication links, relay outputs, HMI interface, and protection devices — transforms a reactive replacement into a proactive maintenance event that extends system life and protects production continuity.

Site Replacement Workflow

The IC200UDD104-BG is a direct form-fit-function replacement for earlier IC200UDD104 variants within the GE VersaMax Micro family. The replacement procedure is straightforward for qualified maintenance personnel and can typically be completed within one to two hours, minimizing production impact.

Step 1 — Backup & Documentation: Before removing the existing unit, use GE’s Machine Edition Logic Developer software to upload and save the current ladder logic program, I/O configuration, and communication settings. Store the backup on a secure engineering workstation and verify the file integrity.

Step 2 — Safe Isolation: De-energize the control panel following your site’s lockout/tagout (LOTO) procedure. Confirm that all 24 VDC supply rails and field device circuits are isolated before disconnecting any wiring.

Step 3 — Physical Replacement: Disconnect the I/O terminal connectors and communication cable from the existing IC200UDD104-BG. Remove the unit from the DIN rail or panel mount. Install the replacement unit, reconnect all terminal blocks in the correct sequence, and re-attach the communication cable.

Step 4 — Program Download & Verification: Power up the control panel and download the saved program to the replacement IC200UDD104-BG. Verify I/O mapping, confirm communication with the HMI or SCADA system, and perform a controlled test cycle before returning the machine to production.

Step 5 — Documentation Update: Record the replacement date, new unit serial number, and any observations in the equipment maintenance log. Update the spare parts inventory to trigger reorder of a replacement buffer stock unit.

This workflow is compatible with both hot-standby changeover scenarios and full planned-shutdown replacements, making the IC200UDD104-BG suitable for both emergency and scheduled maintenance strategies.

Spare Parts Support FAQ

Q1: Is the IC200UDD104-BG still available as a new original part, or only as refurbished stock?
SMARTNEXMSK supplies the IC200UDD104-BG as original or new surplus stock sourced directly from authorized GE Automation & Controls distribution channels. Each unit undergoes pre-shipment functional verification. Refurbished units are clearly identified separately and are never substituted without customer confirmation.

Q2: What is the recommended spare parts inventory strategy for VersaMax Micro systems?
For production lines with a single VersaMax Micro controller, we recommend maintaining a minimum of one IC200UDD104-BG as on-site buffer stock. For multi-line or critical process applications, a two-unit buffer — one on-site and one at a regional warehouse — is standard practice. Given the age of the VersaMax Micro platform, procurement teams should also consider stocking associated power supply modules and communication cables to avoid multi-component lead time delays during emergency repairs.

Q3: How is compatibility verified before shipment?
Every IC200UDD104-BG unit is bench-tested for power-on functionality, I/O response, and communication port operation prior to dispatch. Compatibility with the VersaMax Micro series is confirmed against GE’s published hardware compatibility matrix. Customers are encouraged to provide their existing firmware revision and system configuration details so our technical team can flag any known revision-specific considerations before the unit ships.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. To initiate a warranty claim, contact our sales team at [email protected] with the order reference, unit serial number, and a description of the fault. Replacement units are dispatched within 3–5 business days of claim approval, and failed units are returned for root cause analysis at no additional cost to the customer.
