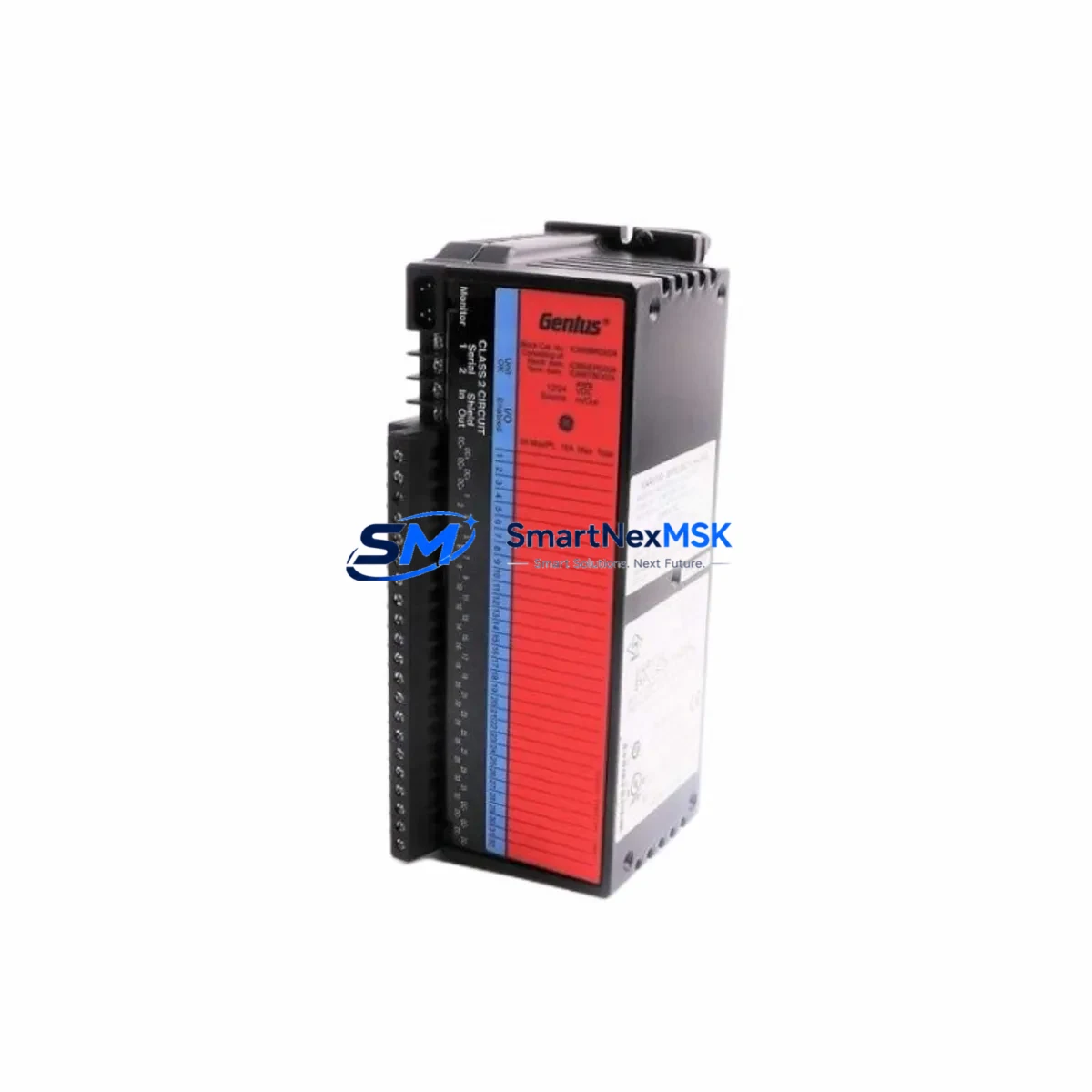

GE IC660BRD025 Retrofit-Ready Sink I/O Block for Genius Series Control Systems
The GE IC660BRD025 is a 32-circuit, 24 VDC sink-type discrete I/O block designed for GE Genius Series distributed I/O networks. As legacy Genius Bus installations approach end-of-life and original GE Fanuc spare parts become increasingly scarce, the IC660BRD025 remains one of the most sought-after retrofit components for engineers tasked with sustaining aging production lines, upgrading control cabinets, and restoring field I/O continuity without a full system overhaul.
Whether you are replacing a failed IC660BRD025 on an active Genius Bus segment, migrating from an older IC660ERD025 source-type block, or consolidating I/O points during a control panel upgrade, this module delivers the electrical compatibility, bus protocol support, and mechanical form factor required for a smooth, low-risk retrofit. Our inventory is tested, serialized, and backed by a 12-month warranty covering both hardware and firmware integrity.
Upgrade Compatibility Table
| Parameter | IC660BRD025 (This Unit) | Retrofit Notes |
|---|---|---|
| I/O Type | 32-Circuit Discrete Sink (NPN) | Verify field device sourcing polarity before swap |
| Operating Voltage | 24 VDC | Confirm panel PSU output; IC660PWR024 or equivalent recommended |
| Bus Protocol | GE Genius Bus (Serial I/O) | Compatible with IC660CBL500 Genius Bus cable; no protocol conversion needed |
| Block Address | Configurable via rotary switch (0–31) | Match address to original block; verify in PLC I/O configuration table |
| Terminal Wiring | Removable terminal block, 0.5–2.5 mm² | Re-use existing field wiring if conductor gauge matches; label before removal |
| Backplane / Rack | DIN-rail or panel-mount (standalone) | No backplane required; mounts independently in control cabinet |
| Common Replacements | IC660ERD025, IC660TBD025 | Functional equivalents; confirm I/O polarity and address settings |
| Controller Compatibility | Series 90-70, Series 90-30, Series Six | Verify Genius Bus Interface Module (IC660BBA020 or IC660BBA100) firmware |
| Commissioning Tool | GE Proficy Machine Edition / Logicmaster 90 | Use Hand-Held Monitor (IC660HHM501) for on-site block diagnostics |
| Warranty | 12 Months | Covers hardware failure, bus communication faults, and terminal integrity |
Retrofit Planning for Existing Automation Systems
A successful IC660BRD025 retrofit begins well before the module arrives on site. Engineers should pull the existing I/O configuration from the PLC — typically a Series 90-70 CPU with a IC697CPU772 or IC697CPU781 processor — and cross-reference the Genius Bus segment map to confirm the block’s assigned device number. The Genius Bus Interface Module, such as the IC660BBA020 or IC660BBA100, must be running firmware that supports the block’s hardware revision; mismatched firmware can cause the block to appear offline even when wiring is correct.
Terminal wiring is the most time-sensitive step. The IC660BRD025 uses a removable 40-pin terminal assembly. Before disconnecting the original block, photograph and label every field conductor. If the original installation used IC660CBL500 Genius Bus trunk cable with T-taps, inspect the tap connectors for corrosion — a common failure point in humid or outdoor enclosures. Replace any degraded taps before reinstalling the new block.
Power supply capacity is frequently overlooked during I/O block replacements. The IC660BRD025 draws current from the 24 VDC field power bus. If the control cabinet also powers an IC660TBD025 relay output block, an IC660BBD025 analog block, or additional distributed I/O nodes, recalculate the total load against the panel power supply — an IC660PWR024 or third-party equivalent — to confirm adequate headroom. Undersized supplies cause intermittent block resets that are difficult to diagnose without a power audit.
For systems migrating from Series Six or early Series 90-30 architectures, the Genius Bus segment may also include IC660BBA020 Bus Controller modules managing multiple I/O blocks. Confirm that the replacement IC660BRD025 address does not conflict with any IC660BBD025 analog input blocks or IC660TBD025 relay output blocks already on the segment. Address conflicts produce duplicate-device faults in Logicmaster 90 or Proficy Machine Edition that halt the entire bus segment.
If the retrofit is part of a broader HMI upgrade — for example, replacing a legacy iFIX or CIMPLICITY screen that references Genius I/O tags — coordinate the block swap with the HMI team. Tag addresses tied to the IC660BRD025’s 32 discrete points must remain consistent in the PLC program; renaming or reordering I/O references without updating the HMI database causes alarm and display errors that extend commissioning time significantly.
Downtime Control During System Migration
Minimizing production downtime during an IC660BRD025 swap requires a structured hot-swap protocol. Begin by placing the Genius Bus segment into “Hold Last State” mode through the Bus Controller — this instructs the Series 90-70 or Series 90-30 CPU to maintain the last known output states of all blocks on the segment while the failed or replaced block is offline. This feature, accessible via the IC660BBA020 or IC660BBA100 Bus Controller configuration, prevents uncontrolled output drops that could trigger safety interlocks or damage downstream equipment.
Back up the PLC program — including all rung logic, I/O forcing tables, and data register values — to a programming laptop running Proficy Machine Edition or Logicmaster 90 before touching any hardware. Store the backup on both local media and a network share. If the original program was written for an IC660ERD025 source-type block and you are installing an IC660BRD025 sink-type replacement, review every output rung for polarity assumptions; sink and source blocks drive field devices differently and incorrect assumptions cause immediate field faults on power-up.
After physical installation and terminal reconnection, power the block and use the IC660HHM501 Hand-Held Monitor to verify bus communication, block address, and I/O point status before transferring control back to the CPU. Force each output point individually and confirm field device response. This point-by-point verification — typically 15–30 minutes for a 32-circuit block — is the most reliable method to confirm wiring integrity and eliminate latent faults before returning the line to production. All units shipped from our inventory undergo a pre-shipment functional test on a live Genius Bus segment, reducing on-site commissioning risk.
Retrofit Support FAQ
Q1: Is the IC660BRD025 a direct drop-in replacement for the IC660ERD025?
Functionally yes, with one critical difference: the IC660BRD025 is a sink (NPN) type and the IC660ERD025 is a source (PNP) type. Both occupy the same physical footprint and use the same Genius Bus address scheme, but field devices wired for sourcing outputs will not operate correctly with a sink block without rewiring. Confirm your field device input polarity before substituting.
Q2: Will this block work with my Series 90-30 CPU and existing Genius Bus wiring?
Yes. The IC660BRD025 communicates over the standard Genius Bus serial protocol supported by all Series 90-30 and Series 90-70 CPUs equipped with a Genius Bus Interface Module (IC660BBA020 or IC660BBA100). No protocol conversion or additional hardware is required. Ensure the block address rotary switch matches the device number configured in your PLC I/O table.
Q3: How do I verify the block is communicating correctly after installation?
Use the IC660HHM501 Hand-Held Monitor connected to the Genius Bus trunk. Navigate to the block’s device address and confirm “OK” status with zero fault codes. Alternatively, go online with Proficy Machine Edition or Logicmaster 90 and check the I/O fault table — a healthy IC660BRD025 will show all 32 points in the configured state with no bus errors. If faults persist, verify the block address, bus termination resistors, and cable tap integrity.
Q4: What does the 12-month warranty cover?
The warranty covers all hardware defects, bus communication failures attributable to the module, and terminal block integrity for 12 months from the date of shipment. It does not cover damage caused by incorrect wiring, overvoltage, or physical impact. In the event of a warranty claim, we provide advance replacement shipping to minimize your downtime, followed by return of the defective unit for failure analysis.
