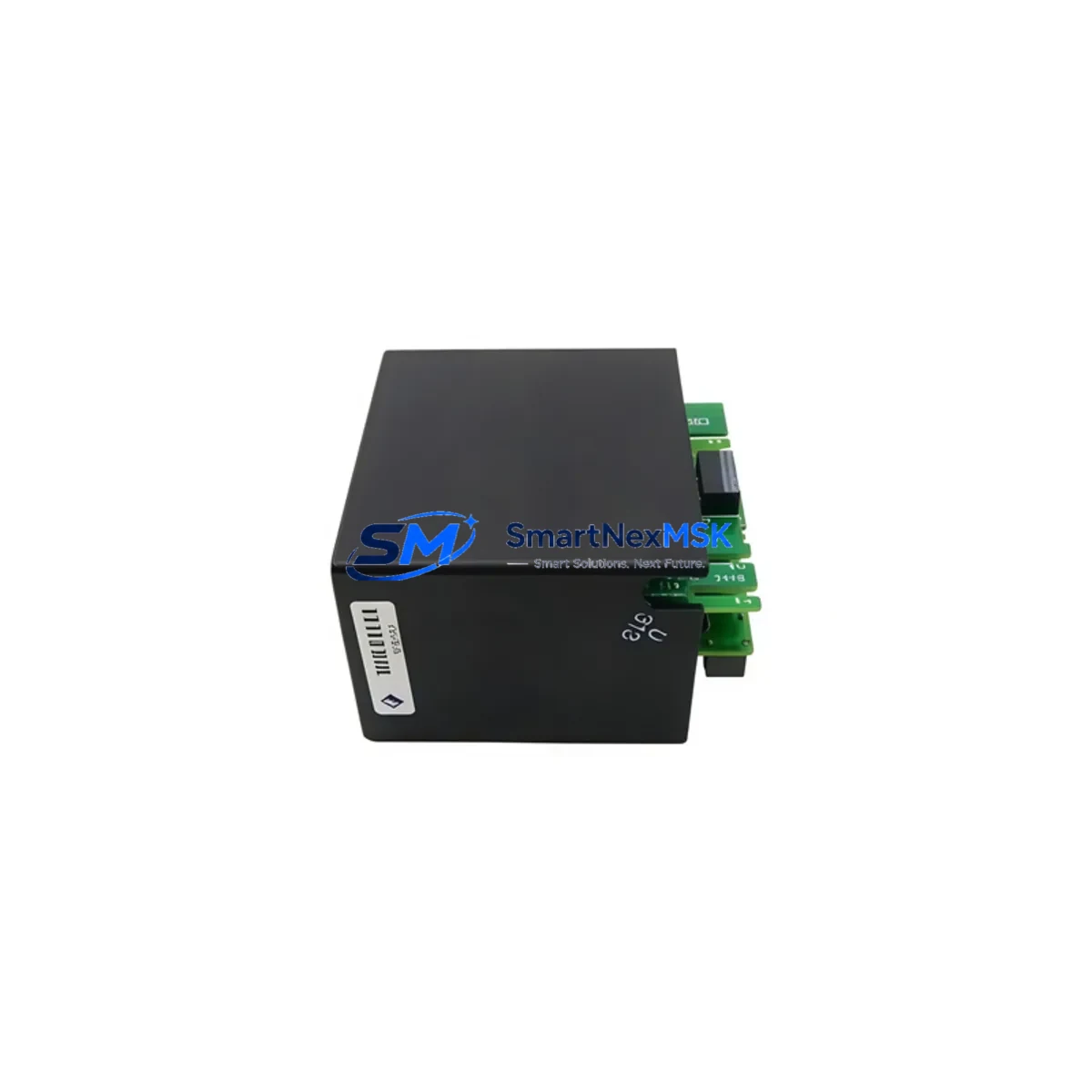

GE IC670MDL644 Safety-Enhanced Discrete Input Module

GE IC670MDL644 Safety-Enhanced Discrete Input Module: Reliable Control in Harsh Industrial Sites

The GE IC670MDL644 is a 16-channel, 24VDC discrete input module engineered for the GE Series 90-70 PLC platform — one of the most widely deployed distributed control architectures in heavy industry. Designed to operate reliably in high-noise, high-vibration, and thermally demanding environments, the IC670MDL644 delivers the signal integrity and operational continuity that safety-critical control loops demand. Whether installed in a petrochemical DCS cabinet, a power generation switchgear panel, or a continuous mining control system, this module provides the deterministic input scanning and fault-tolerant performance that industrial safety engineers rely on.

In modern industrial control cabinets, discrete input modules serve as the first line of signal acquisition — capturing field-level status from limit switches, proximity sensors, emergency stop buttons, interlock relays, and process permissive contacts. Any signal drift, input latency, or module misread at this stage can cascade into control loop errors, spurious shutdowns, or — more critically — missed safety events. The IC670MDL644 addresses these risks through robust optical isolation, tight input filtering, and a hardened backplane interface that maintains communication integrity even under severe electromagnetic interference (EMI) from variable frequency drives (VFDs), high-current contactors, and arc flash events common in heavy industrial environments.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered Series 90-70 control cabinet, the IC670MDL644 does not operate in isolation — it functions as part of a coordinated protection and control architecture. To maintain system-wide safety and uptime, it is typically deployed alongside complementary modules and components that together form a resilient control infrastructure.

On the power supply side, the IC697PWR711 and IC697PWR724 rack power supplies provide regulated, filtered DC power to the backplane, ensuring that input voltage fluctuations from the plant power grid do not propagate into the logic circuits of the IC670MDL644 or adjacent I/O modules. In high-availability configurations, redundant power supply arrangements using dual IC697PWR units are standard practice to eliminate single-point power failures.

For output-side control actions triggered by the IC670MDL644’s input signals, the IC670MDL740 and IC670MDL741 discrete output modules handle relay-driven and transistor-driven actuator commands respectively. These output modules are designed to the same Series 90-70 backplane standard, ensuring synchronized scan-cycle timing between input acquisition and output actuation — a critical requirement in interlock and emergency shutdown (ESD) circuits.

Communication integrity across the control network is maintained by the IC697CMM742 Ethernet communications module and the IC697BEM731 Genius Bus Controller, which link the Series 90-70 rack to field devices, remote I/O drops, and supervisory SCADA systems. In environments where signal noise from high-voltage switchgear or large motor drives threatens data integrity, the Genius Bus architecture provides deterministic, noise-immune communication that supports the IC670MDL644’s role in safety-critical data acquisition.

For analog process variables that complement the discrete inputs captured by the IC670MDL644, the IC670ALG620 analog input module handles 4–20mA and 0–10V signals from pressure transmitters, flow meters, and temperature sensors — providing a complete picture of process state within the same rack. Surge and transient protection at the field wiring terminals is further reinforced by DIN-rail mounted surge protection devices (SPDs) and shielded cable assemblies, which prevent lightning-induced or switching-transient voltages from reaching the module’s input circuitry.

Together, this ecosystem of Series 90-70 hardware — power supplies, CPU modules, communication controllers, analog and discrete I/O — creates a layered defense against the control interruptions, signal anomalies, and hardware faults that threaten continuous production in demanding industrial environments.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the IC670MDL644 is deployed in emergency shutdown (ESD) panels and safety instrumented systems (SIS) to monitor valve position feedback, high-level switches, flame detector contacts, and gas detection relay outputs. Its optical isolation and configurable input filtering prevent spurious trips caused by ground loops or induced noise from high-current process heaters and pump motors.

Power Generation and Substation Control: In thermal, hydro, and combined-cycle power plants, discrete input modules like the IC670MDL644 capture breaker status, protection relay trip signals, and turbine interlock contacts. The module’s ability to reliably distinguish valid state changes from transient noise is essential in environments where high-voltage switching events generate intense electromagnetic disturbances.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The IC670MDL644’s rugged construction and wide operating temperature range make it suitable for conveyor interlock systems, crusher control panels, and ventilation safety circuits in these demanding conditions.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on discrete input modules to monitor pump run/fail status, valve open/close confirmation, and high-water level alarms. The IC670MDL644 supports the continuous, unattended operation required in these facilities, where control system failures can result in regulatory violations or public safety incidents.

Metallurgy and Steel Production: In electric arc furnace (EAF) and rolling mill control systems, the IC670MDL644 handles the high-density discrete input requirements of complex interlocking sequences, where dozens of field contacts must be scanned simultaneously with millisecond-level accuracy to coordinate safe equipment sequencing.

Port and Material Handling Automation: Container crane control systems and automated conveyor networks in port terminals use Series 90-70 platforms for their proven reliability in outdoor, high-cycle-rate applications. The IC670MDL644 captures position sensor, overload relay, and safety gate interlock signals that protect both equipment and personnel in these high-throughput environments.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the IC670MDL644?
All IC670MDL644 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair turnaround commitments to minimize your downtime.

Q2: What pre-shipment testing is performed on each unit?
Every IC670MDL644 undergoes a multi-point functional verification process prior to dispatch, including backplane communication handshake testing, per-channel input signal verification across all 16 channels, isolation integrity checks, and visual inspection for physical damage or component degradation. Test records are available upon request for quality-critical procurement processes.

Q3: Is the IC670MDL644 compatible with my existing Series 90-70 rack and CPU?
Yes. The IC670MDL644 is fully compatible with all standard GE Series 90-70 rack configurations, including the IC697CHS750 (5-slot), IC697CHS782 (9-slot), and IC697CHS790 (10-slot) racks. It is supported by all Series 90-70 CPUs including the IC697CPU772, IC697CPU781, IC697CPU788, and IC697CPM925. No firmware modification is required for standard slot installation.

Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains dedicated inventory of legacy GE Series 90-70 components, including the IC670MDL644, to support customers with long-lifecycle plant assets. We provide ongoing supply continuity for facilities that cannot migrate to newer platforms due to process criticality, certification constraints, or capital budget cycles. Contact our team to discuss blanket order arrangements or consignment stock programs for your site.
