GE IC693MDL646 Safety-Enhanced Discrete Input Module

GE IC693MDL646 Safety-Enhanced Discrete Input Module for Harsh Industrial Sites

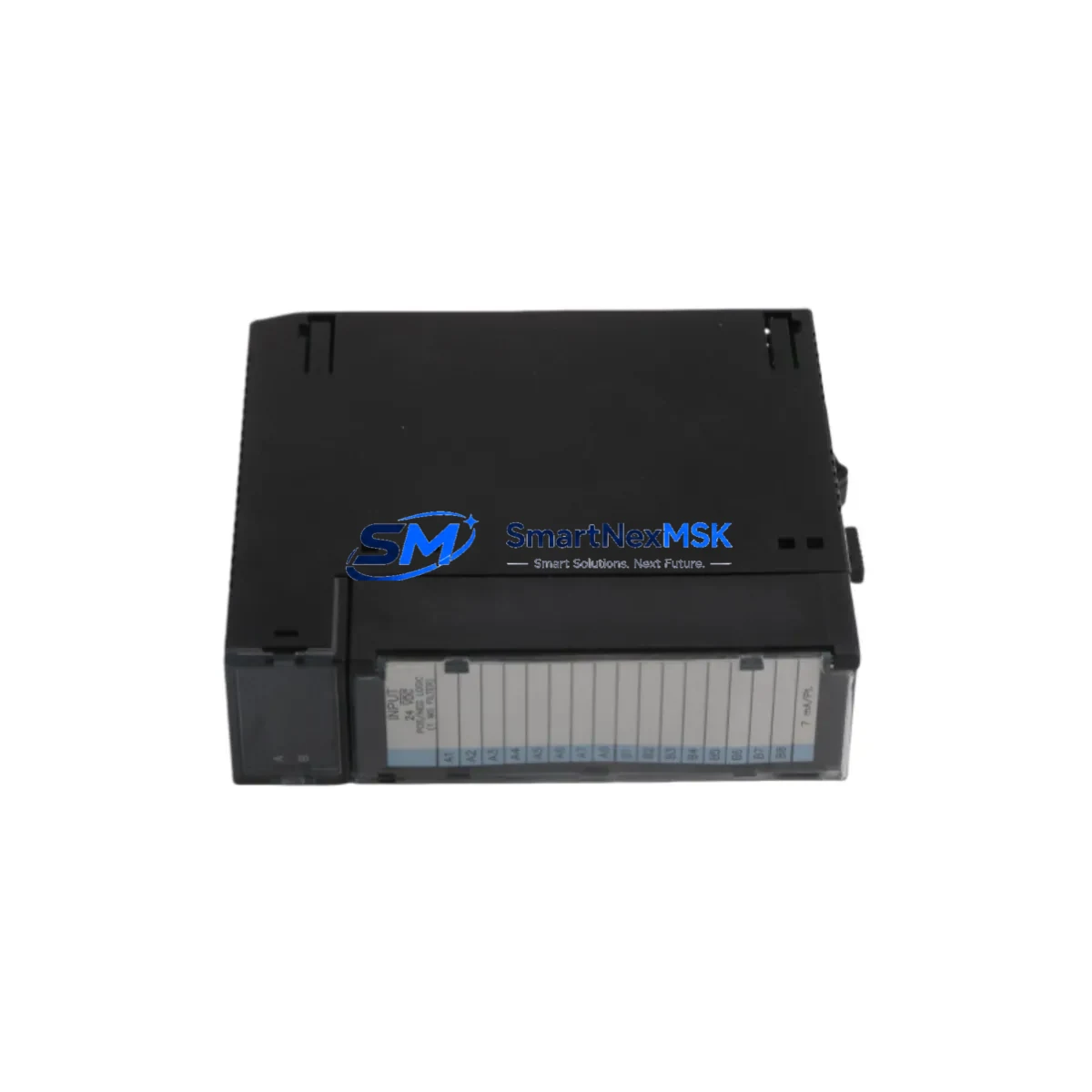

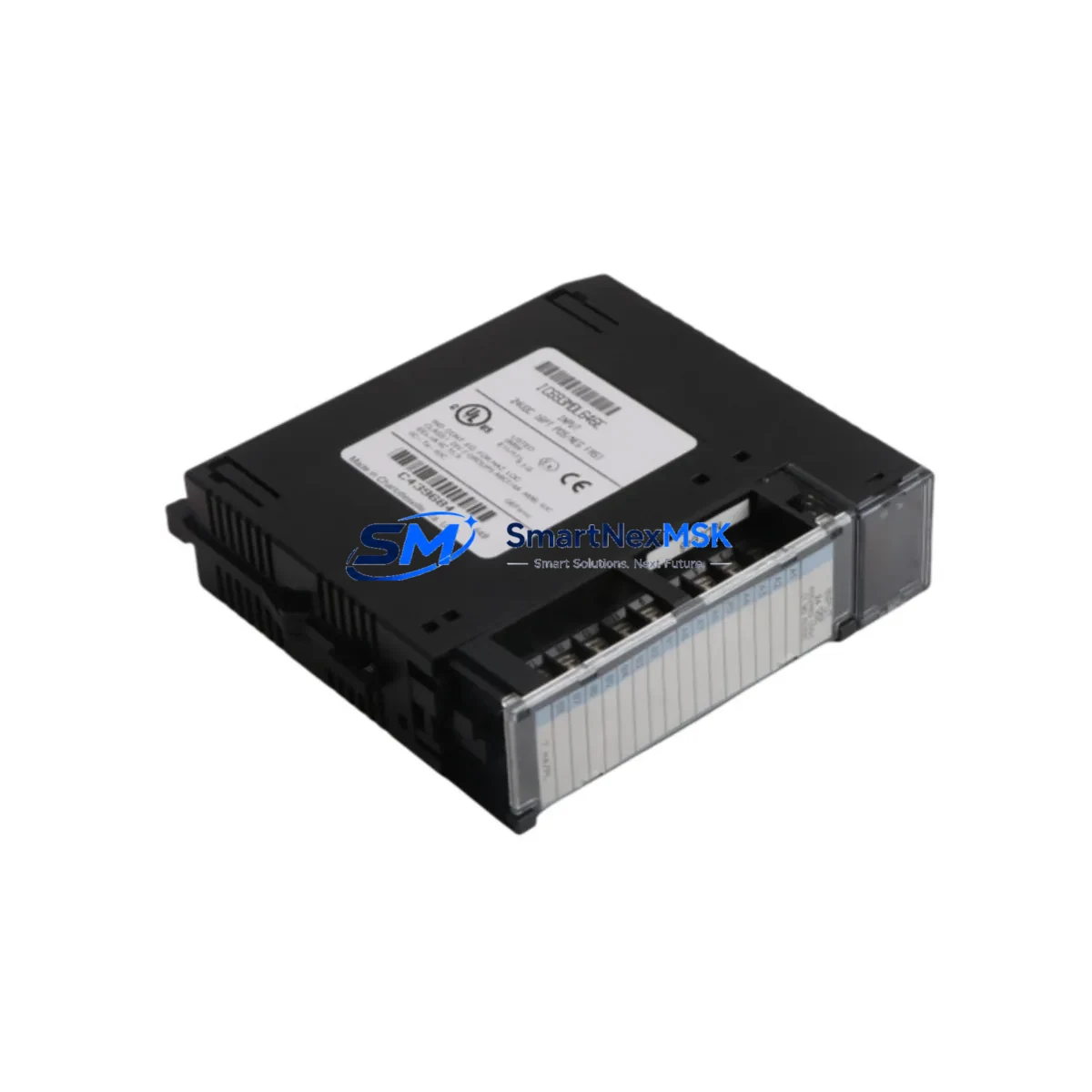

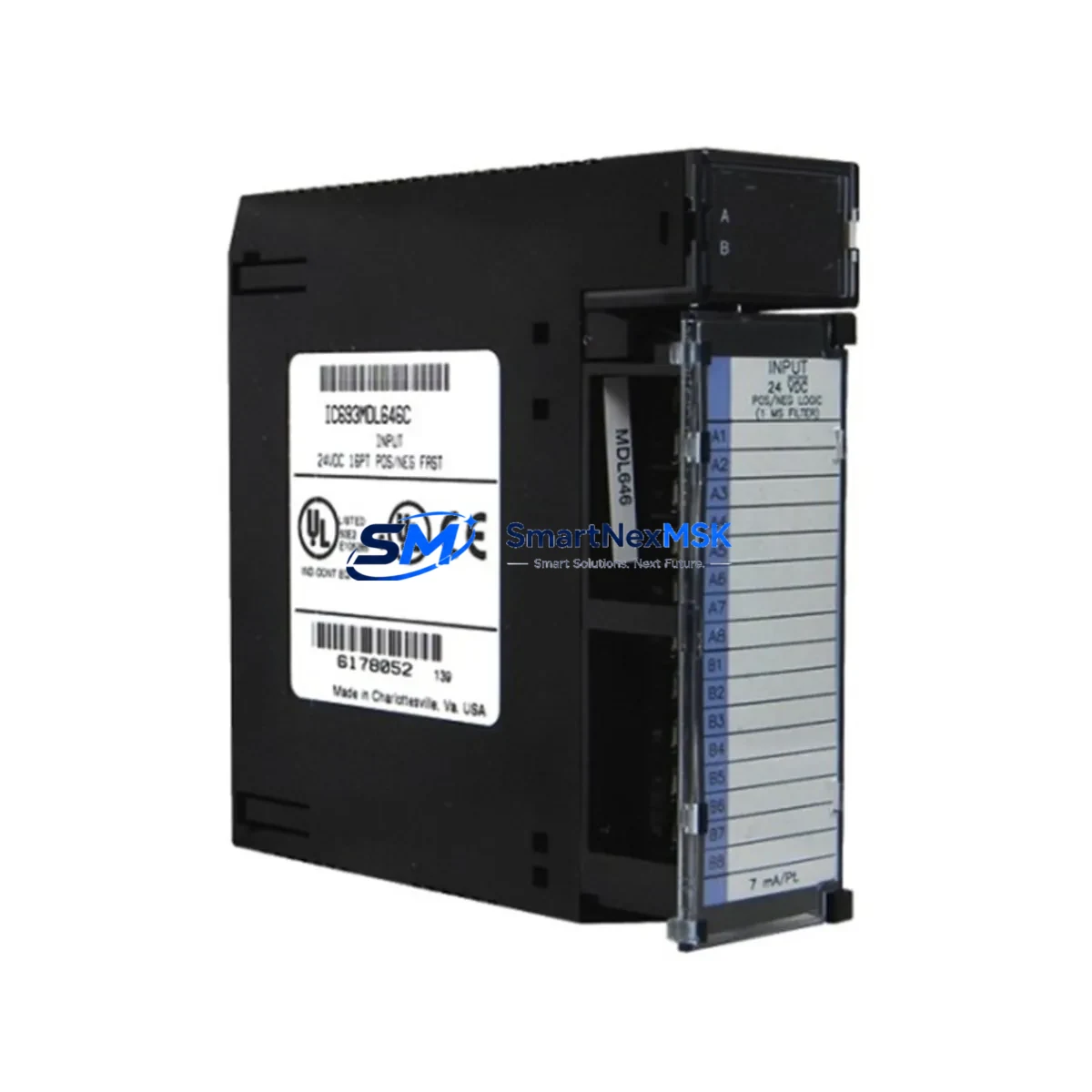

The GE IC693MDL646 is a 32-point, 24VDC discrete input module engineered for the GE Series 90-30 PLC platform, purpose-built to deliver uninterrupted signal integrity in high-load, electrically noisy, and safety-critical industrial environments. Designed for continuous-duty operation in control cabinets exposed to voltage transients, electromagnetic interference, and mechanical vibration, the IC693MDL646 is a cornerstone component in reliable discrete I/O architectures across heavy industry.

In demanding applications — from petrochemical interlock systems and power plant protection circuits to mining conveyor controls and water treatment SCADA panels — signal reliability is not optional. The IC693MDL646 provides optically isolated 24VDC inputs across all 32 channels, ensuring that field-side disturbances, ground loops, and inductive switching transients from solenoids, motor starters, and relay coils do not propagate into the CPU backplane. This isolation is fundamental to preventing spurious trips, false actuations, and unplanned shutdowns in safety-instrumented loops.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the IC693MDL646 as part of a structured control cabinet protection strategy significantly reduces the risk of cascading failures in Series 90-30 systems. In a typical high-availability cabinet, the IC693MDL646 works in concert with the GE IC693CPU374 CPU module, which handles ladder logic execution and interlock processing. Power integrity for the entire rack is maintained by the GE IC693PWR321 or IC693PWR330 power supply modules, which provide regulated 5VDC and 24VDC rails with built-in overcurrent protection — critical for preventing voltage sag from propagating to input scan cycles.

On the output side, the GE IC693MDL740 discrete output module (24VDC sourcing) is commonly paired with the IC693MDL646 in the same rack to form a complete digital I/O layer for field device control. For analog process variables — pressure, temperature, and flow — the GE IC693ALG222 analog input module complements the discrete input layer, enabling mixed-signal control architectures without requiring additional racks.

Communication integrity is maintained through the GE IC693CMM321 communications module, which supports Ethernet and serial protocols for SCADA integration. In environments with high electromagnetic interference — such as variable frequency drive (VFD) rooms, arc furnace control areas, or high-voltage switchgear panels — the optical isolation of the IC693MDL646 prevents EMI-induced bit flips that could trigger false interlock activations. Supplementary surge protection devices (SPDs) installed on field wiring terminals, combined with proper cable shielding and grounding practices, further harden the input circuit against lightning-induced surges and capacitive coupling from adjacent power cables.

For systems requiring redundancy, the IC693MDL646 can be installed in expansion racks connected via the GE IC693CHS391 expansion chassis, allowing distributed I/O placement closer to field devices and reducing signal cable runs — a key factor in minimizing noise pickup in large industrial facilities. Proper rack slot assignment and I/O mapping in the Series 90-30 configuration software ensures deterministic scan times and predictable response to safety-critical input events.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In process units handling flammable hydrocarbons, the IC693MDL646 is deployed in emergency shutdown (ESD) interlock panels to monitor field switches, pressure switches, and flame detectors. Its optical isolation prevents ground potential differences between field instruments and the control room from corrupting interlock logic — a failure mode that has historically caused both spurious trips and dangerous missed-trip events.

Electric Power Generation & Transmission: Substation automation and turbine protection systems rely on discrete input modules to monitor breaker status, relay contact positions, and protection relay outputs. The IC693MDL646’s fast input response time and noise immunity make it suitable for monitoring high-speed protection events where millisecond-level accuracy is required to prevent equipment damage.

Mining & Mineral Processing: Conveyor belt systems, crusher controls, and ventilation interlocks in underground and surface mining operations operate in environments with extreme dust, vibration, and electrical noise from large motors. The IC693MDL646’s ruggedized design and wide operating temperature range support reliable operation in these conditions, reducing unplanned downtime that carries significant safety and production cost implications.

Water & Wastewater Treatment: SCADA-controlled pump stations, chemical dosing systems, and UV disinfection panels use discrete inputs to monitor pump run/fault status, valve positions, and level switch states. Reliable input scanning by the IC693MDL646 ensures that alarm conditions are detected and acted upon without delay, protecting both public health infrastructure and downstream equipment.

Metallurgy & Steel Production: Rolling mill control systems, ladle transfer cars, and furnace atmosphere control panels operate under severe thermal and electromagnetic stress. The IC693MDL646 provides stable input scanning even when installed in cabinets adjacent to high-current bus bars and induction heating equipment, where lesser modules may exhibit intermittent input errors.

Port & Heavy Logistics Automation: Container crane PLC systems and automated stacking equipment require reliable discrete I/O for limit switch monitoring, anti-collision interlock circuits, and load cell status inputs. The IC693MDL646’s 32-channel density reduces the number of modules required per rack, simplifying cabinet layout and improving mean time between failures (MTBF) for the overall system.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the IC693MDL646?
All IC693MDL646 units supplied by SMARTNEXMSK carry a 12-month warranty covering defects in materials and workmanship from the date of shipment. Warranty claims are processed with priority support, including advance replacement options for critical production environments to minimize downtime.

Q2: What pre-shipment testing is performed on each unit?
Every IC693MDL646 undergoes a full functional test prior to dispatch. Testing includes power-on verification, channel-by-channel input state validation, backplane communication check, and visual inspection for physical integrity. A test report is available upon request for quality-critical procurement processes.

Q3: Is the IC693MDL646 compatible with all GE Series 90-30 CPU and rack configurations?
Yes. The IC693MDL646 is compatible with all standard GE Series 90-30 CPU racks and expansion racks, including 5-slot, 10-slot, and expansion chassis variants. It is recognized automatically by the Series 90-30 configuration software (Proficy Machine Edition / Logicmaster 90-30) without requiring special firmware or configuration files beyond standard I/O table assignment.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
SMARTNEXMSK maintains dedicated inventory of the IC693MDL646 and related Series 90-30 components to support long-term spare parts programs for installed base systems. For facilities with multi-year maintenance contracts or planned lifecycle extension programs, volume reservation and scheduled delivery arrangements are available. Contact our technical sales team to discuss your specific supply continuity requirements.
