GE IC694MDL240 Maintenance-Ready Spare for Series 90-30

GE IC694MDL240 Maintenance-Ready Spare for Series 90-30 Automation

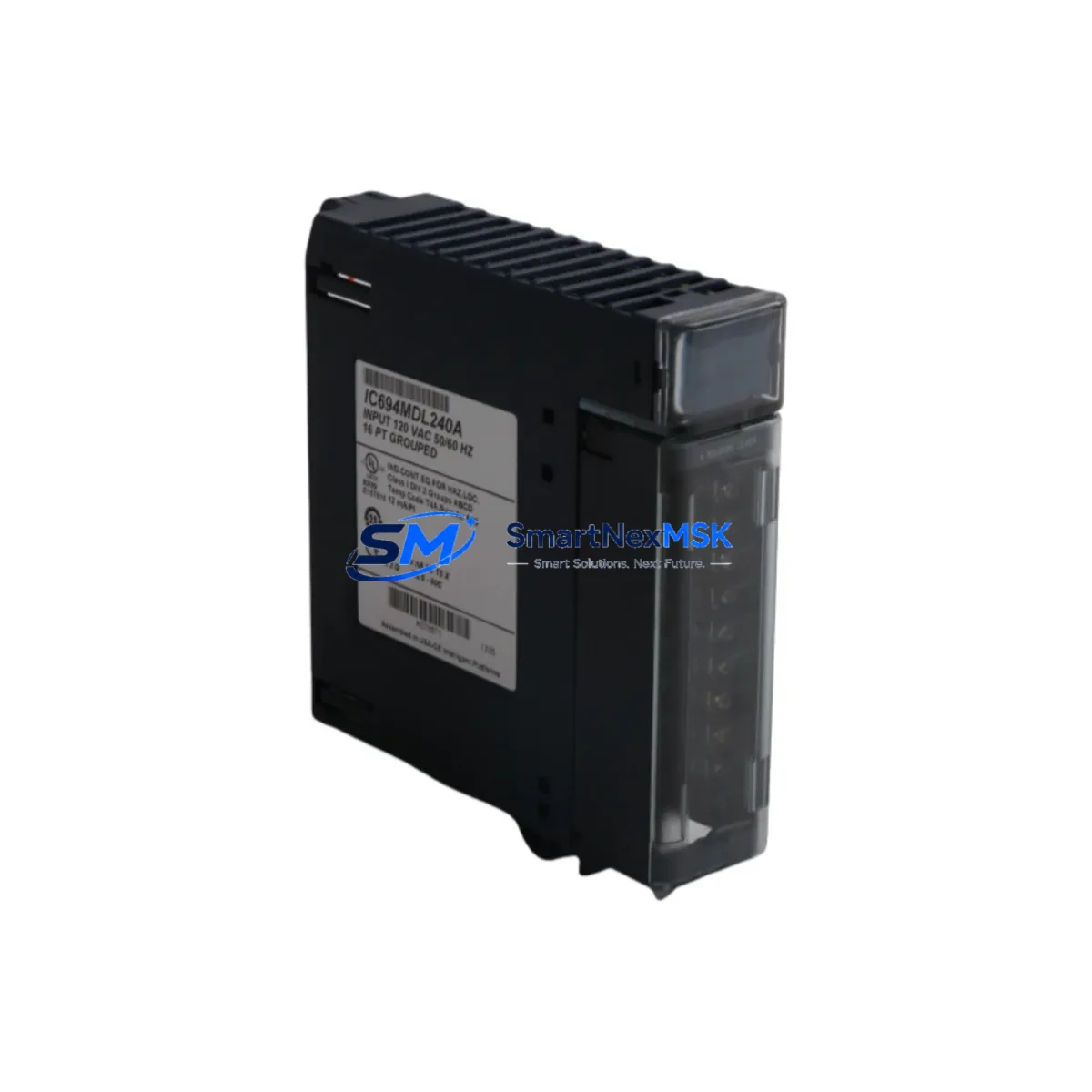

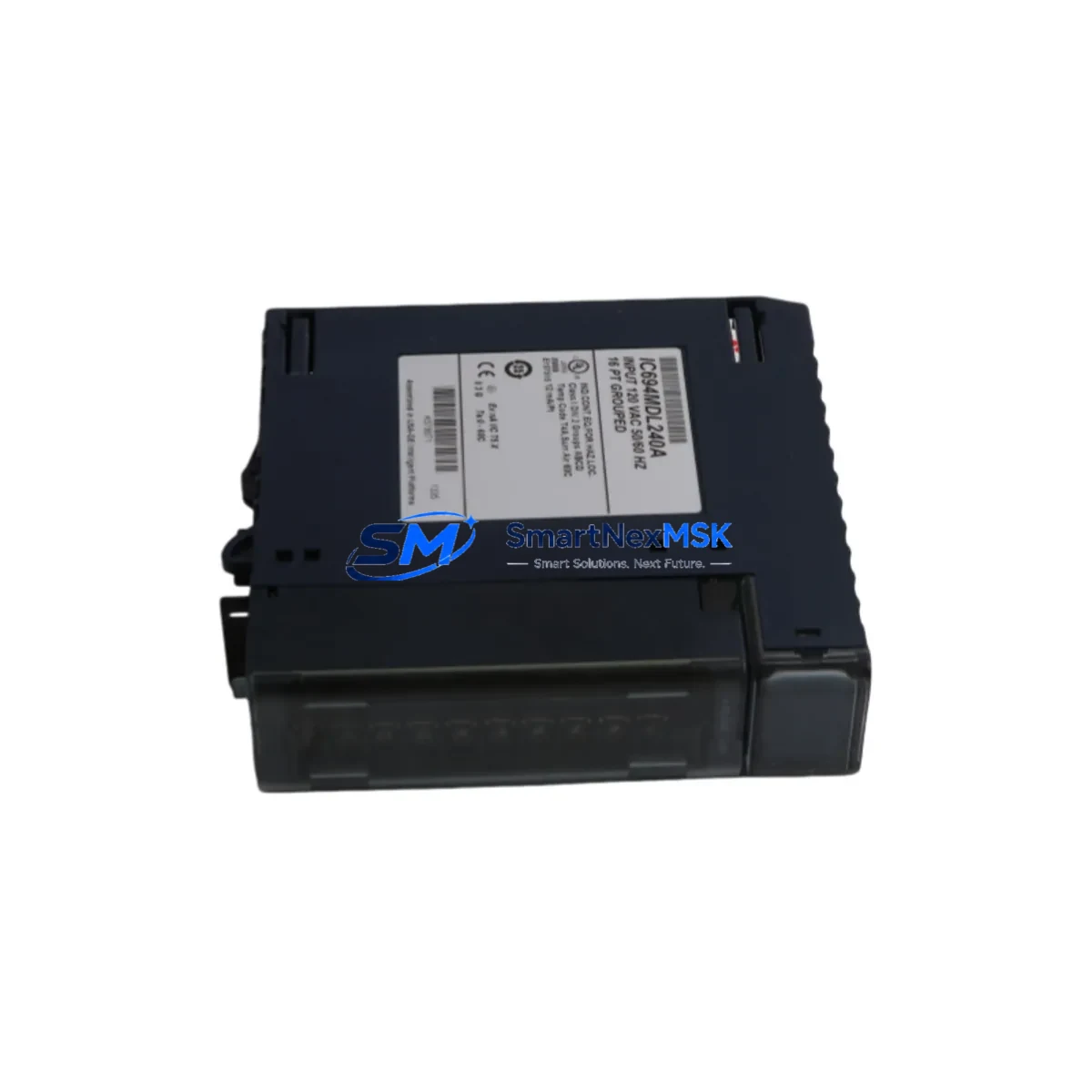

For maintenance engineers and procurement teams managing GE Series 90-30 PLC installations, unplanned downtime caused by a failed discrete input module is one of the most disruptive events in a continuous production environment. The GE IC694MDL240 is a 16-point, 120VAC discrete input module purpose-built for the Series 90-30 programmable logic controller platform — one of GE’s most widely deployed control architectures across power generation, water treatment, food processing, and light manufacturing facilities. Keeping a verified, tested spare of the IC694MDL240 on hand is not just a best practice; it is a fundamental requirement for any site committed to rapid fault recovery and minimal mean time to repair (MTTR).

The IC694MDL240 accepts 120VAC field signals and converts them to logic-level inputs readable by the Series 90-30 CPU. Its 16-channel capacity makes it ideal for monitoring motor run/stop status, valve position feedback, limit switch inputs, and safety interlock signals across a wide range of field devices. When this module fails — whether due to surge damage, insulation breakdown, or age-related component degradation — the entire input group it serves goes dark, potentially halting production or triggering a safety shutdown. Having a pre-tested replacement unit available on-site eliminates the lead time risk associated with emergency procurement and allows technicians to restore normal operation within a single maintenance window.

From a maintenance planning perspective, the IC694MDL240 should be evaluated alongside the broader Series 90-30 rack and backplane ecosystem. During a scheduled inspection or corrective replacement, it is equally important to verify the condition of the IC694CHS392 10-slot baseplate that houses the module, as backplane connector wear can cause intermittent input faults that are difficult to distinguish from module failure. The IC693PWR321 or IC694PWR330 power supply module feeding the rack should also be checked for output voltage stability, since low or noisy 5VDC rail voltage is a common root cause of spurious input readings and module resets. If the site uses a IC694CPU310 or IC694CPU315 CPU module, firmware compatibility with the input module configuration should be confirmed before hot-swapping in a replacement unit.

Wiring integrity at the terminal block is another critical checkpoint. The IC694MDL240 uses a removable field wiring connector, which means the wiring harness can be transferred directly to the replacement module without rewiring — significantly reducing replacement time. However, technicians should inspect each terminal for signs of oxidation, loose crimps, or thermal discoloration before reconnecting. In high-vibration environments such as compressor stations or milling operations, terminal loosening is a frequent contributor to intermittent input faults. Pairing the IC694MDL240 replacement with an inspection of associated IC694ACC300 terminal block accessories and field cable shields ensures the repair addresses the full signal path rather than just the module itself.

For sites running mixed I/O configurations, the IC694MDL240 is often installed alongside discrete output modules such as the IC694MDL340 (16-point 120VAC output) or IC694MDL754 (32-point 24VDC output). A comprehensive spare parts strategy should include at least one unit of each module type present in the control cabinet. Similarly, if the system uses analog I/O for process variable monitoring, modules such as the IC694ALG220 analog input module should be included in the site’s critical spare inventory. Communication modules like the IC694CMM302 Ethernet interface or IC694DSM314 motion controller, if present in the same rack, should be inspected for firmware version alignment and connector integrity during any planned maintenance event involving the IC694MDL240.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a Series 90-30 system requires a holistic view of the control cabinet, not just the individual module being replaced. When scheduling a replacement of the IC694MDL240, maintenance engineers should use the opportunity to conduct a full rack inspection. Begin by verifying the output voltage of the IC694PWR330 power supply using a calibrated multimeter — a degraded power supply is frequently the underlying cause of module failures that appear to be isolated hardware faults. Check the IC694CHS392 backplane for physical damage, bent connector pins, or corrosion at the module slots adjacent to the IC694MDL240 position.

If the system uses a IC694CMM302 Ethernet communications module for SCADA connectivity, verify that the network link remains stable during the module swap, as some CPU configurations may generate a brief communication interruption when the I/O configuration changes. For sites using IC694MDL340 output modules to drive contactors or solenoid valves associated with the same process loop as the IC694MDL240 inputs, confirm that the output module’s status LEDs are functioning correctly and that no output channels are stuck in an energized state before restoring the system to automatic mode.

Procurement engineers should note that the IC694MDL240 is a mature product with a well-established aftermarket supply chain. Maintaining a minimum of one spare unit per installed rack is a widely accepted industry standard for Series 90-30 installations. For facilities with multiple racks, a centralized spare parts cabinet stocked with the IC694MDL240, the IC694ALG220 analog input module, and the IC694MDL754 32-point DC output module provides coverage for the most common failure modes without excessive inventory carrying cost. All units supplied by SMARTNEXMSK are individually tested under load conditions prior to shipment and include a 12-month warranty covering manufacturing defects and functional failures.

Site Replacement Workflow

Replacing the IC694MDL240 in a live Series 90-30 system follows a structured procedure designed to minimize downtime and prevent secondary faults. First, place the CPU in Stop mode or use the system’s safe-state interlock to de-energize the affected process loop. Document the current I/O configuration and module slot assignment using the GE Proficy Machine Edition programming software before removing the faulty module. The removable terminal block on the IC694MDL240 allows the field wiring harness to be disconnected as a single assembly and transferred directly to the replacement module — eliminating the need to rewire individual terminals and reducing the risk of wiring errors during the replacement.

Insert the replacement IC694MDL240 into the correct backplane slot, ensuring the module is fully seated and the locking tab is engaged. Reconnect the field wiring terminal block and verify that all 16 input channels are correctly mapped in the CPU configuration. Power the rack and confirm that the module’s RUN LED illuminates and that all expected input states are correctly reflected in the CPU’s I/O table. If any input channel shows an unexpected state, isolate the field device on that channel before returning the system to automatic operation. This systematic approach ensures that the replacement resolves the original fault without introducing new issues, and that the system is returned to full operational status with confidence.

For older Series 90-30 installations where the IC694MDL240 may be approaching end-of-life, SMARTNEXMSK maintains ongoing inventory to support long-term spare parts requirements. Our supply chain covers both new and refurbished units, all subject to the same pre-shipment functional testing and 12-month warranty coverage. This ensures that facilities running legacy GE automation systems can continue to source reliable replacement modules without being forced into premature system upgrades.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the IC694MDL240 supplied by SMARTNEXMSK?
All IC694MDL240 units are covered by a 12-month warranty from the date of shipment. Each unit undergoes functional testing under simulated field conditions before dispatch. The warranty covers manufacturing defects and functional failures under normal operating conditions. Units showing physical damage caused by incorrect installation or field overvoltage are evaluated on a case-by-case basis.

Q2: How do I confirm compatibility between the IC694MDL240 and my existing Series 90-30 CPU?
The IC694MDL240 is compatible with all standard Series 90-30 CPU modules, including the IC694CPU310, IC694CPU315, IC694CPU350, and IC694CPU360. Compatibility is determined by the backplane slot assignment and the I/O configuration stored in the CPU. No firmware upgrade is required for standard replacement. If your system uses a non-standard rack configuration or a third-party backplane adapter, please contact our technical team with your system’s hardware catalog for confirmation before ordering.

Q3: Can the IC694MDL240 be replaced without rewiring the field terminals?
Yes. The IC694MDL240 uses a removable field wiring terminal block that can be disconnected from the faulty module and reconnected to the replacement unit without disturbing individual wire terminations. This feature significantly reduces replacement time and eliminates the risk of wiring errors. Technicians should inspect the terminal block for oxidation or loose connections before transferring it to the replacement module.

Q4: Does SMARTNEXMSK maintain long-term stock of the IC694MDL240 for ongoing spare parts programs?
Yes. SMARTNEXMSK maintains dedicated inventory of the IC694MDL240 and other Series 90-30 spare modules to support long-term maintenance programs at facilities running legacy GE automation systems. We can accommodate both single-unit emergency orders and bulk procurement for planned spare parts replenishment. Contact our sales team to discuss volume pricing, lead times, and consignment stock arrangements for critical spare parts programs.
