GE IS200EDEXG1AFA Retrofit-Ready De-Excitation Board for Mark VI

GE IS200EDEXG1AFA Retrofit-Ready De-Excitation Board for Mark VI EX2100: Compatible Modernization & Smooth Legacy System Upgrade

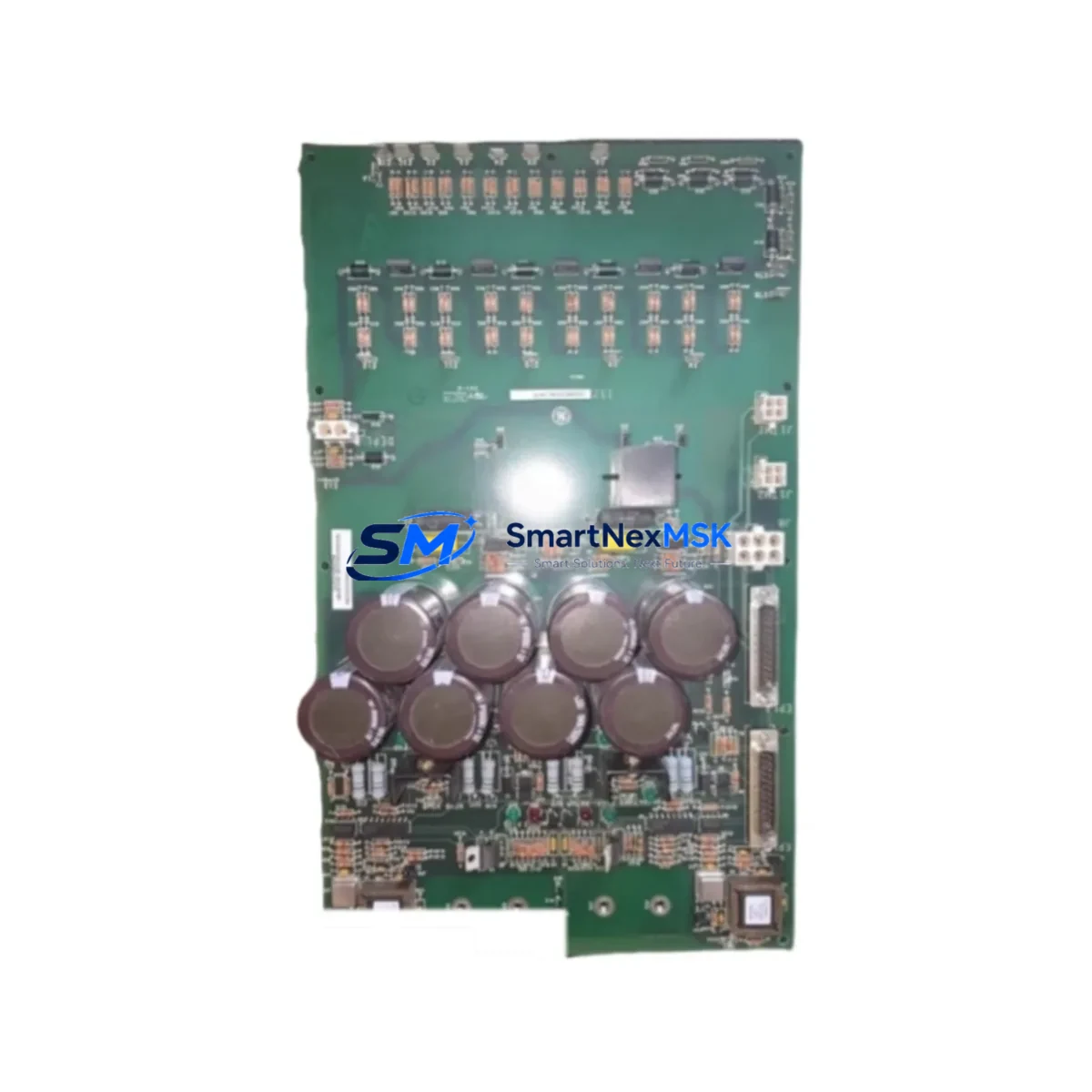

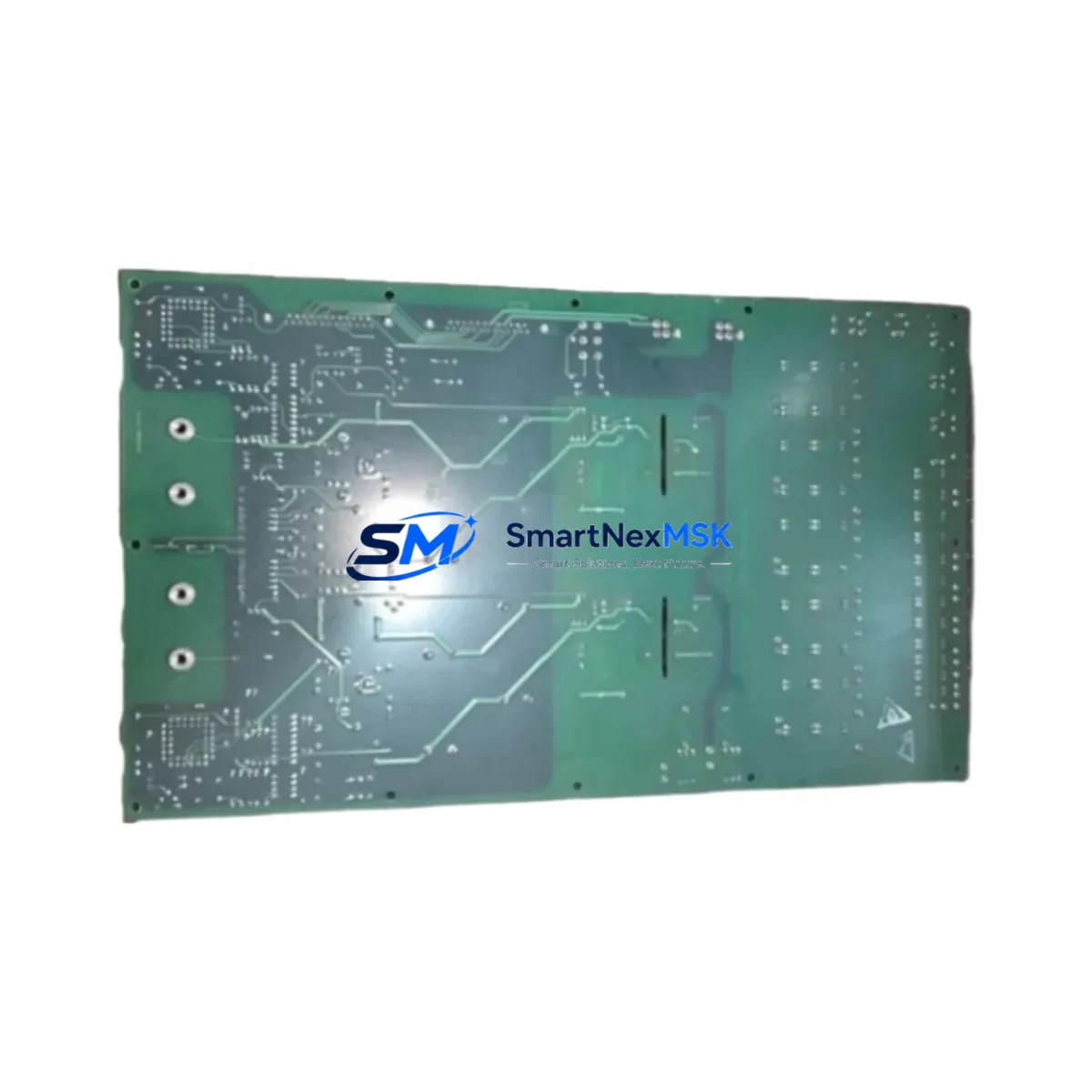

The GE IS200EDEXG1AFA is a de-excitation control board engineered for the Mark VI Excitation Control System (EX2100), widely deployed in gas turbine, steam turbine, and combined-cycle power generation facilities. As GE progressively phases out legacy Mark V and early Mark VI hardware, plant engineers and procurement teams face increasing pressure to source verified replacement boards that maintain full compatibility with existing backplane connectors, terminal wiring, and control logic. The IS200EDEXG1AFA addresses this challenge directly — it is a drop-in retrofit solution that preserves your existing program structure, HMI screen layouts, and field wiring without requiring a full system overhaul.

Whether you are replacing a failed board on an emergency basis, building a critical spare inventory, or executing a planned control cabinet upgrade, the IS200EDEXG1AFA delivers the reliability and compatibility that industrial operators demand. Each unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the IS200EDEXG1AFA into an operating Mark VI EX2100 system requires careful pre-installation planning. Before removing the failed board, engineers should document the existing module address assignment using GE’s ToolboxST configuration software. The EDEX board occupies a defined slot in the Mark VI R-type or S-type controller rack, and its address must be preserved in the replacement unit’s configuration to avoid I/O mapping conflicts.

Power budget verification is a critical first step. The IS200EPSCG1A or IS200EPSCG1B power supply modules feeding the rack must have sufficient headroom to support the replacement board. In aging installations, power supply modules may already be operating near capacity, particularly in racks that have been expanded with additional I/O boards such as the IS200VTURH1B turbine protection module or IS200DSPXH1D digital signal processing board. Confirm available wattage before proceeding.

Terminal wiring on the EDEX board connects to the excitation field circuit, AVR feedback signals, and de-excitation resistor bank. In most standard retrofit scenarios, existing field cables can be reconnected directly to the replacement board without modification. However, if the installation involves a transition from an older Mark V EXRPG or EXRSG excitation board to the Mark VI IS200EDEXG1AFA, terminal mapping differences must be reviewed against the site-specific wiring diagram.

Communication link integrity should be validated after board installation. The Mark VI IONet architecture connects the EDEX board to the main controller — typically the IS215UCVEH2A or IS215UCVEH2B Mark VI controller module — via the rack’s internal IONet switch. Confirm that the IONet segment remains healthy and that the replacement board is recognized by the controller within the expected scan cycle. If the system includes a GE HMI running Cimplicity or iFIX, verify that the excitation-related display screens are receiving live data from the new board before returning the unit to service.

For plants running parallel redundant excitation systems, the IS200EDEXG1AFA swap should be coordinated with the redundancy switchover procedure. Activate the standby excitation channel, confirm stable generator voltage regulation, then proceed with the board replacement on the primary channel. This approach eliminates unplanned excitation trips and protects generator field winding integrity during the maintenance window. Related components that may be involved in the same upgrade scope include the IS200EACFG1A AC feedback board, IS200EXHSG1A excitation hardware interface board, and IS200VSVOH1B voltage sensing module.

Downtime Control During System Migration

Minimizing downtime during an IS200EDEXG1AFA replacement requires a structured approach that protects the existing control program and maintains field control continuity. The following sequence is recommended for planned maintenance windows:

Step 1 — Pre-Outage Backup: Export the complete ToolboxST project from the Mark VI controller, including all application code, I/O configuration, and alarm setpoints. Store the backup on an isolated engineering workstation. If the site uses a GE Mark VI programming cable (IC693CBL316 or equivalent) for direct serial access, confirm cable availability before the outage begins.

Step 2 — Controlled De-energization: Follow the site-specific excitation shutdown procedure. Initiate a controlled de-excitation sequence through the EX2100 operator panel or HMI, confirm field current has decayed to zero, then isolate the excitation cabinet. Do not remove the IS200EDEXG1AFA board while the rack is energized.

Step 3 — Board Swap and Address Verification: Remove the failed board, insert the replacement IS200EDEXG1AFA, and confirm the module address DIP switch or jumper setting matches the original configuration. Reconnect all field wiring terminals in the original sequence.

Step 4 — Re-energization and Functional Test: Power up the rack and observe the Mark VI controller’s diagnostic display. Confirm the EDEX board is recognized without fault codes. Use ToolboxST to verify I/O point mapping and confirm that AVR setpoints, de-excitation trip thresholds, and field forcing limits are correctly loaded from the saved configuration.

Step 5 — Return to Service: Perform a supervised excitation build-up test, confirm stable terminal voltage regulation, and verify de-excitation trip function before releasing the unit to normal operation. Total planned downtime for a straightforward board swap typically ranges from 2 to 6 hours depending on site access conditions and pre-outage preparation quality.

Retrofit Support FAQ

Q1: Is the IS200EDEXG1AFA a direct drop-in replacement for the original GE board?
Yes. The IS200EDEXG1AFA is designed as a form-fit-function replacement for the original OEM board. It uses the same backplane connector, the same terminal block layout, and is compatible with the Mark VI EX2100 controller’s I/O scan architecture. In the majority of retrofit cases, no wiring modifications or firmware changes are required. Module address configuration via ToolboxST is the primary commissioning step.

Q2: What commissioning steps are required after installing the replacement board?
After physical installation, connect to the Mark VI controller via ToolboxST and confirm the board is recognized in the I/O tree. Verify that the module address matches the original assignment. Check AVR loop parameters, de-excitation trip setpoints, and field forcing limits against the pre-outage backup. Perform a supervised excitation build-up and confirm stable voltage regulation before returning to service. If the HMI is running Cimplicity, verify that excitation-related faceplates are receiving live data.

Q3: How is the board tested before shipment?
Each IS200EDEXG1AFA unit undergoes pre-shipment functional testing to verify board-level power integrity, communication interface operation, and I/O channel continuity. Units that fail any test parameter are quarantined and not shipped. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and operational failures under normal service conditions. Warranty claims are supported by our technical team with replacement dispatch within standard lead times.

Q4: Can this board be used to replace an older Mark V excitation board?
The IS200EDEXG1AFA is specifically designed for the Mark VI EX2100 platform and is not a direct plug-in replacement for Mark V EXRPG or EXRSG excitation boards, which use a different backplane architecture and wiring convention. However, it is commonly used as the target board in Mark V-to-Mark VI excitation system upgrades. In such migration projects, the full excitation cabinet — including the controller rack, power supply, and I/O boards — is typically replaced as a system. Our team can provide compatibility guidance for cross-generation migration projects upon request.
