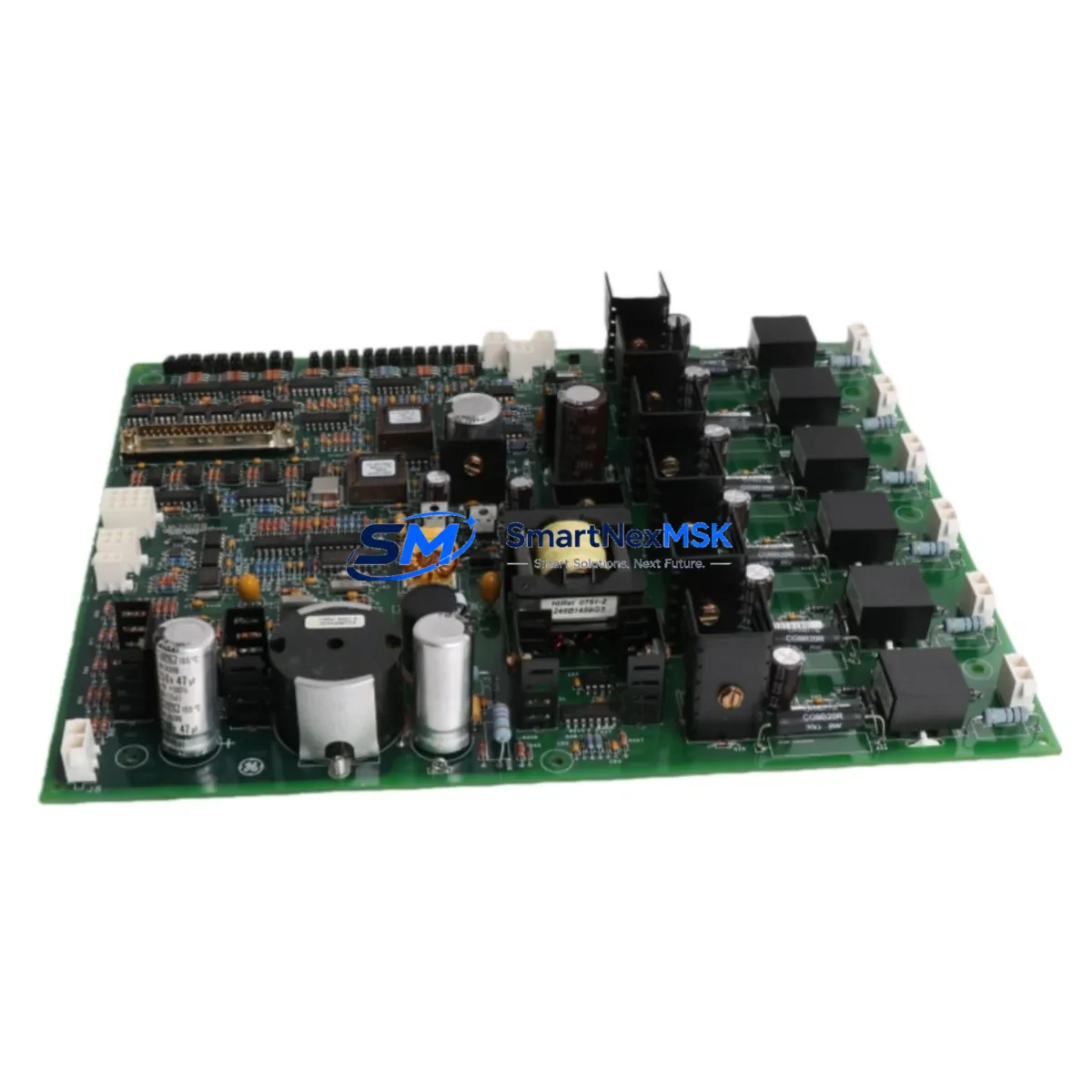

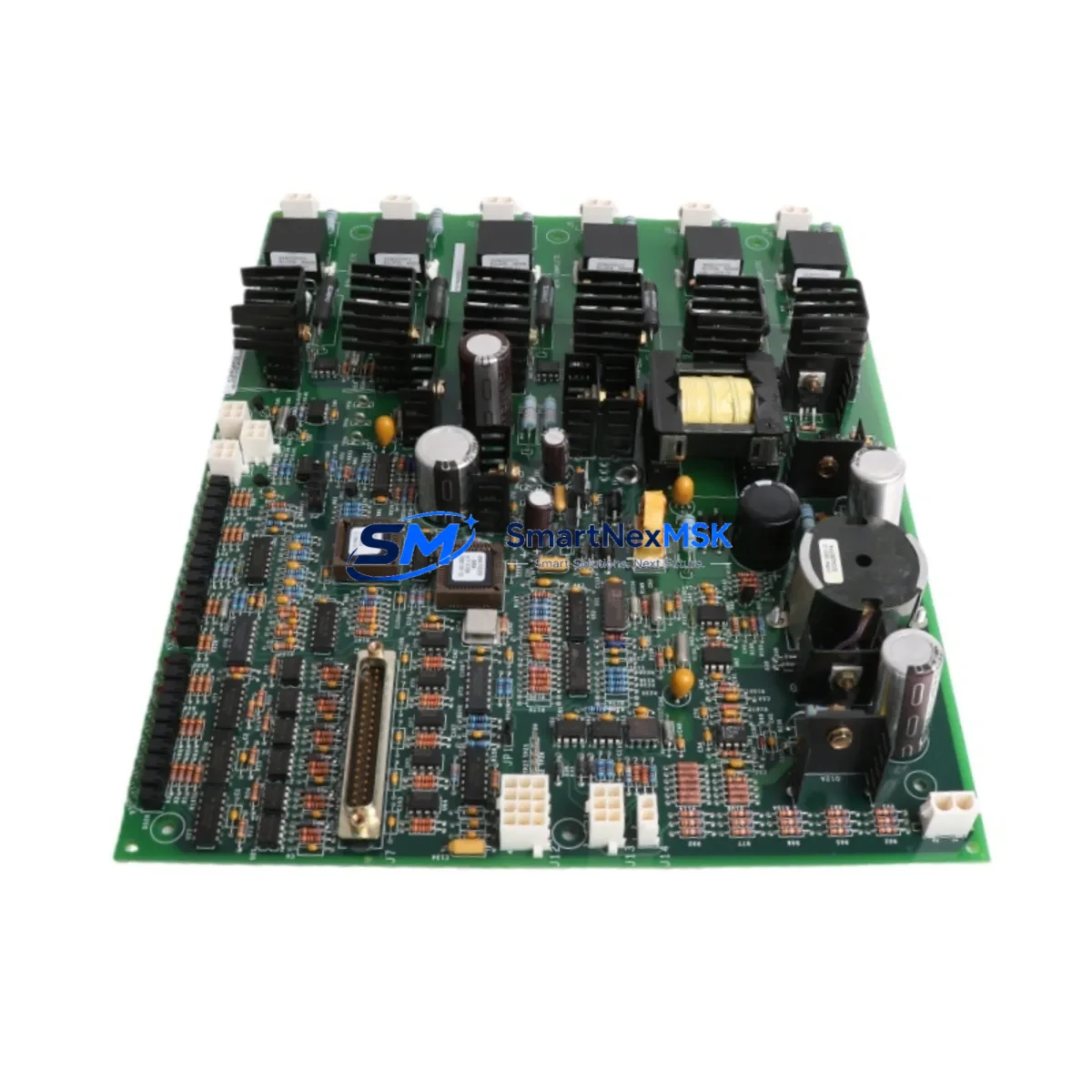

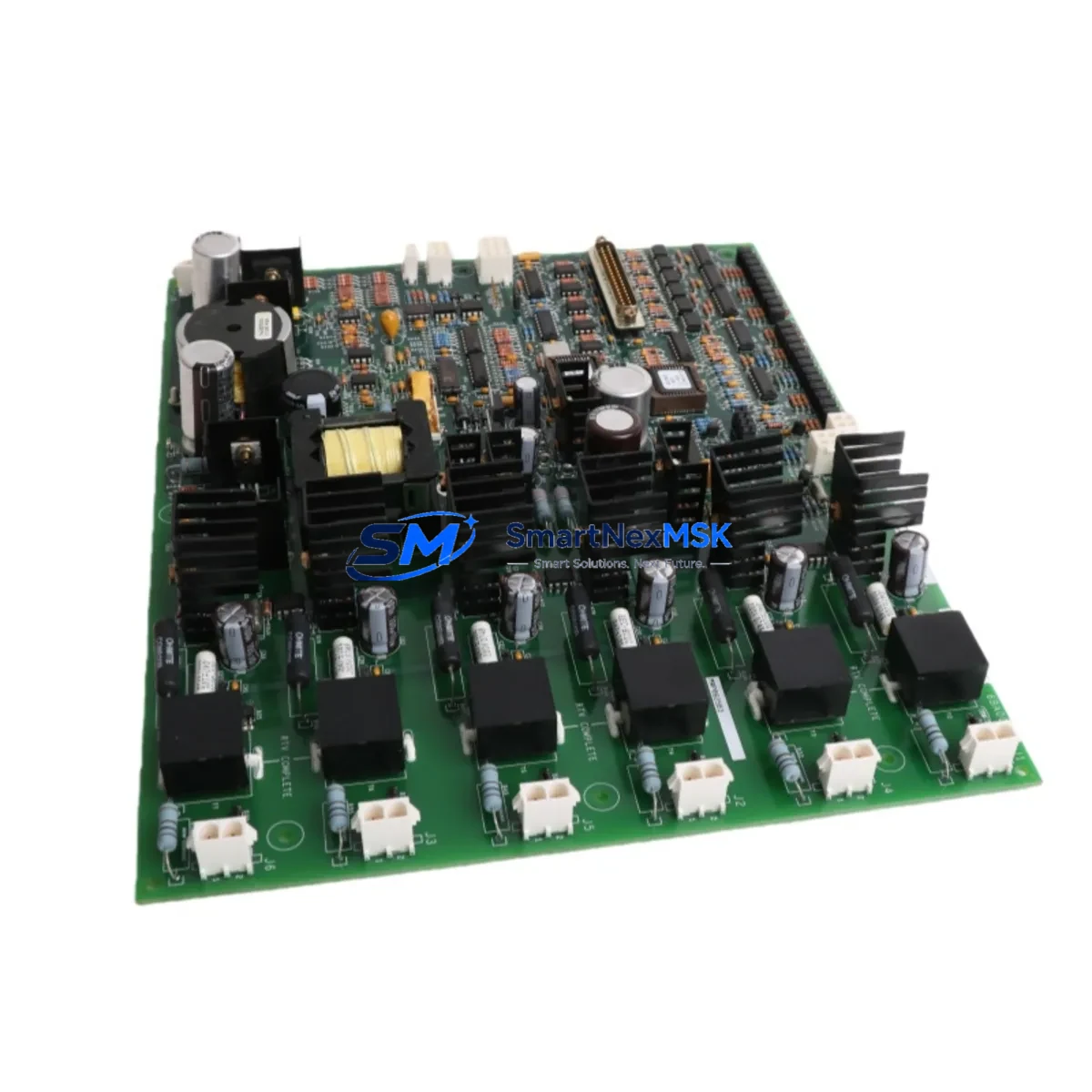

The GE IS200EHPAG1DAB is an original exciter gate pulse amplifier board designed for GE Mark VI and EX2100 exciter control systems deployed across gas turbine, steam turbine, and generator applications in power generation and heavy industrial facilities. For maintenance engineers managing aging turbine control infrastructure, sourcing a verified IS200EHPAG1DAB spare is a critical step in reducing unplanned downtime and sustaining generator excitation performance. This board governs the gate pulse signals that drive the thyristor firing sequence in the EX2100 exciter bridge — a function that, when degraded, can cause excitation instability, reactive power loss, or full generator trip.

At SMARTNEXMSK, every IS200EHPAG1DAB unit is sourced from original GE production runs, inspected against factory electrical specifications, and subjected to functional testing prior to dispatch. Each unit ships with a 12-month warranty and full traceability documentation, supporting both planned maintenance cycles and emergency replacement scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the IS200EHPAG1DAB in a Mark VI or EX2100 exciter panel, a thorough maintenance inspection of the surrounding electrical circuit is essential to prevent repeat failures and confirm system integrity before returning the generator to service.

Begin with the IS200EPSMG1A exciter power supply module, which provides the regulated DC rails feeding the gate pulse amplifier board. A degraded power supply is a common root cause of amplifier board failure and must be verified before installing the replacement IS200EHPAG1DAB. Similarly, inspect the IS200EACFG1A AC feedback board, which processes voltage and current feedback signals from the generator field — any drift or fault in this board can stress the gate pulse amplifier under load.

Check the IS200ECTBG1A exciter control terminal board for loose wiring, corroded terminals, or damaged ribbon connectors that interface with the amplifier board via the backplane. Terminal board integrity is critical for reliable gate pulse signal transmission. The IS200ESELG1A exciter selector board should also be inspected if the system operates in a redundant exciter configuration, as selector logic faults can mask amplifier board issues during diagnostics.

For the broader Mark VI control cabinet, verify the condition of the IS200VCRCH1B VME controller chassis and its backplane connectors, as backplane pin wear is a known failure mode in long-service Mark VI installations. The IS200TTURH1CBB turbine control I/O board and associated IS200TREGH1A regulation board should be checked for alarm history that may indicate upstream excitation disturbances prior to the amplifier board fault.

On the power distribution side, inspect the 125 VDC control power fuses and circuit breakers feeding the exciter panel, and verify that the IS200EPSMG1A output voltages are within tolerance using a calibrated multimeter. If the site uses a GE EX2100e digital exciter platform, confirm that the firmware version on the exciter controller is compatible with the replacement board revision.

For sites with aging Mark VI installations approaching end-of-support, maintaining a structured spare parts inventory that includes the IS200EHPAG1DAB alongside companion boards such as the IS200EACFG1A, IS200ECTBG1A, and IS200EPSMG1A is a proven strategy for extending system life and avoiding costly emergency procurement during unplanned outages.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Follow site LOTO procedures to isolate the exciter panel. Confirm 125 VDC control power is removed from the Mark VI chassis before handling any boards.

Step 2 — Document existing configuration: Photograph the installed IS200EHPAG1DAB board position, connector orientation, and any jumper or DIP switch settings. Record the board revision label for compatibility verification against the replacement unit.

Step 3 — Remove the faulty board: Carefully extract the board from the VME backplane slot, avoiding stress on the edge connector. Inspect the backplane pins for damage or oxidation before inserting the replacement.

Step 4 — Install the IS200EHPAG1DAB replacement: Seat the board firmly into the correct backplane slot. Confirm all ribbon cable and connector attachments match the original configuration documented in Step 2.

Step 5 — Power-up and functional verification: Restore control power and monitor the Mark VI HMI for exciter fault alarms. Perform a no-load excitation test to verify gate pulse output and confirm thyristor firing sequence is operating correctly before returning the generator to grid synchronization.

Step 6 — Update maintenance records: Log the replacement date, board serial number, and test results in the site CMMS. Schedule a follow-up inspection of the exciter panel at the next planned outage interval.

This workflow is applicable to both like-for-like IS200EHPAG1DAB replacements and cross-revision substitutions where the replacement board revision has been confirmed compatible by GE documentation or engineering review.

Spare Parts Support FAQ

Q1: What is the shelf life and storage requirement for the IS200EHPAG1DAB spare?
When stored in anti-static packaging in a climate-controlled environment (15–25°C, <60% RH), the IS200EHPAG1DAB has an effective shelf life of 5–7 years. For long-term spare parts inventory programs, annual visual inspection of stored boards is recommended to check for oxidation or physical damage.

Q2: How do I verify compatibility between different IS200EHPAG1DAB board revisions?
GE Mark VI boards use revision suffixes (e.g., G1DAB, G1AAB) that indicate hardware revisions. In most cases, later revisions are backward compatible within the same Mark VI system generation, but compatibility should be confirmed against the site’s Mark VI system configuration document or GE service bulletin before installation. Contact our technical team with your system serial number for pre-shipment compatibility verification.

Q3: What pre-shipment testing is performed on each IS200EHPAG1DAB unit?
Each unit undergoes visual inspection, board-level continuity testing, and functional verification of gate pulse output circuits prior to dispatch. Units that do not meet original GE electrical specifications are rejected. A test report is available upon request for quality-critical applications.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions consistent with GE Mark VI system specifications. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, fault description, and site installation date. Replacement units are dispatched upon receipt and inspection of the returned board.
