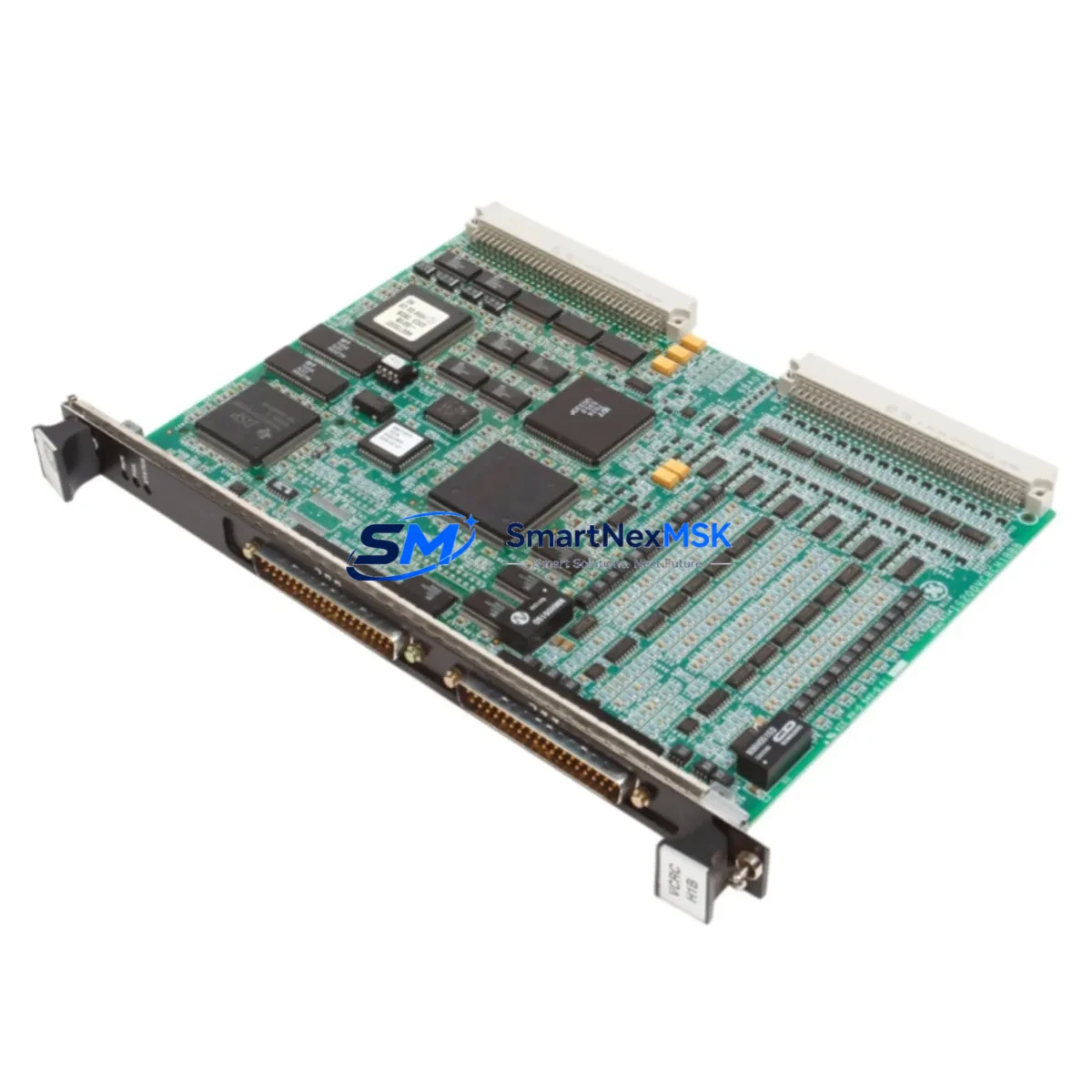

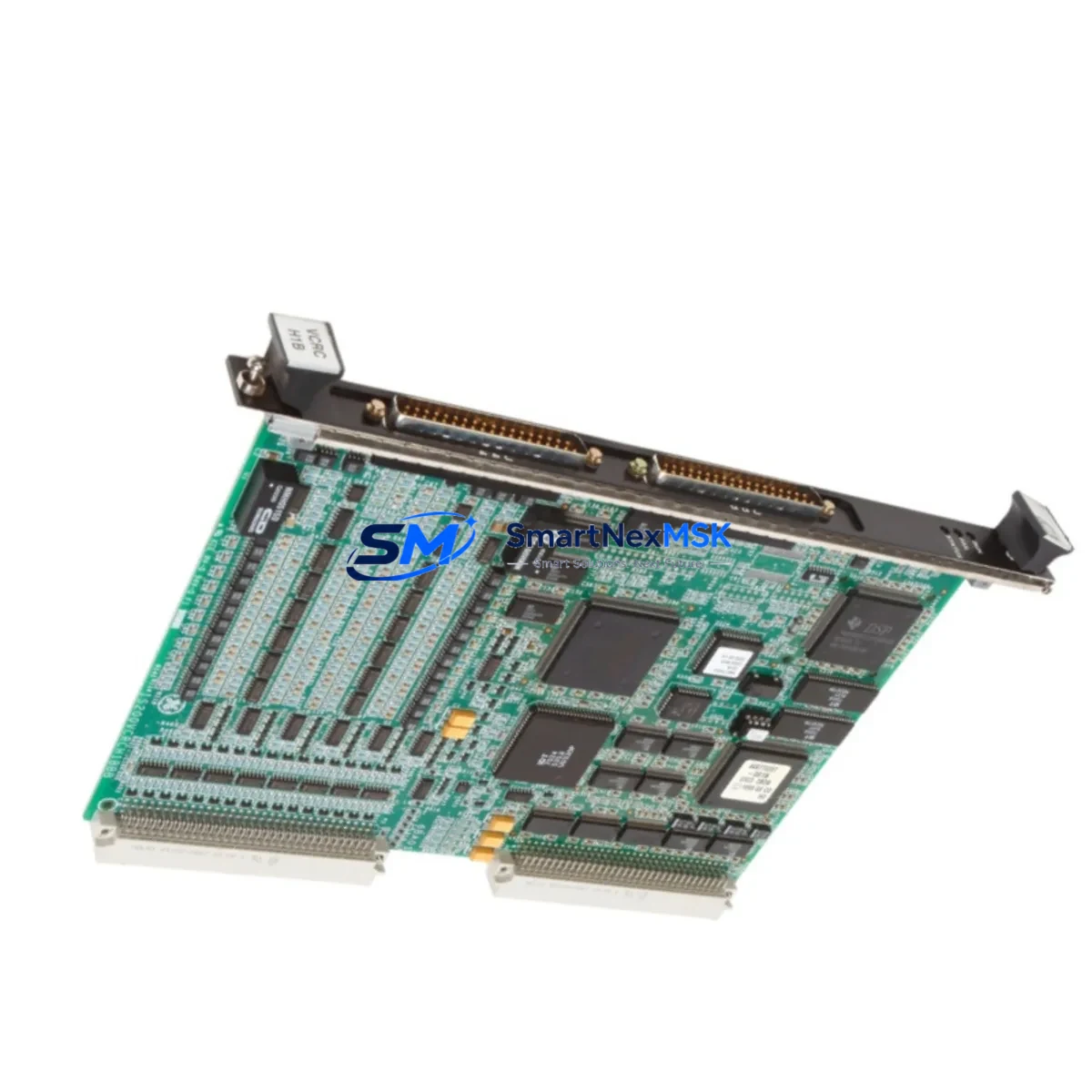

GE IS200SHRAH2A Retrofit-Ready HART Analog I/O for Mark VI Control Systems
The GE IS200SHRAH2A is a HART-enabled Analog I/O board engineered for the GE Mark VI turbine control platform. As legacy Mark VI installations approach end-of-life and OEM support windows close, the IS200SHRAH2A has become one of the most sought-after retrofit components for power generation facilities, compressor stations, and industrial turbine operators seeking to extend operational life without a full DCS migration. This board provides direct compatibility with the Mark VI VME-based backplane architecture, preserving existing I/O wiring, terminal block assignments, and HART field device communication — making it the preferred choice for brownfield upgrade projects where minimizing rewiring and reprogramming effort is critical.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | GE Mark VI Turbine Control System |
| Backplane Interface | VME-standard, direct slot replacement |
| Communication Protocol | HART (Highway Addressable Remote Transducer) |
| I/O Type | Analog Input / Output (mixed channel configuration) |
| Terminal Wiring | Compatible with existing IS200 series terminal boards (e.g. IS200TBCIH2C) |
| Installation Requirement | No backplane modification required; direct board swap |
| Replacement Recommendation | Verify firmware revision and IONET address before swap |
| Commissioning Note | Re-download I/O configuration via ToolboxST after installation |
| Warranty | 12 Months — covers functional defects under normal operating conditions |
Retrofit Planning for Existing Automation Systems
Successful IS200SHRAH2A retrofits begin well before the board arrives on site. Engineers must audit the existing Mark VI rack configuration, confirming available VME slot positions within the IS215 series controller chassis and verifying that the IS200BIOH1A or equivalent I/O termination board is present and undamaged. Power supply capacity is a critical pre-check: the IS200EPSMG1A power supply module must be confirmed to deliver adequate rail voltage under the expanded I/O load introduced by HART polling cycles.
Terminal block wiring should be documented against the existing loop drawings before any board removal. The IS200SHRAH2A shares the same 37-pin D-sub connector footprint as earlier SHRAH revisions, but engineers should verify field wiring polarity and shield grounding against the updated IS200 series wiring diagrams. Where HART field devices — such as smart transmitters or positioners — are connected, the HART modem integration within the board must be validated using a HART communicator or AMS Device Manager before the system is returned to service.
For sites running ToolboxST as the engineering workstation, the I/O module configuration file must be exported from the existing controller, updated to reflect the new board revision, and re-downloaded after installation. Any IS200STCIH2A or IS200VCMIH2C communication modules in the same rack should be checked for firmware compatibility, as mixed firmware environments can cause IONET communication faults that delay commissioning. HMI screens built on Cimplicity or third-party SCADA platforms should be reviewed to confirm that analog tag scaling, engineering unit conversions, and alarm setpoints remain valid after the board swap — particularly where HART secondary variables are mapped to display points.
Where the retrofit involves migrating from an older IS200SHRAH1A revision, engineers should note that channel count and HART burst mode behavior may differ slightly between hardware revisions. A bench test using a HART loop calibrator is recommended before field installation. All replaced boards should be retained for at least 30 days post-commissioning as a fallback option in the event of unexpected system behavior.
Downtime Control During System Migration
Minimizing turbine or compressor downtime during an IS200SHRAH2A swap requires a structured hot-swap or planned outage strategy. For non-redundant Mark VI configurations, a planned maintenance window of 4–8 hours is typical, covering board removal, installation, ToolboxST download, HART device re-polling, and analog loop verification. For redundant TMR (Triple Modular Redundant) Mark VI systems, the IS200SHRAH2A can often be replaced in one redundant leg while the remaining legs maintain control — provided the system is confirmed healthy and the site’s safety procedures permit single-leg maintenance.
Prior to the outage window, engineers should pre-stage the replacement board, verify its revision label against the purchase documentation, and confirm that the IS200EPSMG1A power supply is de-energized before board extraction. After installation, the analog output channels should be verified in manual mode before returning the controller to automatic, preventing unexpected actuator movement during the HART re-initialization sequence. Loop checks on all connected field instruments — including control valves, flow transmitters, and pressure sensors — should be completed and signed off before the turbine or process unit is restarted.
Maintaining a spare IS200SHRAH2A in site inventory is strongly recommended for facilities where unplanned board failures would result in forced outages. Given the discontinuation of direct OEM supply for many Mark VI components, third-party stocking partners with verified test and inspection programs provide the most reliable source for emergency replacement units.
Retrofit Support FAQ
Q1: Is the IS200SHRAH2A a direct drop-in replacement for the IS200SHRAH1A?
In most cases, yes. Both boards share the same VME slot footprint and terminal board interface. However, engineers should verify the HART firmware revision and confirm that the ToolboxST I/O configuration file is updated to reference the correct hardware revision before downloading to the controller.
Q2: What commissioning steps are required after installation?
After physical installation, re-download the I/O configuration via ToolboxST, re-poll all HART field devices, verify analog input/output scaling against loop calibration records, and confirm that all SCADA or HMI tag values are reading correctly before returning the system to automatic control.
Q3: How is wiring compatibility confirmed before ordering?
Cross-reference the existing terminal board part number (typically IS200TBCIH2C or equivalent) against the IS200SHRAH2A wiring diagram. If the terminal board and D-sub connector pinout match, no rewiring is required. Our technical team can assist with wiring compatibility verification prior to order placement.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers functional defects in the board under normal operating conditions, including analog channel accuracy, HART communication integrity, and backplane interface reliability. Each unit undergoes functional testing prior to shipment. Warranty claims are supported with direct technical assistance and expedited replacement where required.
