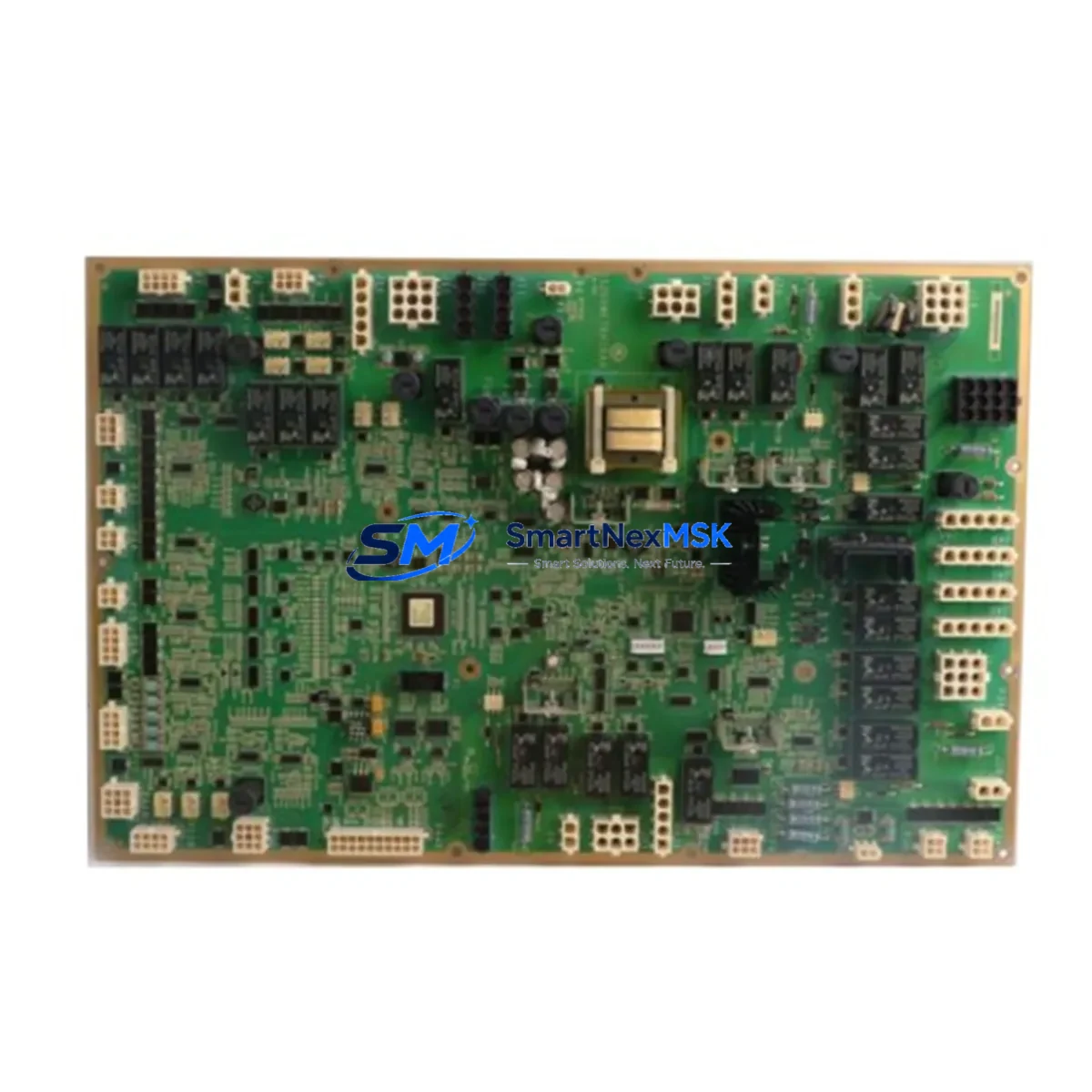

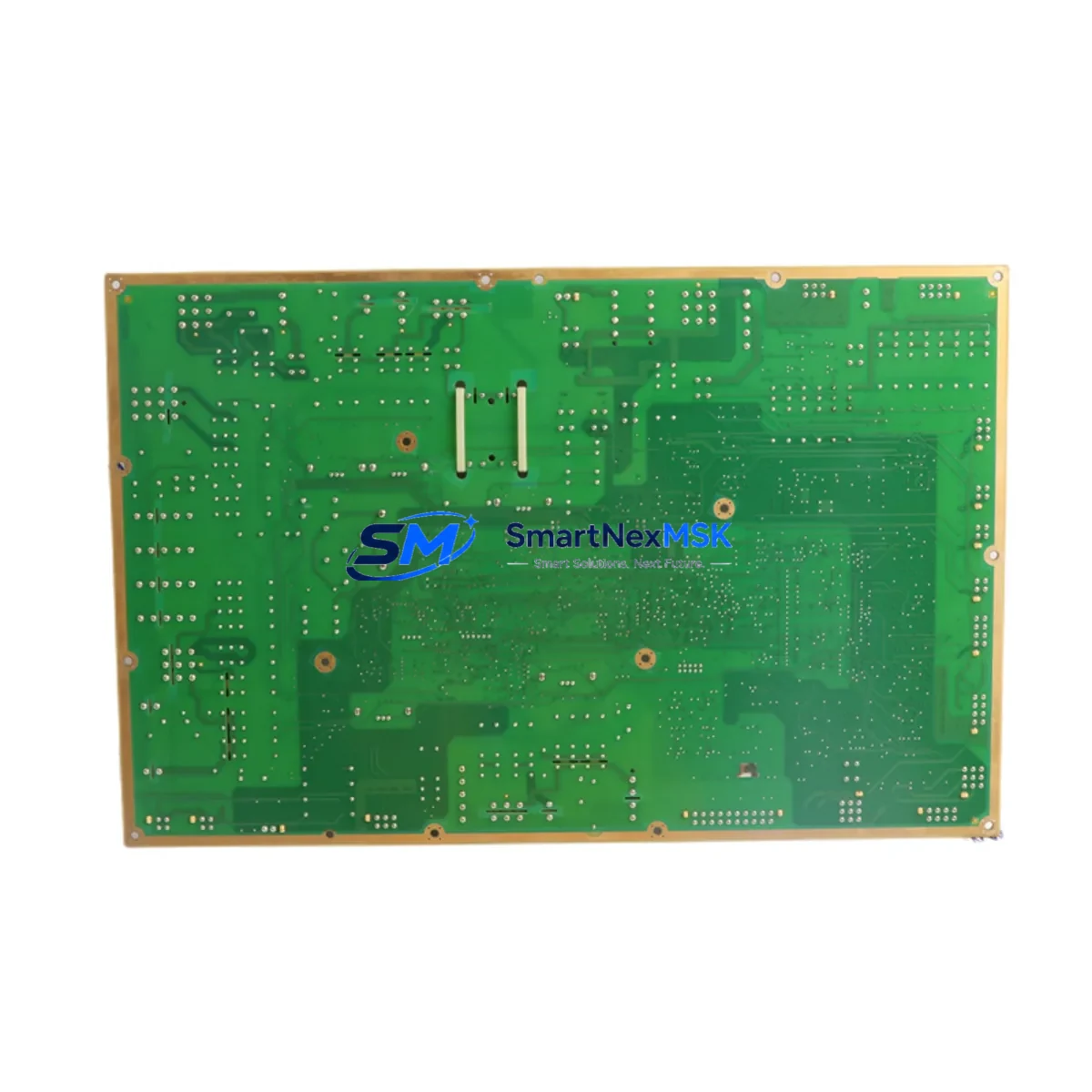

GE IS200WETBH1BAA Retrofit-Ready Ethernet Board for Mark VI

GE IS200WETBH1BAA Retrofit-Ready Ethernet Board for Mark VI: Compatible Upgrade for Legacy Turbine Control Systems

The GE IS200WETBH1BAA is a WAN/Ethernet Terminal Board (WETB) designed for use within the GE Mark VI turbine control platform — one of the most widely deployed distributed control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. As the Mark VI platform ages and OEM support windows narrow, the IS200WETBH1BAA has become a critical retrofit component for facilities seeking to extend system life, restore network communication capability, or execute a phased migration to newer control infrastructure without full system replacement.

This board manages Ethernet and WAN-layer communications within the Mark VI control cabinet, interfacing directly with the UCSC controller card and the broader I/O network. When the IS200WETBH1BAA fails or becomes unavailable through standard OEM channels, the downstream impact is immediate: loss of HMI connectivity, disruption to SCADA data acquisition, and potential shutdown of turbine supervisory functions. Sourcing a verified replacement unit — tested, serialized, and backed by a 12-month warranty — is the fastest path to restoring full system operability.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IS200WETBH1BAA within an operational Mark VI control cabinet requires careful pre-work to avoid extended downtime. The Mark VI platform is typically configured with a UCSC controller card as the central processing unit, supported by a suite of I/O terminal boards mounted on a shared VME backplane. The WETB board occupies a dedicated slot and must be addressed correctly within the ToolboxST configuration environment — failure to reassign the module address after board swap will result in communication faults and controller alarms.

Before pulling the failed board, engineers should document the existing Ethernet configuration: IP address, subnet mask, default gateway, and any VLAN assignments used for IONET communication. In systems where the Mark VI communicates with a GE Cimplicity HMI or third-party SCADA via OPC, the network topology must be preserved exactly to avoid re-engineering the HMI tag database or communication driver configuration.

Power supply integrity is a prerequisite for any board-level retrofit. The Mark VI cabinet typically draws from a IS200EPBAG1A or IS200EPBAG1B power supply board, and any degradation in the 28VDC or 5VDC rails can cause intermittent faults on newly installed boards. Verify rail voltages at the backplane connector before inserting the replacement IS200WETBH1BAA.

Terminal wiring on the WETB board is generally limited to Ethernet patch connections rather than field wiring, but the adjacent IS200TBCIH1C terminal board or similar I/O terminal boards in the same rack may require inspection if the original fault was caused by a broader power or communication event. In multi-rack configurations, the IS200BICLH1B inter-cabinet link board should also be checked to confirm that the communication fault is isolated to the WETB and has not propagated across the rack interconnect.

For facilities running mixed Mark V and Mark VI infrastructure — a common scenario in phased upgrade projects — the IS200WETBH1BAA plays a bridging role in maintaining Ethernet connectivity while older Mark V TCCA or TCCB controller cards are progressively decommissioned. In these environments, protocol migration from the legacy ARCNET-based Mark V network to the Ethernet-based Mark VI IONET is managed at the WETB layer, making the board’s correct configuration essential to the migration timeline.

I/O expansion during the same retrofit window is a common efficiency measure. If the project scope includes adding discrete or analog I/O, the IS200VTURH1BDD turbine I/O board or IS200AEPAH1B analog I/O board can be installed in adjacent slots during the same planned outage, reducing future downtime exposure. Programming cable access via the IS200UCVEH2A or IS200UCVEH2B UCVE controller should be confirmed before the outage window to ensure ToolboxST can connect and push configuration changes without delay.

Downtime Control During System Migration

Minimizing turbine control downtime during a board-level retrofit requires a structured pre-outage checklist and a clear rollback plan. The following approach is recommended for IS200WETBH1BAA replacement in live Mark VI installations:

Pre-Outage Preparation: Export the full ToolboxST project backup, including all controller configurations, I/O maps, and network settings. Capture a screenshot or export of the HMI tag database and any active alarm configurations linked to the WETB communication path. Confirm that the replacement IS200WETBH1BAA hardware revision matches the installed unit — the H1BAA suffix denotes a specific hardware build level, and mismatched revisions can cause firmware incompatibility.

During the Outage: Power down the affected rack section following the Mark VI shutdown sequence. Remove the failed board, insert the replacement, and secure the VME backplane connector. Re-apply power and observe the controller boot sequence via the local operator panel or ToolboxST diagnostic view. Assign the correct module address and push the saved configuration. Validate Ethernet link status LEDs on the IS200WETBH1BAA before proceeding to HMI reconnection.

Post-Restoration Validation: Confirm HMI connectivity and verify that all turbine supervisory tags are updating correctly. Run a communication loop test between the WETB and the UCSC controller to confirm IONET integrity. If the system includes redundant communication paths, verify failover behavior by simulating a link fault on the primary Ethernet port. Document the completed swap in the site maintenance log and retain the outgoing test certificate supplied with the replacement unit.

With proper preparation, IS200WETBH1BAA replacement can typically be completed within a two-to-four hour planned outage window, preserving the original program logic and HMI configuration without requiring re-engineering.

Retrofit Support FAQ

Q: Is the IS200WETBH1BAA a direct drop-in replacement for the original GE part?
A: Yes, provided the hardware revision suffix (H1BAA) matches the installed unit. The board occupies the same VME backplane slot and uses the same Ethernet interface. Post-installation, the module address must be reassigned in ToolboxST and network parameters (IP, subnet, gateway) must be re-entered to match the original configuration. No wiring changes are required for standard IONET Ethernet connections.

Q: What commissioning steps are required after installing the replacement board?
A: After physical installation and power-up, connect to the Mark VI controller via ToolboxST and verify that the WETB module is recognized at the correct slot address. Re-enter the Ethernet network configuration and confirm link status. Validate HMI communication by checking that all supervisory tags are updating. Run a full I/O diagnostic scan to confirm no secondary faults were introduced during the swap. The entire commissioning sequence typically takes 30–90 minutes for an experienced controls engineer.

Q: Can the IS200WETBH1BAA be used in a Mark VI system that also includes older Mark V components?
A: The IS200WETBH1BAA is a Mark VI-native board and operates within the Mark VI IONET Ethernet architecture. In hybrid Mark V / Mark VI installations, the WETB handles the Ethernet segment of the network while legacy Mark V ARCNET communication is managed by separate interface hardware. The two systems can coexist during a phased migration, but the IS200WETBH1BAA itself does not directly interface with Mark V ARCNET topology.

Q: What does the 12-month warranty cover, and is outgoing testing included?
A: Every IS200WETBH1BAA unit is functionally bench-tested prior to shipment to verify Ethernet interface operation, backplane connector integrity, and board-level power regulation. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. A test certificate is available upon request for quality documentation purposes.
