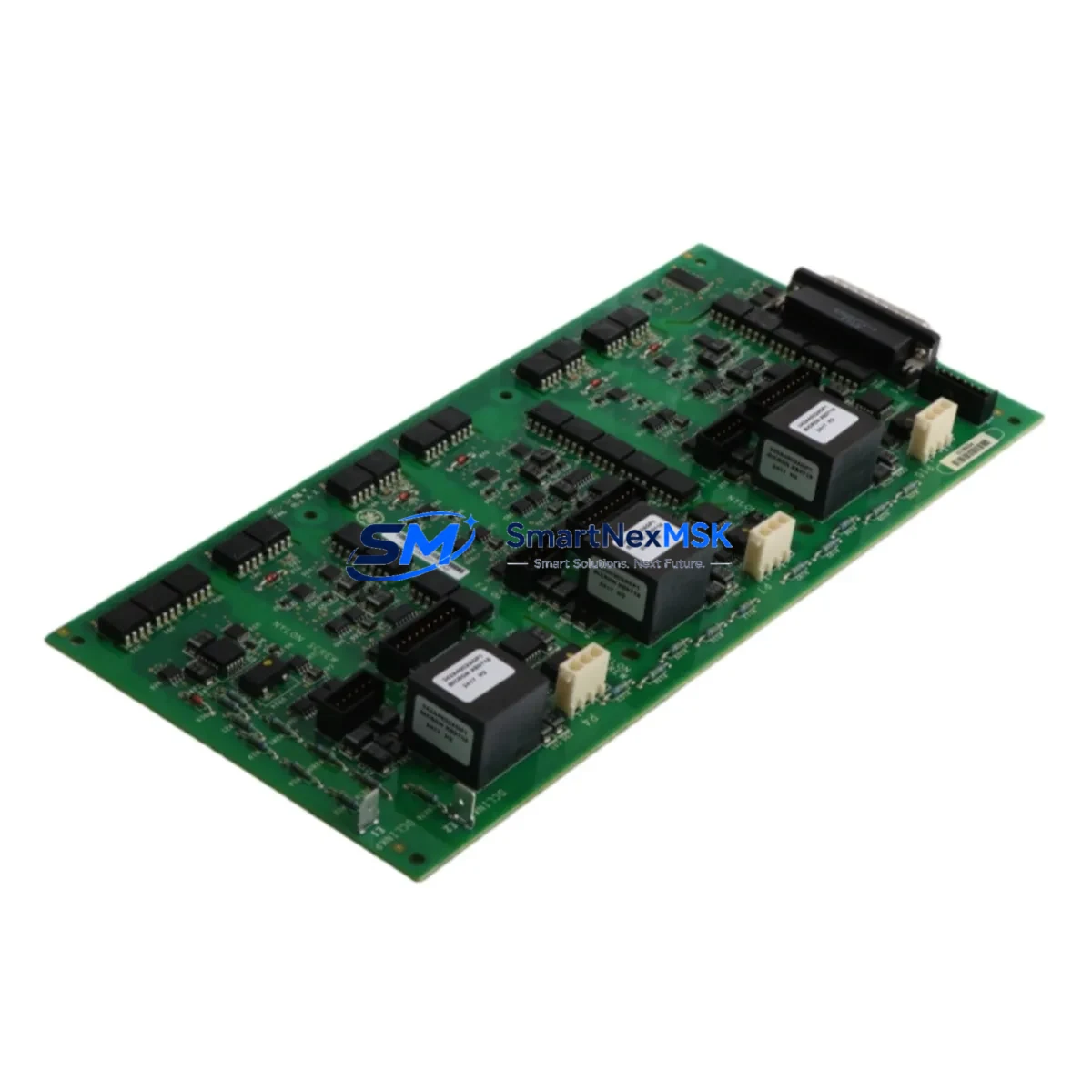

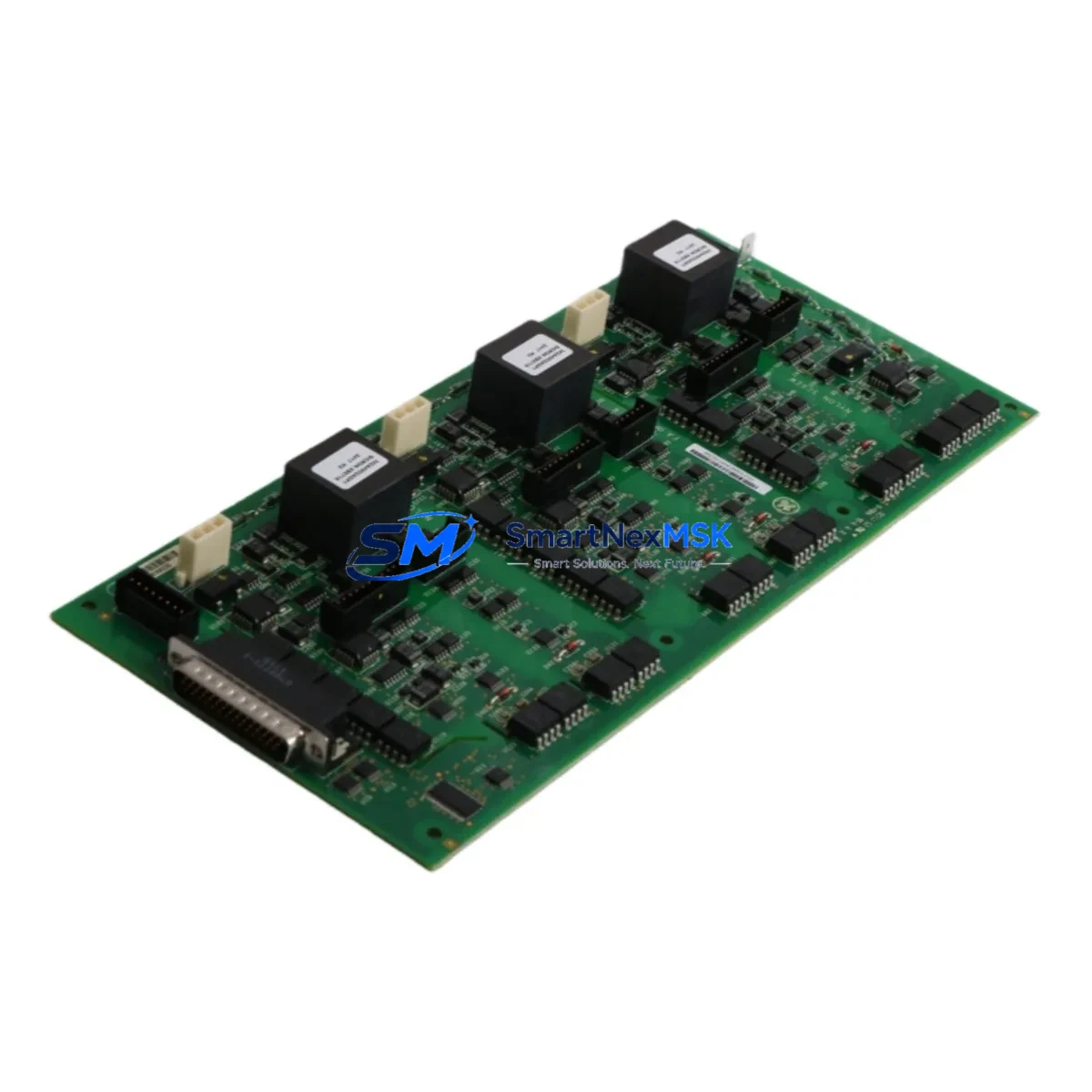

GE IS210AEBIH1BEA Retrofit-Ready Interface Board for Mark VI

GE IS210AEBIH1BEA Retrofit-Ready Interface Board for Mark VI Control Systems

The GE IS210AEBIH1BEA is a high-reliability interface board engineered for the GE Mark VI turbine control platform — one of the most widely deployed distributed control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. As legacy Mark VI installations approach end-of-life and OEM support windows close, the IS210AEBIH1BEA has become a critical retrofit component for engineers tasked with extending system life, restoring failed control loops, and executing controlled migrations to modern automation infrastructure.

Whether you are replacing a failed board in an emergency shutdown scenario, sourcing a verified spare for a planned outage, or executing a phased upgrade from an aging Mark V or early Mark VI configuration, the IS210AEBIH1BEA delivers the electrical compatibility, backplane interface integrity, and firmware alignment required for a smooth, low-risk installation. Our inventory is sourced from controlled supply chains, subjected to pre-shipment functional testing, and backed by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IS210AEBIH1BEA retrofit begins well before the board arrives on site. Engineers should pull the existing rack layout drawing and confirm the slot position, backplane revision, and power rail loading. The IS200EPSMG1A power supply module feeding the affected rack must be verified for available headroom — adding a replacement interface board to an already-loaded rack without checking PSU capacity is a common cause of post-retrofit instability.

Terminal wiring is the next critical checkpoint. The IS210AEBIH1BEA interfaces with field I/O through terminal boards such as the IS200TBCIH1C or IS200TBCIH1D. Before disconnecting any wiring, photograph or document every terminal connection and cross-reference against the as-built wiring diagram. Mislabeled or undocumented field modifications are frequently discovered at this stage and must be resolved before the new board is seated.

For sites running ARCNET as the primary I/O network, confirm that the replacement board’s ARCNET node address is correctly set via DIP switches or jumper configuration — duplicate node addresses will cause communication faults across the entire I/O network, affecting unrelated modules including IS210AEBIH1BEA peers, IS200VTURH1BEA turbine I/O boards, and IS210VCMIH1BEA communication interface modules. Sites that have migrated or are migrating to IONet (Ethernet-based I/O) should verify that the replacement board’s firmware revision supports the active IONet protocol version configured in the Mark VI controller.

HMI integration is often overlooked during board-level replacements. If the failed IS210AEBIH1BEA was mapped to specific tags in the Cimplicity HMI or a third-party SCADA system via OPC, verify that tag names, I/O addresses, and alarm thresholds are preserved in the Mark VI Configurator download before returning the unit to service. A mismatch between the controller I/O map and the HMI tag database will result in silent data loss or spurious alarms that are difficult to diagnose under production pressure.

For sites executing a broader migration from Mark V to Mark VI, the IS210AEBIH1BEA is typically part of a larger bill of materials that includes the IS200DSPXH1DBB digital signal processor board, IS200TREGH1BBA turbine regulation board, and updated IS200BICLH1ABB I/O link communication boards. Planning the full rack population before ordering individual modules avoids the common problem of receiving mismatched firmware revisions across a mixed-revision rack.

Downtime Control During System Migration

Minimizing unplanned downtime during a Mark VI interface board replacement requires a structured pre-outage preparation protocol. The most effective approach is to pre-configure and bench-test the IS210AEBIH1BEA in a staging environment — using a spare rack or a portable Mark VI test bench — before the scheduled maintenance window. This allows the engineering team to validate firmware compatibility, confirm I/O mapping, and resolve any address conflicts without consuming production downtime.

During the outage window, the recommended sequence is: (1) export and archive the current Mark VI Configurator project file as a timestamped backup; (2) de-energize the affected rack following site lockout/tagout procedures; (3) remove the failed board and seat the IS210AEBIH1BEA, confirming backplane connector engagement; (4) re-energize the rack and observe diagnostic LEDs for fault codes before downloading the controller configuration; (5) perform a controlled download from the Mark VI Configurator and verify I/O status in the diagnostic display; (6) confirm HMI tag binding and alarm status before releasing the unit to operations.

For triple-redundant Mark VI configurations (TMR), the replacement sequence must account for the voting logic — replacing one board at a time while the remaining two channels maintain control continuity. This approach eliminates the risk of a full control trip during the replacement and is strongly recommended for gas turbine and steam turbine applications where a control interruption triggers a costly restart sequence.

Retrofit Support FAQ

Q: Is the IS210AEBIH1BEA a direct replacement for the IS210AEBIH1AEA?
A: In most cases, yes — both revisions share the same base hardware architecture and backplane interface. However, firmware revision differences may affect compatibility with specific Mark VI controller software versions. We recommend confirming the active controller software version before ordering and contacting our technical team if cross-revision substitution is required.

Q: What pre-shipment testing is performed on each unit?
A: Every IS210AEBIH1BEA undergoes functional power-on testing, I/O channel verification, and communication interface checks before shipment. Units are shipped with a test report and are covered by a 12-month warranty from the shipment date.

Q: Can this board be installed without a full system shutdown?
A: In simplex Mark VI configurations, a full rack de-energization is required for safe installation. In TMR configurations, single-board replacement can be performed with the remaining two channels maintaining control, subject to site safety procedures and engineering approval. Always follow site-specific lockout/tagout protocols.

Q: What wiring changes are required when replacing a failed IS210AEBIH1BEA?
A: If the replacement board is the same revision, no wiring changes to the terminal board (IS200TBCIH1C or IS200TBCIH1D) are required. Cross-revision replacements may require terminal adapter verification. Document all existing wiring before removal and cross-reference against the as-built drawing to confirm pinout compatibility.
