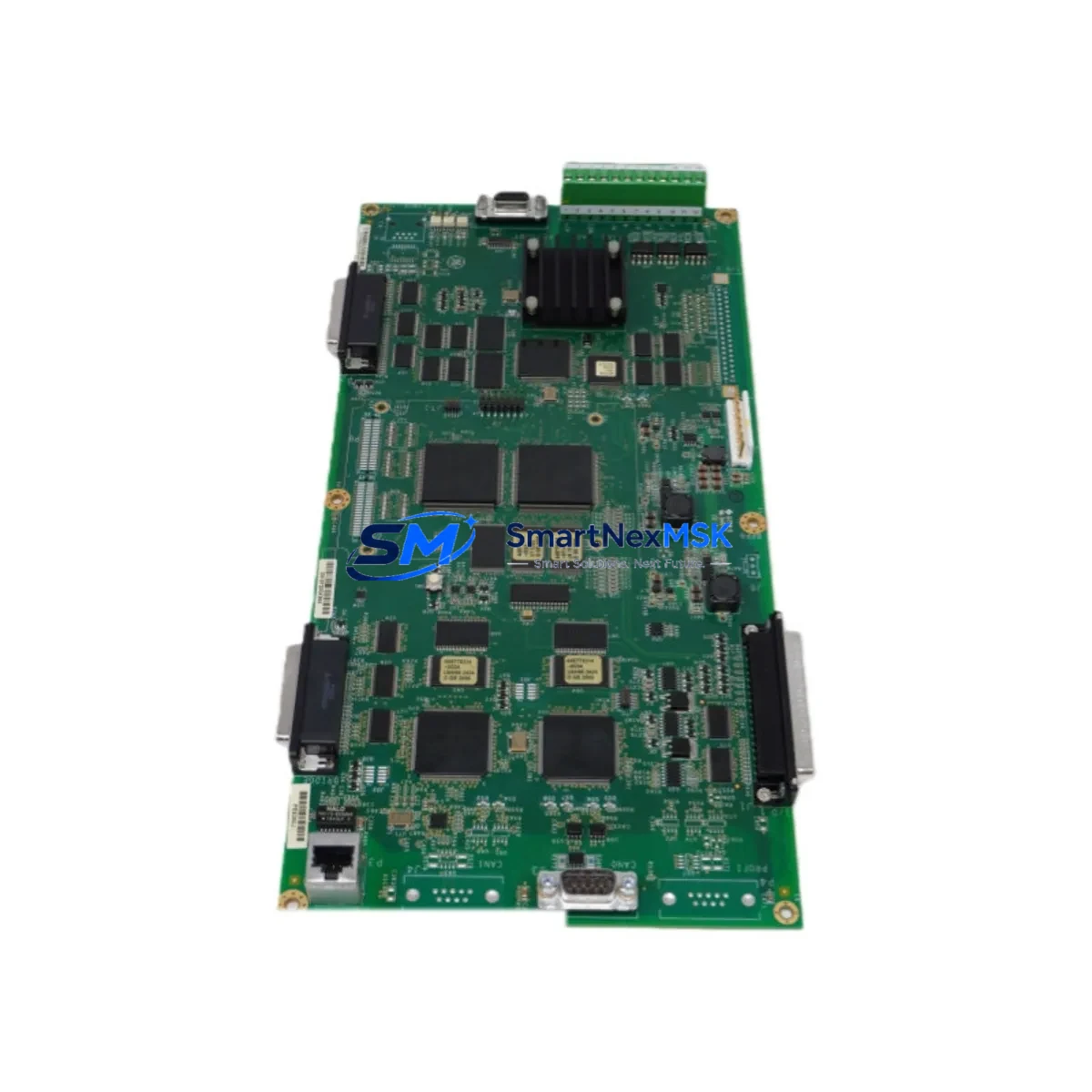

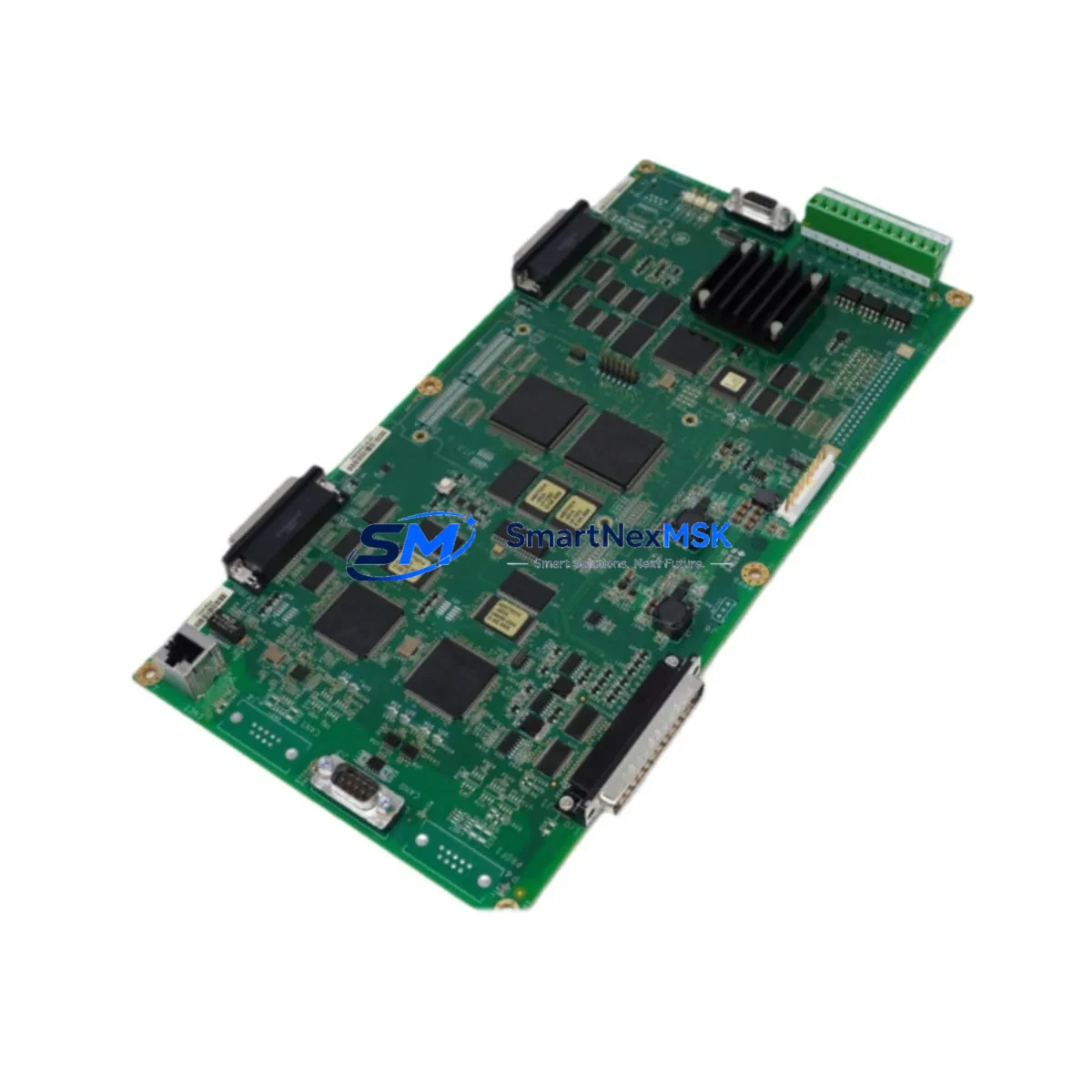

GE IS210MACCH1A Retrofit-Ready Input Terminal Board for Mark VI Control Systems
The GE IS210MACCH1A is a field-proven Input Terminal Board engineered for seamless integration into GE Mark VI turbine control systems. Designed to support legacy system modernization, this module serves as a direct retrofit replacement for aging or discontinued terminal board assemblies within the Mark VI platform. Whether you are managing a gas turbine overhaul, upgrading a steam turbine control cabinet, or restoring a tripped unit to service, the IS210MACCH1A provides the electrical interface reliability and signal conditioning performance that industrial operators depend on.
This terminal board interfaces directly with the Mark VI I/O pack ecosystem, accepting analog and discrete field signals from sensors, transmitters, and actuators installed on the turbine skid. Its robust terminal block layout supports standard 24 VDC and 4–20 mA signal ranges, making it compatible with the majority of field instrumentation found in legacy GE turbine installations. The board mounts to the standard Mark VI I/O rack and connects via the IS200 series I/O pack interface, ensuring that no mechanical modifications are required during a like-for-like swap.
For engineers planning a control system retrofit, the IS210MACCH1A is frequently deployed alongside the IS200TBAIH1A terminal board, the IS215UCVEH2A VME controller card, and the IS200BICLH1A bus interface card. In installations where the Mark VI communicates over Ethernet Global Data (EGD) or Modbus TCP, the IS210MACCH1A terminal board remains fully compatible with the existing communication architecture, requiring no protocol reconfiguration at the field device level. Where the plant is migrating from a Mark V to a Mark VI platform, this board supports the I/O remapping process by preserving the original terminal numbering convention, significantly reducing rewiring labor and the risk of signal assignment errors.
Power supply integrity is a critical consideration during any terminal board replacement. The IS210MACCH1A operates within the standard Mark VI backplane power distribution scheme, drawing regulated DC power from the IS200EPCTG1A power converter or equivalent Mark VI power supply module. Before installation, technicians should verify that the existing power supply has sufficient headroom to support the replacement board, particularly in high-density I/O cabinets where multiple IS210 series boards share a common power rail. Backplane slot assignment and module addressing must also be confirmed against the existing Mark VI configuration file to prevent address conflicts that could cause the controller to fault on first scan.
Terminal wiring compatibility is another key checkpoint. The IS210MACCH1A uses the same terminal pitch and screw torque specification as the boards it replaces, allowing existing field cables to be reconnected without re-termination in most cases. However, engineers should inspect the existing wiring for insulation degradation, particularly in installations where the original terminal board has been in service for more than ten years. Shield grounding practices should be verified against GE’s Mark VI installation guidelines to prevent common-mode noise from affecting analog input accuracy after the retrofit.
HMI screen updates are typically minimal when replacing a terminal board within the same Mark VI I/O pack family. Because the IS210MACCH1A presents the same signal data structure to the Mark VI controller as the original board, existing ToolboxST configuration files and HMI tag databases generally require no modification. In cases where the replacement is part of a broader Mark VI to Mark VIe migration, the IS215UCVEH2A controller and associated IS200 series I/O packs may require a ToolboxST project update to reflect the new hardware revision, and HMI faceplates should be validated against the updated tag list before returning the unit to automatic control.
Communication link continuity is preserved throughout the replacement process when the IS210MACCH1A is installed in a powered-down cabinet segment. The Mark VI’s triple-redundant IONet architecture allows individual I/O segments to be isolated and replaced without interrupting the controller’s communication with other I/O packs on the network. This capability is particularly valuable in combined-cycle plants where the gas turbine, steam turbine, and HRSG control systems share a common Mark VI platform and continuous operation of adjacent units must be maintained during the maintenance window.
Field commissioning after installation follows the standard Mark VI I/O checkout procedure: power-up the cabinet segment, verify that the IS210MACCH1A is recognized by the controller in ToolboxST, perform a point-by-point I/O loop check against the instrument index, and confirm that all analog inputs are reading within the expected engineering unit range before releasing the unit to operations. A factory acceptance test (FAT) report is available upon request for boards supplied by SMARTNEXMSK, confirming that each unit has been functionally tested prior to shipment.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | GE Mark VI Turbine Control System |
| Module Type | Input Terminal Board |
| Interface | IS200 Series I/O Pack Connector |
| Signal Types | Analog (4–20 mA), Discrete (24 VDC) |
| Backplane Compatibility | Standard Mark VI I/O Rack |
| Communication Protocol | IONet (Ethernet Global Data / EGD), Modbus TCP compatible |
| Power Supply Requirement | Mark VI regulated DC backplane (IS200EPCTG1A or equivalent) |
| Replacement Scope | Like-for-like drop-in; no mechanical modification required |
| Configuration Tool | GE ToolboxST |
| Commissioning Requirement | I/O loop check, ToolboxST hardware recognition, FAT report available |
| Warranty | 12-Month Warranty from date of shipment |
Retrofit Planning for Existing Automation Systems
A successful IS210MACCH1A retrofit begins with a thorough audit of the existing Mark VI cabinet layout. Identify the rack position of the board to be replaced, document the I/O pack model installed above it (commonly the IS200TBAIH1A or IS200TBCIH1A), and photograph the existing terminal wiring before disconnection. In multi-rack cabinets, confirm that the IS215UCVEH2A VME controller card and the IS200BICLH1A bus interface card are operating normally before isolating the affected I/O segment, as these components manage the IONet communication backbone that links all I/O packs to the controller.
For plants running a mixed Mark V and Mark VI architecture during a phased migration, the IS210MACCH1A can be staged in the new Mark VI rack while the Mark V system remains in control, allowing pre-wiring and loop testing to be completed before the cutover window. The IS200EPCTG1A power supply module should be load-tested prior to adding the new terminal board to confirm that the cabinet power budget is not exceeded. In high-density I/O applications, consider whether additional IS200 series I/O expansion racks are required to accommodate the full I/O count of the modernized system.
Where the retrofit includes a communication protocol migration from the legacy Mark V ARCNET network to the Mark VI IONet Ethernet backbone, the IS210MACCH1A’s native IONet compatibility eliminates the need for protocol converters at the field I/O level. Modbus TCP gateways, where used for third-party DCS integration or historian connectivity, can be retained without modification. Programming cable access via the IS200 series service port allows ToolboxST engineers to perform online configuration changes and diagnostic reads without interrupting the control loop, further reducing planned downtime during the commissioning phase.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational constraint in any turbine control system retrofit. The IS210MACCH1A’s drop-in form factor allows a trained technician to complete the physical board swap in under 30 minutes, provided that the replacement unit has been pre-tested and the terminal wiring documentation is current. To protect the original program logic, a full ToolboxST project backup should be exported and archived before any hardware changes are made to the Mark VI cabinet. This backup preserves all I/O assignments, control constants, alarm setpoints, and sequence logic, ensuring that the controller can be restored to its pre-maintenance state in the event of an unexpected complication.
The Mark VI’s triple-redundant control architecture (R, S, T controllers) provides an additional layer of protection during the replacement process. In TMR (Triple Modular Redundant) configurations, the affected I/O segment can be taken offline while the remaining two controller channels continue to provide voted control output to the turbine actuators, maintaining field control continuity throughout the maintenance window. For simplex Mark VI installations, a planned outage window coordinated with the operations team is required, and the IS210MACCH1A’s rapid installation profile helps keep that window as short as possible.
Post-installation, the I/O loop check sequence should be executed systematically, starting with the most critical analog inputs (speed, temperature, pressure) before proceeding to discrete inputs and outputs. Any signal discrepancies identified during the loop check should be resolved before the unit is returned to automatic control. SMARTNEXMSK provides pre-shipment functional test documentation for each IS210MACCH1A unit, reducing the risk of receiving a defective board and the associated downtime impact of a second maintenance window.
Retrofit Support FAQ
Q1: Is the IS210MACCH1A a direct drop-in replacement for the original GE terminal board in my Mark VI cabinet?
A: Yes. The IS210MACCH1A is designed as a like-for-like replacement within the Mark VI I/O rack. It uses the same backplane connector, terminal block pitch, and I/O pack interface as the original board. No mechanical modifications to the cabinet or rack are required. Confirm the I/O pack model installed above the terminal board to ensure signal type compatibility before ordering.
Q2: What commissioning steps are required after installing the IS210MACCH1A?
A: After physical installation, power up the cabinet segment and verify that ToolboxST recognizes the new board in the hardware configuration. Perform a complete I/O loop check against the instrument index, confirming that all analog inputs are reading within the correct engineering unit range and that all discrete inputs and outputs are responding correctly. Review the ToolboxST diagnostic display for any I/O pack fault codes before releasing the unit to automatic control.
Q3: Can the IS210MACCH1A be used in a Mark V to Mark VI migration project?
A: Yes. The IS210MACCH1A is commonly deployed in Mark V to Mark VI migration projects. Its terminal numbering convention is compatible with the Mark VI I/O remapping process, reducing rewiring labor. The board’s native IONet compatibility eliminates the need for protocol converters when migrating from the Mark V ARCNET network. A ToolboxST project update will be required to reflect the new hardware configuration.
Q4: What warranty coverage is provided, and has the board been tested before shipment?
A: Every IS210MACCH1A supplied by SMARTNEXMSK carries a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes a pre-shipment functional test, and a factory acceptance test (FAT) report is available upon request. For warranty claims or technical support, contact sales@smartnexmsk.com or call +86 18259474341.
