GE IS215WEPAH2BDA Maintenance-Ready Spare for Mark VI Automation

GE IS215WEPAH2BDA Maintenance-Ready Spare for Mark VI Automation

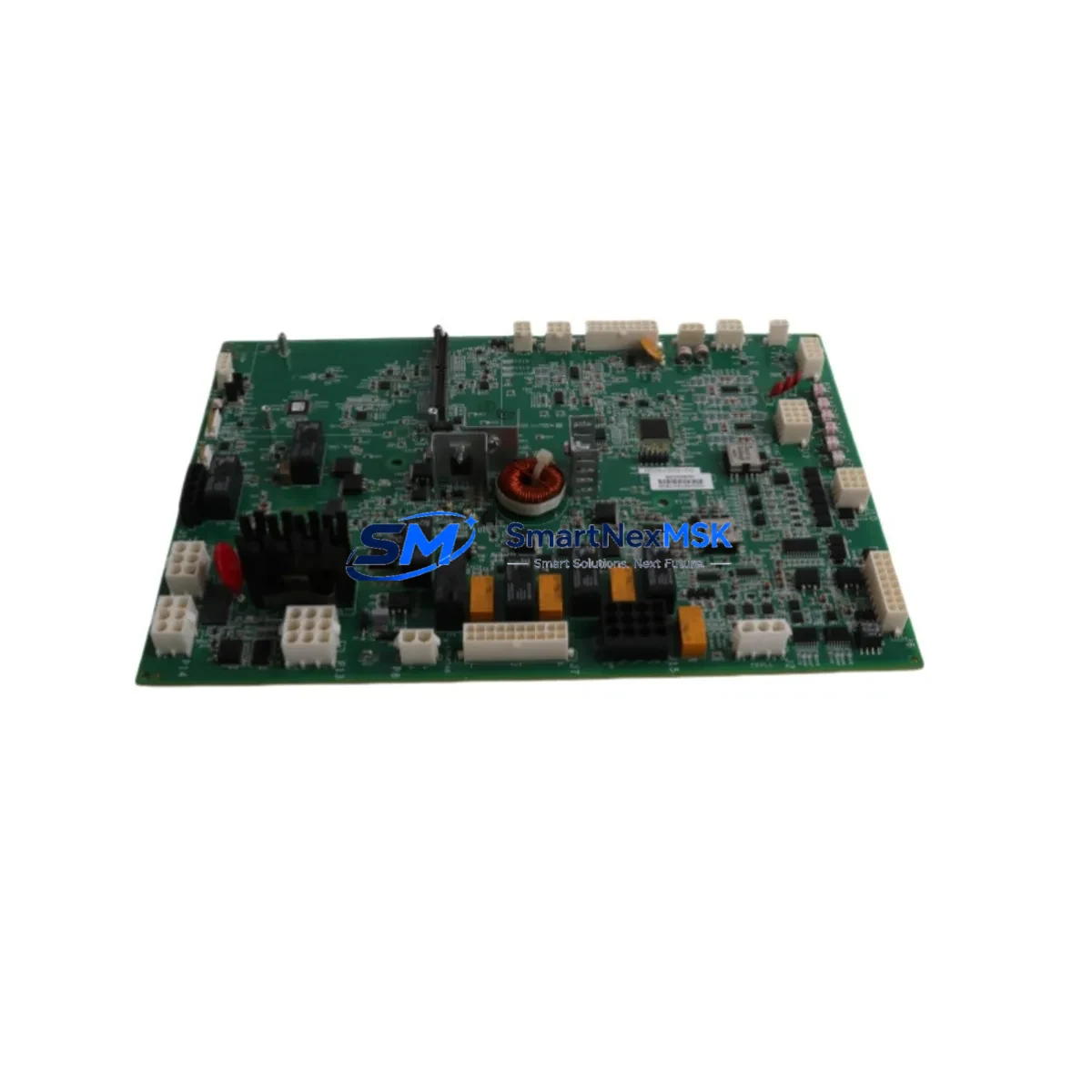

The GE IS215WEPAH2BDA is an original PCB control module designed for the GE Mark VI turbine control system — one of the most widely deployed distributed control architectures in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. For maintenance engineers managing aging turbine control cabinets, securing a verified, tested spare of the IS215WEPAH2BDA is a critical step in any downtime-reduction strategy. Unplanned outages caused by PCB-level failures in the Mark VI system can result in extended production losses; having a pre-qualified replacement on the shelf eliminates the lead time risk entirely.

This module is sourced as an original GE component, fully inspected and function-tested prior to shipment. It is compatible with the GE Mark VI and Mark VIe control platforms and is suitable for direct replacement in existing turbine control cabinets without firmware reconfiguration in most standard configurations. Each unit ships with a 12-month warranty covering manufacturing defects and functional performance, backed by pre-shipment electrical testing documentation.

Whether you are executing a planned annual inspection, responding to a fault code during a scheduled outage window, or managing an emergency replacement to restore turbine availability, the IS215WEPAH2BDA can be integrated into your spare parts inventory with confidence. Our supply chain supports long-term procurement for fleet operators managing multiple Mark VI-equipped units across sites.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the IS215WEPAH2BDA in a GE Mark VI turbine control cabinet, a thorough maintenance engineer will treat the board swap as an opportunity to audit the surrounding electrical environment. The Mark VI architecture distributes control functions across multiple boards and power rails, meaning a single PCB failure is often a symptom of broader stress conditions in the cabinet.

Begin by verifying the IS200 series power supply module (such as the IS200EPCTG1A or IS200PSCDG1A) that feeds the affected rack segment — voltage sag or ripple on the 24 VDC bus is a common root cause of premature PCB failure. Inspect the IS215VCMIH2C VME communication module for any fault flags that may indicate upstream data integrity issues affecting the WEPAH board’s inputs. Check the IS215AEPAH1B analog I/O board in the same rack for signal drift, as cross-contamination of analog reference signals can produce misleading diagnostics.

Terminal blocks and field wiring connectors on the IS200TBAIH1C or IS200TBCIH1C terminal board should be inspected for corrosion, loose crimps, or thermal discoloration — particularly on high-current signal paths. The IS215UCVEH2A UCVE processor board should be checked for firmware version compatibility if the replacement IS215WEPAH2BDA carries a different hardware revision suffix. In redundant Mark VI configurations, verify that the IS215VCMIH2C or IS215VCROH1B voting and redundancy modules are correctly synchronized after the board replacement.

For sites running the Mark VI alongside a GE Speedtronic HMI or a third-party SCADA interface, confirm that the replacement board’s I/O mapping aligns with the existing configuration file before returning the turbine to service. If the cabinet includes signal isolators or IS200-series protection relay boards, these should be tested under load conditions to confirm that the new PCB is receiving clean, isolated signals. Finally, inspect the cabinet’s fuse holders and miniature circuit breakers on the 24 VDC distribution rail — a blown fuse that caused the original failure must be identified and replaced before energizing the new board.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Record all active fault codes from the Mark VI HMI or Toolbox software. Photograph the existing board orientation, connector positions, and any jumper or DIP switch settings on the IS215WEPAH2BDA before removal.

Step 2 — Safe isolation: Follow your site’s LOTO (Lockout/Tagout) procedure for the affected turbine control cabinet. Confirm that the rack segment is de-energized and that redundant control paths (if applicable) have assumed control before proceeding.

Step 3 — Board removal and inspection: Remove the faulty IS215WEPAH2BDA using ESD-safe handling. Inspect the board slot, backplane connector, and guide rails for physical damage, carbon tracking, or contamination that may have contributed to the failure.

Step 4 — Replacement installation: Install the new IS215WEPAH2BDA, ensuring full seating on the VME backplane connector. Verify that any hardware revision-specific jumper settings match the removed board’s configuration. Re-connect all field wiring connectors in the correct sequence.

Step 5 — Power-up and verification: Re-energize the rack segment and monitor the Mark VI diagnostic display for fault clearance. Use GE Toolbox or the site’s configuration software to confirm that the board is recognized, I/O channels are active, and no new fault codes are generated. Perform a functional test of the affected control loop before returning the turbine to automatic operation.

Step 6 — Documentation and spare replenishment: Update your maintenance log with the replacement date, board serial number, and test results. Immediately initiate a procurement order for a replacement IS215WEPAH2BDA spare to restore your on-hand inventory level.

Spare Parts Support FAQ

Q1: Is the IS215WEPAH2BDA a direct drop-in replacement for all hardware revision suffixes (e.g., H2BDA, H2BDB)?
In most cases, hardware revision variants within the IS215WEPAH2 family are functionally interchangeable for standard Mark VI configurations. However, sites running customized firmware or non-standard I/O mappings should verify the revision suffix against their GE Toolbox configuration file before installation. Contact our technical team with your existing board’s full part number for a compatibility confirmation prior to ordering.

Q2: What pre-shipment testing is performed on each IS215WEPAH2BDA unit?
Each unit undergoes electrical continuity testing, power-on functional verification, and visual inspection for component-level defects before shipment. Units are packed in ESD-safe anti-static bags with foam cushioning to prevent transit damage. A test report is available upon request for quality-critical procurement processes.

Q3: How should I manage IS215WEPAH2BDA inventory for a fleet of Mark VI-equipped turbines?
Industry best practice for critical PCB spares in gas turbine control systems is to maintain a minimum of one board per two to three turbine units, with a replenishment trigger set at the point of use. For fleet operators with five or more Mark VI units, a consignment or blanket order arrangement can reduce per-unit cost and guarantee availability. We support long-term supply agreements with fixed pricing for multi-year procurement programs.

Q4: What is covered under the 12-month warranty, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact our sales team with the original order number, a description of the failure mode, and photographic evidence of the fault condition. Replacement or repair will be processed within 5–10 business days of claim approval.
