GE IS220PPDAH1A Maintenance-Ready Spare for Mark VI Automation

GE IS220PPDAH1A Maintenance-Ready Spare for Mark VI Automation

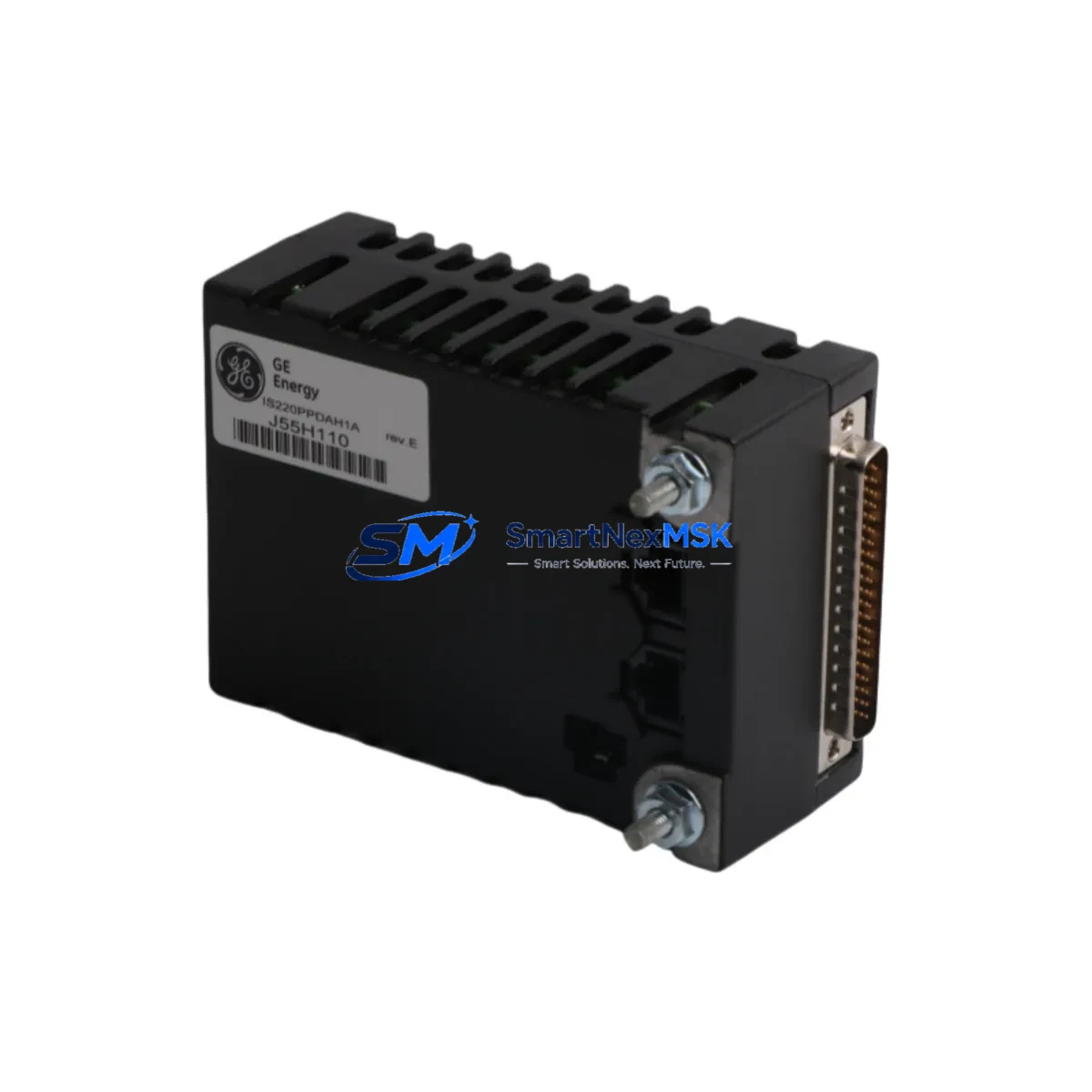

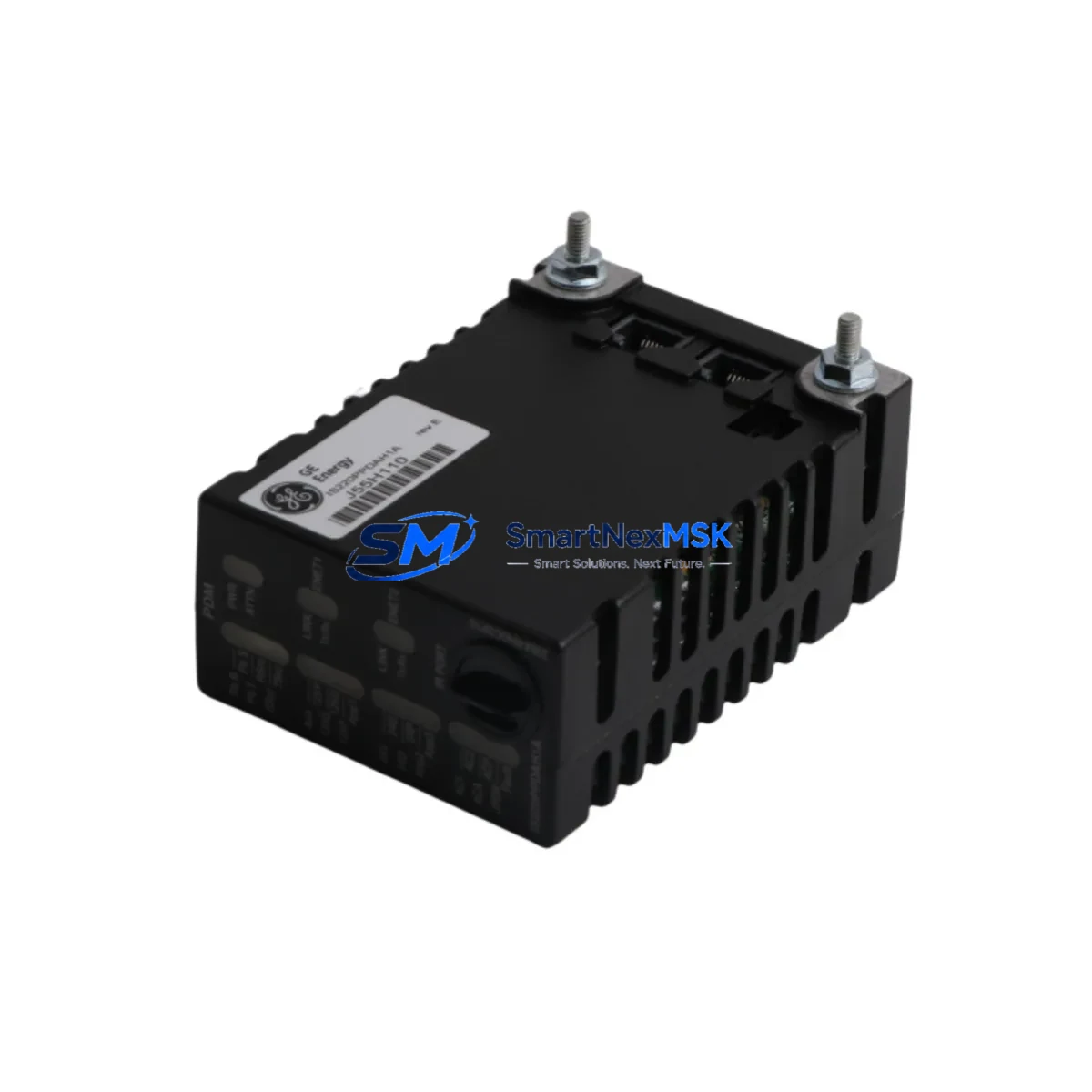

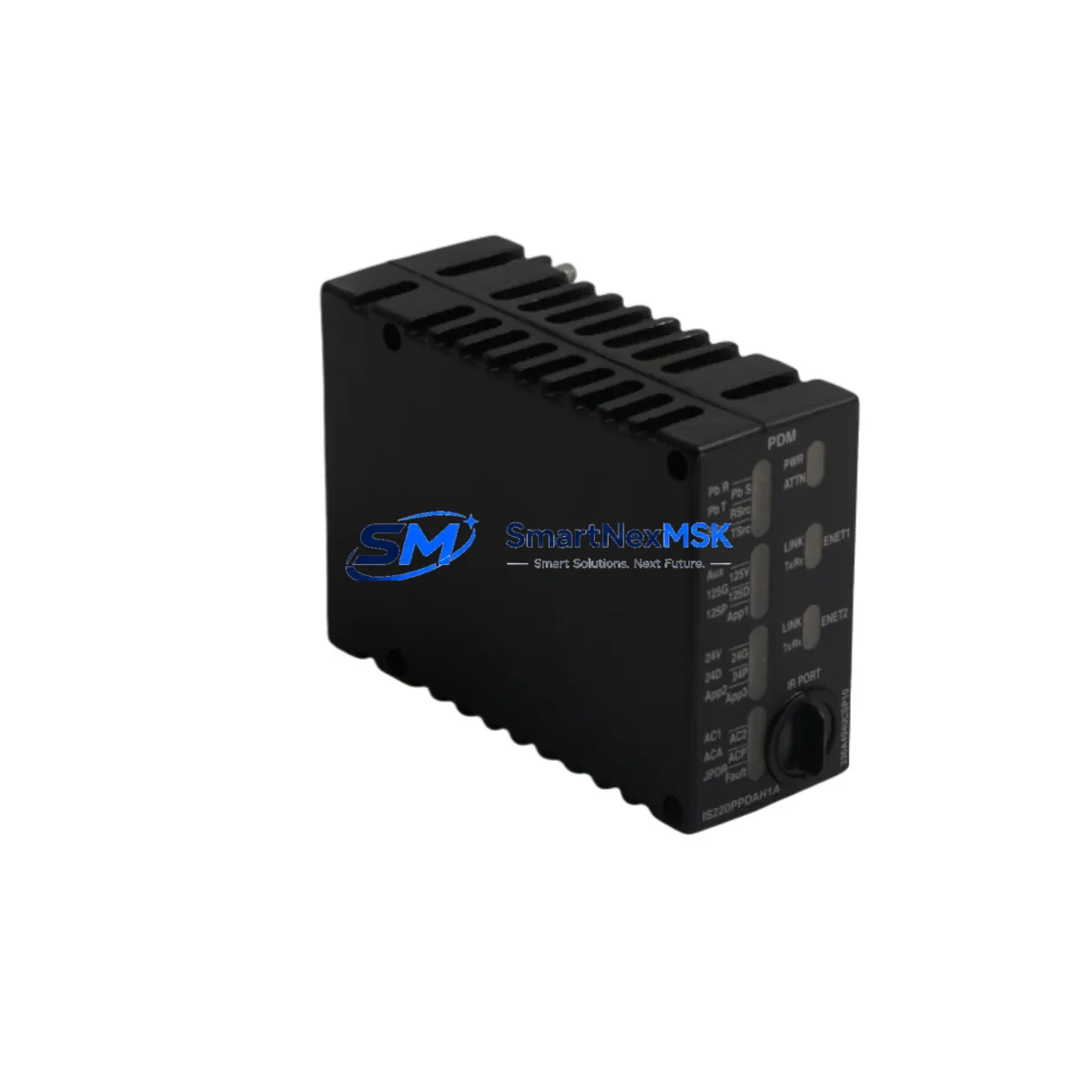

The GE IS220PPDAH1A is a 230VAC Power Distribution Module engineered for the GE Mark VI Turbine Control System — one of the most widely deployed DCS platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As aging Mark VI systems approach end-of-life support cycles, maintaining a verified, original spare of the IS220PPDAH1A in your on-site inventory is a frontline strategy for minimizing unplanned downtime and protecting critical turbine control continuity.

This module serves as the primary AC power distribution interface within the Mark VI control cabinet, supplying regulated power to downstream I/O boards, communication modules, and processor cards. A failure or degradation of the IS220PPDAH1A can cascade into full turbine trip events, loss of HMI visibility, and extended outage windows — making it one of the highest-priority spare components for any Mark VI maintenance program.

Our IS220PPDAH1A units are sourced as original GE hardware, individually inspected, function-tested prior to shipment, and backed by a 12-month warranty. We maintain long-term stock to support both emergency replacement and planned maintenance cycles, with fast worldwide dispatch from our warehouse.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a planned inspection or responding to an unplanned fault involving the IS220PPDAH1A, maintenance engineers should treat the replacement as an opportunity to audit the full power distribution and control chain within the Mark VI cabinet. Power distribution failures rarely occur in isolation — adjacent components are often subject to the same voltage stress, thermal cycling, and age-related degradation.

During a cabinet inspection triggered by IS220PPDAH1A replacement, engineers should verify the condition of the IS200EPCTG1A Ethernet and communication interface card, which depends on stable power delivery from the distribution module. Similarly, the IS215UCVEH2A Mark VI controller card should be checked for firmware integrity and power rail stability after any power module swap. The IS200IOCAG1A I/O carrier board and associated IS200TRLYH1B relay output terminal boards should be inspected for signs of contact wear or insulation breakdown that may have been masked by the power fault.

On the power input side, inspect the 230VAC feed circuit including upstream fuses, MCBs, and isolation transformers. The IS200PSDAG1A power supply module, if present in the same cabinet, should be load-tested to confirm it is delivering within specification. Terminal blocks and wiring harnesses connecting the IS220PPDAH1A to the backplane should be checked for loose terminations, oxidation, or heat discoloration — common failure precursors in high-cycle industrial environments.

For facilities running redundant Mark VI configurations, the IS200DSPXH1D digital signal processor board and associated IS200VSVOH1B servo output module should be cross-checked to confirm that redundancy switchover did not introduce latent faults. Communication integrity between the Mark VI and the plant DCS or HMI — typically via the IS200BICLH1B communication interface — should be verified post-replacement to confirm no address or configuration drift occurred during the outage.

Maintaining a structured spare parts kit that includes the IS220PPDAH1A alongside these related modules significantly reduces mean time to repair (MTTR) and supports a proactive maintenance posture rather than a reactive one.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Isolate the 230VAC feed to the Mark VI cabinet and confirm de-energization with a calibrated voltage tester before opening the cabinet door.

Step 2 — Document Current Configuration: Photograph the existing IS220PPDAH1A installation, note any DIP switch or jumper settings, and record the firmware revision label if visible. This ensures the replacement module is configured identically.

Step 3 — Module Extraction: Release the card retention latch and carefully extract the IS220PPDAH1A from the backplane slot. Avoid flexing the board. Place the removed module in an ESD-safe bag for return or failure analysis.

Step 4 — Replacement Installation: Inspect the backplane connector for bent pins or debris. Insert the new IS220PPDAH1A firmly until the retention latch engages. Verify seating is flush and uniform.

Step 5 — Power-Up & Verification: Restore 230VAC supply and observe the module’s status LEDs. Confirm the Mark VI controller recognizes the module via the HMI or engineering workstation. Check for any active alarms or fault codes before returning the turbine to service.

Step 6 — Post-Replacement Functional Test: Run a full I/O check on all channels powered by the IS220PPDAH1A. Verify communication links are stable and that no downstream modules report power-related faults. Log the replacement in the site maintenance management system (CMMS).

This workflow is compatible with both like-for-like replacement of a failed IS220PPDAH1A and proactive swap-out during scheduled outage windows. The module’s direct backplane compatibility with the Mark VI architecture means no firmware re-flashing or hardware reconfiguration is required in standard replacement scenarios.

Spare Parts Support FAQ

Q1: Is this IS220PPDAH1A an original GE module or a third-party equivalent?
This is original GE hardware — not a clone, aftermarket reproduction, or third-party equivalent. Each unit is individually inspected and function-tested before shipment to confirm it meets GE’s original performance specifications for the Mark VI platform.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If the module fails within the warranty period due to a verified hardware defect, we will provide a replacement unit or full refund. Warranty claims are supported by our technical team with documented failure analysis upon request.

Q3: How do I confirm compatibility before ordering?
The IS220PPDAH1A is designed specifically for the GE Mark VI Turbine Control System. To confirm compatibility, provide your existing module’s part number, Mark VI cabinet configuration, and system revision. Our engineering support team will verify fit and function before dispatch. We also recommend cross-referencing the GE Mark VI hardware manual (GEH-6421) for slot and backplane compatibility.

Q4: Can you support long-term or repeat supply for our maintenance program?
Yes. We maintain ongoing stock of the IS220PPDAH1A and related Mark VI components to support both emergency single-unit orders and planned bulk procurement for multi-site maintenance programs. Long-term supply agreements with priority allocation are available for facilities managing large Mark VI fleets or extended outage schedules.
