GE IS220PPROH1A Retrofit-Ready Protection I/O for Mark VIe

GE IS220PPROH1A Retrofit-Ready Protection I/O for Mark VIe Control Systems

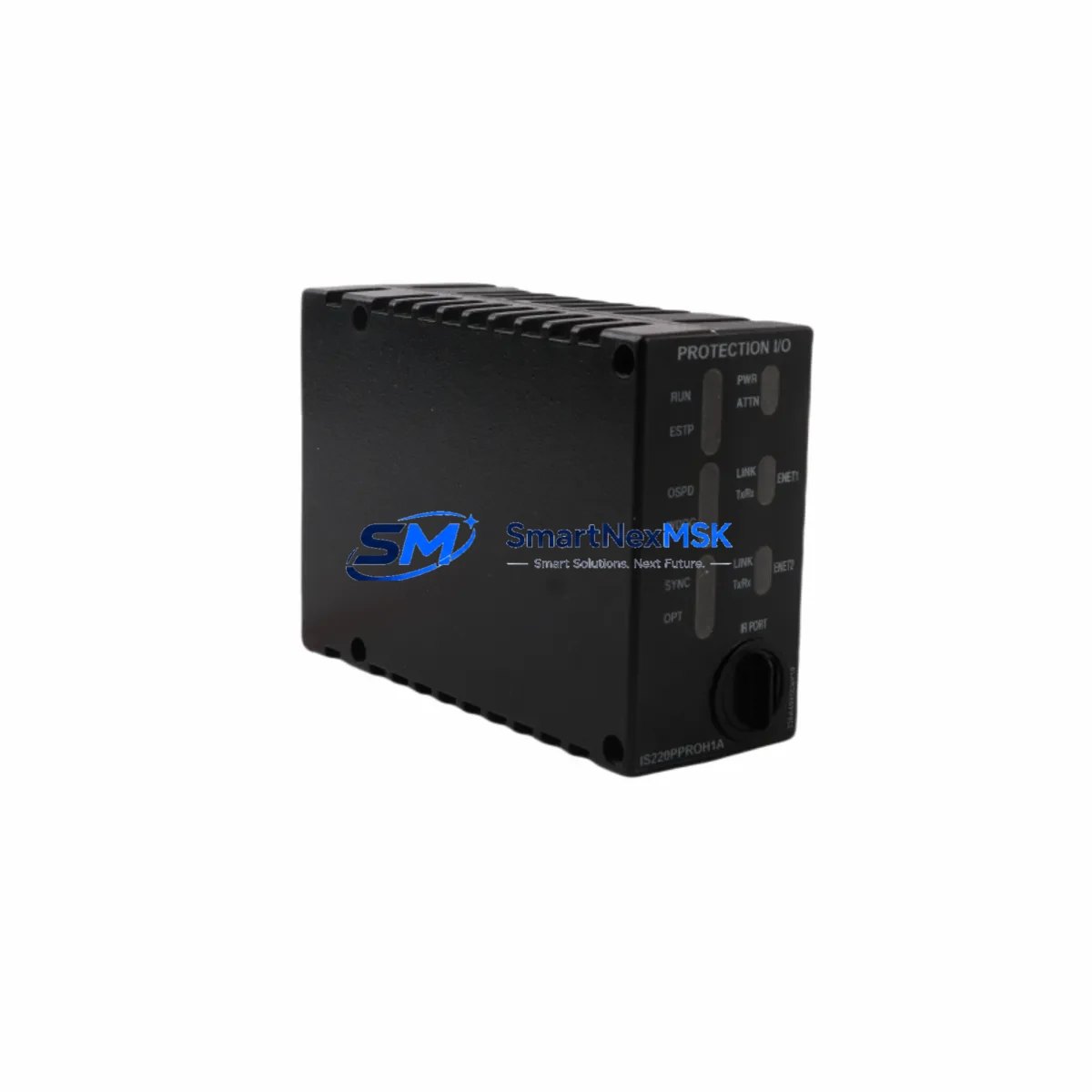

The GE IS220PPROH1A is a Protection I/O module engineered for the GE Mark VIe Distributed Control System platform, widely deployed in gas turbine, steam turbine, and combined-cycle power generation facilities. As legacy Mark V and Mark VI installations reach end-of-life, the IS220PPROH1A serves as a critical retrofit component enabling smooth migration to the Mark VIe architecture without requiring full panel redesign or PLC reprogramming from scratch.

This module interfaces directly with the Mark VIe VCMI (VME Communication Module Interface) backplane and is compatible with the standard IS200 series rack chassis. When replacing a failed or obsolete protection I/O card, engineers must verify the backplane slot address assignment, confirm the IONet Ethernet communication link is properly terminated, and validate that the ToolboxST configuration reflects the correct module type and I/O mapping before energizing the replacement unit.

In retrofit projects involving older Mark V TMR (Triple Modular Redundant) systems, the IS220PPROH1A is frequently specified as part of a phased upgrade path. The transition typically involves remapping legacy TCQA, TCQB, and TCQC terminal board wiring to the new IS220 series terminal assemblies. Engineers should document all existing field wiring terminations, cross-reference the original Mark V I/O configuration printouts, and prepare a point-by-point signal verification checklist prior to cutover.

Power supply compatibility is a key consideration during any IS220PPROH1A installation. The module operates on the Mark VIe distributed 28 VDC power rail supplied by the IS200EPCTG1A or equivalent power conditioning module. Before insertion, confirm that the rack power budget accommodates the additional load, particularly in high-density I/O configurations where multiple IS220PDIOH1A discrete I/O modules and IS220PTCCH1A thermocouple input modules share the same power segment.

Communication protocol migration is another critical step. The IS220PPROH1A communicates over the Mark VIe IONet (100 Mbps Ethernet-based I/O network), replacing the older ARCNET protocol used in Mark V systems. During migration, the IS200VCMIH2C VME communication module must be configured with the correct IONet node address, and the HMI (typically running Cimplicity or iFIX) must have its tag database updated to reflect the new I/O point addresses. Failure to synchronize HMI tag assignments with the ToolboxST I/O configuration is one of the most common causes of post-retrofit alarm floods.

For facilities upgrading control cabinets that also house IS220PSVOH1A servo output modules or IS220PAICH1A analog input modules, the IS220PPROH1A can be installed in the same IS200 series rack without additional hardware adapters, simplifying the cabinet layout and reducing wiring complexity. The module’s standard 64-pin backplane connector ensures mechanical and electrical compatibility across the IS220 product family.

Field commissioning of the IS220PPROH1A requires connection to a ToolboxST-equipped engineering workstation via the Mark VIe UDH (Unit Data Highway) network. Technicians should perform a full I/O force test on all protection inputs — including overspeed, flame detection, vibration, and exhaust temperature signals — before releasing the unit to automatic control. All replacement modules supplied by SMARTNEXMSK are pre-tested against GE factory acceptance criteria and ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IS220PPROH1A retrofit begins with a thorough audit of the existing control cabinet. In a typical Mark VIe panel, the IS220PPROH1A shares rack space with modules such as the IS220PDIOH1A (discrete I/O), IS220PAICH1A (analog input), IS220PTCCH1A (thermocouple input), and IS220PSVOH1A (servo output). Each module’s slot address must be documented before removal to ensure the ToolboxST configuration can be restored accurately.

The rack itself — typically an IS200 series VME chassis — should be inspected for backplane damage, corrosion on connector pins, and proper grounding continuity. The IS200VCMIH2C VME communication module, which manages IONet traffic for all I/O modules in the rack, must be confirmed operational before the IS220PPROH1A is inserted. If the VCMI is also being replaced as part of the upgrade, it should be configured and verified on the IONet segment first.

For sites also upgrading their operator interface, the Mark VIe HMI running Cimplicity should have a full tag export performed before any hardware changes. This export serves as the baseline for post-retrofit tag verification. Programming cables such as the IS200UCVEH2A UDH cable are required to maintain the ToolboxST connection during live commissioning. Spare IS200EPCTG1A power modules should be staged on-site to allow rapid substitution if power supply issues arise during the retrofit window.

Downtime Control During System Migration

Minimizing unplanned downtime during an IS220PPROH1A replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the ToolboxST project file should be backed up, all current I/O force states documented, and the replacement module bench-tested for communication response on a spare rack if available.

During the cutover, the recommended sequence is: (1) place the turbine in manual hold or safe shutdown state, (2) de-energize the affected rack segment while maintaining power to adjacent racks, (3) extract the failed module and insert the IS220PPROH1A, (4) restore rack power and confirm IONet link establishment in ToolboxST diagnostics, (5) perform point-by-point I/O verification against the pre-outage signal list, and (6) release to automatic control only after all protection inputs are confirmed healthy.

For TMR (Triple Modular Redundant) configurations, the replacement can often be performed on one redundant channel at a time, allowing the remaining two channels to maintain protection coverage throughout the procedure. This approach can reduce effective downtime to near zero in well-planned TMR retrofit scenarios. All SMARTNEXMSK-supplied IS220PPROH1A modules are shipped with factory test reports and are covered by a 12-month warranty, ensuring that any post-installation functional failure is addressed without additional cost to the customer.

Retrofit Support FAQ

Q1: Is the IS220PPROH1A a direct drop-in replacement for the original GE part?
Yes. The IS220PPROH1A supplied by SMARTNEXMSK is functionally equivalent to the original GE-manufactured module. It uses the same 64-pin backplane connector, communicates over IONet, and is recognized by ToolboxST without firmware modification. Wiring to the associated terminal board remains unchanged.

Q2: What commissioning steps are required after installation?
After physical installation, connect a ToolboxST workstation via the UDH network, confirm the module appears online in the I/O diagnostics view, verify all protection input signals are reading correctly, and perform a forced I/O test on critical protection channels. Update the HMI tag database if any point addresses have changed during the replacement process.

Q3: Can this module be used to migrate from a Mark V system to Mark VIe?
The IS220PPROH1A is a Mark VIe native module and cannot be installed directly into a Mark V rack. However, it is the target replacement module when upgrading a Mark V protection I/O function to the Mark VIe platform. The migration requires remapping terminal board wiring from the legacy TCQA/TCQB/TCQC assemblies to IS220-compatible terminal boards and reconfiguring the ToolboxST project to reflect the new I/O architecture.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions, including IONet communication failures, backplane interface faults, and I/O channel malfunctions. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. SMARTNEXMSK provides pre-shipment test reports for all modules and offers technical support during the commissioning phase.
