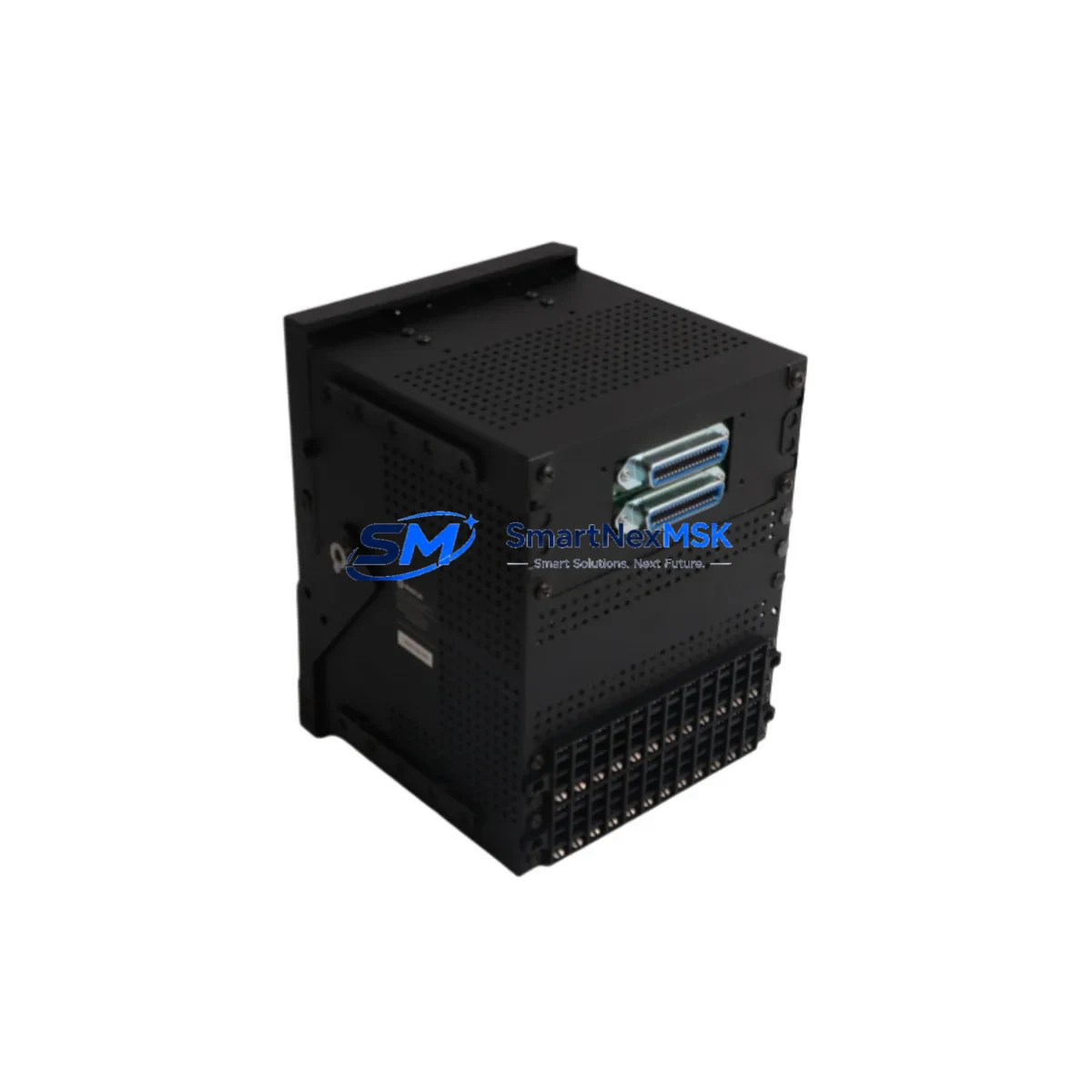

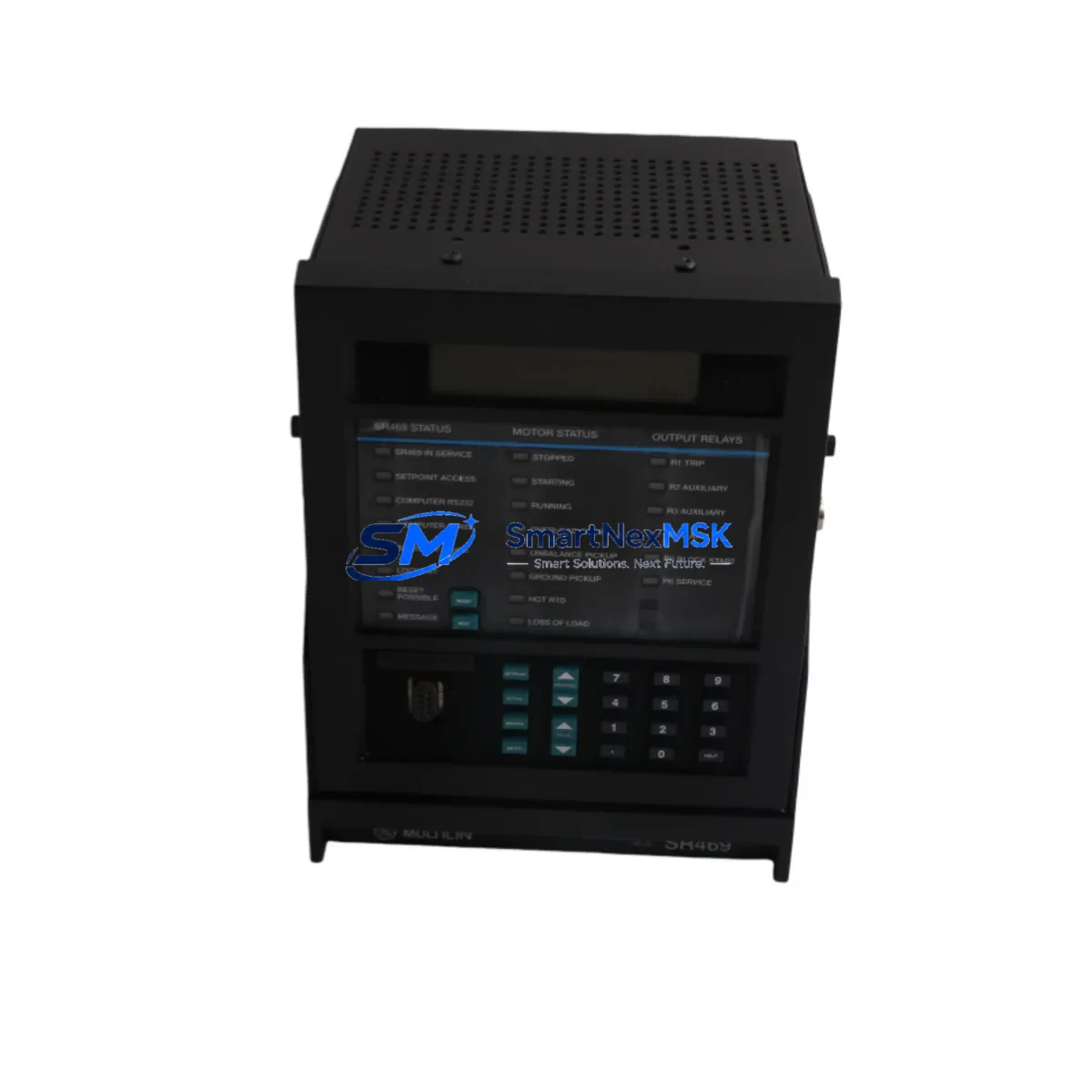

GE Multilin 469-P5-HI-A20 Spare for 469 Series Automation

GE Multilin 469-P5-HI-A20 Maintenance-Ready Spare for 469 Series Automation

The GE Multilin 469-P5-HI-A20 is a high-specification motor management relay engineered for continuous industrial operation in demanding environments. As a maintenance-ready original spare, this unit is sourced, inspected, and tested to support rapid field replacement within GE Multilin 469 Series motor protection systems. For maintenance engineers managing aging motor control centers, pump stations, compressor drives, or conveyor systems, having a verified 469-P5-HI-A20 in your spare parts inventory is a critical element of any proactive downtime-reduction strategy.

The 469 Series platform is widely deployed across oil and gas, water treatment, mining, pulp and paper, and heavy manufacturing facilities. The 469-P5-HI-A20 variant is configured with high-interrupting current inputs and analog output capability, making it suitable for applications where precise motor current monitoring, thermal overload protection, and multi-function protection coordination are required. When this relay fails or reaches end-of-service life, unplanned motor downtime can cascade into broader process disruptions — making fast, compatible spare availability essential.

This unit ships fully tested, with function verification completed prior to dispatch. Each spare is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Long-term supply continuity is maintained to support facilities running legacy GE Multilin 469 installations where OEM availability may be constrained.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 469-P5-HI-A20 in the field, a thorough inspection of the surrounding electrical system is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should begin by verifying the integrity of the 85–265 VAC power supply wiring and confirming that the auxiliary power feed to the relay panel is stable and within tolerance. Voltage fluctuations or transient spikes are a common root cause of relay damage in motor control centers.

Current transformer (CT) wiring connected to the HI-rated current inputs should be inspected for insulation degradation, loose terminations, and correct polarity. The 469-P5-HI-A20 relies on accurate CT input signals for thermal model calculations; any wiring fault here will compromise protection accuracy. Similarly, RTD input wiring — typically connected to motor winding and bearing temperature sensors — should be checked for continuity and correct resistance values before commissioning the replacement unit.

The analog output module (A20) interfaces with SCADA systems or DCS controllers via a 4–20 mA signal loop. During replacement, verify that the receiving end — whether a DCS analog input card, a signal isolator, or a PLC analog input module — is functioning correctly and that the loop impedance is within the relay’s specified output drive capability. A faulty signal isolator or an overloaded analog input channel can cause erratic readings even with a new relay installed.

For facilities using RS-485 Modbus RTU communication, inspect the communication cable termination, bus biasing resistors, and the Modbus master configuration (address, baud rate, parity) before bringing the replacement 469-P5-HI-A20 online. If the installation uses optional DeviceNet or Profibus communication modules, verify that the network node address and data rate settings match the original configuration. Communication module firmware compatibility should also be confirmed.

A complete spare parts review for the 469 motor protection circuit should also include: the motor control center (MCC) bus bar connections and contactor condition, any interposing relay or output relay modules wired to the 469’s trip and alarm contacts, terminal block assemblies and DIN rail mounting hardware within the relay panel, and the HMI or operator panel used for local relay configuration and fault acknowledgment. If the facility uses a GE Multilin EnerVista software interface for relay settings management, ensure that the settings file is backed up and ready for upload to the replacement unit.

For older installations where the 469-P5-HI-A20 has been in service for more than 10 years, it is advisable to simultaneously inspect and consider stocking spares for associated components such as the motor starter contactor, overload relay backup, and any fuse protection elements in the motor feeder circuit. Proactive spare parts stocking across the full motor protection chain significantly reduces mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

The 469-P5-HI-A20 is a direct replacement for existing GE Multilin 469 Series installations. Before beginning the swap, retrieve the existing relay’s settings file using EnerVista 469 Setup software or record all protection setpoints manually. De-energize the motor feeder circuit and follow your facility’s lockout/tagout (LOTO) procedure before removing the failed unit.

Disconnect all wiring in the correct sequence: power supply terminals first, then CT inputs, RTD inputs, analog output wiring, communication cables, and finally the digital I/O connections (trip, alarm, and control inputs). Label all wires before removal to ensure accurate reconnection. Mount the replacement 469-P5-HI-A20 in the existing panel cutout, reconnect all wiring in reverse order, and verify termination torque values per the relay’s installation manual.

After physical installation, upload the saved settings file or re-enter all protection parameters. Perform a functional test of the trip output relay by injecting a test current or using the relay’s built-in test mode. Verify that the analog output signal is correctly received at the SCADA or DCS end, and confirm Modbus communication is re-established with the master controller. Document the replacement in your maintenance management system (CMMS) and update the spare parts inventory accordingly.

This workflow minimizes motor downtime to the shortest possible window, maintains full system compatibility, and ensures that the replacement unit is correctly commissioned before returning the motor to service.

Spare Parts Support FAQ

Q1: Is the 469-P5-HI-A20 compatible with all GE Multilin 469 Series installations?
The 469-P5-HI-A20 is compatible with standard GE Multilin 469 Series motor management relay installations that use a universal power supply (P5), high-interrupting current inputs (HI), and a 4–20 mA analog output (A20). Always verify your existing relay’s order code and firmware version before installation. If your installation uses a different power supply or communication option, contact us to confirm compatibility before ordering.

Q2: What testing is performed before shipment?
Each 469-P5-HI-A20 unit undergoes functional verification prior to dispatch, including power-up testing, output relay operation check, and communication port verification. Units are inspected for physical condition and packaged to prevent transit damage. A test report is available upon request for critical applications.

Q3: How should I manage spare parts inventory for the 469 Series?
For facilities with multiple 469 Series relays installed, we recommend maintaining at least one 469-P5-HI-A20 spare on-site for every five to ten installed units, depending on criticality. For single-relay critical motor applications, a dedicated on-site spare is strongly advised. Long-term supply agreements are available to ensure continuous availability as OEM production of legacy models may be discontinued.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and operational failures under normal industrial operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events beyond the relay’s rated input range, or physical damage during handling. Warranty claims are processed with priority turnaround to minimize your facility’s downtime exposure.
