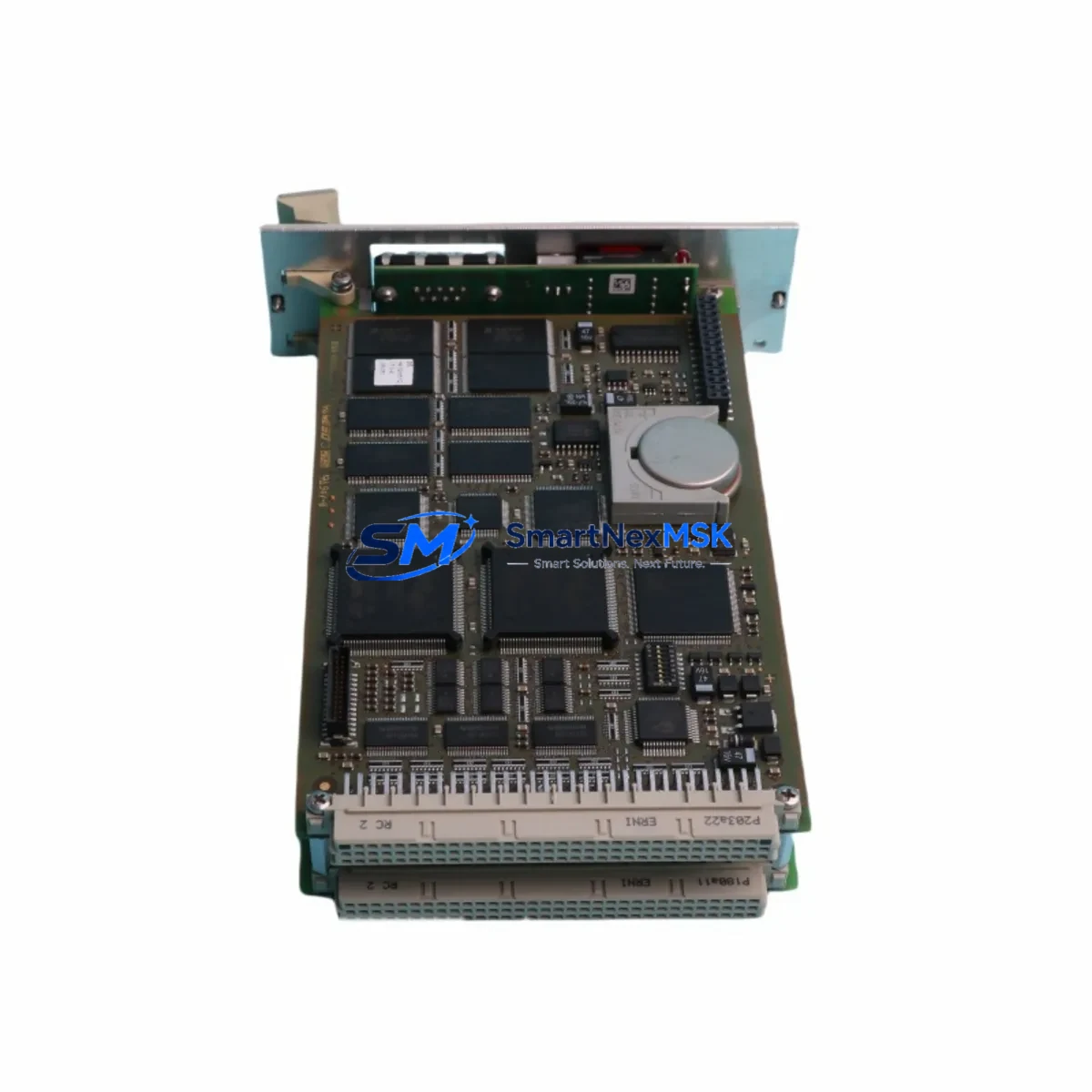

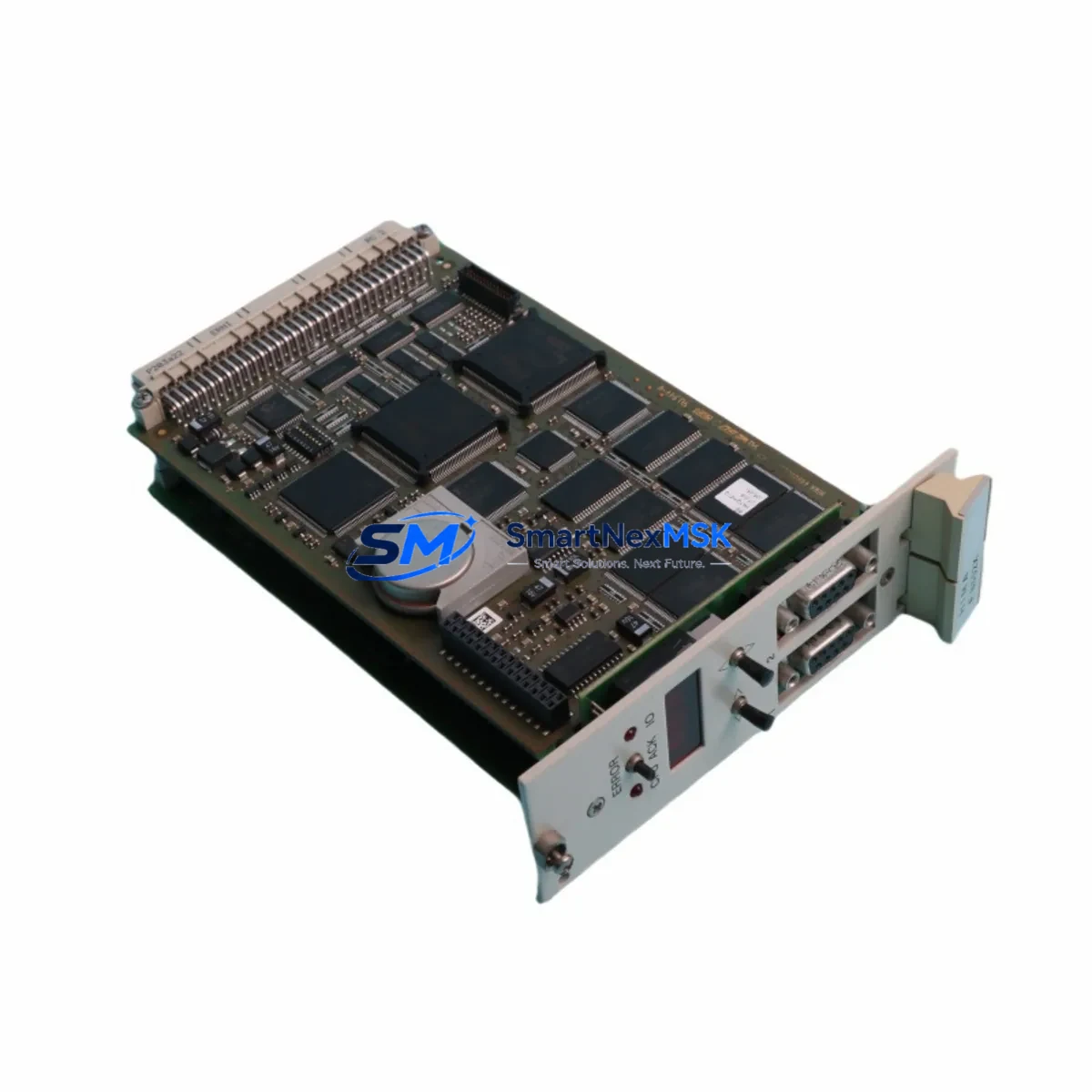

Hima F8652X Retrofit-Ready Safety CPU for HIMax Systems

Hima F8652X Retrofit-Ready Safety CPU for HIMax Control Systems

The Hima F8652X is a high-integrity Safety PLC CPU module engineered for the HIMax safety control platform — one of the most widely deployed SIL 3–certified architectures in process automation, oil & gas, chemical, and power generation industries. As legacy HIMax installations age and original CPU modules approach end-of-life or become discontinued, the F8652X serves as the primary retrofit and replacement solution, enabling facilities to extend the operational life of their existing safety infrastructure without a full system overhaul.

Whether you are replacing a failed unit, upgrading from an earlier HIMax CPU revision, or modernizing a control cabinet to meet current functional safety standards, the F8652X provides a validated, drop-in compatible upgrade path. Its architecture is designed to preserve existing program logic, I/O mapping, and communication configurations — minimizing engineering rework and reducing planned shutdown windows to the absolute minimum.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful HIMax retrofit begins well before the module arrives on site. Engineers must audit the existing control cabinet to confirm rack slot availability, backplane revision compatibility, and power supply headroom. The Hima F8652X draws its operating power from the HIMax system power supply module — typically the F8621A or F8622A redundant power supply units — and the total load budget must be recalculated when adding or replacing CPU modules in a multi-slot configuration.

Terminal wiring on the HIMax platform is handled through dedicated I/O modules rather than directly on the CPU, which simplifies the physical swap. However, engineers should verify that all connected F3 DI 16/8 F-DI digital input modules and F3 DO 16/8 F-DO digital output modules are firmware-compatible with the F8652X CPU revision being installed. Mismatched firmware between the CPU and I/O modules is one of the most common causes of post-retrofit diagnostic faults.

Communication continuity is equally critical. If the existing system uses SafeEthernet for peer-to-peer safety communication between HIMax controllers — common in large process plants with distributed safety zones — the F8652X must be re-paired with its communication partners using the HIMax Engineering Tool. PROFIBUS-DP master configurations, including GSD file assignments and slave address tables, should be exported from the original project before the swap and re-imported after commissioning. For sites migrating from older serial-based protocols to Modbus TCP or OPC UA, the F8652X supports both, enabling a phased protocol migration without replacing the entire controller.

HMI integration is another area requiring careful pre-planning. Facilities running Siemens WinCC, Wonderware InTouch, or other SCADA platforms connected to the HIMax system via OPC DA should verify that tag addresses and data block mappings remain consistent after the CPU replacement. In most cases, the F8652X retains the same memory organization as its predecessor, but a full tag audit is recommended before returning the system to operational status.

For sites that also operate Hima HIMatrix compact safety controllers alongside the HIMax platform — common in satellite skid applications — the F8652X retrofit does not affect HIMatrix configurations, as these are independent controllers. However, any SafeEthernet links between HIMax and HIMatrix nodes must be re-validated post-commissioning. Similarly, if the control cabinet includes a Hima F8705E communication module for fieldbus gateway functions, its configuration should be backed up and verified as part of the retrofit checklist.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern during any safety PLC CPU replacement. For the Hima F8652X, the recommended approach is a structured hot-standby transition where the HIMax system’s redundant CPU architecture is leveraged to perform a rolling replacement — taking the standby CPU offline first, installing and commissioning the F8652X in that slot, validating its operation under the active CPU’s supervision, then performing a controlled switchover before replacing the second unit.

Before initiating any physical swap, the complete project file must be archived from the HIMax Engineering Tool, including the compiled safety application, I/O configuration, communication parameters, and diagnostic history. This archive serves as the restore baseline if commissioning encounters unexpected faults. The F8652X ships pre-tested from our facility with a functional burn-in verification, reducing the risk of DOA units causing extended outages.

On-site commissioning should follow a structured sequence: power-off the target slot, seat the F8652X module, restore power, confirm backplane recognition in the engineering tool, load the archived project, verify module address assignments, run a full I/O diagnostic cycle, re-establish SafeEthernet peer connections, and perform a final watchdog and safety function test before releasing the system to operations. This sequence typically completes within two to four hours for a single CPU replacement, keeping total planned downtime well within a standard maintenance window.

All units supplied by SMARTNEXMSK are covered by a 12-month warranty against manufacturing defects and functional failure. Each module undergoes pre-shipment functional testing, and documentation including test records and traceability certificates is available upon request.

Retrofit Support FAQ

Q1: Is the Hima F8652X a direct drop-in replacement for my existing HIMax CPU module?
In the majority of HIMax installations, yes. The F8652X is designed for direct slot replacement within the standard HIMax rack. You should confirm your backplane revision and power supply capacity before installation. Our technical team can assist with compatibility verification based on your existing project file and hardware revision numbers.

Q2: Do I need to rewrite my safety application logic after installing the F8652X?
No rewrite is required in standard replacement scenarios. The existing SIL-certified application compiled in ELOP II Factory or the HIMax Engineering Tool can be loaded directly onto the F8652X. You should perform a full functional test of all safety loops after commissioning to confirm correct operation before returning the system to service.

Q3: How do I verify wiring and terminal compatibility before the swap?
Terminal wiring on the HIMax platform connects to I/O modules, not directly to the CPU. The F8652X replacement does not require any terminal rewiring in standard configurations. Verify that your I/O module firmware versions are compatible with the F8652X CPU revision, and confirm that all field device signals are correctly mapped in the project configuration.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects, functional failure under normal operating conditions, and dead-on-arrival (DOA) units. To initiate a warranty claim, contact our sales team with your order reference, a description of the fault, and any available diagnostic logs from the HIMax Engineering Tool. Replacement units are dispatched within 3–5 business days upon claim approval.
