HIMA F7131 Retrofit-Ready Power Distribution Module for HIMax Control Systems

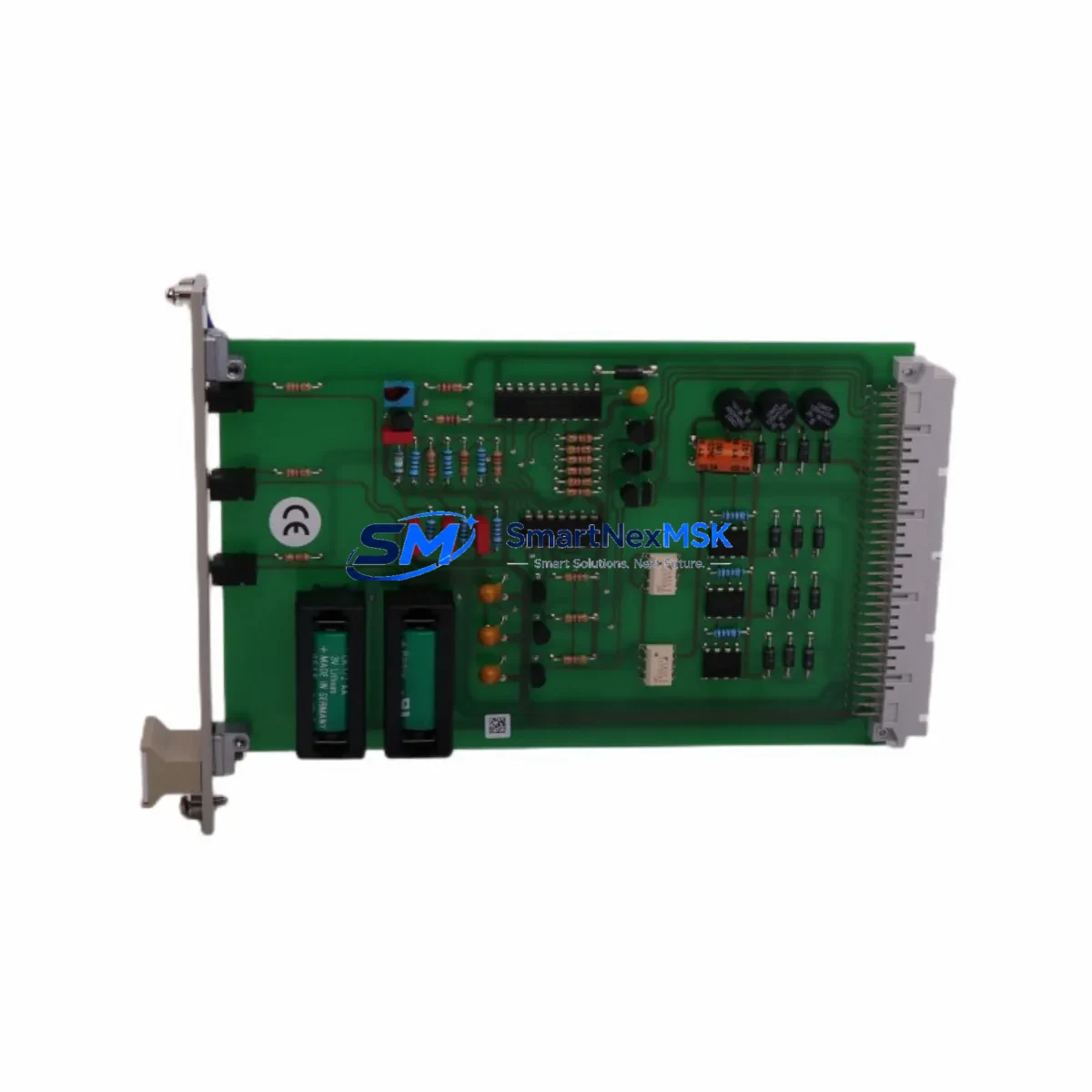

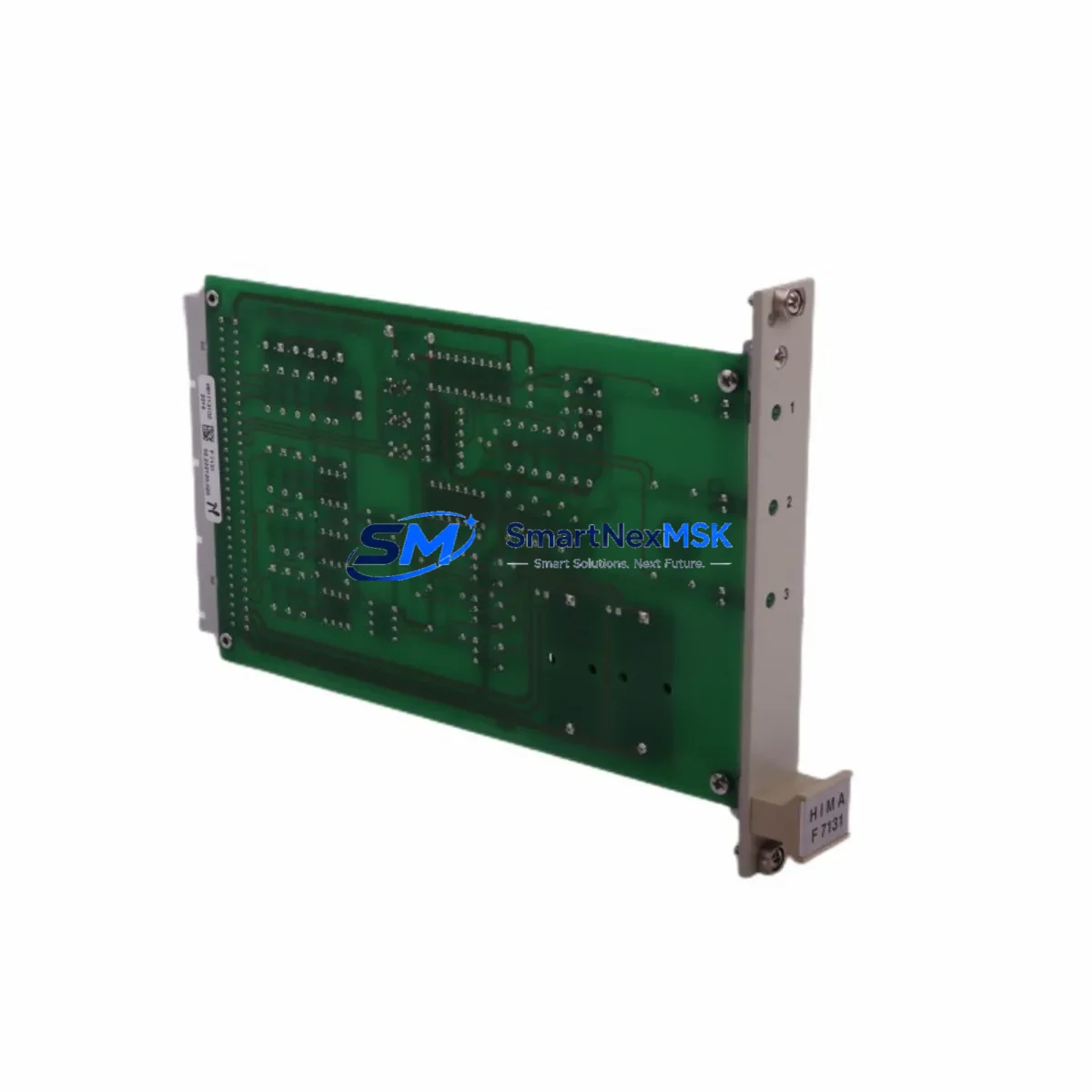

The HIMA F7131 is a safety-rated Power Distribution Module engineered for the HIMax Series safety controller platform. Designed to meet IEC 61508 SIL 3 requirements, the F7131 serves as a direct replacement and upgrade solution for aging or discontinued power distribution components within existing HIMax control cabinets. Whether you are managing a planned system modernization or responding to an unplanned component failure, the F7131 provides a verified, drop-in compatible path to restore and extend the operational life of your safety-critical automation infrastructure.
Industrial facilities running HIMax-based safety systems — including emergency shutdown (ESD), burner management (BMS), fire and gas (F&G), and process safety applications — frequently encounter the challenge of sourcing discontinued or end-of-life spare parts. The F7131 addresses this directly: it maintains full electrical and mechanical compatibility with the HIMax backplane, preserving existing terminal wiring, rack mounting positions, and module addressing without requiring changes to the safety application program or HMI configuration.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | HIMA HIMax Safety Controller Series |
| Module Type | Power Distribution Module |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Backplane Interface | HIMax standard backplane slot — direct fit |
| Terminal Wiring | Compatible with existing HIMax cabinet wiring; no re-termination required |
| Communication Compatibility | Transparent to HIMax system bus; no protocol reconfiguration needed |
| Module Addressing | Slot-based; retains original address assignment |
| Replacement Scope | Direct replacement for F7131 and functionally equivalent discontinued variants |
| Commissioning Requirement | Safety application reload recommended; HMI faceplate update may be required |
| Warranty | 12 Months from date of shipment |
Retrofit Planning for Existing Automation Systems
Successful integration of the F7131 into an existing HIMax installation begins with a thorough pre-replacement audit. Engineers should verify the available power budget across the HIMax rack before installation, particularly when the cabinet also houses modules such as the HIMA F3330 CPU module, F6217 digital input modules, or F6221 digital output modules, all of which draw regulated power from the distribution layer. Confirm that the existing HIMax power supply module (typically an F7130 or equivalent) can sustain the combined load after the F7131 is installed.
Terminal block wiring should be documented and photographed prior to removal of the legacy module. The F7131 uses the same connector footprint as its predecessors, but field engineers should cross-reference the original cabinet wiring diagram to confirm conductor sizing and fuse ratings remain within specification. Where the original installation used an older HIMax backplane revision, verify backplane firmware compatibility with your HIMA system integrator or via the HIMA Safety Designer engineering tool.
For systems that also incorporate HIMA F3236 communication modules or F8650E Ethernet gateway modules, confirm that the power distribution change does not affect bus segment voltage stability. In multi-rack configurations, the HIMax rack extension cable and inter-rack communication links should be tested under load after the F7131 is seated and powered. If the installation includes a HIMA SafeEthernet network segment, a full network integrity check is recommended before returning the system to operational status.
Programming compatibility is a key concern during any power module swap. The HIMax safety application — developed in HIMA Safety Designer and compiled to the controller’s non-volatile memory — does not require modification when replacing a power distribution module of the same type. However, if the replacement is part of a broader platform migration from an older HIMA H51q or HIMA B7920 legacy controller to the HIMax architecture, a full application re-validation and Factory Acceptance Test (FAT) will be required before site commissioning.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational concern when replacing safety system components in live process environments. For the F7131 replacement, the recommended approach is a scheduled maintenance window during a planned process shutdown or turnaround. Prior to the window, pre-stage the replacement F7131 module, verify its firmware revision against the installed HIMax system version, and prepare a rollback plan using a documented backup of the current safety application.
Where hot-swap capability is not available — which is typical for power distribution modules in SIL 3 applications — coordinate with the process control team to place the affected safety loop in a safe state (bypassed or inhibited per the site Management of Change procedure) before de-energizing the rack segment. After installing the F7131, restore power incrementally, confirm module self-diagnostics pass, and verify that all connected I/O channels report correctly in the HIMax diagnostic display before releasing the bypass. This sequence protects original program logic, preserves HMI alarm configurations, and maintains field control continuity throughout the replacement process.
All units are subject to pre-shipment functional testing and are supplied with a test report. Stock is maintained for immediate dispatch, supporting both planned maintenance schedules and emergency breakdown scenarios.
Retrofit Support FAQ
Q1: Is the F7131 a direct drop-in replacement for the original HIMA HIMax power distribution module?
Yes. The F7131 is mechanically and electrically compatible with the HIMax backplane slot. No modifications to cabinet wiring, module addressing, or the safety application program are required for a like-for-like replacement.
Q2: What commissioning steps are required after installing the F7131?
After seating the module and restoring power, confirm that the HIMax system diagnostic screen shows the F7131 as healthy. A safety application reload from the engineering station is recommended as best practice. If the installation is part of a broader upgrade, a partial or full FAT may be required per your site’s Management of Change procedure.
Q3: Does the F7131 support the same communication protocols as the original module?
The F7131 is a power distribution module and is transparent to the HIMax system bus. It does not participate in protocol-level communication. All SafeEthernet, Modbus, or PROFIBUS links managed by dedicated communication modules (such as the F3236 or F8650E) are unaffected by the power module replacement.
Q4: What warranty coverage is provided?
All F7131 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing documentation is available upon request.
