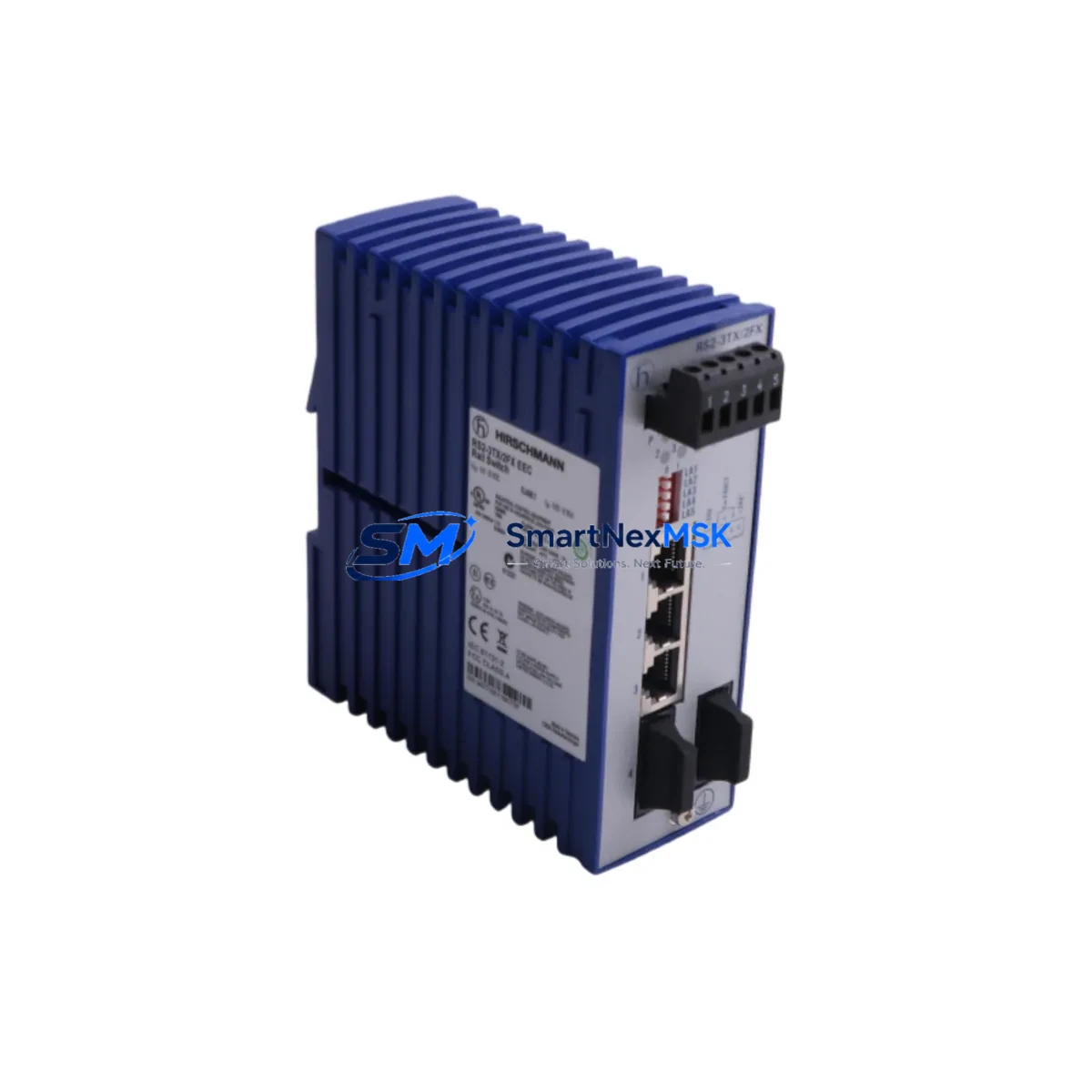

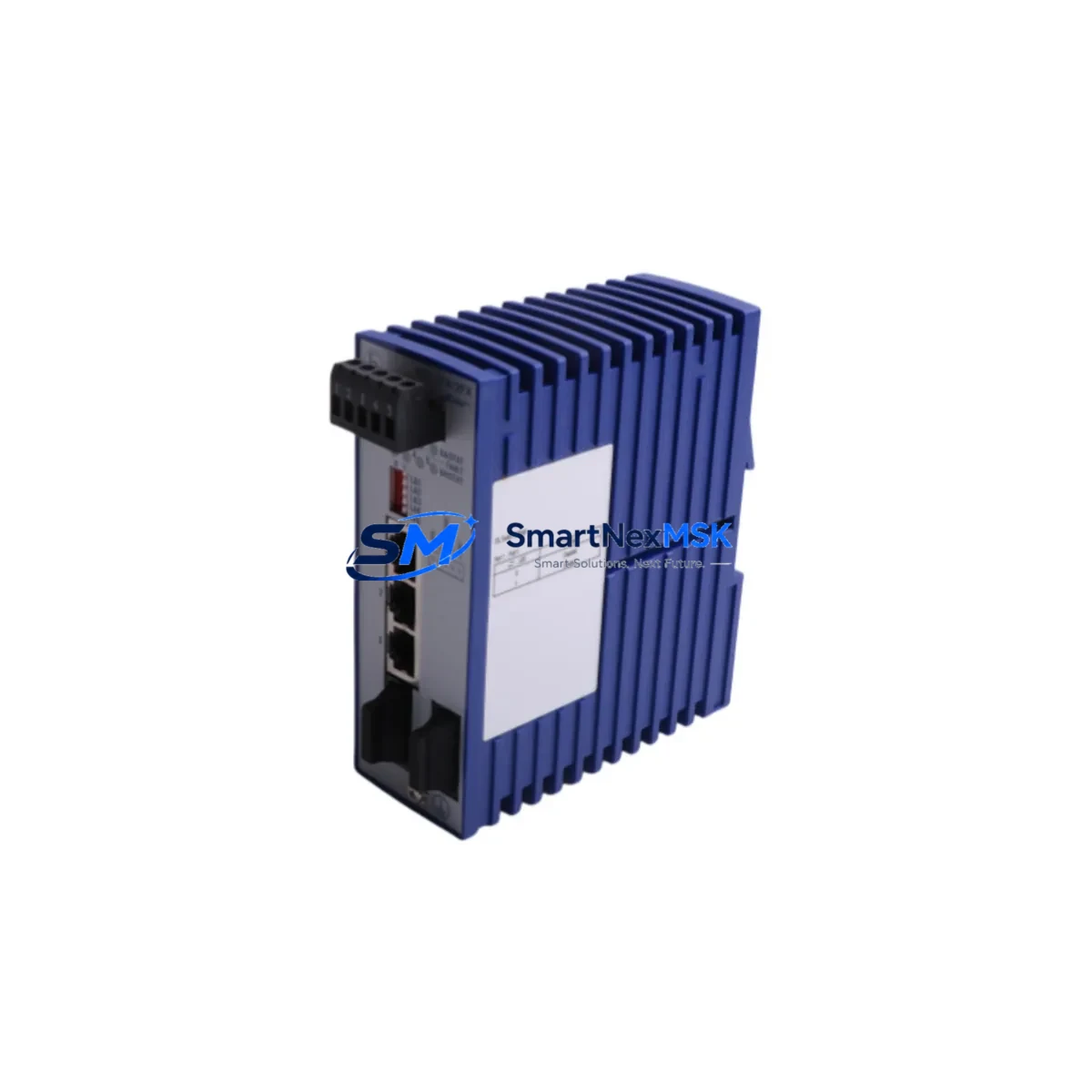

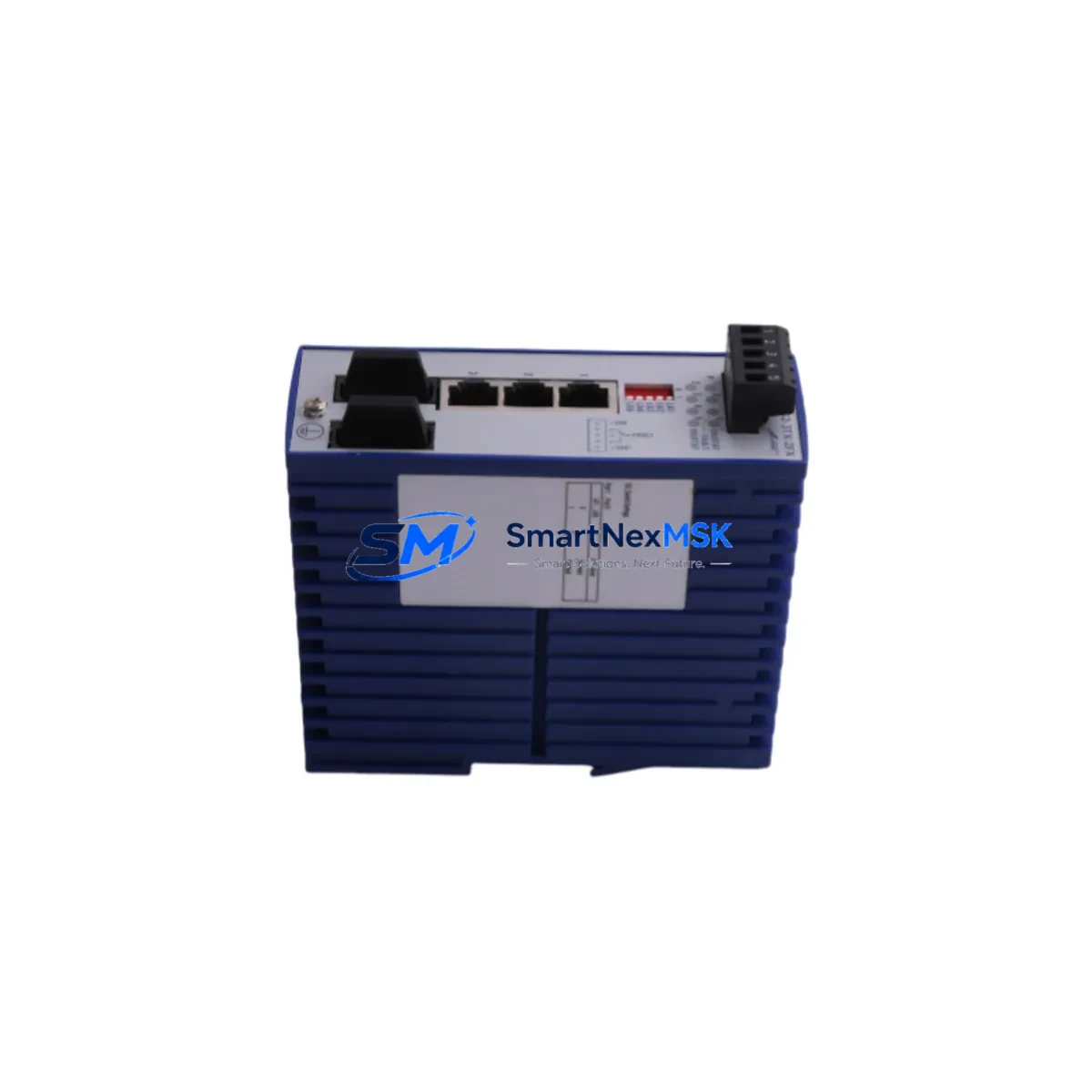

The Hirschmann RS2-3TX/2FX EEC is a maintenance-critical spare component for industrial Ethernet infrastructure built on the Hirschmann RS2 Series platform. Designed for harsh industrial environments, this 5-port managed DIN-rail switch combines three 10/100BASE-TX copper ports with two 100BASE-FX fiber ports, making it a cornerstone device in factory automation networks, process control cabinets, and distributed I/O architectures. When this switch fails or reaches end-of-service life, unplanned downtime can cascade across entire production lines — making rapid spare availability a top operational priority for maintenance and procurement engineers alike.

At SMARTNEXMSK, we supply the RS2-3TX/2FX EEC as a fully tested, original-grade spare with a 12-month warranty, pre-shipment functional verification, and documented compatibility with the RS2 Series ecosystem. Our inventory is maintained specifically to support emergency replacement, planned maintenance cycles, and long-term system life extension for aging Hirschmann network infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the RS2-3TX/2FX EEC in a live control cabinet, a disciplined maintenance engineer will not stop at the switch itself. The RS2 Series switch is typically integrated into a broader Hirschmann or third-party automation network where several adjacent components share the same power rail, communication bus, or I/O loop. A thorough site inspection should include the following:

Power supply integrity is the first checkpoint. The RS2-3TX/2FX EEC operates on 24 VDC, and a failing or undersized Hirschmann PS24 redundant power supply module or equivalent DIN-rail PSU can cause intermittent switch resets that mimic port hardware failure. Verify input voltage stability and check for ripple before condemning the switch.

Fiber patch cables and SC connectors are a frequent source of link-loss events misattributed to the switch. Inspect and clean all fiber connections at both the switch and the remote device — typically a Hirschmann RS20 or RS30 Series upstream switch or a fiber media converter — before installing the replacement unit.

Terminal blocks and power wiring on the DIN-rail should be inspected for loose connections, corrosion, or thermal damage. Phoenix Contact or Weidmüller-style push-in terminal blocks adjacent to the switch are common failure points in high-vibration environments.

Upstream and downstream network devices in the same Ethernet ring or star topology — such as a Hirschmann MACH100 or MICE Series core switch — should be checked for RSTP/MRP ring configuration consistency after the RS2-3TX/2FX EEC is replaced, as ring protocol parameters must match across all nodes.

I/O modules and remote PLCs connected through the switch — for example, a Siemens ET 200S distributed I/O station or a Beckhoff EtherCAT coupler — should be verified for communication restoration after switch replacement. A brief I/O scan cycle test confirms end-to-end network recovery.

Signal isolators and surge protection devices on the copper TX ports should be inspected. Industrial environments with long cable runs often use Phoenix Contact TRABTECH or Weidmüller VSSC series Ethernet surge arresters at the cabinet entry point; these should be tested for continuity and replaced if degraded.

Fuse holders and circuit protection on the 24 VDC supply line feeding the switch should be checked. A blown or weakened DIN-rail fuse block (typically 2A–4A for this class of switch) can cause intermittent power cycling that damages the switch over time.

Maintaining a minimum stock of one RS2-3TX/2FX EEC spare per critical network segment — alongside spare fiber patch cables, a redundant PSU module, and a set of terminal block connectors — is the recommended strategy for facilities operating legacy Hirschmann RS2 infrastructure beyond its standard product lifecycle.

Site Replacement Workflow

Replacing the RS2-3TX/2FX EEC on-site is a structured process designed to minimize network downtime and ensure full system compatibility:

Step 1 — Pre-replacement documentation: Export the current switch configuration using HiDiscovery or the Hirschmann Industrial HiVision NMS before powering down. Save the configuration file for direct upload to the replacement unit.

Step 2 — Safe isolation: De-energize the cabinet section feeding the switch. Confirm 24 VDC is absent at the switch power terminals using a calibrated multimeter. Label all fiber and copper cables before disconnection.

Step 3 — Physical swap: Remove the failed RS2-3TX/2FX EEC from the DIN-rail. Mount the replacement unit in the same position. Reconnect all fiber SC connectors and RJ45 patch cables in the original port sequence.

Step 4 — Configuration restore: Power up the replacement switch. Use HiDiscovery to assign the original IP address, then upload the saved configuration file. Verify VLAN, RSTP/MRP, and port settings match the original.

Step 5 — Network validation: Confirm all downstream devices — PLCs, I/O stations, HMI panels, and SCADA nodes — have re-established communication. Check ring redundancy status in HiVision or via the switch web interface.

This workflow is compatible with all RS2 Series variants and supports seamless migration from end-of-life RS2 units to current-stock replacements without requiring changes to upstream network topology or PLC program modifications.

Spare Parts Support FAQ

Q1: Is the RS2-3TX/2FX EEC still available as a new original spare?
Yes. SMARTNEXMSK maintains stock of the RS2-3TX/2FX EEC as an original-grade spare sourced through authorized industrial distribution channels. Each unit is individually tested prior to shipment. While Hirschmann has transitioned newer product lines to the MACH and OCTOPUS families, the RS2 Series remains widely deployed and we are committed to long-term supply continuity for maintenance customers.

Q2: How is compatibility verified before shipment?
Every RS2-3TX/2FX EEC unit undergoes a pre-shipment functional test covering power-on initialization, all port link-up sequences (both TX and FX), and basic switching operation. The unit’s hardware revision and firmware version are documented and provided with the shipment. Compatibility with existing RS2 Series network configurations is confirmed based on the original Hirschmann product specification.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal industrial operating conditions as specified in the RS2-3TX/2FX EEC datasheet. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the rated temperature range. Warranty claims are processed with priority to minimize customer downtime.

Q4: Can I order multiple units for a spare parts buffer stock program?
Yes. SMARTNEXMSK supports bulk spare procurement for maintenance buffer stock programs. Volume pricing is available for orders of 3 or more units. We recommend holding a minimum of one spare per critical network segment for facilities with RS2 Series switches in production-critical roles. Contact our sales team to discuss a tailored spare parts supply agreement.
