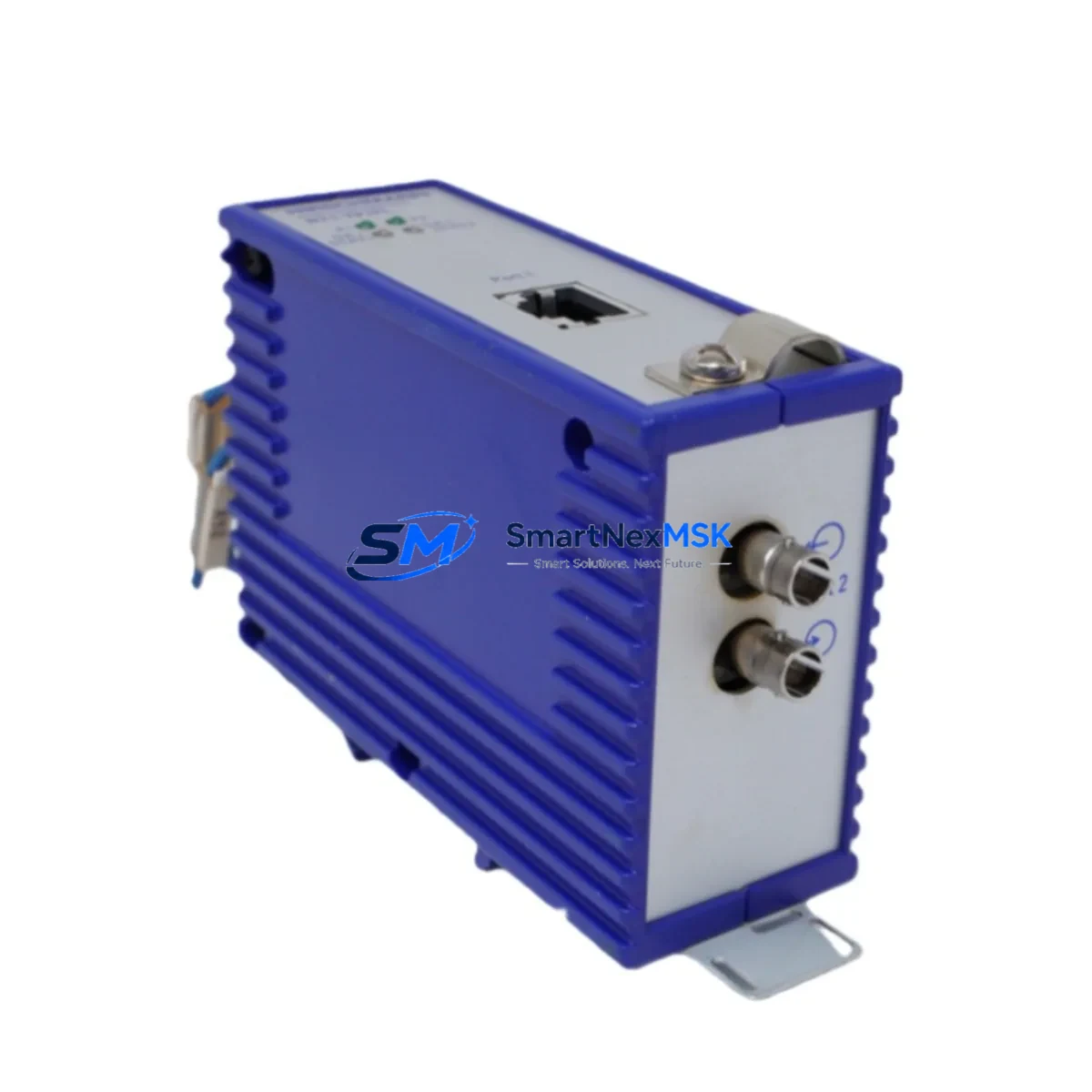

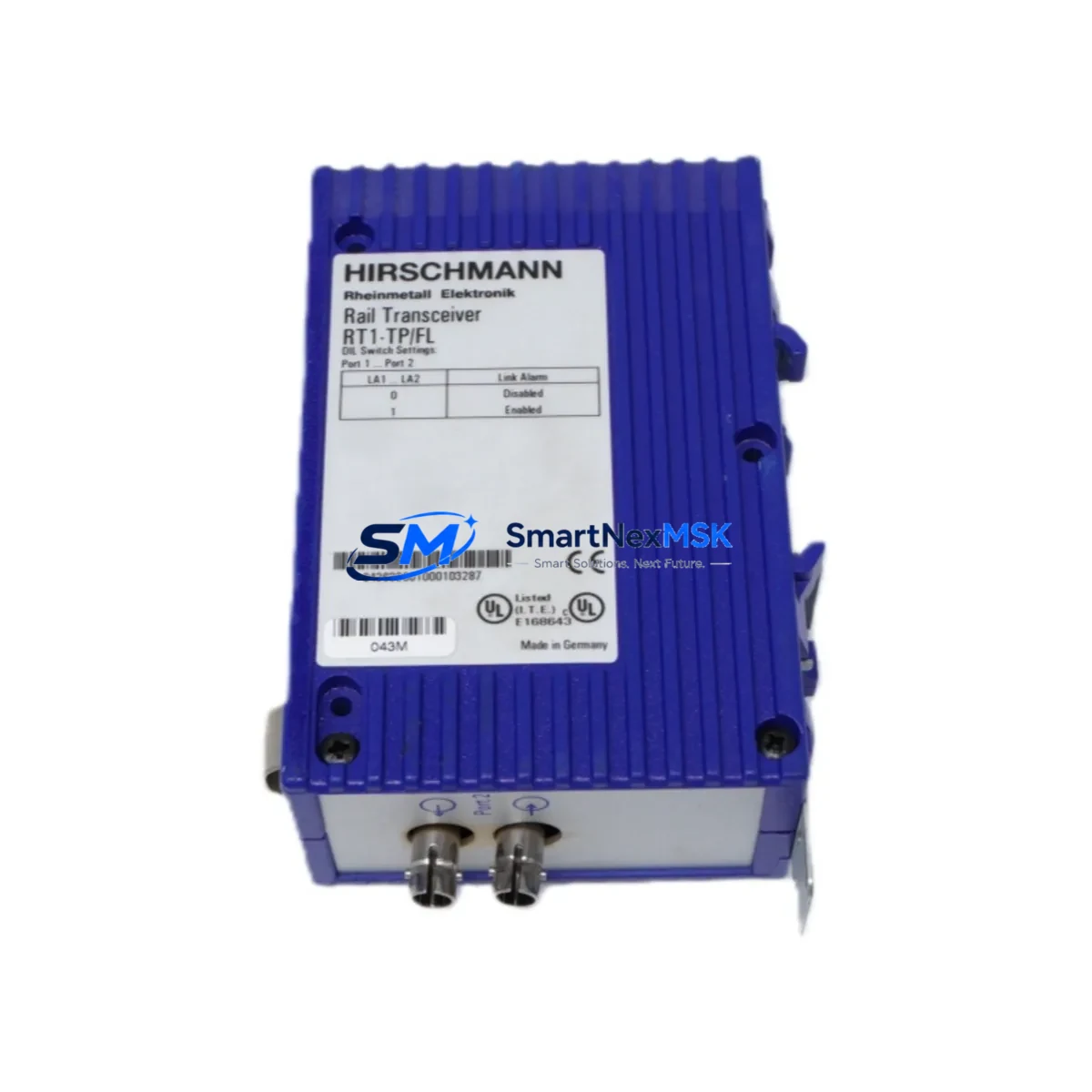

HIRSCHMANN RT1-TP/FL Safety-Enhanced Media Converter

HIRSCHMANN RT1-TP/FL: Safety-Enhanced Industrial Media Converter for Harsh Control Environments

The HIRSCHMANN RT1-TP/FL is a ruggedized industrial Ethernet media converter from the MICE (Modular Industrial Communication Equipment) Series, engineered specifically for continuous operation in high-interference, high-load, and safety-critical industrial environments. Designed to bridge copper twisted-pair (TP) and fiber-optic (FL) segments within the same control network, the RT1-TP/FL eliminates galvanic coupling between network segments — a fundamental requirement in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and port logistics systems where ground loops and electromagnetic interference routinely threaten control integrity.

In modern industrial control cabinets, communication reliability is inseparable from operational safety. A single dropped Ethernet frame in a PROFINET or Modbus TCP loop can trigger a false interlock, delay a safety PLC response, or cause an unplanned process shutdown. The RT1-TP/FL addresses this risk by converting electrical Ethernet signals to optical signals, physically isolating the copper segment from EMI sources such as variable frequency drives (VFDs), high-voltage bus bars, and large motor starters that are common in heavy industrial switchgear panels. This optical isolation is not merely a performance feature — it is a safety architecture decision.

Safety Reliability Table

Control Cabinet Protection Strategy

The RT1-TP/FL is rarely deployed in isolation. In a well-engineered industrial control cabinet, it functions as one layer within a multi-component protection and communication architecture. When installed in a HIRSCHMANN MICE chassis — such as the MS20 or MS30 managed switch platform — the RT1-TP/FL module shares a common backplane with other MICE plug-in modules, including copper Fast Ethernet ports, Gigabit uplink modules, and redundancy manager modules that support HIRSCHMANN’s proprietary HiPER-Ring or MRP (Media Redundancy Protocol) ring topologies. This ring redundancy is critical in continuous process industries: if a fiber segment fails, the ring heals in under 500 ms, preventing a full network outage from cascading into a safety interlock failure.

On the power supply side, the MICE chassis is typically fed by a HIRSCHMANN PS24 or equivalent 24 VDC redundant power supply module, often paired with a QUINT POWER or TRIO POWER series DIN-rail PSU from Phoenix Contact to ensure N+1 power redundancy. Voltage dips or micro-interruptions on the 24 VDC rail — common in facilities with large solenoid valves or contactor banks — can cause managed switches to reboot and temporarily drop PROFINET communication. The RT1-TP/FL’s passive optical conversion stage is inherently immune to brief power micro-interruptions on the copper side, adding a layer of resilience that purely copper-based switches cannot provide.

In the same control cabinet, the fiber segment extended by the RT1-TP/FL typically connects to a SIEMENS SCALANCE X series or MOXA EDS series managed switch at the remote end — for example, in a field junction box or a remote I/O panel housing SIEMENS ET 200SP or Beckhoff EK1100 EtherCAT Coupler distributed I/O nodes. The fiber link ensures that even if the field panel is located adjacent to a high-voltage MCC (Motor Control Center) or a large transformer, the control signals reaching the safety PLC — such as a SIEMENS S7-300F or Allen-Bradley GuardLogix — remain free of induced noise and ground potential differences.

For installations requiring additional surge protection on the copper RJ45 port, a DEHN or Phoenix Contact surge protection device (SPD) rated for data lines (Category D1, per IEC 61643-21) is recommended upstream of the RT1-TP/FL’s TP port. This combination — SPD on copper input, optical isolation through the RT1-TP/FL, and a managed switch with MRP redundancy at the far end — constitutes a robust three-layer communication protection strategy suitable for Zone 2 hazardous area boundaries and high-lightning-risk outdoor installations.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In refinery DCS networks, the RT1-TP/FL is used to extend PROFINET or Modbus TCP segments from the central control room to remote field panels located near reactors, heat exchangers, or pump skids. The fiber link prevents ground loop currents — which can reach several amperes in large grounded process plants — from corrupting Ethernet frames or damaging switch ports. Combined with a HIRSCHMANN MACH 4000 backbone switch in the control room, the RT1-TP/FL enables a fully redundant, optically isolated field communication architecture.

Power Generation & Substation Automation: In power plant auxiliary control systems and substation automation panels, the RT1-TP/FL bridges IEC 61850 GOOSE message networks between protection relays and bay controllers. The optical isolation is mandatory in high-voltage substations where ground potential rise (GPR) during fault events can exceed 10 kV between different grounding points. The RT1-TP/FL’s fiber segment absorbs this potential difference without damage, protecting both the communication infrastructure and the personnel working on the system.

Mining & Tunneling Operations: Underground mining environments combine explosive atmospheres, high humidity, mechanical vibration, and extreme EMI from large electric shovels and conveyor drives. The RT1-TP/FL, installed in a sealed control enclosure with appropriate IP-rated housing, extends Ethernet connectivity to remote monitoring points — such as gas detection controllers, ventilation fan drives, and emergency stop interlock panels — without introducing copper conductors that could act as antennas for induced interference.

Water & Wastewater Treatment: In water treatment SCADA systems, the RT1-TP/FL connects PLC panels in pump stations and chemical dosing rooms to the central SCADA server over fiber, ensuring that the communication link remains stable even when large submersible pumps start and stop, generating significant voltage transients on the local power distribution system. Reliable communication in these applications directly supports safe chemical dosing control and prevents overflow or under-treatment events.

Metallurgy & Steel Mills: Rolling mill and electric arc furnace control systems generate some of the most severe EMI environments in industry. The RT1-TP/FL’s optical isolation is essential for maintaining stable Ethernet communication between the main automation PLC and remote drive controllers or pyrometer interfaces located near the furnace or rolling stands, where copper cables would be subject to continuous high-frequency interference from thyristor drives and induction heating systems.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact sales@smartnexmsk.com with the order number and a description of the fault. We will arrange a replacement or repair at no additional cost, including return shipping for confirmed warranty cases.

Q2: What pre-shipment testing is performed on the RT1-TP/FL before dispatch?
Every RT1-TP/FL unit undergoes a full functional test before shipment, including power-up verification, TP port link establishment, fiber port optical power measurement, and data throughput validation. A test report is available on request. Units that do not pass all test criteria are quarantined and not dispatched.

Q3: Is the RT1-TP/FL compatible with all HIRSCHMANN MICE chassis versions?
The RT1-TP/FL is designed for the HIRSCHMANN MICE modular chassis platform and is compatible with standard MICE backplane configurations including those used in MS20, MS30, and equivalent MICE-based managed switch assemblies. If you are integrating into a specific chassis revision or a mixed-module configuration, please share your chassis model with our technical team at sales@smartnexmsk.com for confirmation before ordering.

Q4: Can long-term supply and spare part availability be guaranteed for maintenance planning?
Yes. We maintain dedicated stock of the RT1-TP/FL and related HIRSCHMANN MICE series modules to support long-term maintenance and spare part programs for industrial facilities with multi-year maintenance contracts. For projects requiring guaranteed annual supply quantities, framework agreements are available. Contact us to discuss your site’s spare part strategy and annual volume requirements.
