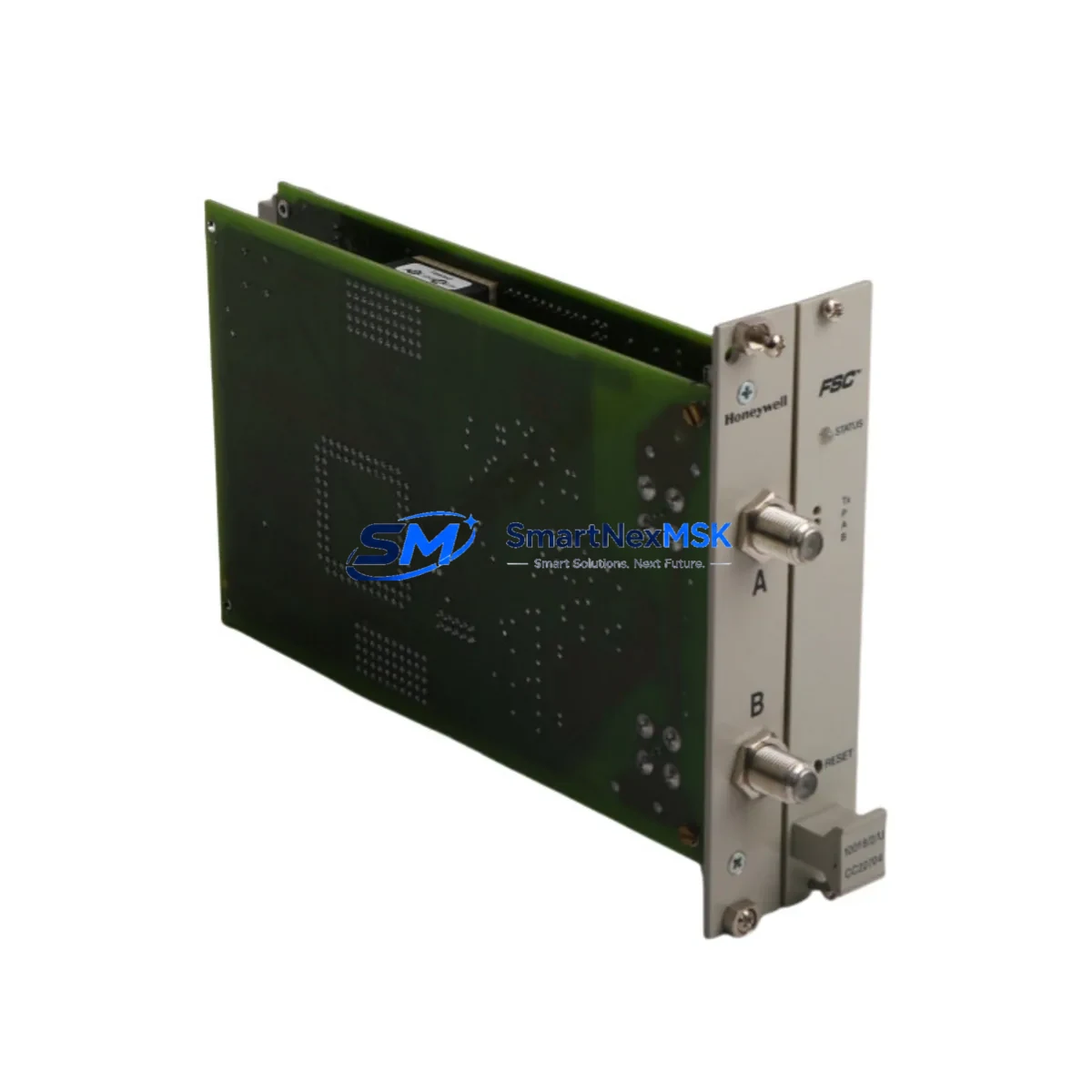

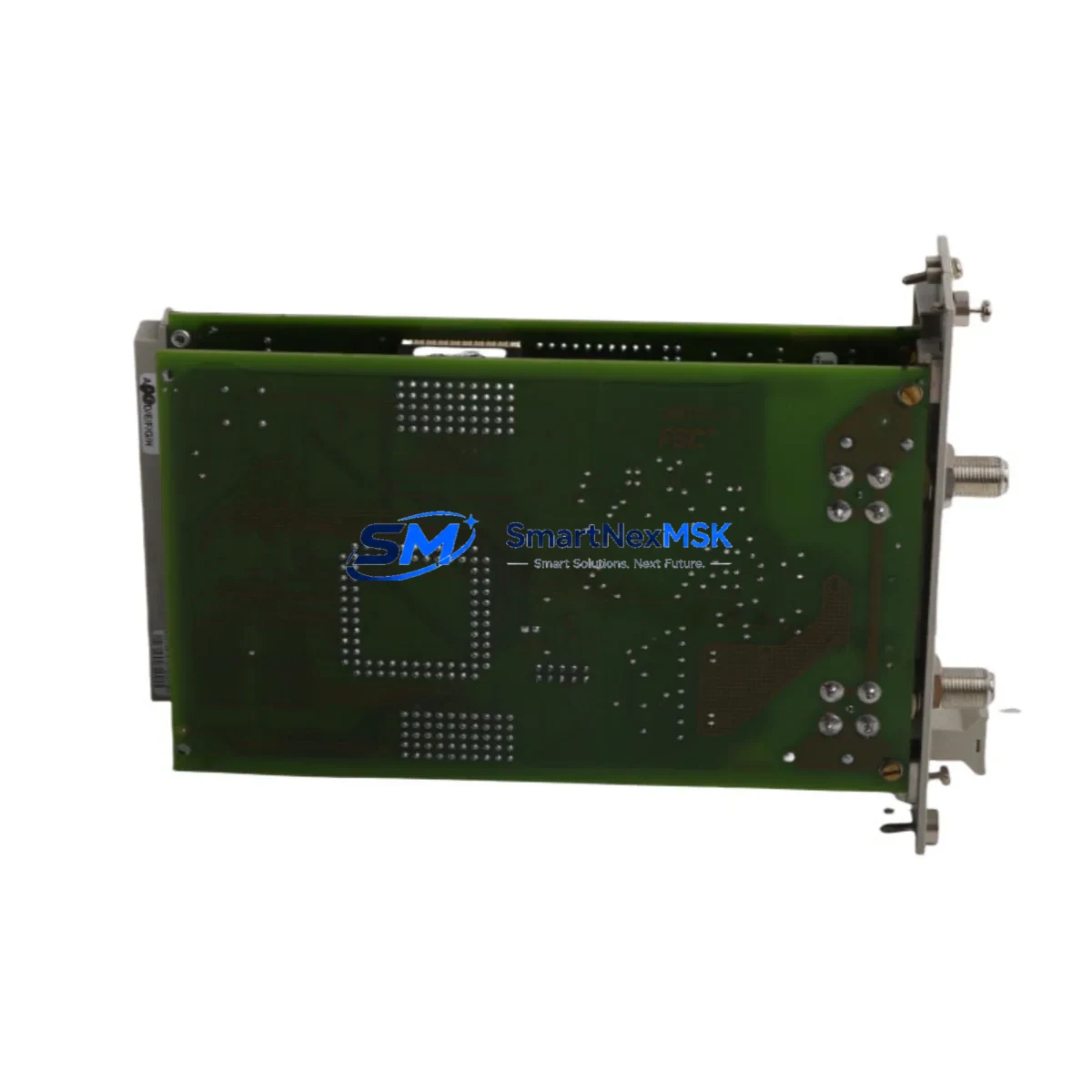

Honeywell 10008/2/U Maintenance-Ready Spare for TDC 3000 Automation
The Honeywell 10008/2/U is a critical communication module within the TDC 3000 distributed control system architecture, serving as the backbone of Local Control Network (LCN) and Universal Control Network (UCN) data exchange. In continuous-process industries — including refining, petrochemicals, power generation, and pulp and paper — an unplanned failure of this module can halt production across entire process units. Sourcing a verified, original spare and maintaining it in your on-site inventory is the most effective strategy for minimizing mean time to repair (MTTR) and protecting operational continuity.
At SMARTNEXMSK, every 10008/2/U unit is sourced from authorized channels, individually tested under simulated LCN/UCN load conditions, and shipped with a 12-month warranty. Our technical team verifies firmware compatibility and physical integrity before dispatch, ensuring the module is ready for immediate installation upon arrival at your facility.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number / SKU | 10008/2/U |
| Brand | Honeywell |
| Series / Platform | TDC 3000 (LCN / UCN) |
| Module Type | DCS Communication Module |
| Network Compatibility | Local Control Network (LCN), Universal Control Network (UCN) |
| Form Factor | Card / Module (rack-mounted, TDC 3000 backplane) |
| Operating Voltage | Per TDC 3000 backplane specification (typically 5 VDC / 24 VDC bus) |
| Operating Temperature | 0°C to 60°C (industrial control room environment) |
| Application Environment | Process control rooms, DCS cabinets, continuous-process industries |
| Condition | Original / New-surplus / Refurbished (tested) |
| Pre-shipment Testing | Functional communication test, LCN/UCN signal integrity verification |
| Warranty | 12 Months from date of shipment |
| Lead Time | In-stock: ships within 2–5 business days |
| Country of Origin | United States |
Maintenance Planning for Continuous Operation
When a 10008/2/U communication module is flagged during routine control cabinet inspection or fails during operation, experienced maintenance engineers know that the fault rarely exists in isolation. The LCN/UCN communication layer in a TDC 3000 system is tightly coupled with adjacent hardware, and a thorough replacement procedure should include inspection of the following components:
Begin with the Highway Gateway Module (HGM) and Network Interface Module (NIM), which manage data routing between the LCN and process nodes — degraded performance in either can mask or amplify a 10008/2/U fault. Inspect the TDC 3000 backplane and card cage for oxidized connectors, loose card guides, or signs of thermal stress, as poor backplane contact is a common root cause of intermittent communication errors. Check the Power Supply Module (PSM) feeding the card cage: voltage ripple or marginal output under load will cause communication modules to drop off the network unpredictably.
Review the Coax LCN cable terminations and BNC connectors at both ends of the network segment — damaged shielding or improper termination resistance (75 Ω) introduces reflections that degrade LCN throughput. If the system includes a Universal Station (US) or Enhanced Universal Station (EUS) as the operator interface, verify that the HMI node is still communicating cleanly after the module swap, as LCN topology changes can affect node addressing. For systems with Application Module (AM) or History Module (HM) nodes on the same LCN segment, confirm that these nodes re-establish communication after the replacement without requiring a full network restart.
On the process side, inspect I/O Link Modules and Process Manager (PM) cards connected downstream of the UCN to confirm that field I/O data is being received correctly after the communication path is restored. Where signal isolators or barriers are installed between field instruments and the I/O cards, verify isolation integrity — a compromised isolator can introduce ground loops that corrupt serial communication. Finally, check fuse holders and terminal blocks within the control cabinet for signs of heat damage or loose connections that may have contributed to the original module failure.
Maintaining a structured spare parts kit that includes the 10008/2/U alongside these associated components significantly reduces the risk of secondary failures during emergency maintenance windows and supports a faster return to normal operation.
Site Replacement Workflow
Replacing the Honeywell 10008/2/U in a live TDC 3000 system requires careful sequencing to avoid disrupting the LCN/UCN network topology. Before removing the faulty module, document the current network node address and configuration parameters using the Honeywell Engineering Workstation or equivalent configuration tool. If the system supports hot-swap on the installed backplane revision, follow the Honeywell TDC 3000 hardware maintenance manual procedure for live card replacement; otherwise, coordinate a controlled shutdown of the affected LCN segment during a planned maintenance window.
After installing the 10008/2/U spare, allow the module to complete its self-diagnostic boot sequence before re-enabling network traffic. Verify that the module appears on the LCN node list at the operator station and that all downstream UCN nodes and Process Manager cards resume normal data exchange. Perform a functional check of all I/O points associated with the restored communication path before returning the process unit to automatic control.
For facilities managing aging TDC 3000 infrastructure, SMARTNEXMSK recommends maintaining a minimum of one 10008/2/U spare per LCN segment in your on-site inventory. This strategy, combined with annual control cabinet inspections and proactive replacement of modules showing marginal diagnostic readings, is the most cost-effective approach to extending the operational life of legacy DCS systems without a full platform migration.
Spare Parts Support FAQ
Q1: Is the 10008/2/U you supply compatible with all TDC 3000 LCN/UCN revisions?
A: The 10008/2/U is designed for the Honeywell TDC 3000 platform. We verify hardware revision and firmware version against your system’s requirements before shipment. Please provide your current system revision or existing module label information when placing your order so our technical team can confirm compatibility.
Q2: How is the module tested before shipment?
A: Each unit undergoes a functional communication test that simulates LCN/UCN network load conditions. Signal integrity, connector condition, and onboard diagnostics are verified. A test report is available upon request. All units are shipped with anti-static packaging and are covered by a 12-month warranty from the date of shipment.
Q3: What is your recommended inventory strategy for TDC 3000 spare parts?
A: For continuous-process facilities, we recommend maintaining at least one 10008/2/U per LCN segment as a cold spare, with a review cycle aligned to your annual turnaround or planned shutdown schedule. Given the end-of-production status of many TDC 3000 components, securing spares proactively is strongly advised to avoid extended lead times during emergency situations.
Q4: Can you support long-term supply agreements for TDC 3000 modules?
A: Yes. SMARTNEXMSK offers long-term supply agreements for critical DCS spare parts, including the 10008/2/U and related TDC 3000 components. Contact our sales team to discuss volume pricing, reserved inventory arrangements, and scheduled delivery programs tailored to your maintenance planning cycle.
