Honeywell 10303/1/1 Spare for TDC 3000 Automation

Honeywell 10303/1/1 Spare for TDC 3000 Automation: Spare Parts Replacement & Downtime Risk Control

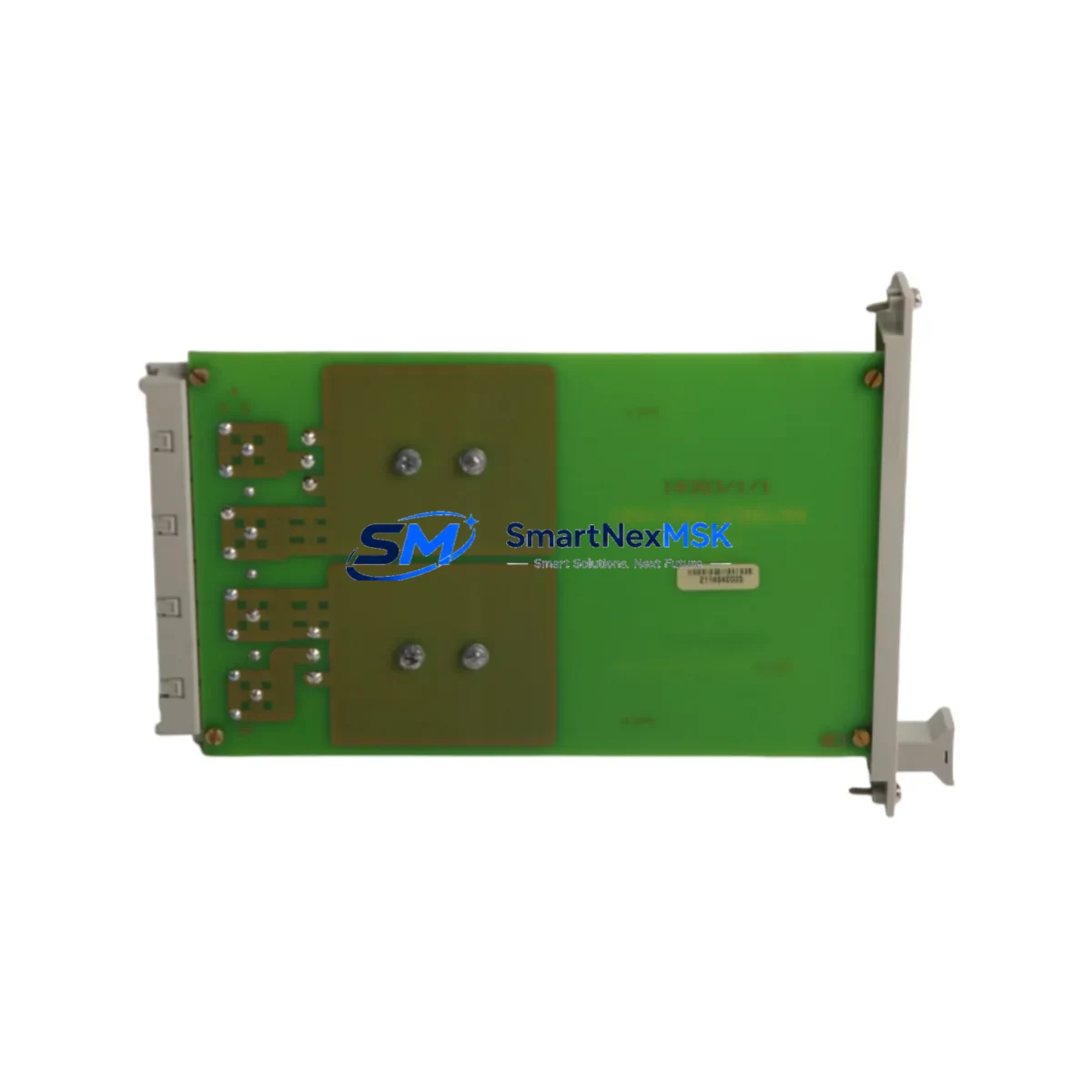

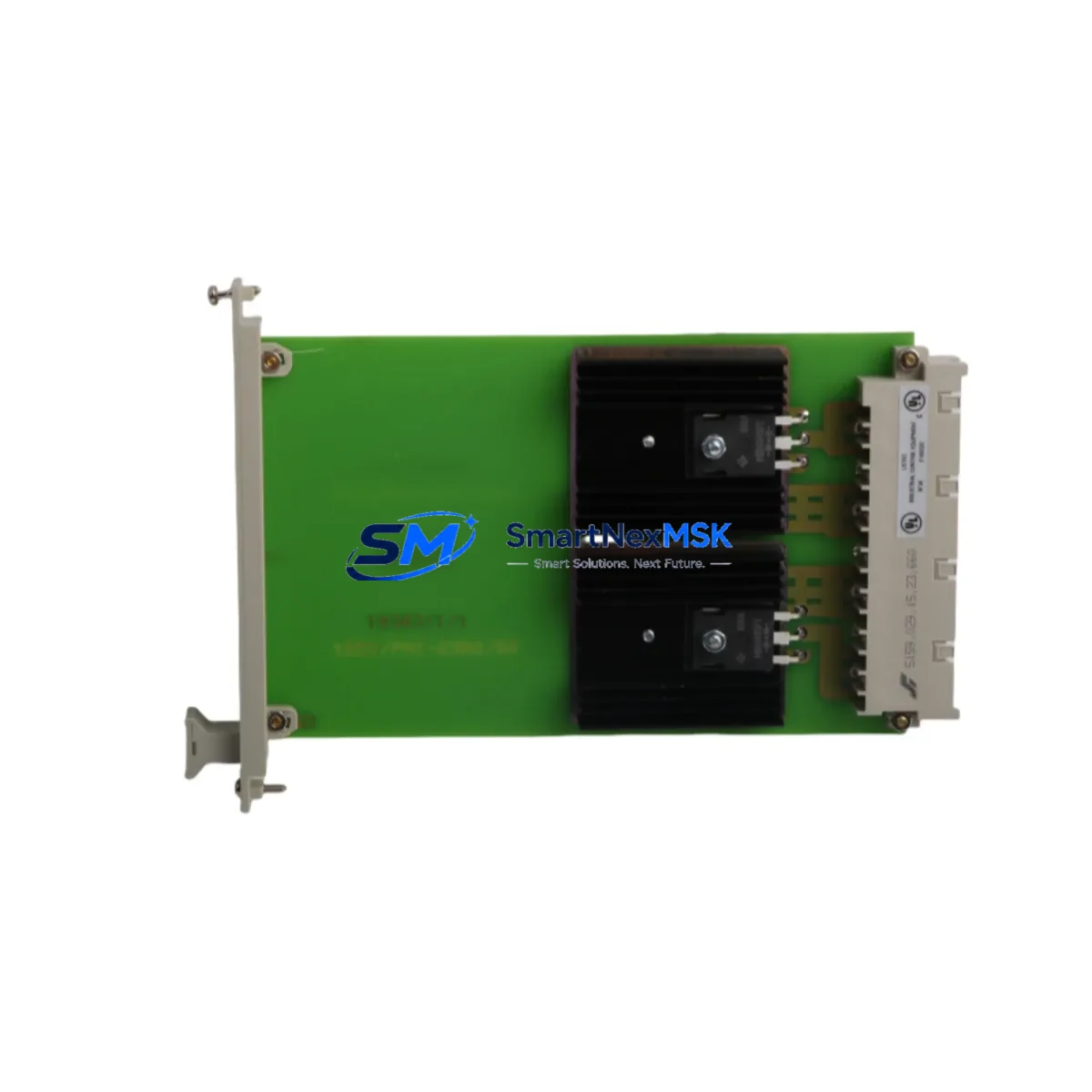

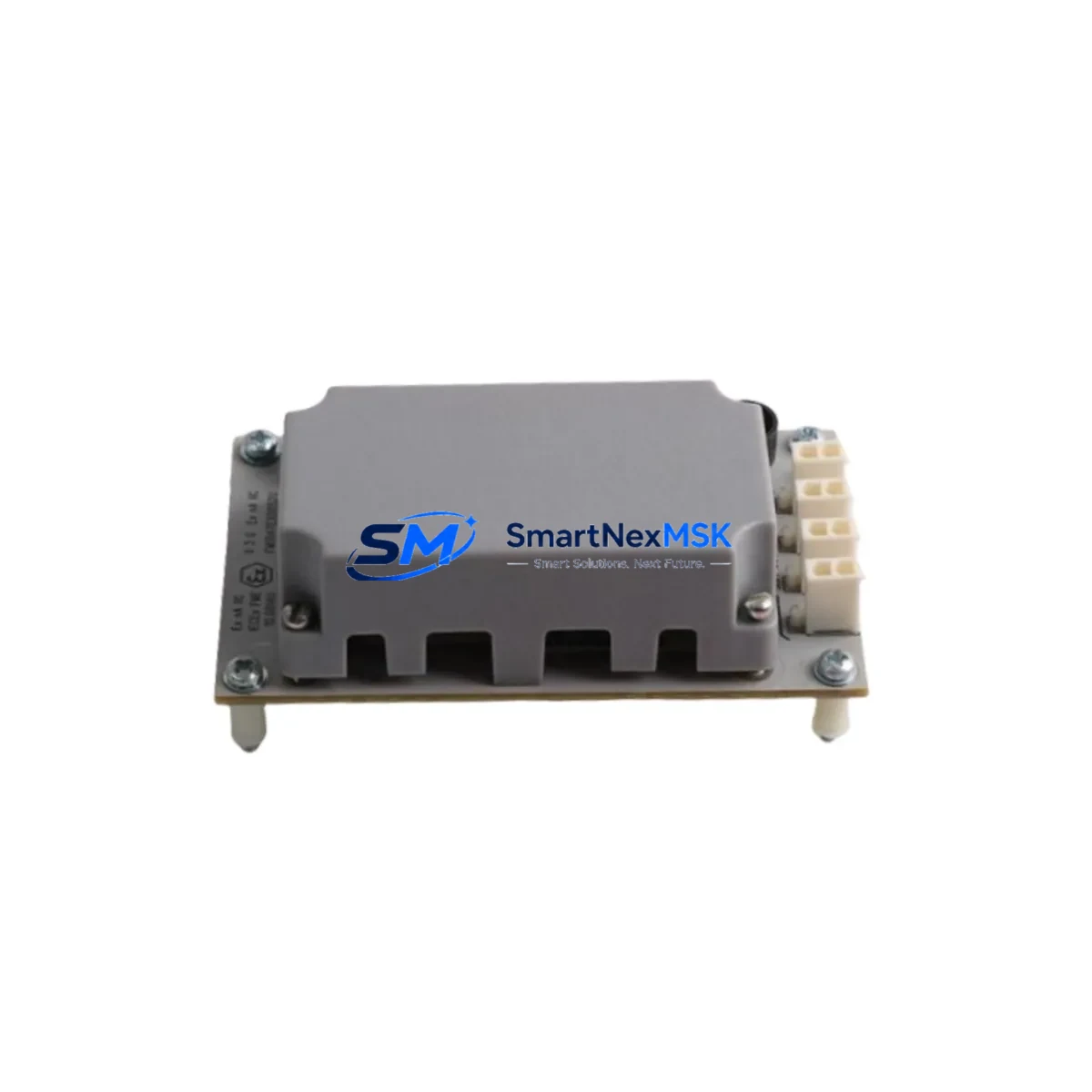

The Honeywell 10303/1/1 is an original DCS power supply module engineered for TDC 3000 TotalPlant control systems — one of the most widely deployed distributed control architectures in refining, petrochemical, and continuous process industries. As a maintenance-ready spare, the 10303/1/1 addresses one of the most critical failure points in any DCS cabinet: power integrity. A degraded or failed power supply module can cascade into I/O faults, communication dropouts, and unplanned process shutdowns. Stocking a verified replacement is not optional — it is a core element of any responsible maintenance strategy for aging TDC 3000 infrastructure.

Each unit supplied by SMARTNEXMSK is sourced from original Honeywell manufacturing channels, individually tested prior to dispatch, and backed by a 12-month warranty. Our industrial spare parts support is designed for maintenance engineers and procurement teams who need fast, reliable access to hard-to-source DCS components — with full traceability and no compromise on compatibility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a TDC 3000 power supply module such as the 10303/1/1 is flagged for replacement during a planned shutdown or emergency callout, experienced maintenance engineers know that the power supply is rarely the only component requiring attention. A thorough cabinet inspection at the time of replacement significantly reduces the risk of repeat failures and secondary downtime events.

Begin with the backplane and card cage: inspect for corrosion, loose card connectors, and signs of thermal stress on adjacent slots. The Honeywell HPM (High-Performance Process Manager) and associated I/O link modules should be checked for firmware integrity and communication health — a degraded power rail often causes intermittent I/O faults that persist even after the supply is replaced if the I/O FTA (Field Termination Assembly) connections are not re-seated. Inspect Honeywell 10305 series I/O modules and their associated terminal blocks for oxidation and loose wiring.

On the power distribution side, verify the AC input fuses and circuit breakers feeding the cabinet — a blown fuse or tripped breaker upstream is frequently the root cause of power supply failure rather than the module itself. Check the UPS (Uninterruptible Power Supply) battery condition and transfer relay if the cabinet is UPS-backed; a weak battery can cause voltage sags that stress the 10303/1/1 during load transients.

For communication integrity, inspect the Honeywell NIM (Network Interface Module) and LCN (Local Control Network) coaxial cable terminations. Power instability is a known trigger for LCN communication errors that can be misdiagnosed as network faults. Similarly, the Honeywell AM (Application Module) should be checked for alarm log anomalies that correlate with the power event timeline.

Signal integrity components also warrant inspection: signal isolators and loop-powered transmitter barriers in the same cabinet may have been exposed to voltage transients during the failure event. Honeywell 10306 series analog input modules and their associated marshalling panels should be verified for correct loop current readings post-replacement. Finally, confirm that the HMI (Human-Machine Interface) — whether a Honeywell GUS (Global User Station) or a modern OPC-connected workstation — is receiving clean data from all process points before returning the system to automatic control.

Proactive spare parts stocking for TDC 3000 systems should include at minimum: one power supply module (10303/1/1 or equivalent), one spare HPM controller card, a set of I/O module spares matched to the critical loops, and a replacement NIM. This inventory posture ensures that any single-point failure can be resolved within one shift without waiting for international freight.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the 10303/1/1 is the correct power supply variant for your specific TDC 3000 cabinet revision. Cross-reference the cabinet wiring diagram and the existing module label. SMARTNEXMSK provides compatibility confirmation prior to shipment upon request.

Step 2 — Safe isolation: Follow your site LOTO (Lockout/Tagout) procedure. Switch the cabinet to the redundant power supply if a redundant unit is fitted. Do not remove the 10303/1/1 under live load unless the system architecture explicitly supports hot-swap for this slot.

Step 3 — Module extraction and inspection: Remove the failed module and inspect the slot for debris, burn marks, or connector damage. Clean the backplane connector with approved contact cleaner before inserting the replacement.

Step 4 — Replacement insertion and power-up: Insert the 10303/1/1 replacement firmly into the slot. Restore AC input power and monitor the output LED indicators. Verify DC output voltage at the backplane test points before restoring I/O module power.

Step 5 — System validation: Confirm all I/O modules return to normal scan status on the Honeywell console. Check for any latched alarms or communication faults on the LCN. Run a loop check on critical analog inputs before releasing the system to operations.

This workflow minimizes mean time to recovery (MTTR) and ensures the replacement does not introduce new faults. SMARTNEXMSK units are pre-tested to Honeywell functional specifications, reducing the risk of a DOA (Dead on Arrival) scenario during an emergency replacement.

Spare Parts Support FAQ

Q1: Is the 10303/1/1 supplied by SMARTNEXMSK an original Honeywell module or a third-party equivalent?
All units are original Honeywell manufacture — not clones, not rebranded equivalents. We source from verified industrial surplus and authorized distribution channels. Each module is individually tested for output voltage stability, ripple, and load regulation before shipment. A test report is available upon request.

Q2: How do I confirm compatibility with my specific TDC 3000 cabinet revision before ordering?
Send us your cabinet model number, existing module label photograph, and wiring diagram reference. Our technical team will confirm compatibility within one business day. We do not ship without compatibility confirmation for power supply modules, as incorrect variants can damage backplane components.

Q3: What does the 12-month warranty cover, and what is the replacement process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions — correct input voltage, proper installation, and operating environment within Honeywell’s published specifications. If a unit fails within the warranty period, contact sales@smartnexmsk.com with your order reference and a fault description. We will arrange a replacement shipment or full refund within 5 business days of fault confirmation.

Q4: Can SMARTNEXMSK support long-term supply for TDC 3000 spare parts beyond a single order?
Yes. We maintain ongoing inventory of TDC 3000 power supply modules, I/O cards, controller modules, and communication components. For sites with multiple TDC 3000 cabinets or planned multi-year maintenance contracts, we offer reserved stock agreements and priority allocation. Contact our team to discuss a tailored spare parts supply plan for your facility.
