Honeywell 51198651-100 SPS5785 Retrofit Power Supply TDC 3000

Honeywell 51198651-100 SPS5785 Retrofit Power Supply TDC 3000: Compatible Modernization & Smooth System Upgrade

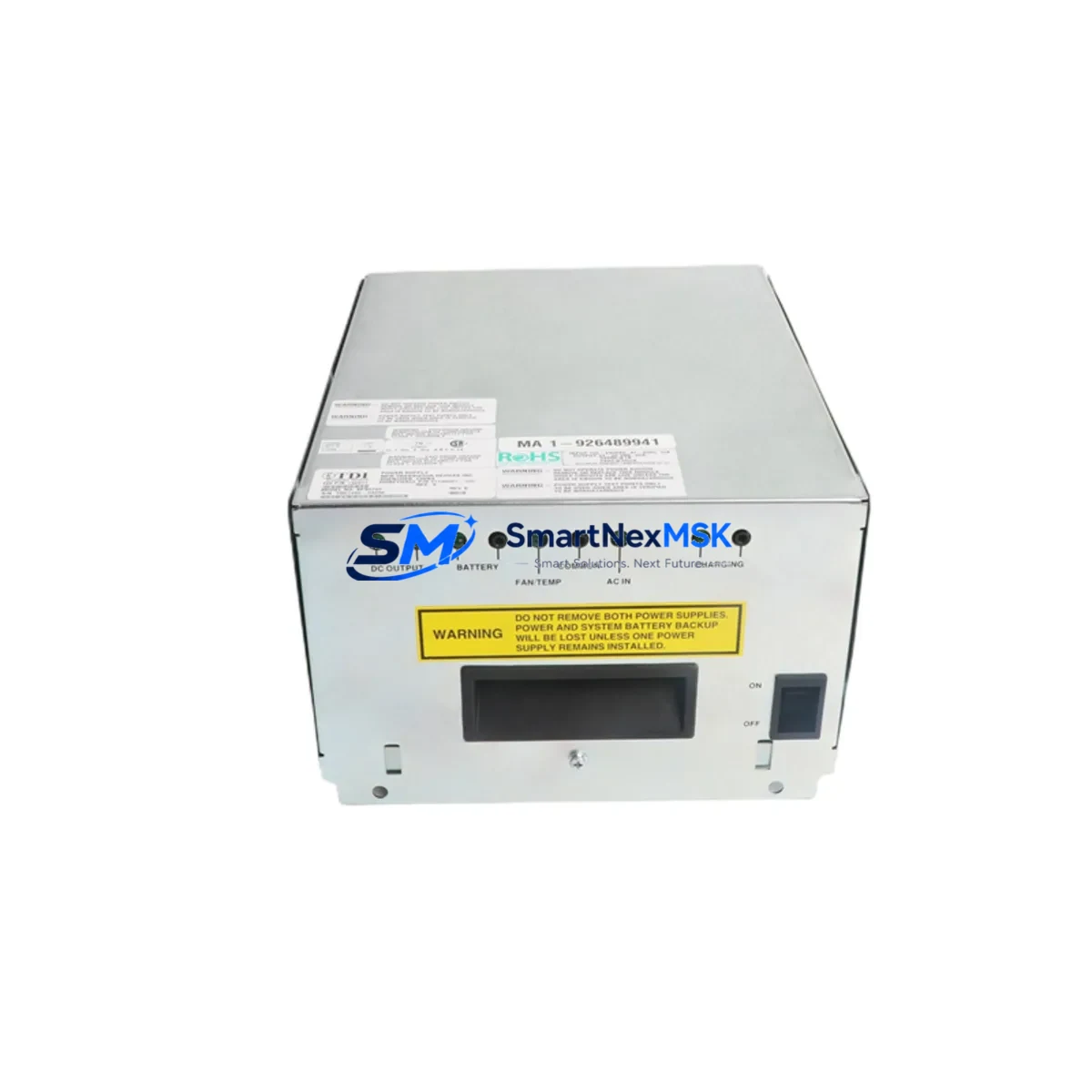

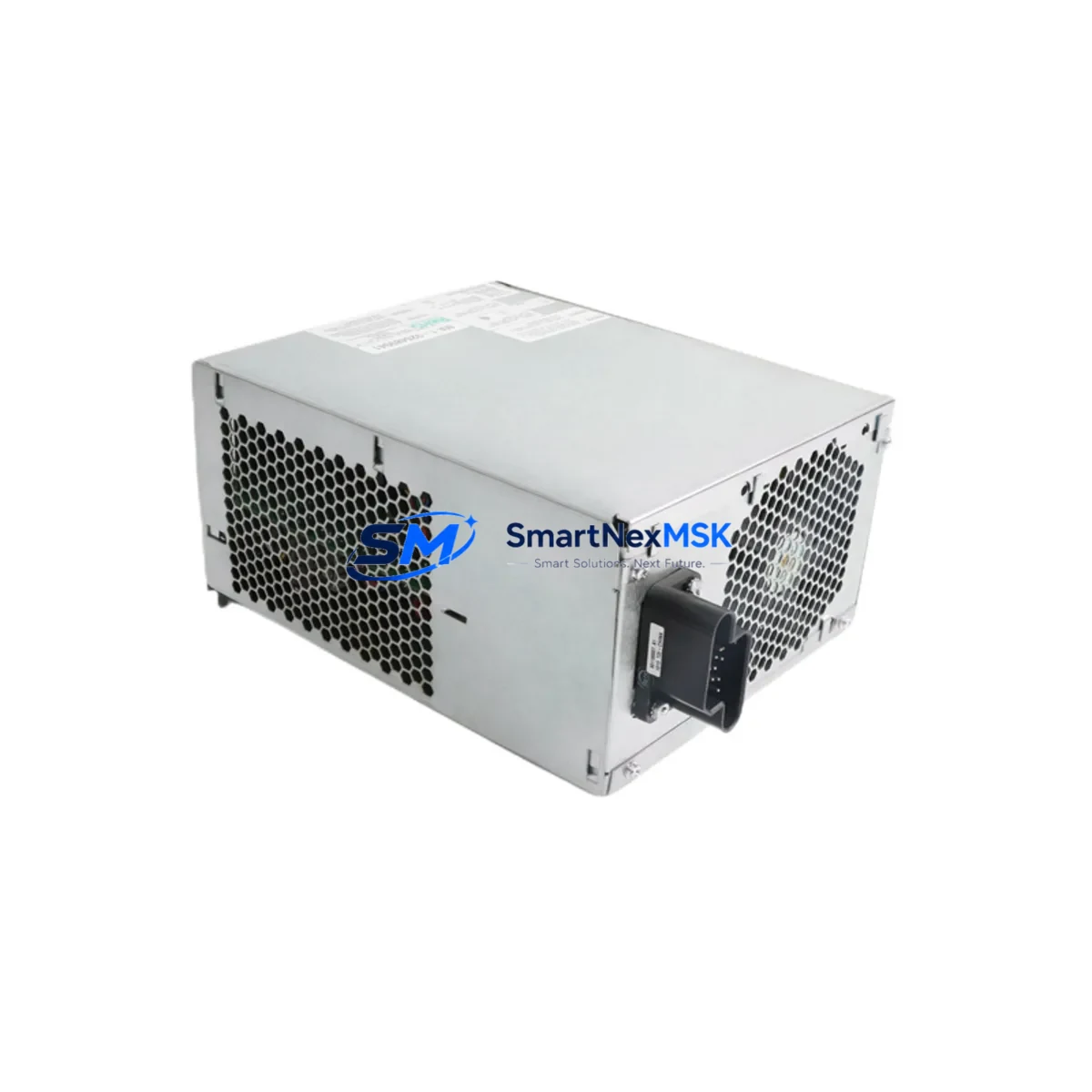

The Honeywell 51198651-100 SPS5785 is a high-reliability DCS power supply module engineered for retrofit deployment in legacy TDC 3000 and Experion PKS distributed control systems. As original Honeywell TDC 3000 hardware reaches end-of-life and spare parts become increasingly scarce, the 51198651-100 SPS5785 provides a verified drop-in replacement path that preserves existing cabinet architecture, minimizes re-engineering effort, and restores full power distribution integrity to the control backplane.

This module is purpose-built for industrial environments where control continuity is non-negotiable. Whether you are replacing a failed SPS5785 unit in an active production line, upgrading aging power infrastructure ahead of a planned turnaround, or consolidating spare inventory for a multi-site TDC 3000 fleet, the 51198651-100 delivers the electrical performance, form factor compatibility, and regulatory compliance required for mission-critical DCS applications.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 51198651-100 SPS5785 into an existing TDC 3000 installation requires systematic pre-replacement verification across several interdependent subsystems. Engineers should begin by auditing the card file chassis to confirm available slot positions and backplane rail integrity. The SPS5785 occupies a dedicated power slot within the standard TDC 3000 card file; confirm that the chassis model — whether a standard 15-slot or extended card file — is compatible with the module’s physical dimensions and connector pinout.

Terminal wiring must be verified against the original as-built drawings. AC input connections, earth bonding, and output distribution rails should be inspected for corrosion, loose terminations, or insulation degradation before the new module is energized. Where the original installation used a Honeywell 51198653-100 redundant power supply configuration, the replacement SPS5785 must be validated for load-sharing behavior with the secondary unit to prevent nuisance trips or unbalanced current distribution.

For sites running Honeywell HPM (High-Performance Process Manager) controllers or AM (Application Module) nodes on the same LCN segment, power budget recalculation is essential. The HPM and associated I/O link modules — including Honeywell FTA (Field Termination Assembly) panels and 51304485-150 series I/O modules — draw regulated DC from the card file power bus. Any degradation in supply voltage or current capacity will manifest as intermittent I/O faults or HPM watchdog resets before a hard failure occurs.

Sites that have partially migrated to Experion PKS should also evaluate the interaction between legacy TDC 3000 nodes and the Experion server infrastructure. The C300 Controller and associated IOTA (I/O Termination Assembly) modules in the Experion environment operate on a separate power domain, but LCN gateway nodes — such as the Honeywell LCN Interface Module — share the same physical cabinet space and may be affected by power supply instability in adjacent card files. Confirming stable power delivery from the 51198651-100 SPS5785 is therefore a prerequisite for reliable LCN-to-Experion data bridging.

For facilities using Honeywell Data Hiway or UCN-connected Remote Multiplexers (RMUs), the power supply replacement should be coordinated with a review of the UCN coaxial cable termination and the RMU power conditioning modules. UCN communication integrity is sensitive to ground loop variations that can be introduced during power module changeouts if proper isolation procedures are not followed.

Programming compatibility is not affected by the power supply replacement itself, as the SPS5785 does not store control logic. However, the replacement procedure should be documented in the site’s Management of Change (MOC) system, and a full functional test of all HPM control loops, PID blocks, and sequence logic should be performed post-installation using the Honeywell Engineering Console or Universal Station (US) to confirm that no process variables were disrupted during the power interruption.

Downtime Control During System Migration

Minimizing unplanned downtime during a TDC 3000 power supply replacement requires a structured hot-swap or planned outage strategy. For systems with redundant SPS5785 configurations, the failed or degraded unit can often be replaced while the secondary supply maintains backplane power — provided the card file supports live insertion and the site’s safety procedures permit energized work within the control cabinet.

Where a single-supply configuration is in use, the replacement window should be coordinated with production scheduling to align with the shortest available maintenance interval. Pre-staging the replacement 51198651-100 SPS5785 module, pre-cutting and labeling all terminal wiring, and pre-configuring the Honeywell Engineering Console checkpoint save will reduce the active outage window to the minimum required for physical module swap and power restoration.

Before de-energizing the card file, operators should place all HPM control loops in manual mode at the Universal Station or Operator Console to prevent process upsets from uncontrolled output changes during the power interruption. After the new SPS5785 is installed and power is restored, a systematic loop-by-loop return-to-auto sequence should be executed, with process variable trending monitored at the Operator Console to confirm stable control response before full automatic operation is resumed.

All replacement activities should be logged with timestamp, technician identification, and post-installation test results. The 12-month warranty on the 51198651-100 SPS5785 covers functional failure under normal operating conditions and provides a documented quality assurance baseline for site maintenance records and regulatory compliance audits.

Retrofit Support FAQ

Q1: Is the 51198651-100 SPS5785 a direct drop-in replacement for the original Honeywell TDC 3000 power supply?
Yes. The 51198651-100 SPS5785 is designed as a form-fit-function replacement for the original SPS5785 power supply module used in TDC 3000 card file chassis. No mechanical modification or adapter hardware is required. Verify AC input voltage rating and output current capacity against your site’s electrical specifications before installation.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, confirm backplane connector seating, verify terminal wiring polarity against as-built drawings, and check module status indicators for normal operation. Use the Honeywell Engineering Console to confirm that all HPM nodes and I/O modules on the affected card file are reporting healthy status. Perform a full functional test of all control loops before returning the system to automatic operation.

Q3: Can this module be used in an Experion PKS environment alongside legacy TDC 3000 hardware?
Yes. The SPS5785 power supply is compatible with mixed TDC 3000 and Experion PKS installations where legacy card files remain in service. It supports the standard TDC 3000 backplane power architecture used by HPM controllers, LCN interface modules, and associated I/O subsystems that continue to operate within an Experion-integrated control network.

Q4: What does the 12-month warranty cover, and how is it processed?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing prior to dispatch. In the event of a warranty claim, contact our technical support team with the order reference and a description of the observed fault. Replacement or repair will be coordinated with minimum lead time to support your maintenance schedule.
