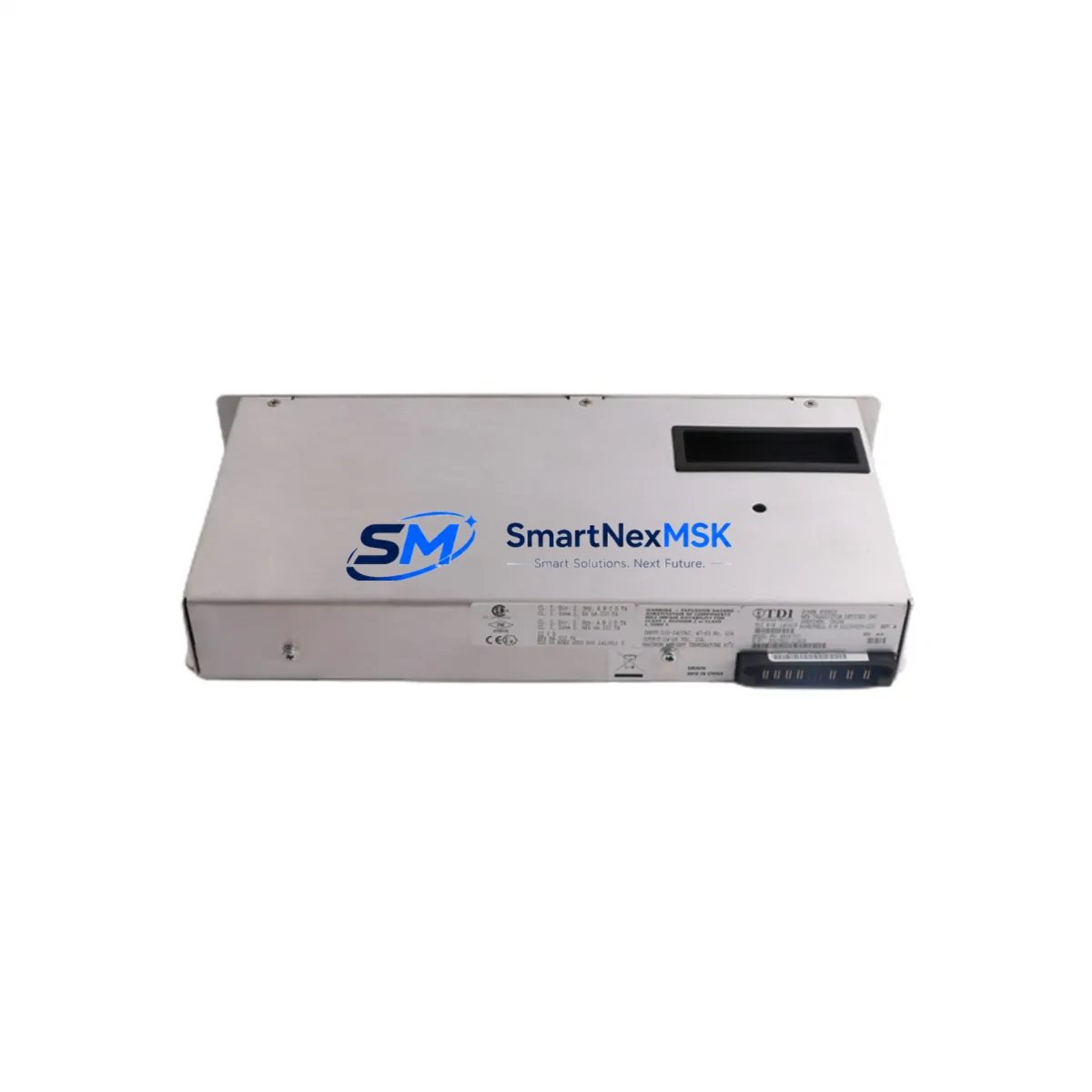

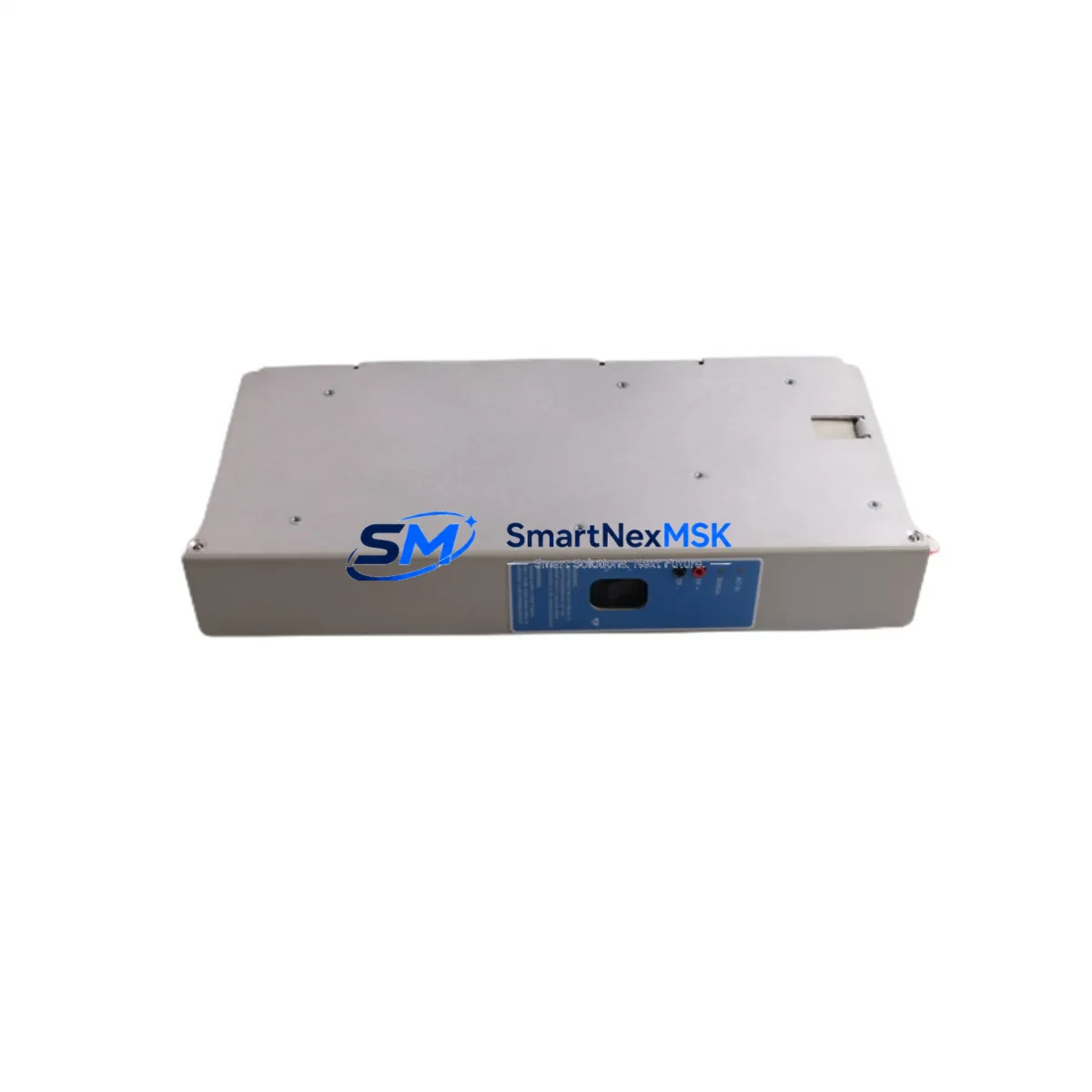

Honeywell 51199929-100 Retrofit-Ready Power Supply for C300 Control Systems
The Honeywell 51199929-100 is a DCS power supply module purpose-built for the Experion PKS C300 controller series. As legacy Honeywell TDC 3000 and PlantScape systems reach end-of-life, plant engineers and automation integrators increasingly rely on the 51199929-100 as a verified, drop-in replacement that preserves existing wiring infrastructure, backplane connections, and control logic without requiring a full system redesign. Whether you are upgrading a single control cabinet or executing a phased migration across multiple process units, this module delivers the power stability and compatibility that C300-based architectures demand.
Sourced directly from authorized distribution channels and rigorously tested prior to shipment, each 51199929-100 unit is backed by a 12-month warranty and is available from stock for fast global dispatch. Our inventory is maintained specifically to support emergency replacements, planned shutdowns, and long-cycle retrofit projects where lead time from the OEM is no longer viable.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | Honeywell Experion PKS — C300 Controller Series |
| Replaces / Supersedes | Legacy TDC 3000 power supply modules; PlantScape equivalent PSU assemblies |
| Backplane Interface | Standard C300 chassis backplane connector — no adapter required |
| Installation Requirement | DIN-rail or chassis slot mount; existing terminal wiring retained |
| Communication Compatibility | Compatible with FTE (Fault Tolerant Ethernet) and ControlNet topologies used in C300 environments |
| Replacement Recommendation | Direct swap; verify firmware revision on C300 controller before hot-swap in redundant configurations |
| Commissioning Notes | Confirm module address assignment via Experion Configuration Studio; validate I/O health status post-insertion |
| Warranty | 12 months from date of shipment — covers manufacturing defects and functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
A successful retrofit begins well before the module arrives on-site. When integrating the 51199929-100 into an existing C300 control cabinet, engineers must first audit the power budget of the chassis. The C300 backplane distributes 24 VDC to all installed modules, and adding or replacing a power supply requires confirming that the aggregate draw from co-installed components — including the C300 controller card itself, any CIOM-A or IOTA termination assemblies, and connected I/O link modules — does not exceed the rated output of the new PSU.
Terminal wiring is typically the most time-sensitive step. The 51199929-100 uses the same terminal block layout as its predecessors, which means field cables from junction boxes and marshalling panels can be reconnected without re-labeling or re-routing. However, technicians should inspect terminal torque values and verify that cable ferrules meet current IEC 60947-7-1 standards, particularly in installations that have been in service for more than ten years.
Backplane slot assignment must be confirmed against the existing rack layout. In multi-chassis configurations using the C300 EUCN (Enhanced Universal Control Network), the module address is set via Experion Configuration Studio and must match the slot position physically occupied in the rack. Mismatched addressing is a common commissioning error that can cause the C300 controller to flag the module as unresponsive during the initial power-on sequence.
For sites running redundant power supply configurations, the 51199929-100 supports hot-standby operation when paired with a second unit in the adjacent slot. Before removing the failed unit, confirm that the standby PSU has assumed load by checking the Experion Station alarm summary and the local LED status indicators on the chassis front panel. Only proceed with extraction once load transfer is confirmed to avoid a momentary power interruption to the C300 controller and its associated HART or FOUNDATION Fieldbus I/O modules.
Program compatibility is not affected by a power supply replacement — the C300 controller retains its control strategy in non-volatile memory. However, if the retrofit is part of a broader migration from TDC 3000 to Experion PKS, the associated HMI displays built in GUS (Global User Station) will need to be re-mapped to Experion Operator Station graphics. Communication links using the Hiway Gateway or LCN (Local Control Network) protocol must be migrated to FTE before decommissioning legacy hardware. In these scenarios, the 51199929-100 is typically installed as part of a phased cutover that also involves replacing the AM (Application Module), HPM (High-Performance Process Manager), and associated I/O link cables.
For I/O expansion projects, the 51199929-100 is commonly deployed alongside additional Series C I/O modules — including AI (Analog Input), AO (Analog Output), DI (Digital Input), and DO (Digital Output) cards — mounted in extended C300 chassis. Each additional I/O chassis requires its own power supply, and the 51199929-100 is the recommended unit for new chassis additions within the Experion PKS architecture.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational constraint in any DCS retrofit. For the 51199929-100 replacement, the recommended approach is a pre-staged swap: the replacement module is bench-tested, addressed, and confirmed functional before the maintenance window opens. This eliminates the risk of receiving a misconfigured or damaged unit during a live outage.
Where process conditions permit, the replacement should be executed during a scheduled turnaround or planned shutdown. If an emergency replacement is required during live production, the redundant PSU configuration described above allows the swap to be completed without interrupting the C300 controller’s scan cycle. The controller continues executing its control strategy — including PID loops, sequence logic, and interlock functions — without interruption while the failed module is extracted and the replacement is seated.
After insertion, the Experion PKS system performs an automatic module health check. The operator station will display a “Module Inserted” event in the alarm journal, followed by a status transition from “Faulted” to “OK” within approximately 30 seconds under normal conditions. Field technicians should monitor the local chassis LEDs and the Experion Station process graphic simultaneously to confirm that all downstream I/O points return to their expected states before releasing the unit back to automatic control.
For migrations involving multiple cabinets or process areas, a phased cutover schedule — typically organized by process unit or control loop criticality — allows the engineering team to validate each replaced module before proceeding to the next. This approach preserves control continuity across the plant and limits the blast radius of any individual commissioning issue.
All units shipped by SMARTNEXMSK are pre-tested under load conditions and include a shipment test report. The 12-month warranty covers the full post-installation period, providing assurance for both emergency replacements and long-cycle retrofit programs.
Retrofit Support FAQ
Q: Is the 51199929-100 a direct drop-in replacement for the original Honeywell C300 power supply?
A: Yes. The 51199929-100 uses the same backplane connector, terminal block layout, and chassis slot dimensions as the original unit. No mechanical adapters or wiring modifications are required for a standard replacement in an existing C300 chassis.
Q: What commissioning steps are required after installing the 51199929-100?
A: After seating the module, verify the slot address in Experion Configuration Studio matches the physical rack position. Monitor the Experion Station alarm summary for the “Module OK” status event. For redundant PSU configurations, confirm load transfer has completed before releasing to automatic operation. No firmware upload is required for a power supply replacement.
Q: Can the 51199929-100 be used in a TDC 3000 to Experion PKS migration project?
A: The 51199929-100 is designed for the Experion PKS C300 platform. In a TDC 3000 migration, it is installed as part of the new Experion chassis infrastructure, not as a direct replacement for TDC 3000 PSU hardware. The migration typically involves replacing the HPM, AM, and associated I/O link modules alongside the new C300 chassis and power supplies.
Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. It includes free replacement or repair of the defective unit. Units that show evidence of physical damage, incorrect installation voltage, or unauthorized modification are excluded from warranty coverage. Contact sales@smartnexmsk.com to initiate a warranty claim.
